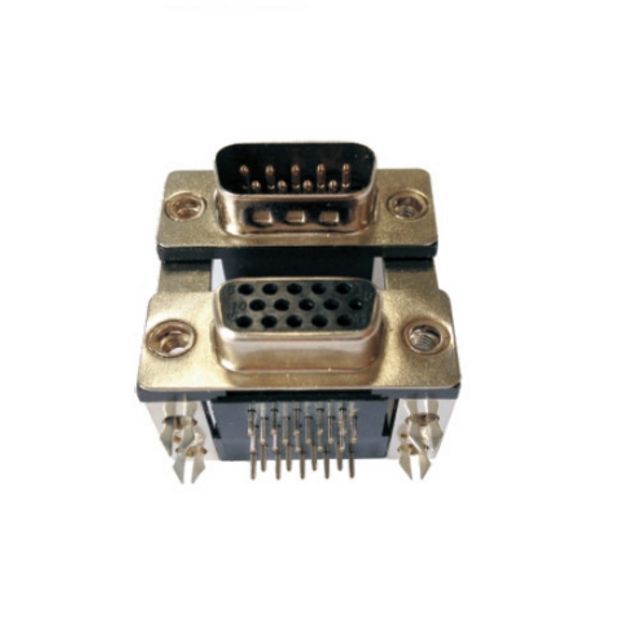

Lycn Dual Port D-Sub Connector Right Angle DIP Type DR Male + HDR Female DR Female + HDR Female 9 to 15 15 to9 Gold Plated D SUB

PRODUCT DETAIL
Type:DR Male + HDR Female/ DR Female + HDR Female,D-Subminiature Connector;Shell Material:PBT;
Row spacing:15.88mm/ 19.05mm/ 22.86mm;Mounting Type:Plug to Receptacle/ Plug to Plug;
Brand:Lycn - ODM/ OEM;Description:Dual Port D-Sub;
Supply Ability:10000000 Pieces per Month;Application:PCB, VGA, Audio, Video;
Contact Configuration:9 to 15; 15 to 9;Number of Rows:2 rows;
Region Utilized:Global;Supplier Type:Original manufacturer,ODM;
Connector Usage:Connection;Port:FOB shenzhen or FOB HK;
Place of Origin:Guangdong, China;Current Rating (Amps):3.0AMP;
D/C:52XXXXAX;Packaging Detail:Carton / Container / Tray / Reel;
Number of Positions:9pin/ 15pin;Approved Countries:China/ America/ Europe;
Model Number:52XX;Payment Terms:T/T;
Color:Black;Specifications:DR Male + HDR Female/ DR Female + HDR Female;
Material:PBT;Pin or Socket:Coax, Pin Center, Assembly;
Contact Plating:Selective gold on surface contact area;Gender:Male/ Female;
Product name:Dual port D-sub;
Product Description
Specification
item
value
Current Rating
3.0A
Contact Resistance
20mΩ Max
Insulation Resistance
1000mΩ Min
Withstand Voltage
500 VAC for one minute
Operation Temperature
-40℃ to +105℃
Materials:
Contact Material
Phosphor Bronze
Contact Plating
Selective gold on surface contact area
Insulator
Polyester (UL94V-0)
Standard
PBT
Products Application
Wide Appliction:All of our prodcuts can be widely used in the most of electronic equipments:
Digital Camera, Mobile phone, Computer Mainframe, LED display, Household Electric Appliances, etc.
Related products
Packing & Delivery
We will choose the most suitatble packing method to protect products well. Customers also could customize their packages.
1. DHL/TNT/FedEx/ UPS/ SF for the samples.
2. The customer can appoint a freight forwarder, or we could recommend reliable forwarder as well.
Company Profile
Shen Zhen Lycn Electronics Co., Ltd. is professional in the R&D, production and marketing of connectors for communication, computers, network, relays, instruments and electronic products. Our company possesses advanced world-class processing and testing equipment from Switzerland, the US and Japan. We specialize in development and production of highly precise connectors. Main products are PIN connectors, round hole sockets, LCD sockets, PLCC sockets, PGA sockets, bull corners, coaxial connectors, round pin D-Sub connectors, USB connectors, pin headers and female headers. With high quality materials and advanced equipment, we ensure that we can provide high quality products to our customer with competitive prices and timely delivery. We are able to respond quickly to dynamic market and constantly introduce new products. At the same time, we are able to provide customized total connector solutions. With the trend of advance, precision and specialization of electronic products in the world, we constantly adhere to ISO9001:2008 quality system to assure our product quality. We hope that we will be pioneer of technology as well as of marketing. We hope that we will become customers' partner and first choice. Promoting customer value through joint efforts is our prior task, which is also our behavioral principle. Therefore, we will keep consolidating our strength to comprehensively satisfy our customers and to develop our business in win-win situation with our customers.
Factory Workshop
Quality System
In order to ensure product quality and satisfy customer demand, LYCN has a comprehensive quality management system. We strictly abide by the ISO9001:2000 quality management system. During 2006, our company got the ISO9001:2000 quality system certificate from the world leading certification organization TUA. Meanwhile, our products also got the UL & EURO CE certificate, and all products had passed the RoHS testing of the SGS.
Recommend Products
FAQ
1. who are we?
We are based in Guangdong, China, start from 2004,sell to Southern Europe(12.50%),Western Europe(12.50%),Eastern Asia(12.50%),Mid East(12.50%),Southeast Asia(12.50%),Eastern Europe(12.50%),South America(12.50%),North America(12.50%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Connector,Cable,Machinery Pins

4. why should you buy from us not from other suppliers?
high quality and competitive price

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Western Union;
Language Spoken:English,Chinese

6.What is your MOQ?
The Min. order quantity is 1,000pcs, the quantity depend on the item that customers need

7. How about the lead time?
It would take 4~5 days for the samples, mass production will take 2~3weeks, it depends on the items and the quantity that customers order. If customers need items urgently, we will try our best to meet your lead time.

8. How about the terms of payment?
Normally, T/T in Advance or before shipment. Payment can negotiated when we get a stable relationship.

9. How do you make our business long-term and good relationship?

We provide high quality products & excellent service to all of our customers and we have rich experience.
