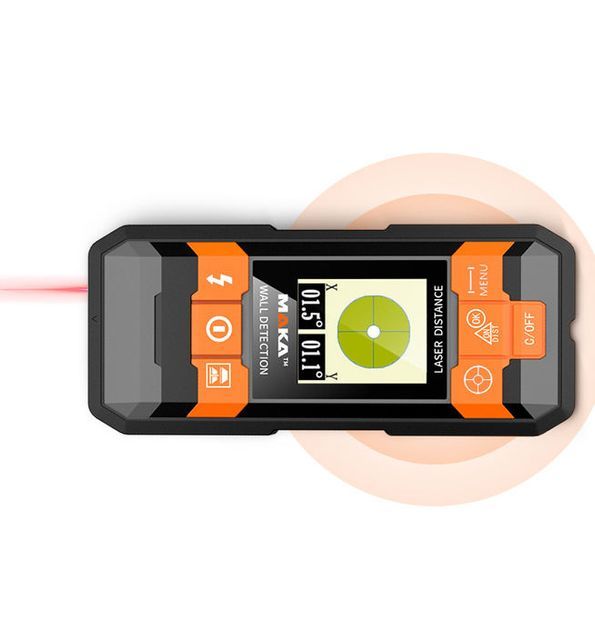

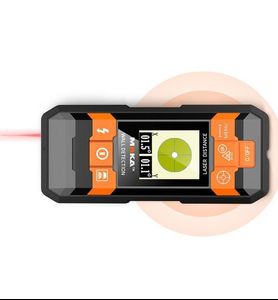

MAKA Multifunctional Scanning Sensor Laser Rangefinder Stud Finder with Laser Level

Price:$42.00 / 50 - 99 pieces
$39.50 / 100 - 499 pieces
$32.50 / >=500 pieces
Min. Order:50 pieces
Supplier:Jinhua Maka Technology Co., Ltd.
Region:Zhejiang, China
Contact:Ms Lizzy Xu

PRODUCT DETAIL

Customization support:	OEM、ODM	payment terms:	L/C, T/T
Function one:	Measuring tools	application:	Wood, drywall/plaster, drywall, wooden beams, live cables, non-ferrous metals, ferrous metals
Function:	wall detector	size:	1356025mm
Function 2:	Wood detection	grade:	level 2
Package preview:		port:	Ningbo or Shanghai
Packaging Details:	1 piece/bag 1 piece/color box	Warranty:	1 year
Main selling points:	Small and portable	Supply capacity:	50000 pieces per month
Origin:	Zhejiang, China	Function 3:	Laser level
product name:	Maca

TUV certified factory

Xu Lizi

Email: [email protected]
WeChat: 15258981196

Jack Jiang
E-mail: [email protected]
WeChat: jjl7075

● Open and extensive cooperation

● All of our products are patented

● The annual output is more than 1 million pieces, and the top quality is guaranteed.

● Established in 2011, leading the design and manufacture of laser rangefinders, wall scanners, laser levels and other products.

● Has rich export experience, exported to the United States, Japan, South Korea, Europe, Russia, Australia and other parts of the world, has a complete
FCC/ETL/CE/EMC/Rohs certificate, BSCI, IS09001 management system and other certifications.

● Establish good long-term cooperative relationship with many global giant companies

● Heavy policy support for VIP customers

feature:

a. This wall detector includes laser 40m distance measuring, laser level and angle meter functions.

b. The first laser distance measuring and wall detection multi-function measuring instrument on the market, one is equivalent to two,
Fully functional and easy to carry.

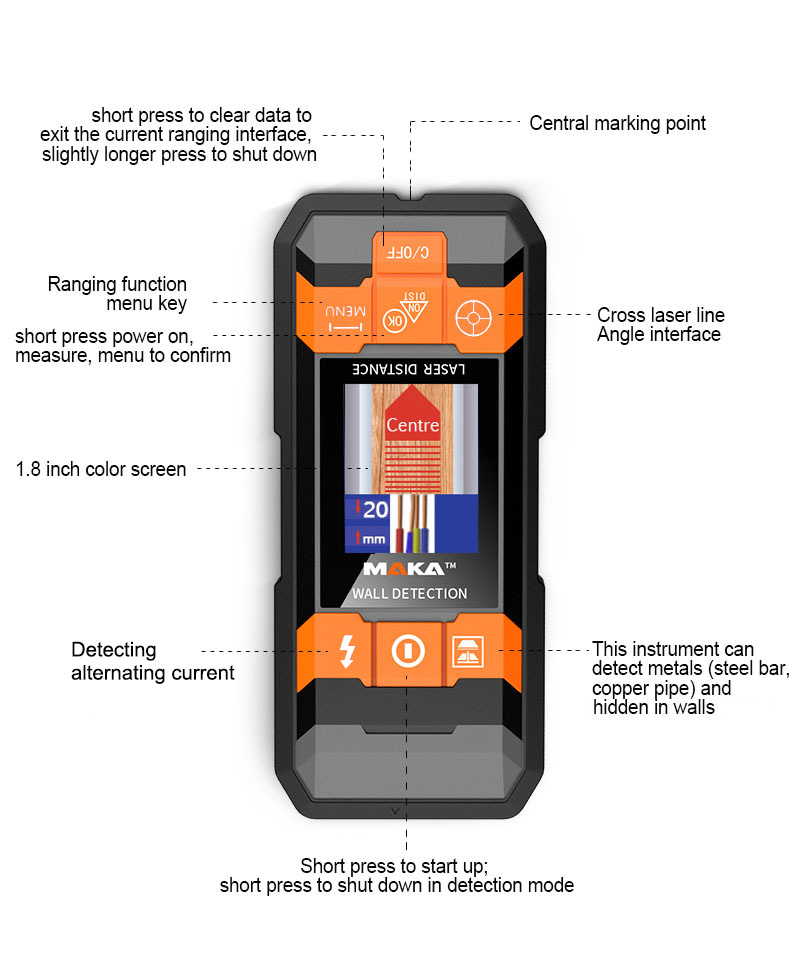

c. Color screen display, voice counting, humanized interactive interface, easy to operate.

Detection function parameters
Maximum scan depth*	Magnetic Metal 12cm
		Non-ferrous metal (copper) 10 cm
		Firewire 5 cm
		Copper wire (≥4mm2) 4cm
wood	20mm/38mm
Working Humidity Range:	Metal mode 0-85%RH
		AC mode 0-30%RH
Laser ranging parameters
measurement accuracy	±5mm**
unit	m/inch/ft
Measuring range (without mirror)	0.05-40 meters***
measure time	0.3-4 seconds
laser type	620~670nm,<1mw
self-closing laser	20 seconds
Storing data	30 sets of data

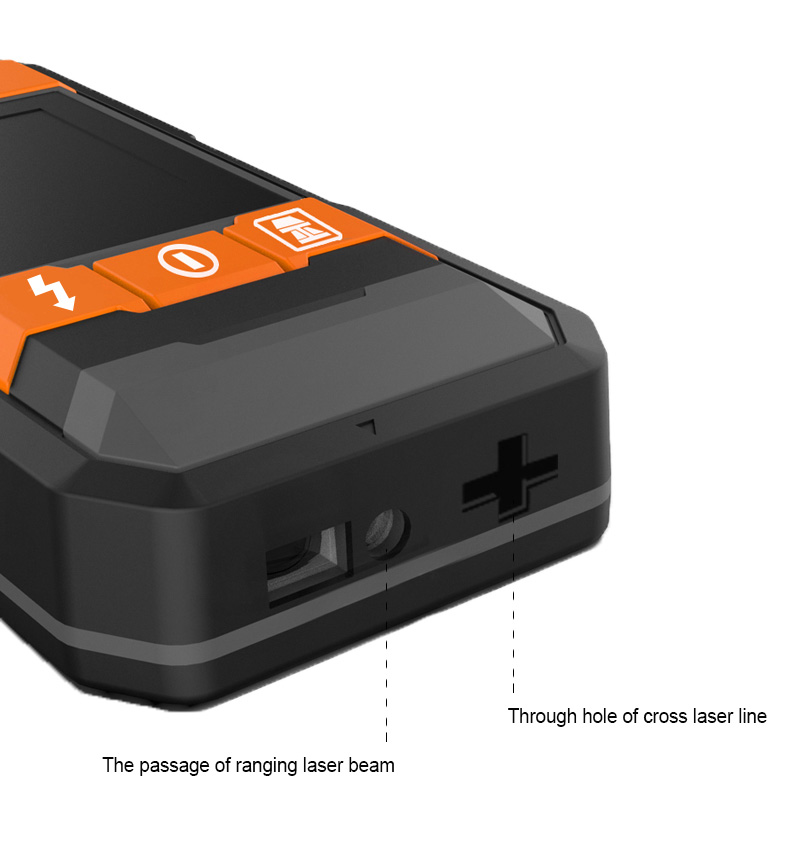

Cross Laser Line Parameters
Irradiation distance	A maximum distance of 5 meters is recommended
laser type	620~670nm,<3mw or 510~530,<6mw
Trumpet	58° cross laser line
line width	<5mm
Cross laser line deflection accuracy	＜±0.5°
General parameters
Auto shutdown time	about 5 minutes
Screen	1.8 inch color screen
Battery Type and Life	400mAH built-in lithium battery, about 5000 times of single measurement
Product Size	1356025mm
range of working temperature	0℃～40℃
storage temperature range	-20℃～60℃

1. This instrument can detect metals (steel bars, copper pipes) and cables hidden in walls, ceilings and floors; metals, cables, wood, etc. under gypsum boards.

2. This instrument can measure the length, area and volume of the house through laser ranging. Addition and subtraction measurement, Pythagorean measurement, etc.

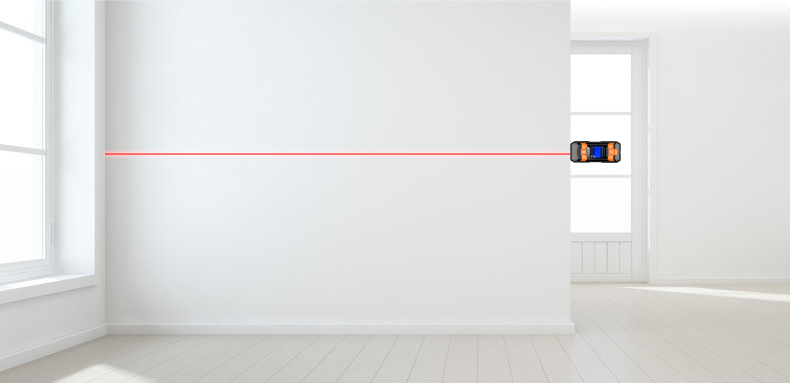

3. The instrument can emit a cross laser line, and cooperate with the angle display of the display screen to realize the function of laser scribing.

The detection result will be affected by the material, shape and size of the detected object and the material and condition of the detected surface; if the cable is not charged, the depth of the probe will be reduced.

Xu Lizi

Email: [email protected]
WeChat: 15258981196

Jack Jiang
E-mail: [email protected]
WeChat: jjl7075

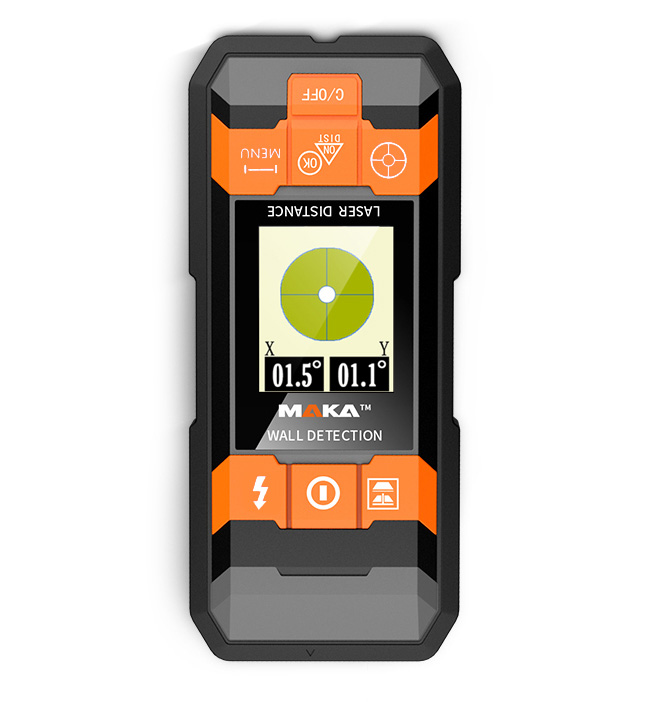

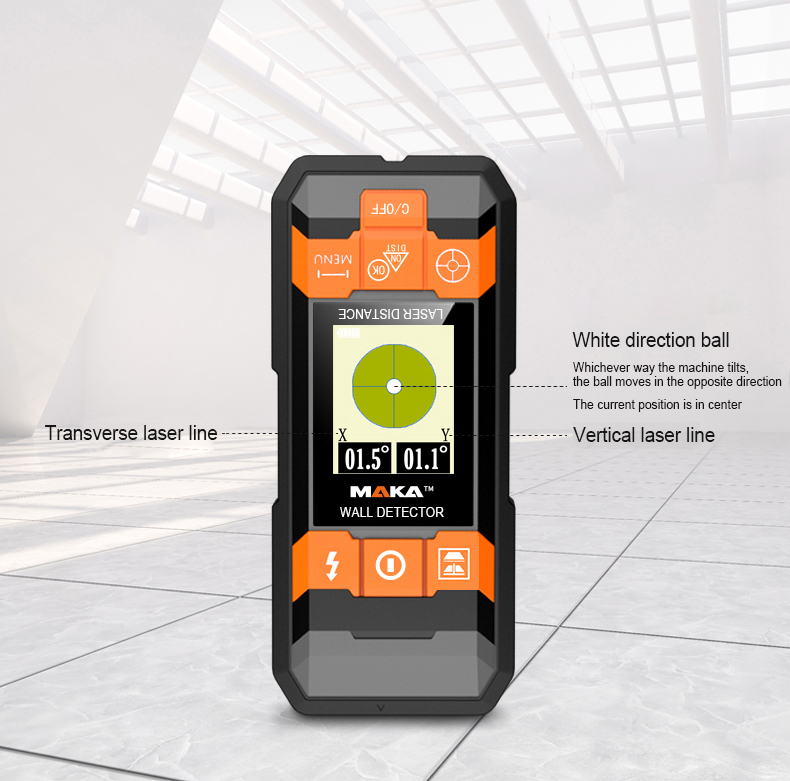

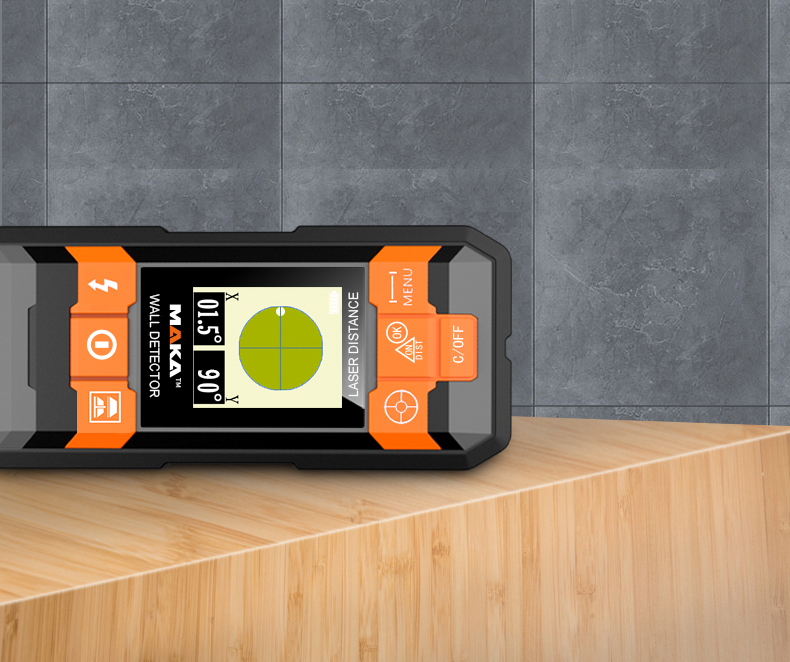

Introduction to Angle Meter

No matter which way the machine is tilted, the ball will move in the opposite direction. The current position is in the center.

90° measurement, multi-purpose

X and Y are 90° each

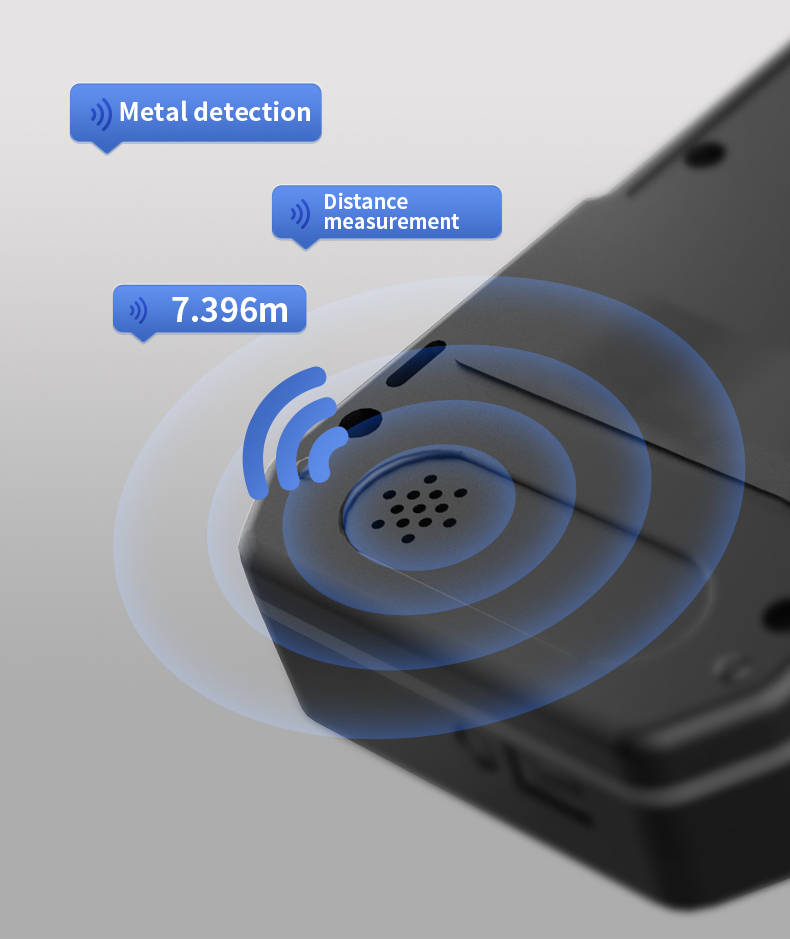

Real-time voice broadcast

detection

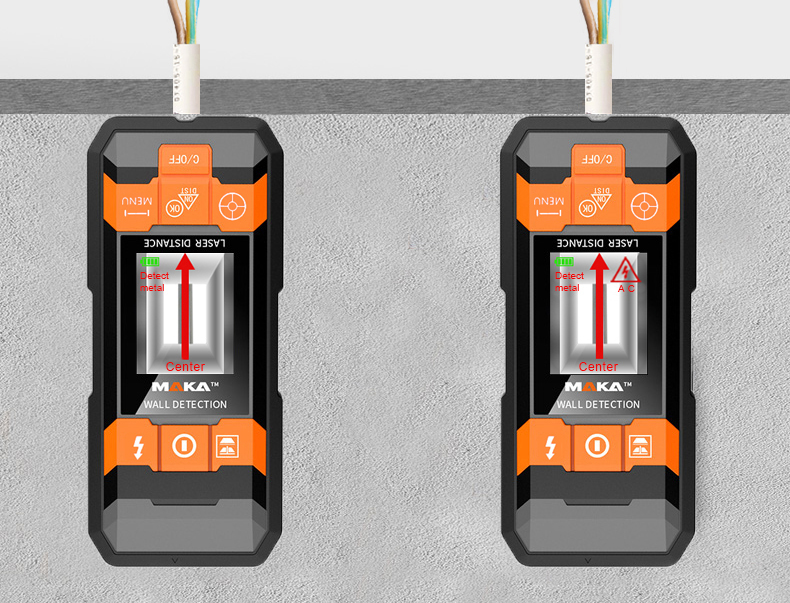

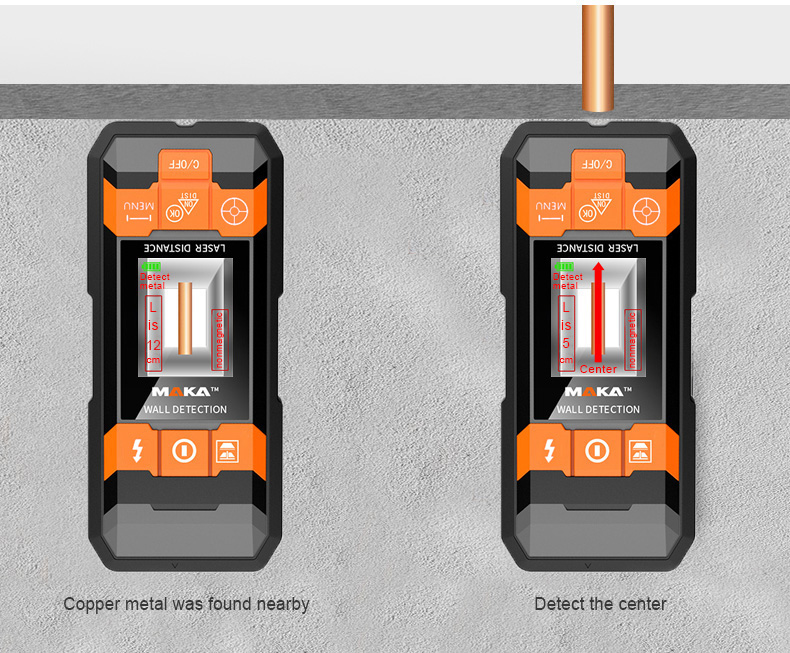

Copper detectionUniform velocity≤6cm/s

Detecting copper wires using metal mode only shows the center, not the depth. The AC icon appears when an AC signal is received. When the AC signal is weak, the center of the cable tube displayed on the screen shall prevail.
The speaker will announce "AC current" followed by "Didi...".
* Copper wire must be charged and copper wire ≥ 4mm²

Non-magnetic metal detectionUniform velocity≤6cm/s

For best scanning results:

• Avoid wearing jewelry such as rings or watches when using the detector. Metal may cause inaccurate detection.
• Do not touch the detector or scanning surface with your other hand or any other part of your body.
• Always detect slowly for maximum accuracy and sensitivity.

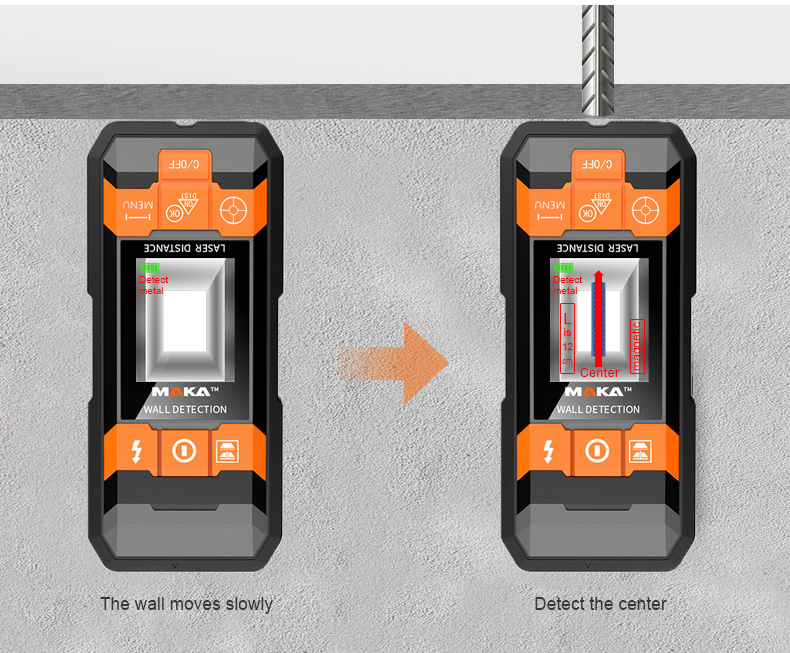

Ferrous Metal DetectionUniform velocity≤6cm/s

When the measured object is a standard steel bar with a diameter of 18mm, the accuracy of the depth value is the best.

single measurement

Press "DIST" to start the machine, place the machine, and press "DIST" to measure.

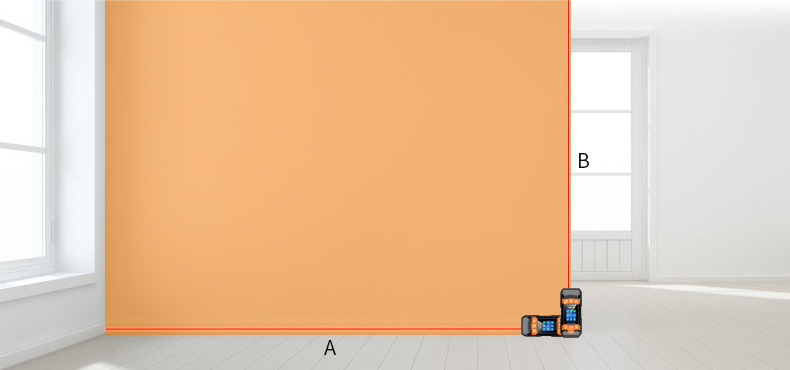

area measurement

Press "DIST" to start the machine, press the triangle key to enter the menu and select area measurement.

Packaging and Shipping

Kind tips:For small orders, batteries are not included in the scope of delivery.
