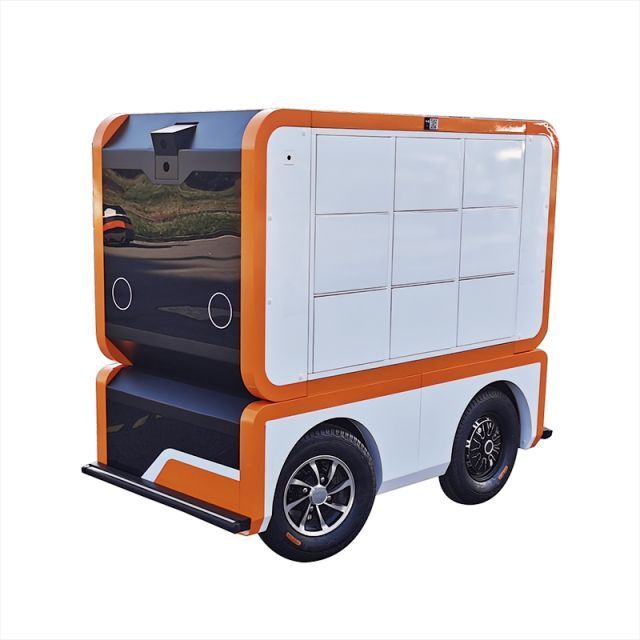

MD-UV02 Unmanned Express Delivery Vehicle Safe Convenient Intelligent Robot Chassis
- $9492.00 /piece
- 1 piece
- Shaoxing Mindong Technology Co., Ltd.
- Zhejiang, China
- Ms Vivian Li
PRODUCT DETAIL
| Machinery Test Report: | Provided; | After-sales Service Provided: | Free spare parts,Video technical support,Online support; |
| Marketing Type: | New Product 2020; | Packaging Detail: | Standard package as export requirement; |
| Video outgoing-inspection: | Provided; | Core Components: | Engine; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops; | Warranty: | 1 Year; |
| Product Name: | Unmanned express delivery vehicle; | Warranty of core components: | 1 Year; |
| Local Service Location: | None; | Condition: | New; |
| After Warranty Service: | Online support; | Showroom Location: | None; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Port: | SHANGHAI PORT; |
| Place of Origin: | China; | Supply Ability: | 3 Pieces per Month; |
The model is MD-UV02. The unmanned express delivery vehicle (second generation) wire-controlled chassis is an intelligent mobile platform specially developed for various application scenarios. The chassis adopts full-line control technology, and the design of the whole vehicle meets vehicle-level standards, which can achieve high-precision front-wheel-by-wire steering control, rear-wheel double-wheel hub motor drive, and brake-by-wire. This product supports multiple driving modes, 200 meters remote control driving, remote 4G/5G network remote control driving, and automatic driving can be developed.
Specification
Item | Data |
Dimensions | 1726*835*1463mm(Height does not include radar stand) |
Quantity of cargo box | 16 |
Axle track/Wheelbase | 900mm/686mm |
Minimum ground clearance | 132mm |
Rated load | 200KG |
Steering Type | Ackerman steering |
Braking form | Hydraulic brake/reverse drag brake |
Front/rear suspension form | Hidden spring shock absorber |
Tire specification | 10 inches (diameter 400MM) |
Maximum speed | 5km/h |
Driving range | 45km(Fully charged, run at a constant speed) |
Minimum turning radius | 2.54m |
Climbing angle | ≤20% |
Obstacle height | 8cm |
Security | Three-level collision prevention (Infrared, touch stop, emergency brake button) |
Motor type | Hub motor (permanent magnet) |
Motor power | 800W (single)*2 |
Drive form | Front rotation; Rear drive |
Battery parameters | 1KWH or 3KWH |
Battery working temperature | -20°～60° |
Charger | AC220V independent charger |
Charging time | ≤6h |
External power supply | 12V (5V can be customized) |
Protection level (waterproof, dustproof) | IP35 (IP66 can be customized) |

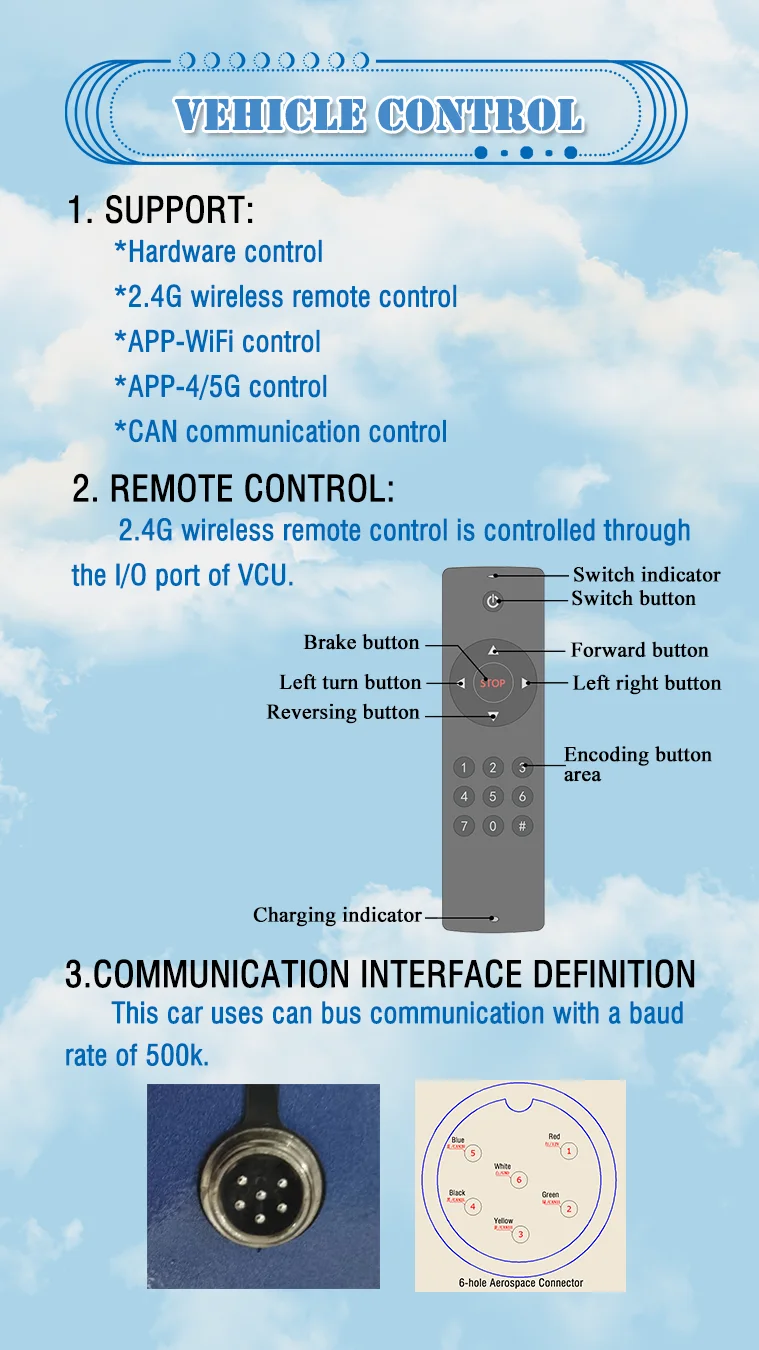

Communication interface | CAN provides standard communication protocol |
Motion control | VCU control |
Sensor type | Steering feedback sensor Wheel speed sensor Front and rear brake feedback sensor |

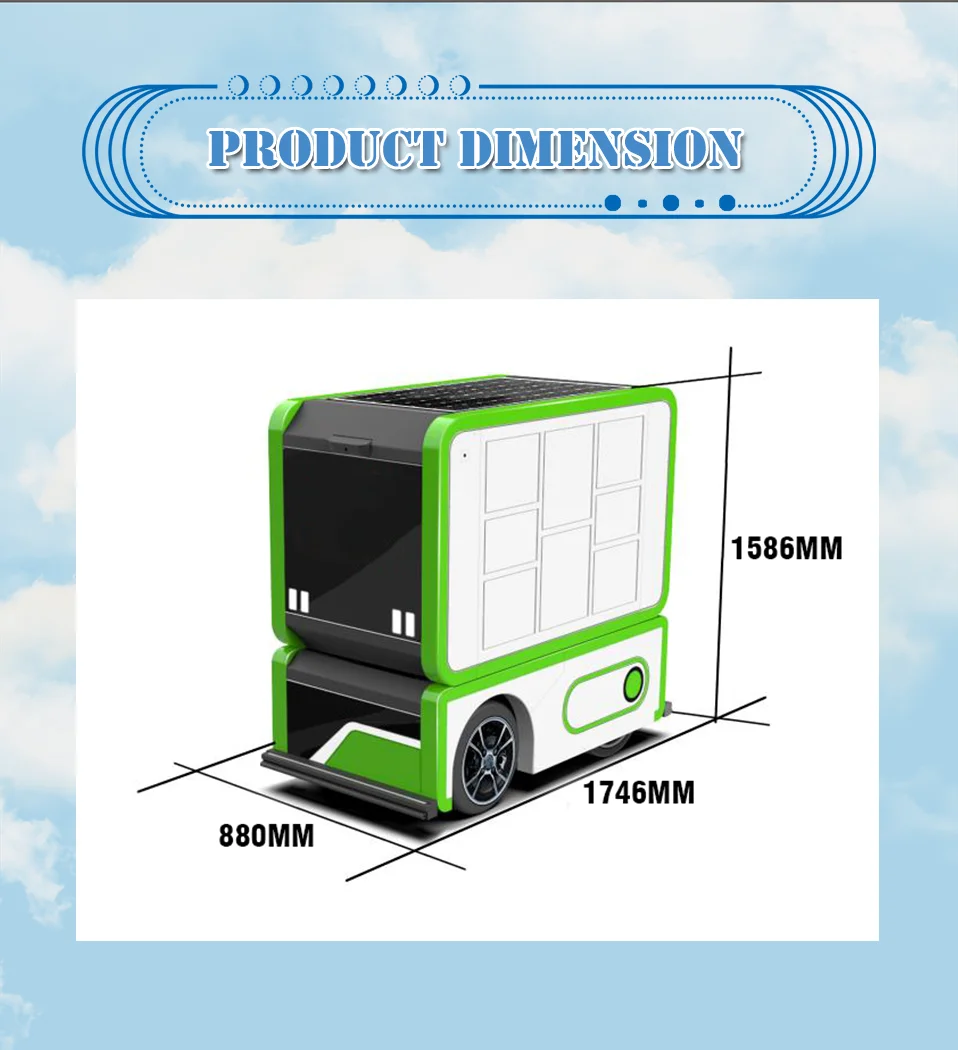

Dimensions

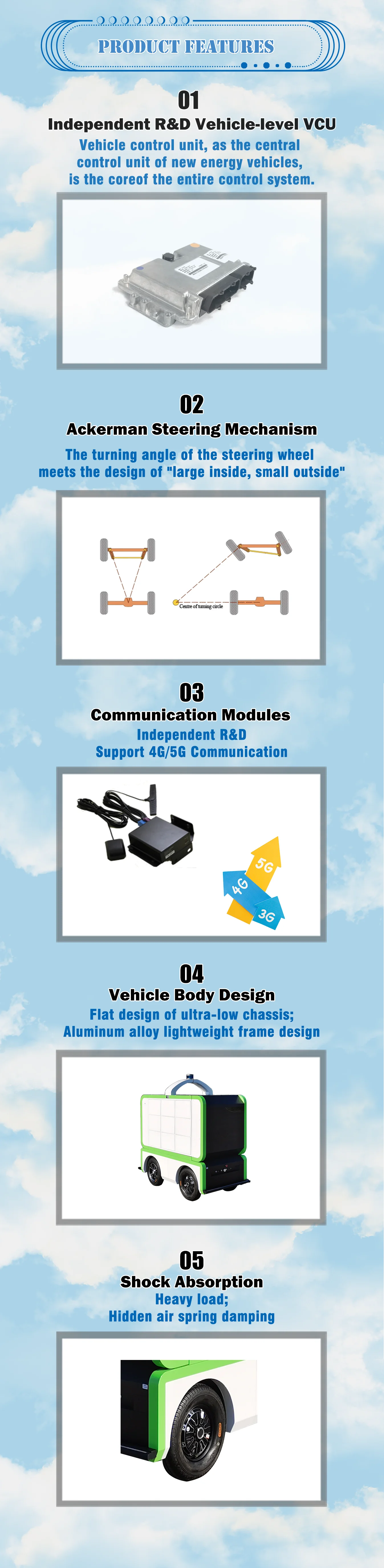

Product Advantages
Tips
Company Profile
Shaoxing Mindong Technology Co., Ltd is manufacturer of AGV.
Ever since its foundation, Mindong has been committing to lead the AGV trend, insisting in independently developing its own core technologies. Our expert team works tightly close to our clients during whole procedure from the very beginning project plan to the final commissioning, after-sales services. Mindong ensures all requirements and goals from client side at the maximum extent.
Mindong’s products already exported to Southeast Asia, North America, Europe etc overseas markets. Customer groups cover automobile, auto parts, electronics, home appliance, chemical, medical, electrical, aviation etc industries. Mindong looks forward to establishing mutual benefit relationship with more customers and distribution partners all over the world. Welcome to get in contact with us at any time.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
FAQ
Q1: Are you manufacturer ? If yes, in which city ?
Yes, we're factory specialized in AGV. Our company is located in HANGHZHOU.
Q2: Can I visit your factory ?
We warmly welcome you for visit .
Q3: What's your MOQ ?
MOQ:Depend on product, 2pcs for sample order is acceptable.
Q4: What's your delivery time ?
Stock goods can be shipped within 7 working days. Mass order, 15-90 working days depends on your quantity.
Q5: Is OEM & ODM acceptable ?
Yes, we welcome for OEM&ODM orders.Just tell me your idea or provide us your drawing.
Q6: Can you put our logo on the bag ?
Yes, OEM and ODM are acceptable.
