MSLPX01 4KW high frequency portable x-ray machine / cheap x-ray machine price

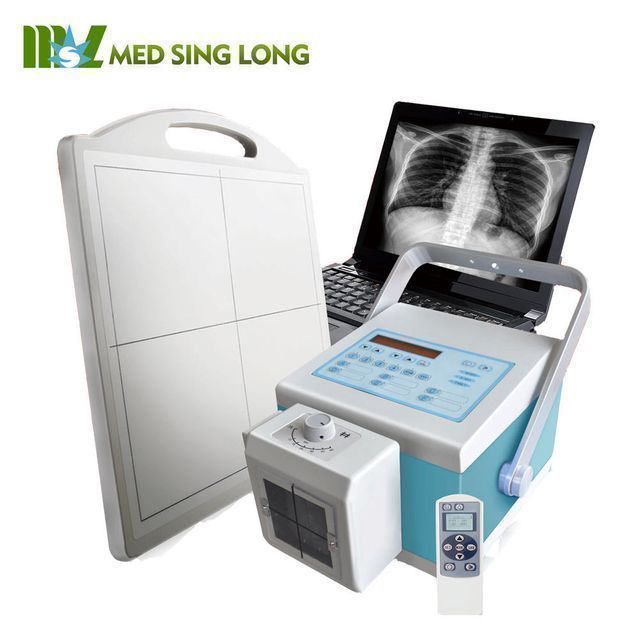

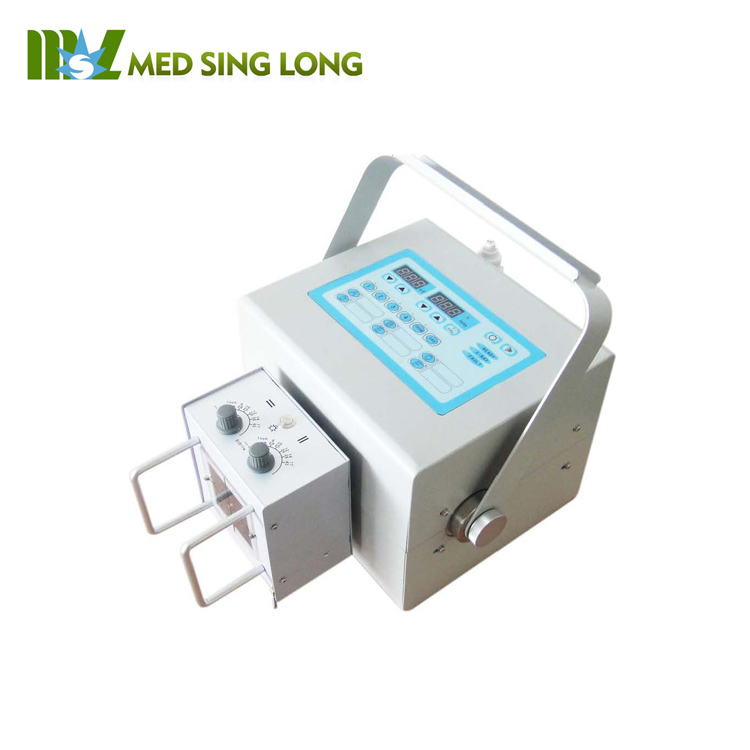

1. Item photo

2.phosphorusproduct structure

2.1Model Name:MSLPX01

2.2 Structure and composition

The main components are shown in Figure 1, and the schematic diagram is shown in Figure 1

1 collimator

2 Operating the control panel

3 Portable high frequency X-ray machine for medical diagnosis

4 racks

3Scope of application

It is suitable for inspection and diagnosis of human limbs, especially in the field, battlefield mobile, playground, such as pet clinic, rescue diagnosis, etc.

4Equipment technical characteristics

4.1 X-ray machine

4.1.1 Working conditions

a) Ambient temperature: +10℃～+40℃;

b) Relative humidity: 30%～75%;

c) Atmospheric pressure: 70kPa～106kPa

4.1.2 Transport and storage conditions

a) Ambient temperature: -20℃~ +70℃;

b) Relative humidity: 10% to 100% (including condensation);

c) Atmospheric pressure: 50kPa～106kPa

4.1.3 Power Requirements

a) Power supply voltage: 220V±22V;

b) Number of phases: single-phase three-wire (live wire; neutral wire; safety ground wire)

c) Power frequency: 50Hz±1Hz;

d) Power supply internal resistance: less than 0.5Ω;

e) Power capacity ≥ 5kW

4.1.4 Operating characteristics

Operating characteristics: intermittent load and continuous operation

4.1.5 Input power: ≤5kVA

4.1.6 Maximum output power

P=110kV×36mA=4kW.

4.1.7 Nominal power

100kV, 40mA, 0.1s, 4kW.

4.1.8 Adjustment range of tube voltage and tube current

a) Ray tube voltage: 40kV ~ 110kV;

b) Ray tube current: 36mA～70mA;

4.1.9 Current-time product range: 1mAs～200mAs

4.1.10 Loading time adjustment range

Radiography loading time: 0.04s ~ 3.2s

4.3 X-ray tube

4.3.1 X-ray tube model: GF181-0.6/1.5-125-60
