Machine for sounding PVC plastic pipes
- $2000.00 /set
- 1 set
- Suzhou Caivi Plastic Machinery Co., Ltd.
- Jiangsu, China
- Ms Annie Xu
| heating method: | electro-thermal | Mailing method: | sea freight |
| strength: | 5-36kw | Product Category: | plastic pipe |
| Packaging Details: | Standard packing wooden box for flaring machine | application: | Flaring machine |
| Warranty: | year, year | After-sales service provided: | Engineers can repair machinery overseas |
| place of origin; place of origin: | Jiangsu, China | Bell model: | UR type |
| Certification: | ce | Dimensions (L*W*H): | 7290x2000x1540 |
| Performance: | OK | brand: | CAIVI--flaring machine |
| Bell Type: | Flaring | Voltage: | 380V |
| Supply capacity: | 10 ferrule machines per month | weight: | According to model |
| payment terms: | letter of credit, wire transfer | Controller: | programmable logic controller |
| Maximum power: | 36kW | Processing type: | Flaring machine |
| color: | optional | port: | Shanghai |
| Health status: | new |

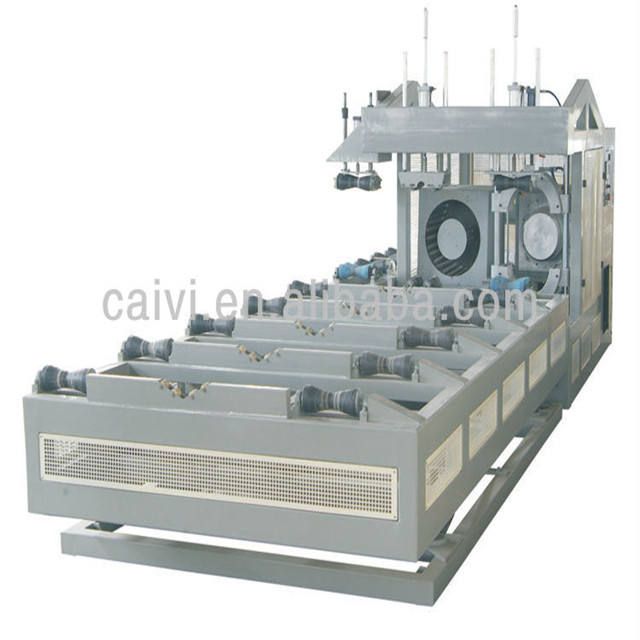

Plastic PVC Pipe Flaring Machine
Flaring machine features:
1. SGK series automatic pipe expanding machine with traction device and related program interface is used in conjunction with the extruder. It is also used alone.
2. When the pipe is expanded, the translation is adopted, the movement is stable and correct, and the pipe is not damaged.
3. The machine adopts electric heating method, each oven is equipped with a heating core, and the molding method adopts flaring molding. Orifice size is correct. On its faceplate, there is a switch for bell-shaped solvent-type sockets (straight-through) and sealing ring-type tube sockets (R-type). The choice of expansion tube type is very convenient.
4. Strong technical adaptability. All key electronic control components are imported.
Flaring machine technical parameters:
Model | GSKS63 | GlaxoSmithKline 250 | GlaxoSmithKline 315 | GlaxoSmithKline 400 | GlaxoSmithKline 710 | GSKB250 |
Diameter range | 20-63mm | 63-250mm | 110-315mm | 160-400mm | 315-710mm | 63-250mm |
Expansion method | Double tube flare | Vacuum setting | Vacuum setting | Vacuum setting | Vacuum setting | Vacuum setting |
cooling method | air-cooled or water cooling | water cooling | water cooling | water cooling | water cooling | water cooling |
Heating power drill | 2 | 2 | 1 | 1 | 1 | 1 |
heating power | 4kW | 4kW | 7.2kW | 15.6kW | 25.4 kW | 24kW |
total power | 5.53 kW | 10.1kW | 12.1kW | 22kW | 36.2kW | 25kW |
aspect | 7290x2000x1540 | 7290x2000x1540 | 7590x2200x2280 | 7590x2300x2280 | 7590x2350x3100 | 7290x2000x1740 |
Exhibition:
Shipping display:
If you want to know more about the Belling Machine,
Please contact us, thank you!
Our company is near Shanghai, about130 km. Welcome to our factory anytime!
