Manufacturer 120 Copper Tube Heat Exchanger Copper Radiator
- $30.00 / >=10 pieces
- 10 pieces
- Qingdao YTeng Electronic Technology Co., Ltd.
- Shandong, China
- Ms Chen Susan
| Mechanical test report: | if | Gross weight per piece: | 1.600 kg |
| place of origin; place of origin: | Shandong China | Showroom location: | not any |
| Sales unit: | single product | Applicable industries: | Manufacturing Plants, Energy & Mining, Laser Companies |
| Marketing Type: | New Products 2020 | Warranty: | 5 years |
| Core components: | other | Name: | heat exchanger |
| color: | matte black | strength: | 300W |
| Fin material: | copper | Packaging Details: | Pack each radiator into a bubble bag after inspection, then carefully place in a carton |
| Health status: | new | usage: | water cooling |
| Model: | 120 | Video external inspection: | if |
| weight: | 1000kg | pressure test: | 1.5bar |
| Connector: | G1/4'' | brand: | Radiator cooler |
| model: | HRC120BP | tube: | 12 channels per row, 3 rows in total |
| Material: | copper and brass | Processing: | heat exchanger |
| Tube: | brass | Core Components Warranty: | other |
| Processing Type: | water | Single package size: | 55X15X7 cm |
| Packaging Preview: |

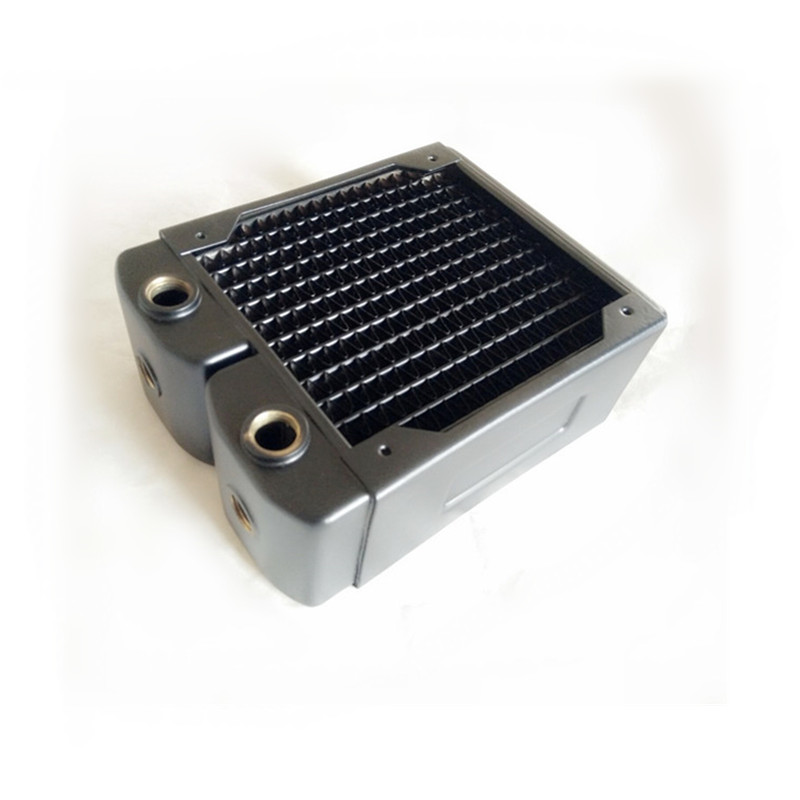

120/240/360/480 Copper and Brass Liquid Heat Exchangers
Product Specifications
|
Material |
copper and brass |
|
Size (L*W*H) |
Type 120-156*125*62mm |
|
Connector |

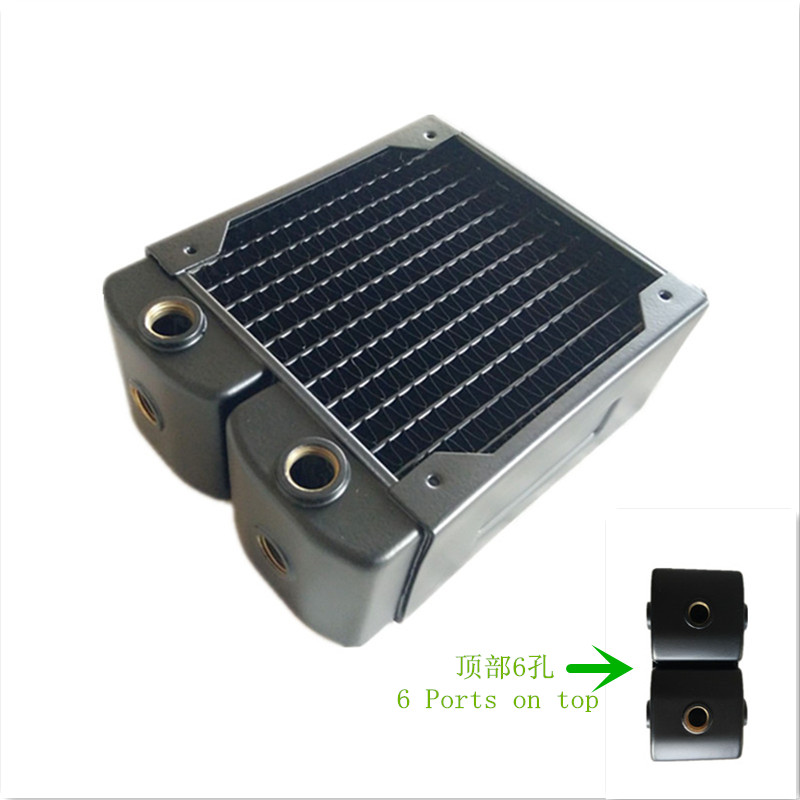

6*G1/4 at the top and 1*G1/4'' at the end |
|
FPI |
9 |
|
weight |
~650g
|
|
color |
matte black |
|
pipeline |
12 channels |
|
fan hole |
M3 screws |
|
Certification |
RoHS |
|
include |
Fan long screws and radiator short screws |
Mailing method
All shipping methods are designed to be the most convenient for you.
Sea or air shipping is best for large orders.
Trial order or sample confirmation can be done by express delivery such as DHL, FEDEX, TNT, etc.
Any other request method can be adjusted
payment terms
1.T/T is the general rule
2. Alibaba's trade assurance is acceptable to both parties' rights
3. When filling in buyer information, please make sure you have filled in all details such as address, contact person and phone number
Installation Precautions
If you are only using fans with a height of 25mm, use M3 screws that are 30mm long.
Be sure to double check the screw lengths before installing, or you could poke a hole in the radiator waterway.
A 120mm × 120mm fan is recommended to be installed with a heatsink.
feature
Single pass parallel flow configuration utilizing up to 50% higher flow tubes
Internal traffic increases.
Custom compression core width to maximize airflow and enhance heat exchange.

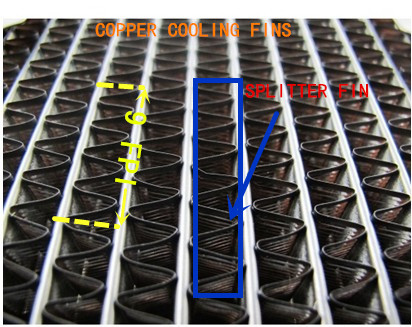

Optimized custom 9FPI (fins per inch).
Built-in 7mm deep plenum for even core air pressure distribution.
M3 threaded screw holes for easier installation and greater adaptability.
Standard G 1/4''; female fitting.
Full high temperature brass construction for reduced weight and excellent corrosion resistance.
Compatible with high performance compact heatsinks, upgradeable to most 120mm fan size heatsinks.
Process using 100% non-corrosive water-soluble flux.
Fully RoHS compliant.
Matte black finish.
patent pending design
Clean all heat sinks to remove flux
Hydraulic and pneumatic tests (1.5bar and 30 seconds)
