Manufacturer 3mm 4.5mm industrial endoscope camera micro endoscope camera 4mm borescope
- $48.00 / >=100 pieces
- 100 pieces
- Shenzhen Wonderlong Technology Co., Ltd.
- Guangdong, China
- Ms Monica Liao
| EFL: | 0.8mm; | Style: | Fixed Focus Lens; |

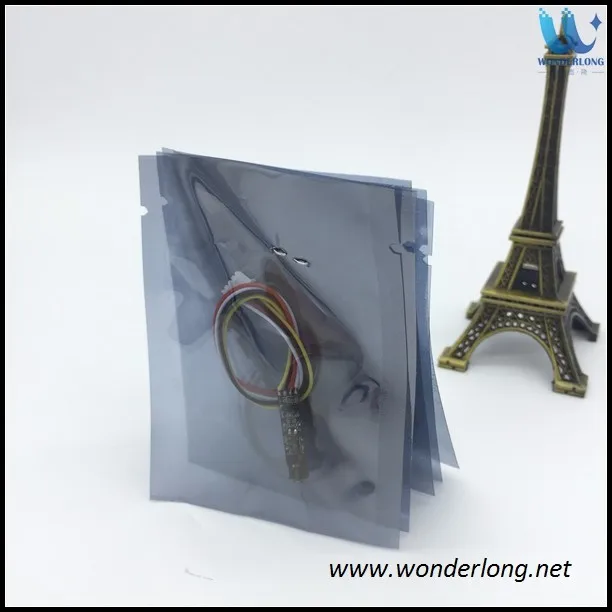

| Packaging Detail: | Retail package with full accessories; | Safety standard: | None; |
| Sensor: | CMOS 60degree; | Material: | Plastic; |
| Port: | SHENZHEN; | Model Number: | WRA34520; |
| Payment Terms: | Western Union,T/T,MoneyGram,PayPal or Alibaba assurance order; | keyword: | borescope; |
| HDM1 Format: | 576I; | Shelf Life: | 1years; |
| Effective Distance: | 10-30m; | Power Source: | Electric; |
| Technology: | Pan / Tilt / Zoom; | Warranty: | 1 Year; |
| Brand Name: | WDL; | Instrument classification: | Class I; |
| Kind: | Autofocus Lens; | Place of Origin: | Guangdong, China; |
| Type: | Electronic Endoscope; | Remote Control: | Without Remote Control; |
| Quality Certification: | ce; | After-sale Service: | Online technical support; |
| Supply Ability: | 10000 Pieces per Month; |
Manufacturer 3mm 4.5mm industrial endoscope camera micro endoscope camera 4mm borescope
1.Description

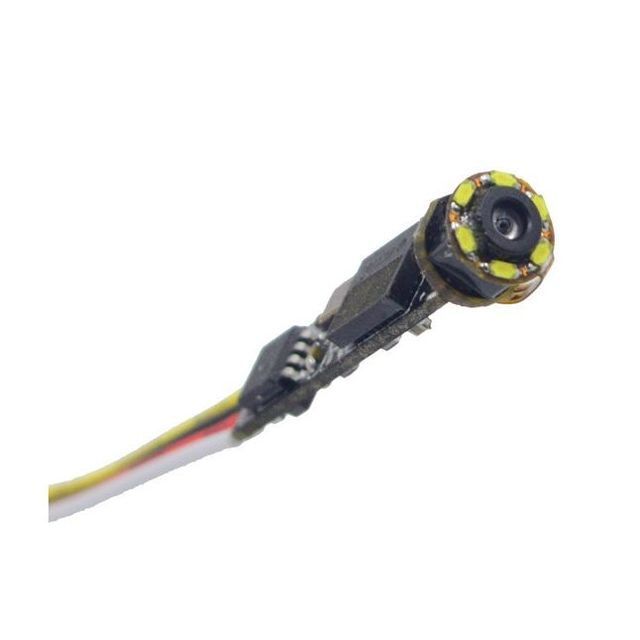

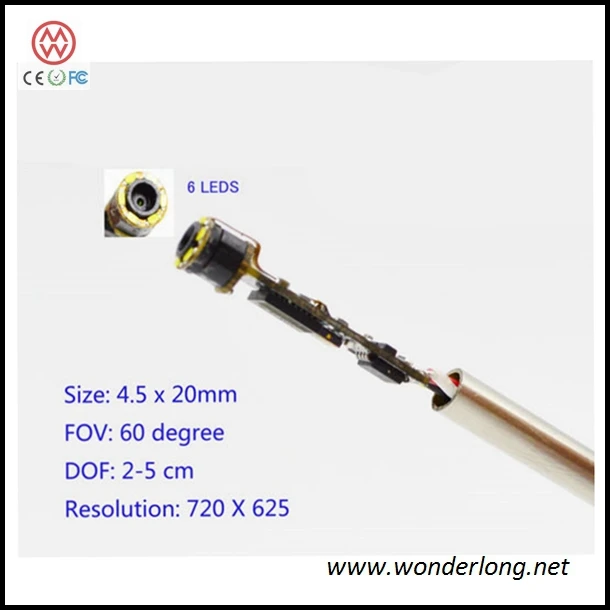

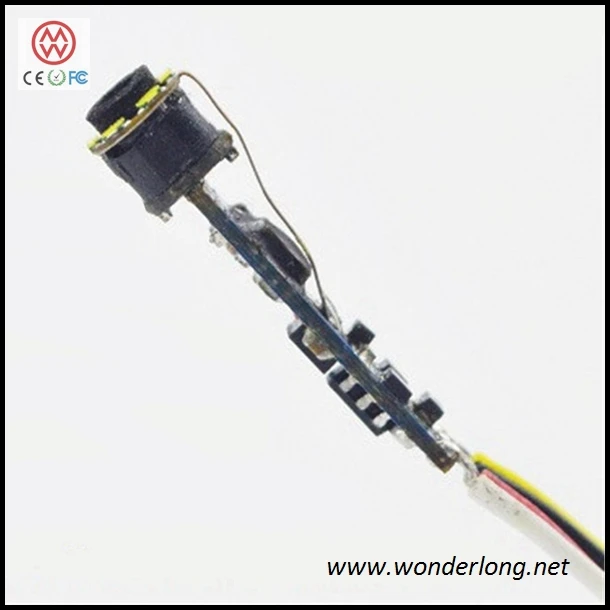

This camera module work with an OV 1/12 CMOS chip. The size is Φ4.5 x 20mm, resolution is 720*625(420000pixel),support NTSC/PAL. With a 80 °Big view angle Lens,even in a 3mm distance, it's images, color are high quality. This camera is better than other big view angle camera, with our invoative camera system, my camera can show the same quality when you observe distance.
We are the only who can make this camera in the world.
We offer a series of assemblage, can assemble LED light, assemble snake tube , also assemble stainless tube and sealed. We offer custom made service with you need as part of your products.

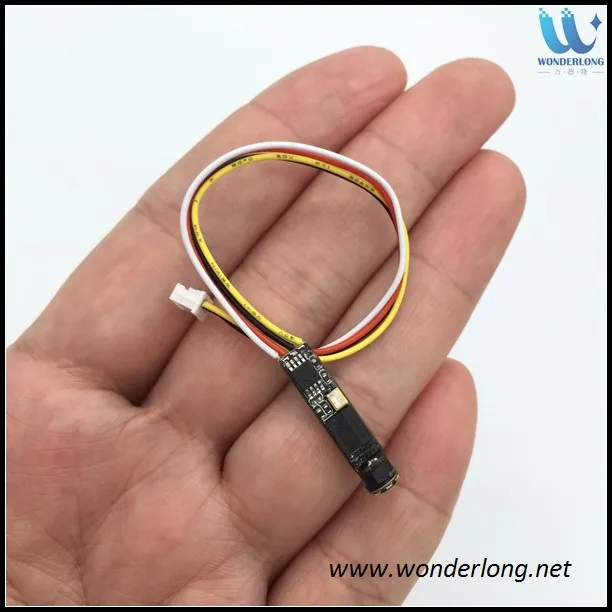

Connection definition
| white | LED DC3.5V |
| Red | DC3.3V~5V ,max:5V |
| Black | / GND |
| Yellow | (NTSC Only)/ CVBS |
Lens
| EFL | 0.8mm |
| DOF |
5mm to ∞ |
| FOV | 80 |
| F.NO | 2.8mm |
| Struc | 2P+IR |
Electrical Spec
| Sensor | 1/12 color COMS |
| Image Sensor | 1440μm×1653μm |
| Pixel size | 1.75μm×1.75μm |
| Fps | 60Fps(N) / 50Fps(P) |
| Effective Pixels | 720(h)×625(v) |
| Sensitivity | 960mV(Lux×sec) |
| Operation Temperature | -10ºC~+50ºC |
| /Voltage | DC 3.3V~3.5V/100mA MAX5V |
| S/N Ratio | 38dB |
| Video Output | CVBS/NTSC |
| LED | 6PCS 0402 LED,DC3.3V×50mA |
| Dynamic range | 66dB |
| Dimensions | 4.5mm×20mm |
| AWB | ON |
| AGC | ON |
Attention
1:This camera module is a precision electronic components, please Keep, use and transport in a right way.
2:If you have special requirement, please contact with us
3:With IPR, no copy
If you have any question pls feel free contact me
v Service name: Monica
v skype : monicaliao2008
v Tel/WhatsAPP/Wechat: 0086-13590464323
Why Choose Us?
1.We respond you within 12 hours.
2.OEM/ODM available.
1)Silk Print logo on the camera;
2)Customized Camera Housing;
3)Customized Color Box
4)Any your idea on camera we can help you design and put it into production
5)Free charge for 1000pcs order.
3.High quality, fashion designs,manufactured price,fast lead time.
4.After-Sale Service :
1)All products will have been strictly Quality test 3 times before packing.
2)All products will be well packed before shipping;
3)1 years warranty;
4)Fast RAM service,or new products with whole new package for repaired items
5.Fast Delivery.
Sample order in 1 working day, and 3~7 working days for bulk production;
OEM: 15-20 working days.
6.Payment
You can pay for the order via L/C,or T/T,Western Union,Paypal in advance.
7.Shipping
By express DHL,UPS,TNT,Fedex,EMS,China Air Post.HK Post,by air,by sea;
Collect via your own express account is available .
