Mattress Machine Computer Multi-Needle Super High Speed Quilting Machine
- $10000.00 /set
- 1 set
- Dongguan New Hengchang Intelligent Equipment Co., Ltd.
- Guangdong, China
- Ms Feng Ariel
PRODUCT DETAIL
| Needle Arrangement: | 50.8, 76.2, 152.4 76.2 76.2 152.4 | thing: | Quilting Arm |
| Voltage: | 380V/50HZ, 220V/60HZ, 380V, 220V | spinning speed: | 600~1200RPM |
| Mechanical test report: | if | Supply capacity: | 30 sets per month |
| use: | Mattresses, mattress boards, quilts | Moving method: | other |
| Sew: | 2 ~ 7 mm | Needle size: | 130/21, 140/22, 160/23, 180/24 |
| Showroom location: | Indonesia, Pakistan, India, Mexico, Morocco, UAE, Colombia | Video external inspection: | if |
| strength: | 10KW | place of origin; place of origin: | Guangdong, China |
| Warranty: | 1 year | Dimensions (L*W*H): | 5100*1500*2000mm |
| Health status: | new | brand: | HC |
| Quilt width: | 2450mm | port: | Shenzhen |
| payment terms: | letter of credit, wire transfer | Core Components Warranty: | 1 year |
| Maximum sewing thickness: | ≤80mm | After Warranty Service: | Online support |
| Needle space: | 25.4mm | After-sales service provided: | Engineers can repair machinery overseas, online support |
| Local service location: | Saudi Arabia, Indonesia, Pakistan, India, Mexico, Australia, Kenya, Argentina, Algeria, Sri Lanka | weight: | 6000KG |
| Core components: | motor | Certification: | International Organization for Standardization |
| Head count: | long | Marketing Type: | New Products 2019 |
| Applicable industries: | manufacturing plant | Maximum sewing speed: | 1200 rpm |
Product Description
Applications

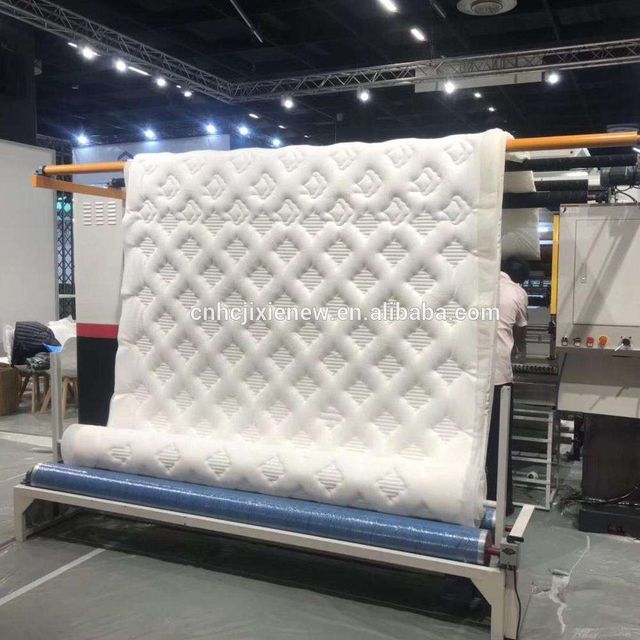

Mattress boards, mattresses, bedspreads, quilts, bedding, upholstery, etc.
Mattress boards, mattresses, bedspreads, quilts, bedding, upholstery, etc.

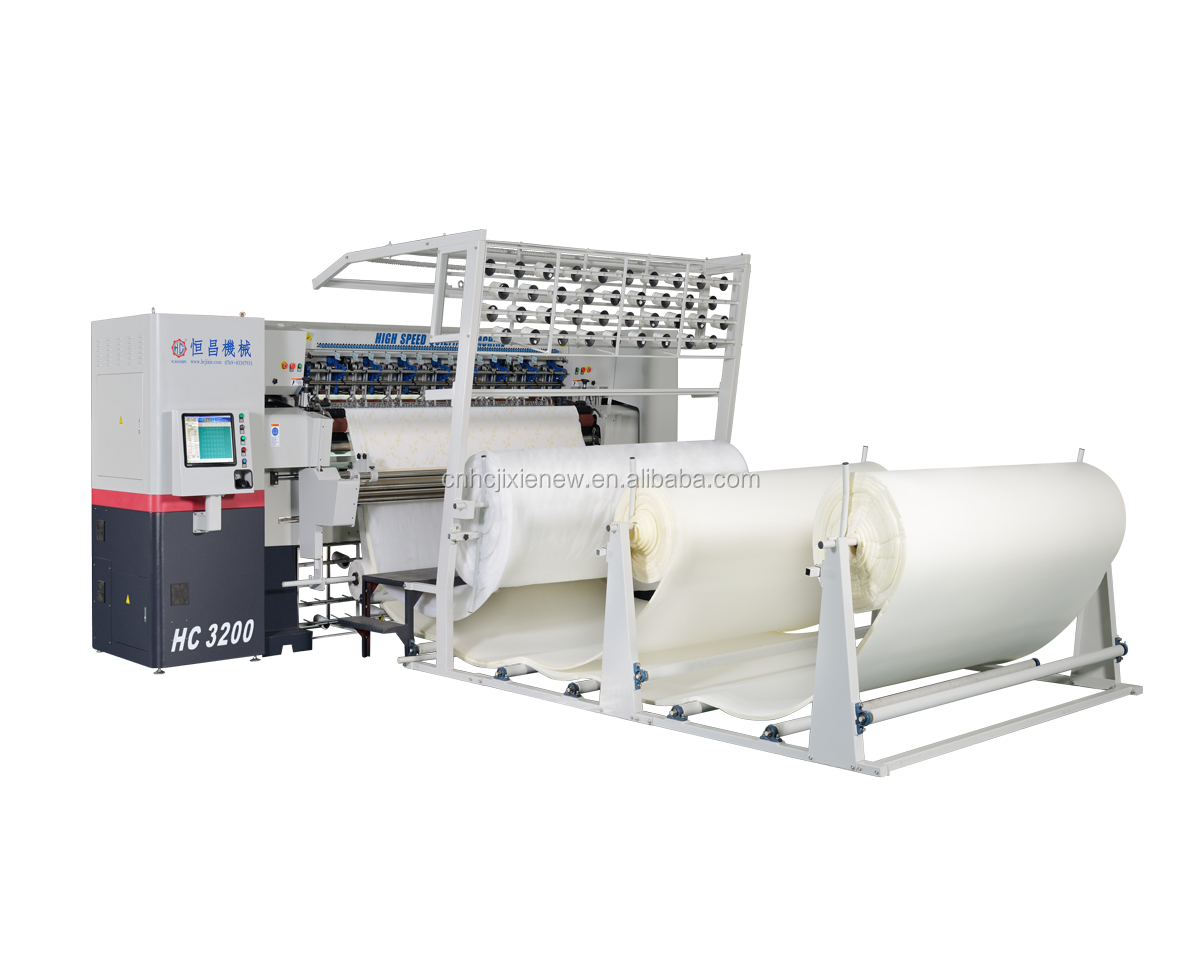

HC3200 Technical Specifications | ||||||
Dimensions (L×W×H) | 5100×1500×2000mm | |||||
weight | 6000kg | |||||
spinning speed | 600-1200RPM | |||||
Production speed | 80-280m/h | |||||
quilt width | 2450mm | |||||
sew | 2-7 mm | |||||
Needle size | 130/21, 140/22, 160/23, 180/24 | |||||
Pin | (50.8,76.2,152.4) (76.2,76.2,152.4) | |||||
needle space | 25.4mm | |||||
maximum. horizontal movement | 450mm | |||||
Voltage | 380V/50HZ, 220V/60HZ | |||||
strength | 10KW | |||||
Quilting Thickness | ≤80mm | |||||
special function
Basic function introduction:
• Brand new design for fabric loading, easy loading.
• Tilted body design for easy operation and maintenance.
• Wire break detector.
• Pneumatic air thread cutting system.
• Run on high quality sealed bearings that do not require lubrication.
• Adjustable foot lift mechanism allows you to quilt a wide range of material thicknesses.

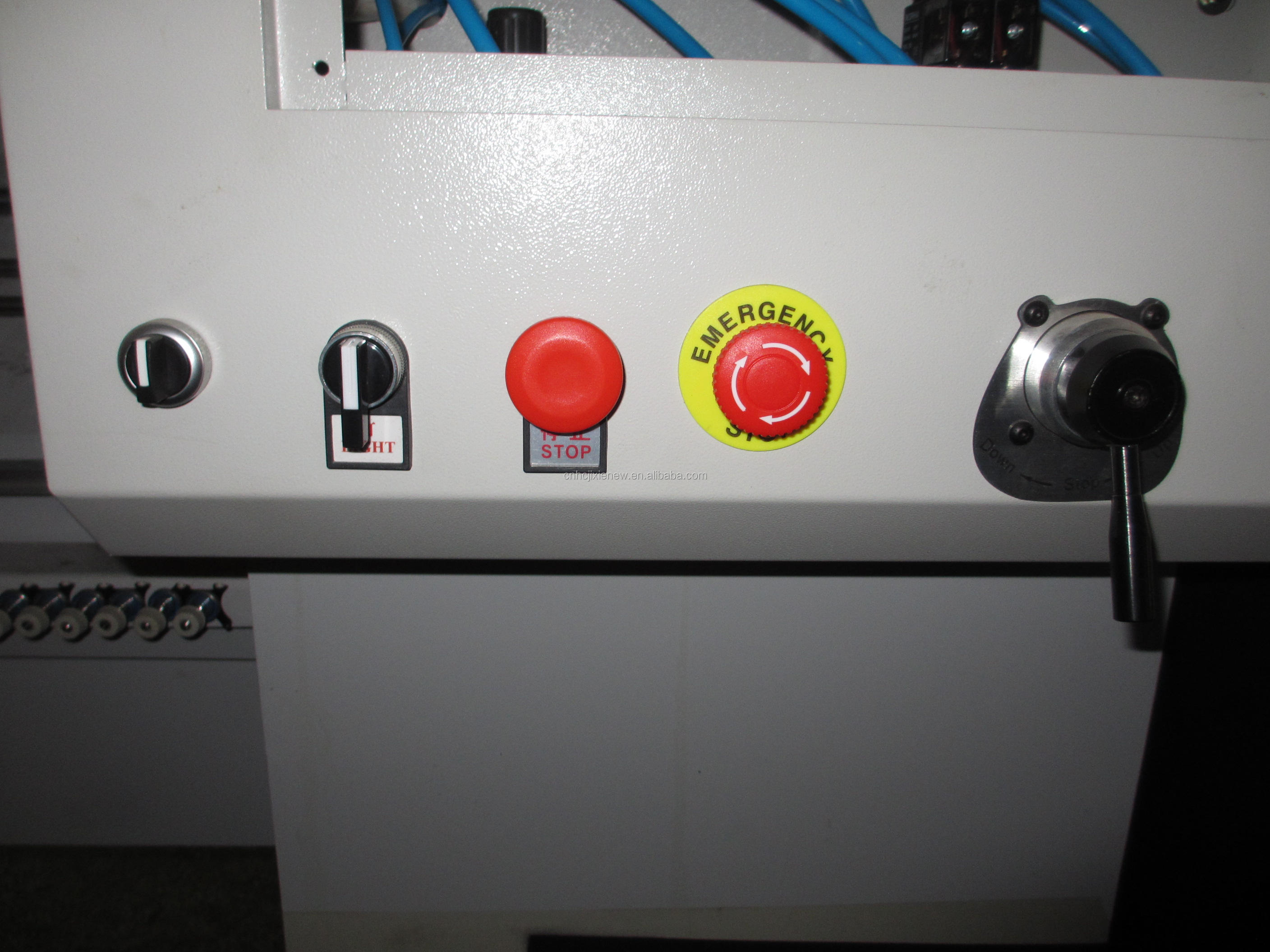

• Emergency safety devices.
• Improved quilting software control system makes quilting operation more precise and stable.
• CAD pattern drawing pattern system allows you to create your own designs.
• The machine comes with 100-300 design patterns.
• Error detection system.
• Pattern compensation.
Introduction of innovative features:
• Automatically adjustable feed rollers allow the operator to adjust various types of thickness.
• Cloth transport blocks ensure more stable machine operation and less noise.
• Sealed fabric drum for better control over design patterns.
• High-speed machine operation and stability control.
• Heavy duty tracking system for infeed and outfeed.
Basic function introduction:
• Brand new design for fabric loading, easy loading.
• Tilted body design for easy operation and maintenance.
• Wire break detector.
• Pneumatic air thread cutting system.
• Run on high quality sealed bearings that do not require lubrication.
• Adjustable foot lift mechanism allows you to quilt a wide range of material thicknesses.
• Emergency safety devices.
• Improved quilting software control system makes quilting operation more precise and stable.
• CAD pattern drawing pattern system allows you to create your own designs.
• The machine comes with 100-300 design patterns.
• Error detection system.
• Pattern compensation.
Introduction of innovative features:
• Automatically adjustable feed rollers allow the operator to adjust various types of thickness.
• Cloth transport blocks ensure more stable machine operation and less noise.
• Sealed fabric drum for better control over design patterns.
• High-speed machine operation and stability control.
• Heavy duty tracking system for infeed and outfeed.
timing regulator

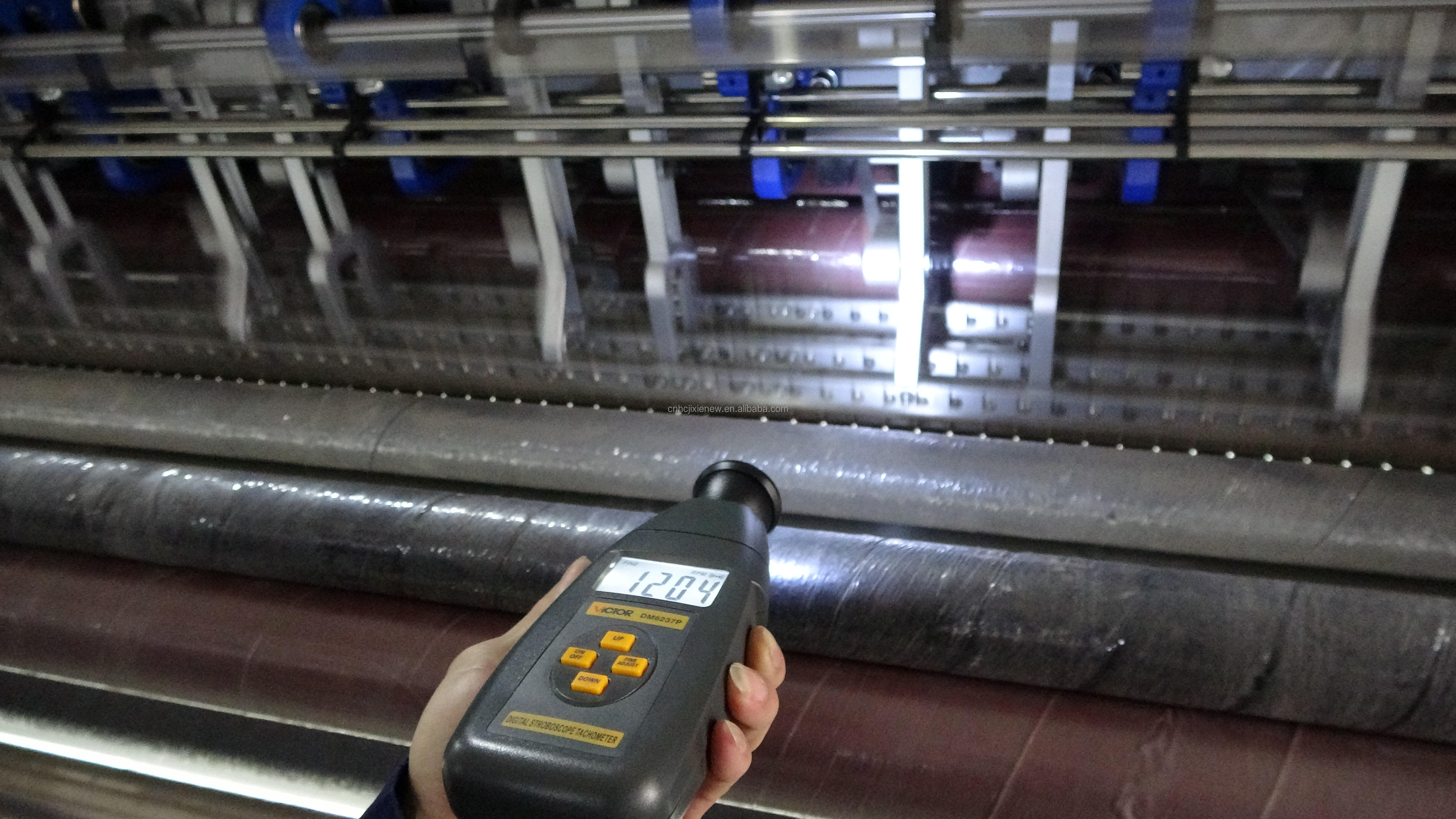

The maximum speed reaches 1200RPM

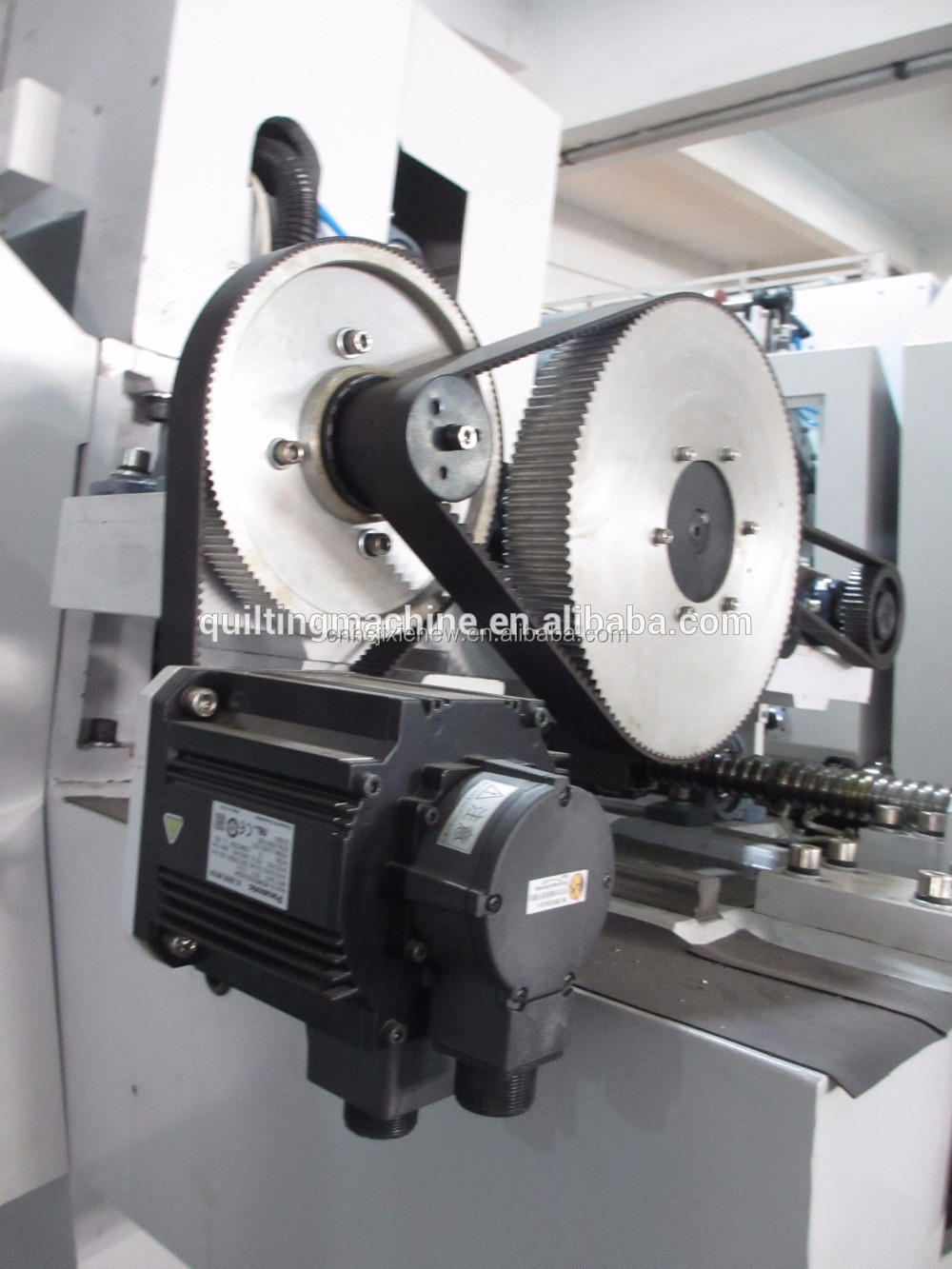

High power fast control servo motor
pattern
