Metal Sheet Slide Roller 4 Roller Portable Roll Forming Machine

Price:$405.00 /set
Min. Order:1 set
Supplier:Henan Kellen Machinery Equipment Co., Ltd.
Region:Henan, China
Contact:Ms Darcy chen

PRODUCT DETAIL

Bottom roll diameter:	240mm	Number of rollers:	3
Video outbound inspection:	not available	Core components:	Gearboxes, motors, rollers
Name:	Small Electric Three-Roll Plate Bending Machine	Rolling speed (m/min):	1 - 8
Applicable industries:	Building Materials Store, Manufacturing Plant, Machine Repair Shop, Farm, Home, Retail, Construction, Energy & Mining, Other	Showroom location:	not any
automation:	manual	Packaging Details:	Wholesale price high reputation standard export wooden case packing
Upper roller diameter:	280 mm	Motor power (kW):	18.5 kW
Health status:	new	options:	Three volumes
size:	380015001500mm	Steel coil minimum diameter:	400 mm
Model:	KL-2200	Supply capacity:	1000 sets per month
maximum. Working length (mm):	2200mm	maximum. Plate thickness (mm):	20 mm
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Main selling points:	multifunctional
Core component warranty:	1 year	Material/Metal Processing:	Aluminum, carbon steel, brass/copper, stainless steel
Weight (kg):	100 kg	Marketing Type:	normal product
deliver goods:	Fast rolling machine	application:	steel rolling
Origin:	China	Warranty:	1 year
port:	Qingdao, Tianjin, Shanghai	Mechanical test report:	not available
Package preview:		Type of machine:	plate rolling machine

Metal plate rolling machine Plate rolling machine Steel rolling machine

Product Description

A plate rolling machine is a device that uses work rolls to bend and shape metal sheets. It can form cylindrical parts, conical parts and other parts of different shapes. It is a very important processing equipment.

The working principle of the plate rolling machine is to move the work roll through the action of external forces such as hydraulic pressure and mechanical force, so that the plate is bent or bent into shape. According to the rotary motion and position change of the work rolls of different shapes, it can process oval parts, arc parts, cylindrical parts and other parts.

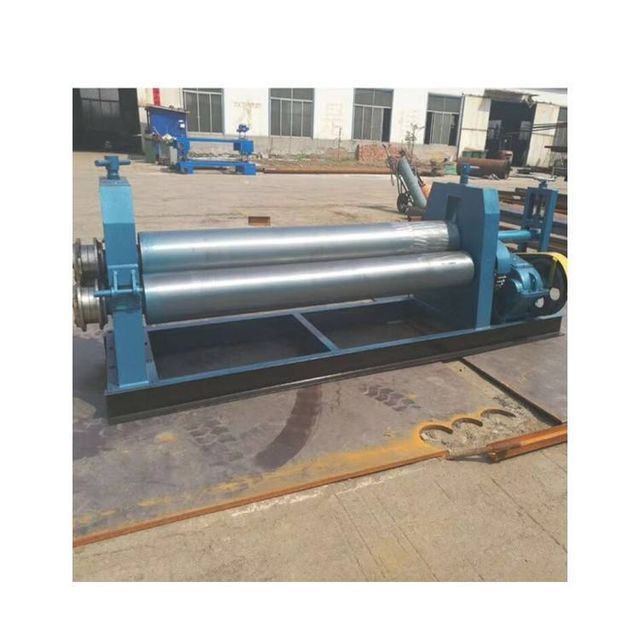

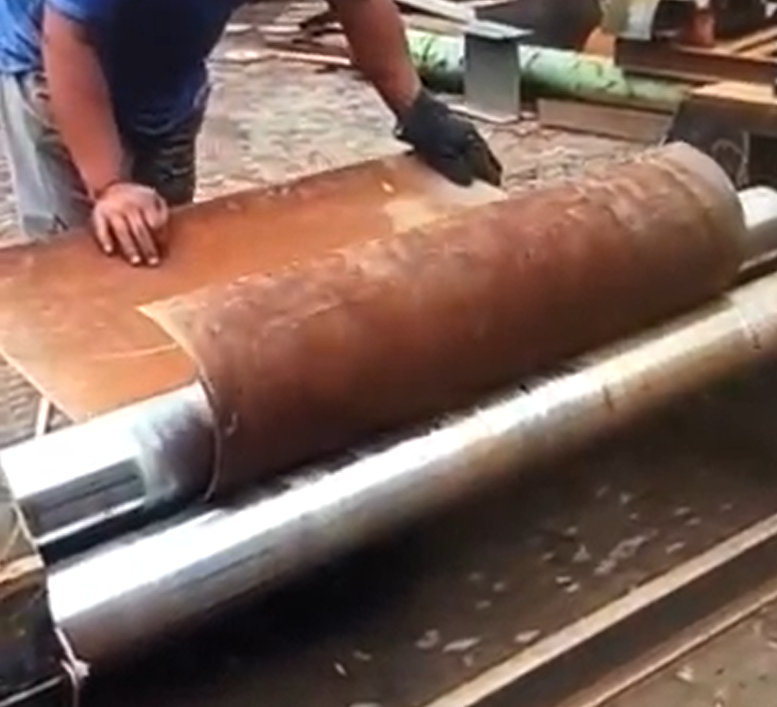

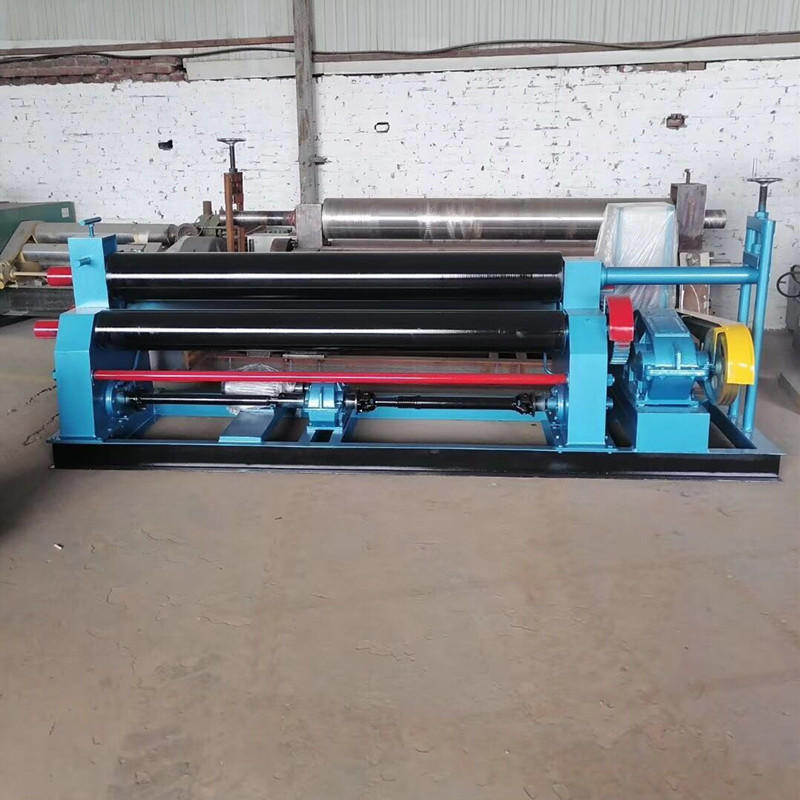

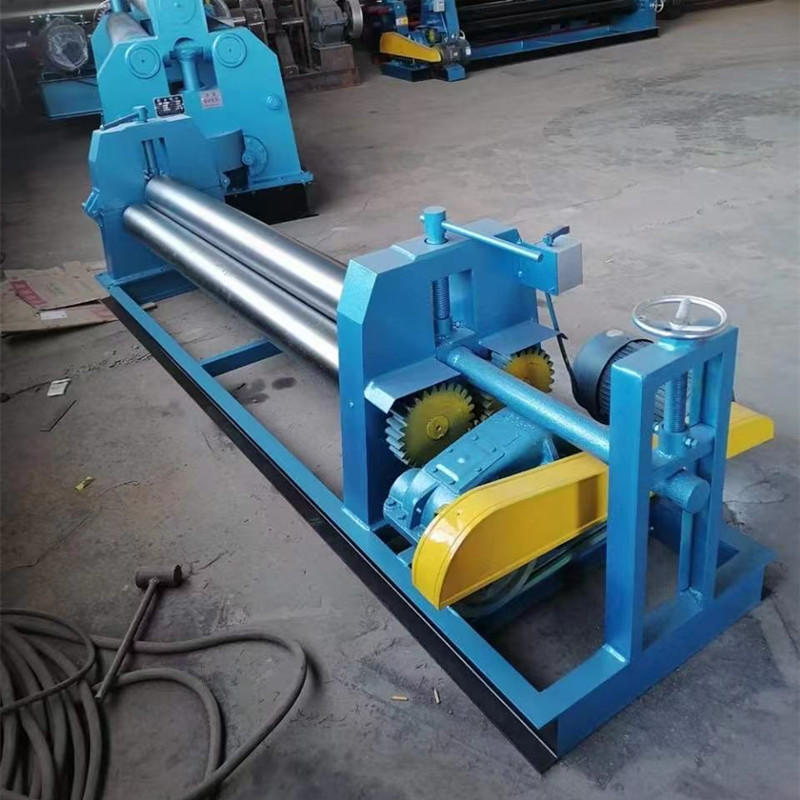

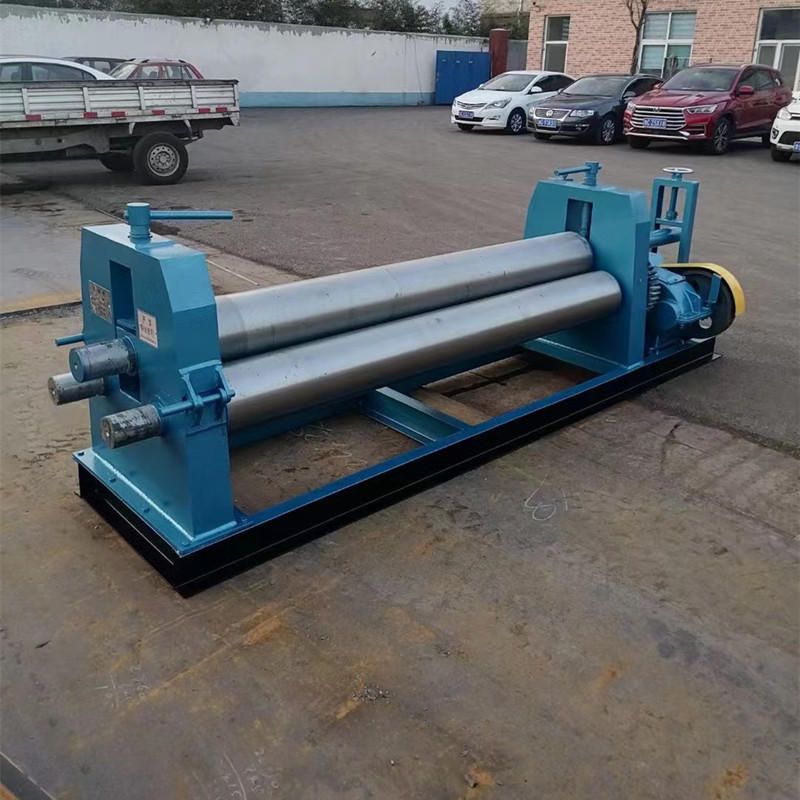

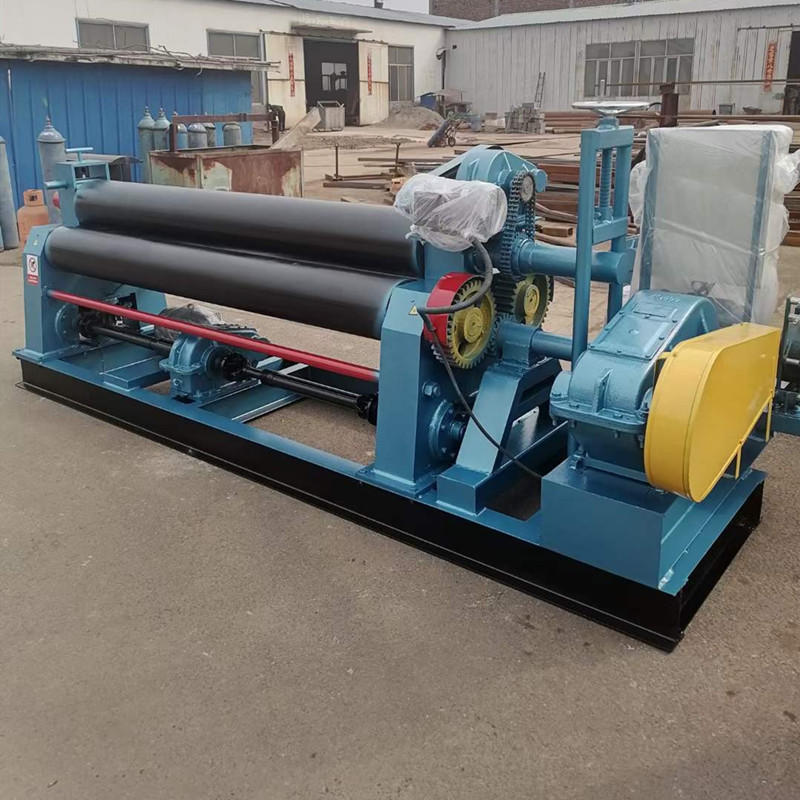

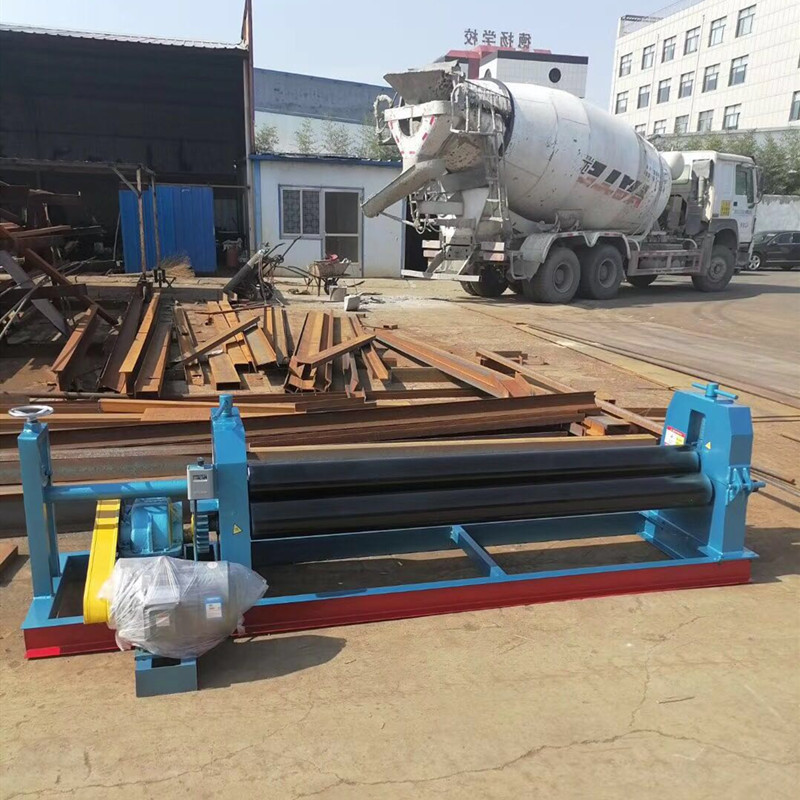

Mechanical plate rolling machine

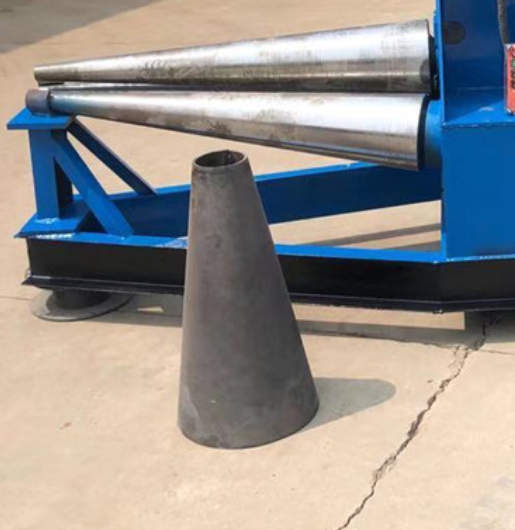

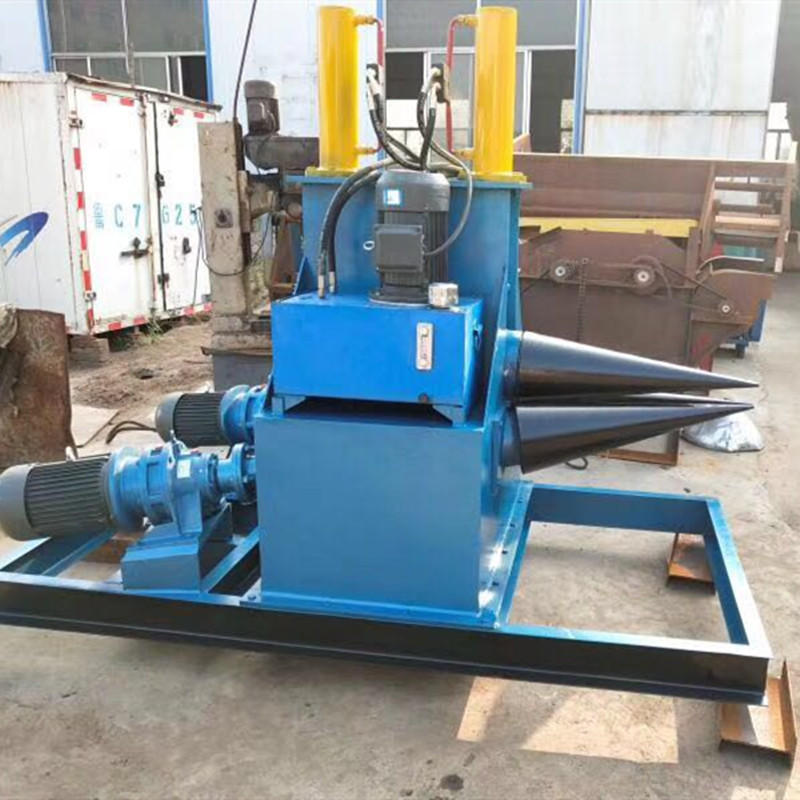

Conical plate rolling machine

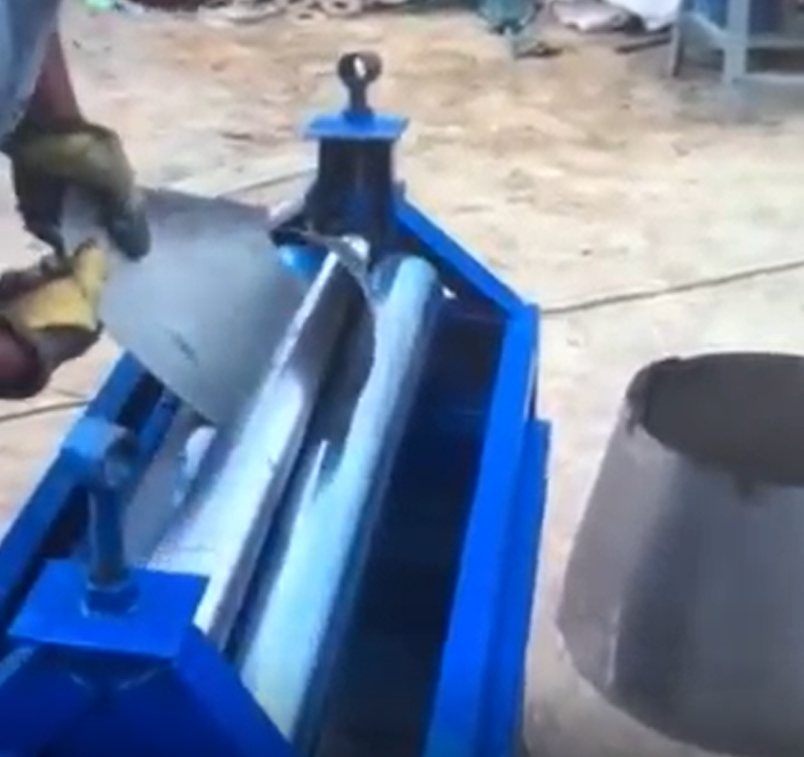

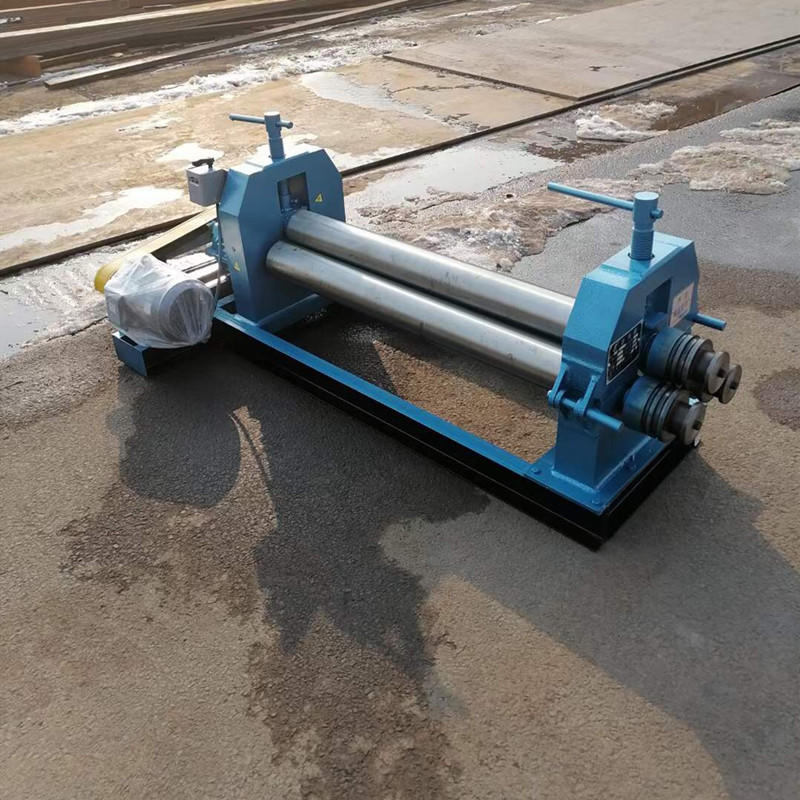

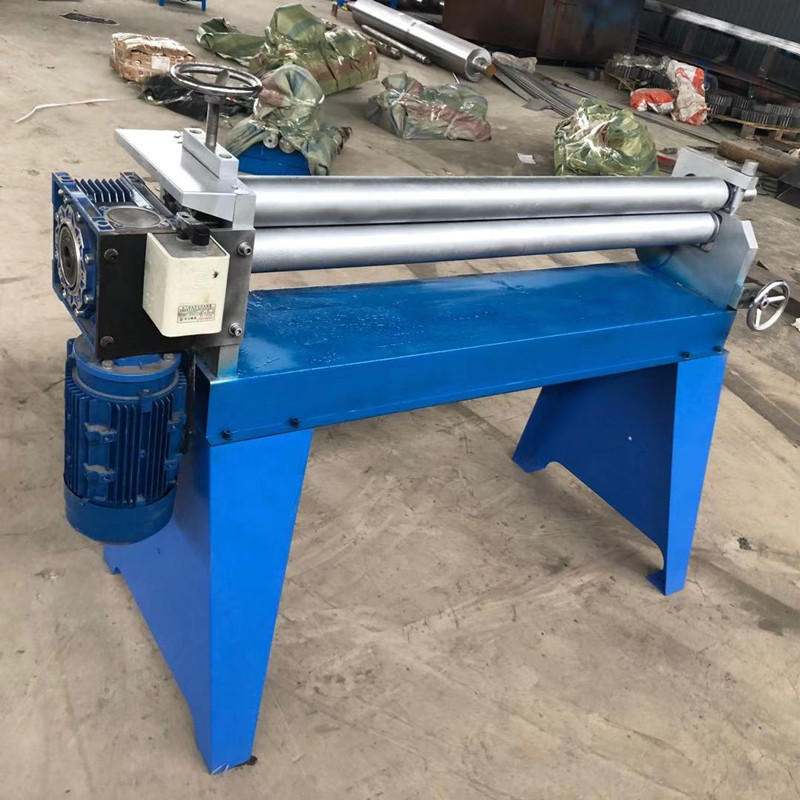

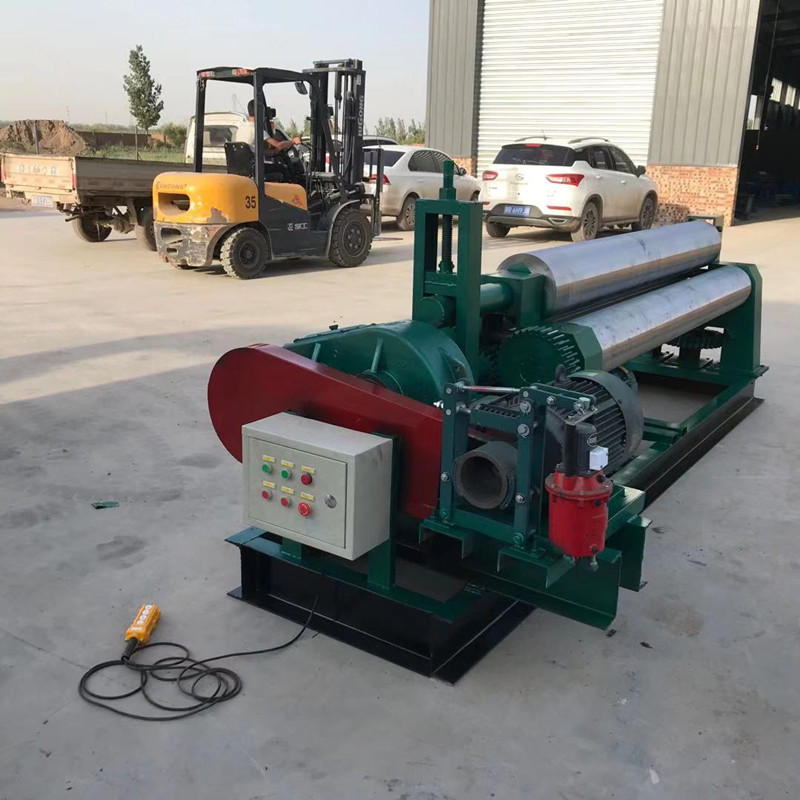

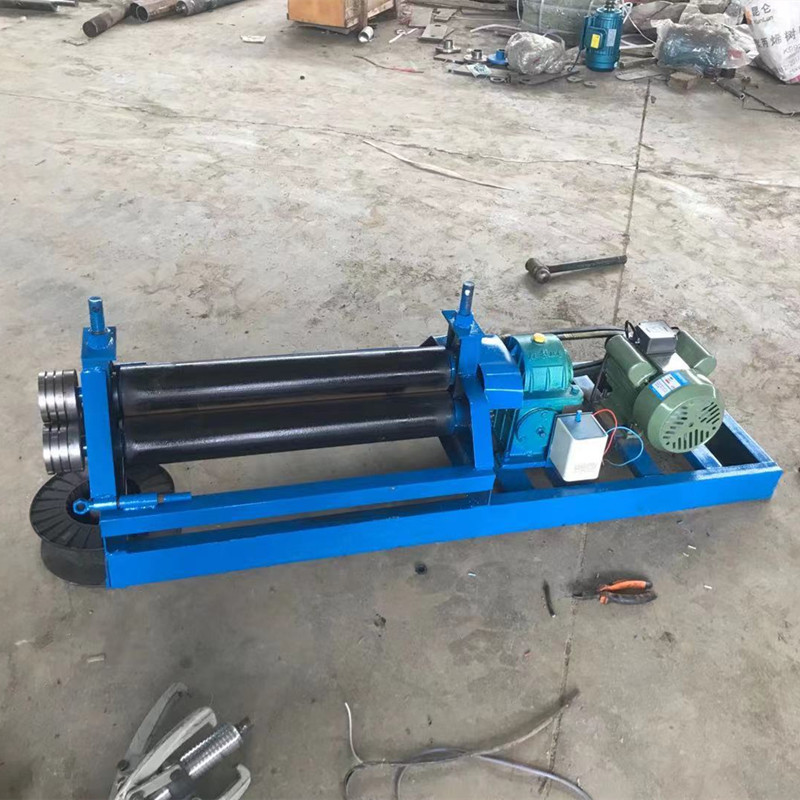

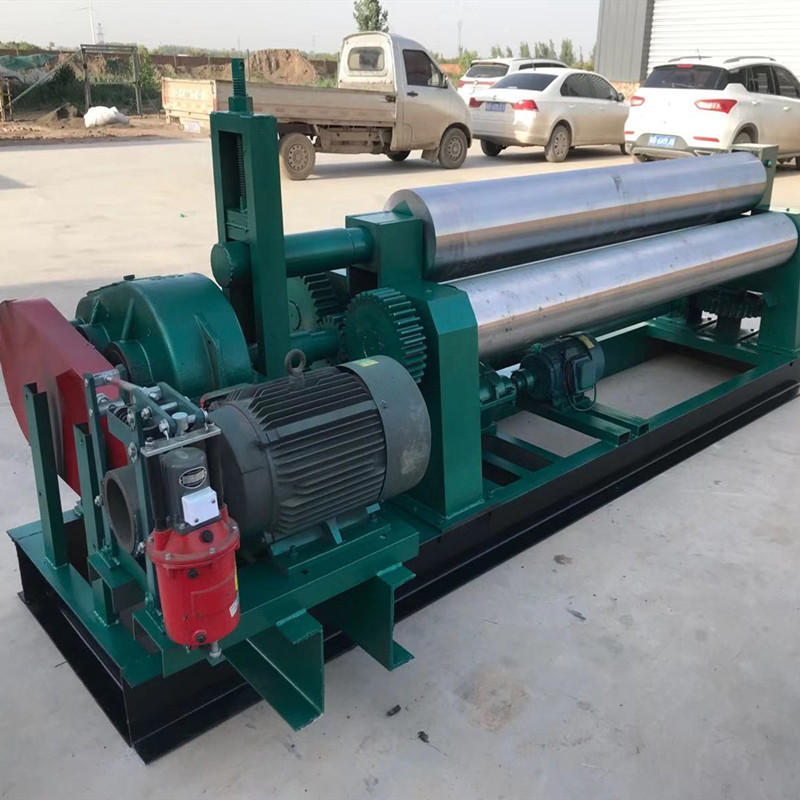

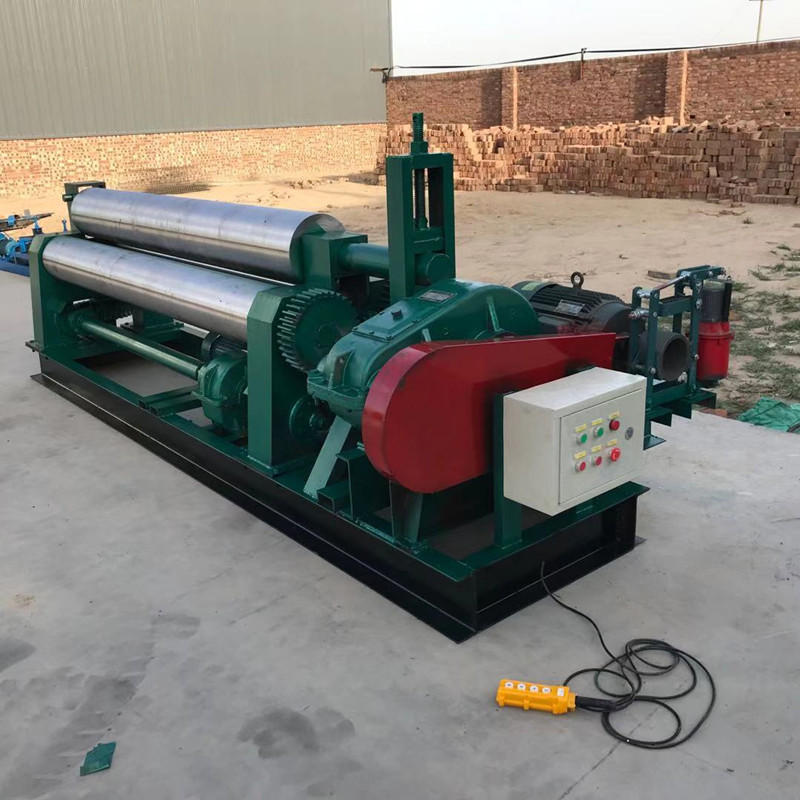

Electric plate rolling machine

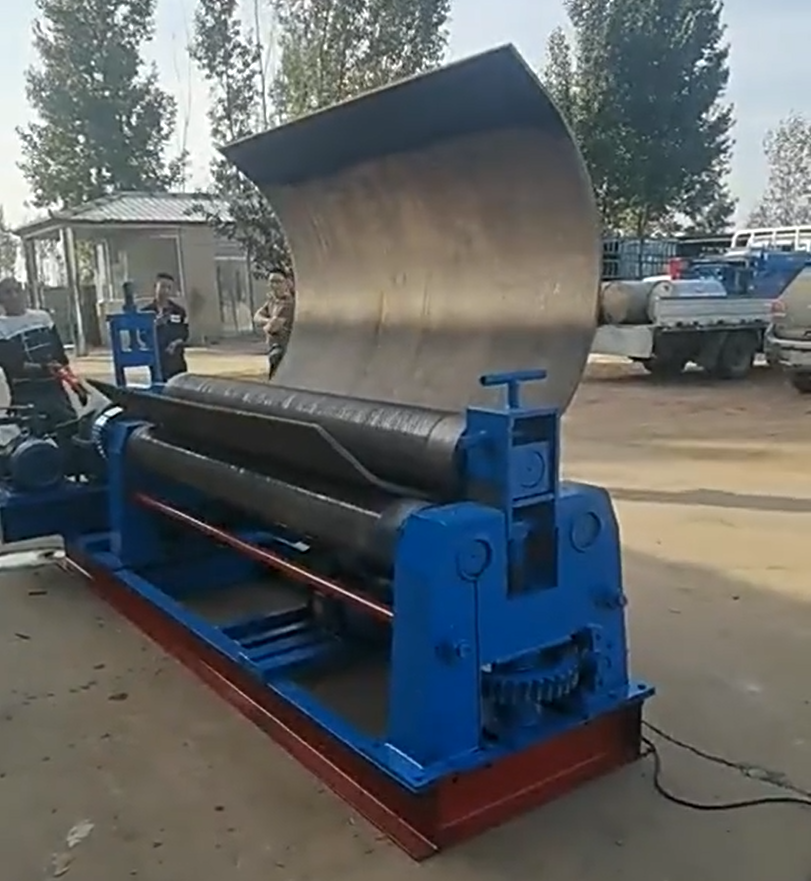

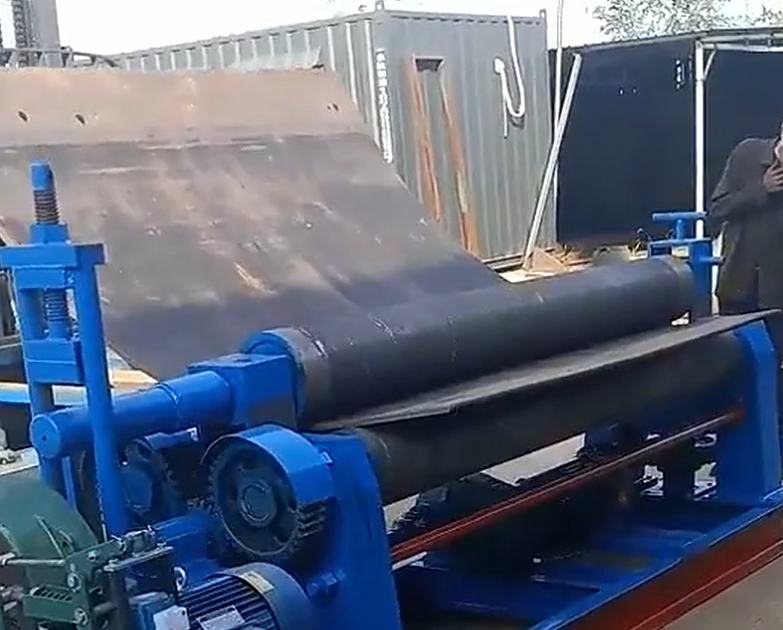

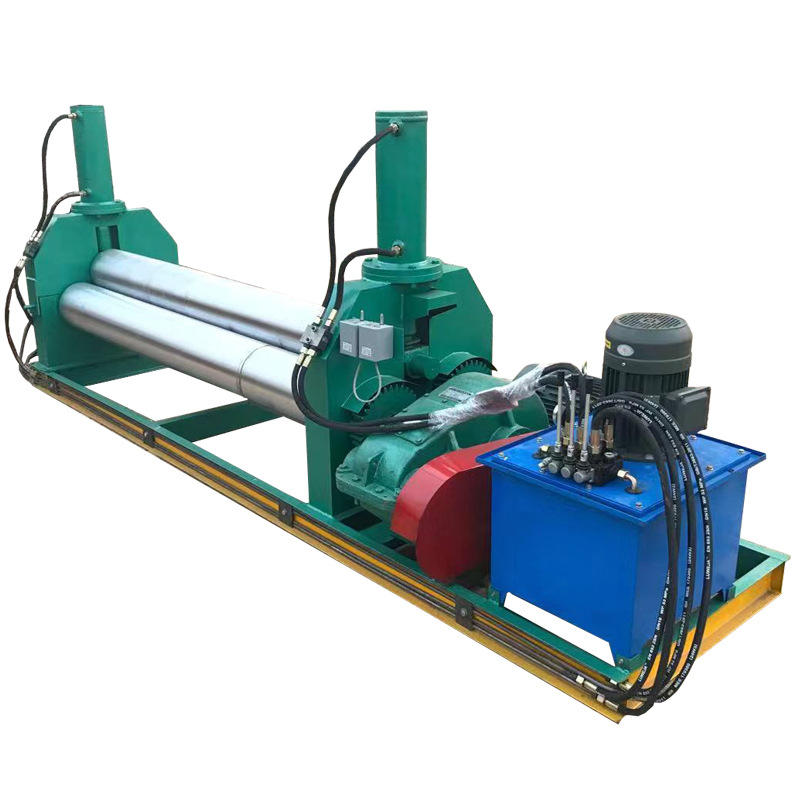

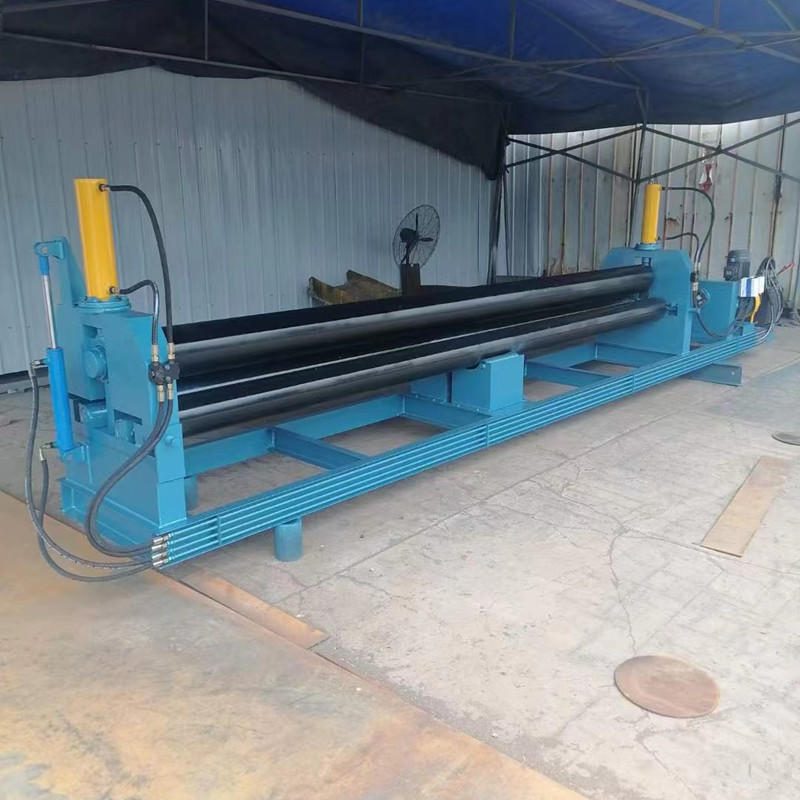

Hydraulic plate rolling machine

Product use effect display

Specification

* Maximum thickness of rolled steel plate	20mm
* Maximum width of rolled steel plate	2200mm
* Minimum diameter of steel coil	400mm
* Main drive motor power	18.5 kW
* Auxiliary drive motor power	7.5 kW
* Feed rate	8m/min

* Maximum thickness of rolled steel plate	8mm
* Maximum width of rolled steel plate	1.5 mm
* Minimum diameter of steel coil	500-70 mm
* Swing motor power	7.5 kW
* Motor power of hydraulic oil station	4 kW
* Feed rate	8m/min
