Microwave ablation for benign breast tumors and fibroids
- $50000.00 / 1 - 4 sets
$30000.00 / 5 - 9 sets
$20000.00 / >=10 sets - 1 set
- ECO Medical Technology (Nanjing) Co.,Ltd
- Jiangsu, China
- Mr ECO Medical
PRODUCT DETAIL
| usage: | hospital medical | Function: | Medical and Health Services |
| Energy source: | electrical | Warranty: | 2 years |
| payment terms: | L/C, T/T | type: | Surgical Instruments |
| Instrument classification: | Level three | expiration of pay: | wire transfer |
| port: | Shanghai | characteristic: | Basics of Surgical Instruments |
| Package preview: | Shelf life: | 2 years | |
| Origin: | China | Supply capacity: | 10 groups per week |
| MOQ: | 1 item | brand: | ecosystem |
| model: | ECO-200G | brand: | ecosystem |
| color: | green | safety standard: | MOL |
| Material: | Metal plastic | product name: | Microwave ablation device for tumor/varicose vein ablation |
| pack: | 1/pack | Quality Certification: | CE |
| After-sales service: | online technical support |
Product Description
A microwave therapy system is an electric (AC powered) device designed to generate microwave energy for localized nonvascular soft tissue ablation, typically for the treatment of tumors and/or hydatid cysts. The device is connected to a disposable microwave therapy antenna via a delivery cable to deliver microwaves to the target tissue. It is intended for use in percutaneous, laparoscopic or open surgical procedures to ablate tissue typically located in the liver, lung, kidney, thyroid, uterus, breast and bone.
1. Product name:
Microwave Therapy System ECO-200G2. Intended use:
A microwave therapy system is an electric (AC powered) device designed to generate microwave energy for localized nonvascular soft tissue ablation, typically for the treatment of tumors and/or hydatid cysts. The device is connected to a disposable microwave therapy antenna via a delivery cable to deliver microwaves to the target tissue. It is intended for use in percutaneous, laparoscopic or open surgical procedures to ablate tissue typically located in the liver, lungs and kidneys.3. Principles:

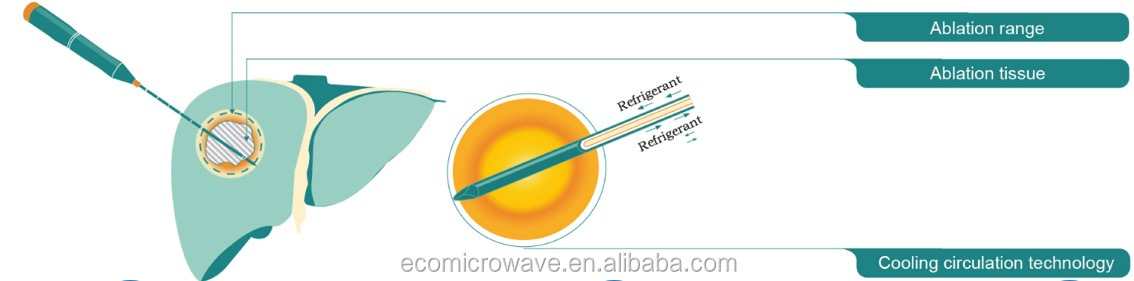

The microwave treatment system uses the polar molecules of the tissue (mainly water molecules) to rotate at high speed under the microwave frequency and rub against each other to generate heat. It is characterized by instant coagulation from the inside out, low temperature, clear edges of the injured part, uniform heating area, and excellent hemostatic effect.
How does MWA compare to traditional methods? | ||||||
treat | Advantage | limitation | trend | |||
MWA | minimally invasive; No toxic side effects; targeted therapy | Insufficient popularity | Rapidly developing new approaches to cancer treatment | |||
Surgery | curative local treatment | long recovery time; Non-Surgical Candidates | popular | |||
chemotherapy | systemic treatment | toxic side effect | popular | |||
Radiation Therapy | locally sensitive tumor | toxic side effect; insensitive or advanced tumors | Highly involved in interventional therapy | |||
feature | benefit | ||||||

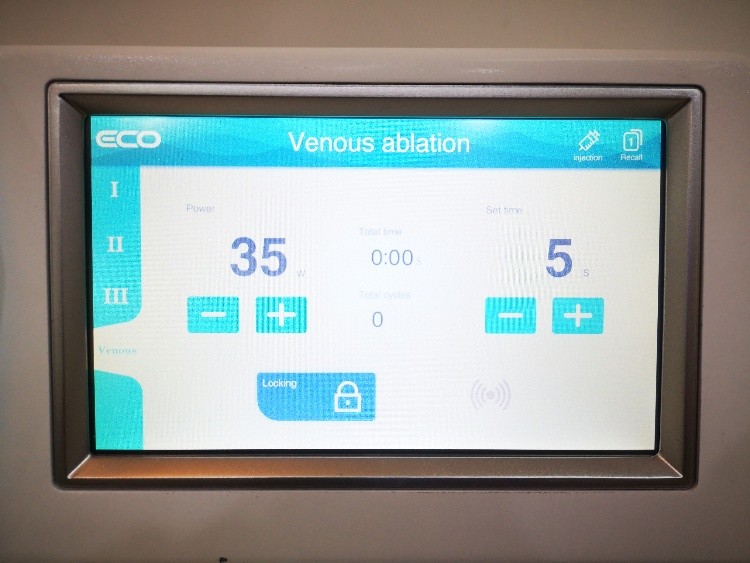

Interactive touchscreen user interface | user friendly | ||||||

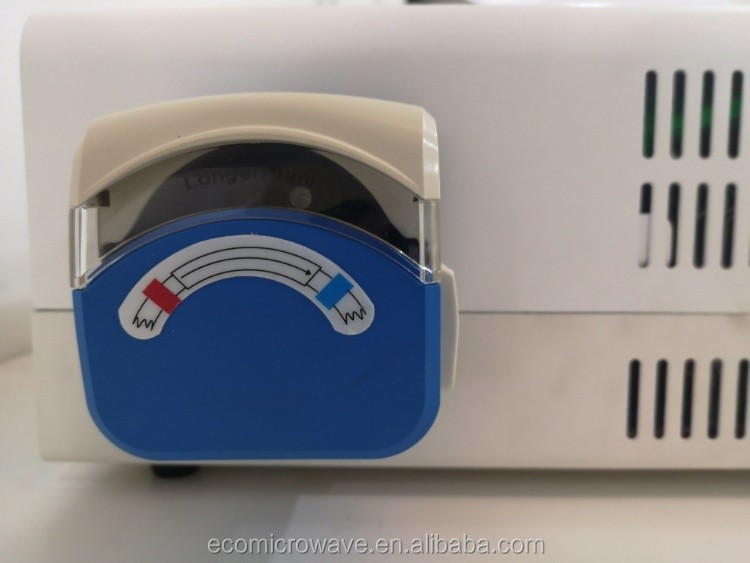

Integrated peristaltic pump | Sustained Cooling Capacity | ||||||
Provides dual energy generators | Coagulate and ablate very large or multiple lesions with 2 antennas simultaneously within one generator to save time | ||||||
Real-time coolant temperature monitoring and display | Minimizes the risk of off-target tissue on the antenna axis | ||||||
Pre-program cooling and microwave output self-test function | Ensure efficacy and safety before starting surgery | ||||||
Provides independent thyroid ablation modes | Effective Microwave Treatment of Thyroid and Parathyroid Nodules and Malignant Tumors | ||||||
Application field
Four. ECO-200G technical parameters1) Working frequency: 2450±20MHz; 2) Output power: 0-150W for single channel, 0-125W for multiple channels; Deviation: ±20%, continuously adjustable. 3) Standing wave ratio: ≤1.5 4) Processing time: 0~30min, continuously adjustable, deviation ≤±1min. 5) Output mode: continuous and intermittent pulse. 6) Cooling temperature (0～50°C, deviation ≤±1°C) 7) Input power: ≤900VA+10%; 8) Microwave leakage: ≤2mW/cm2; Cold cycle system: 1. No leakage in pipe connection, 2. Coolant flow rate: 25mL/min~60mL/min.5. The mechanism of microwave ablation:1) Thermal energy causes irreversible damage to organelles and proteins, eventually producing tissue necrosis in solid tumors. 2) In addition, thermal energy ablates blood vessels around the tumor, stopping blood supply and tumor metastasis. 3) After MWA, the necrotic tissue fibrosis and slowly shrinks, while activating the immune function.
detailed image
The system consists of microwave source, microwave radiator, control system, display system and temperature measurement system. Each product can be configured with a maximum of 1 microwave source.
