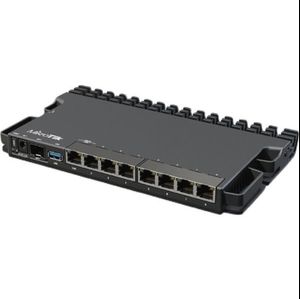

Mikrotik RB5009UG+S+IN nine-port 10G smart home/enterprise ROS router with one 10G optical port and one 2.5G port
- $216.00 /piece
- 1 piece
- Shenzhen Toptoday Network Co., Ltd.
- Guangdong, China
- Ms helen lin
| payment terms: | L/C,Western Union,D/P,T/T,MoneyGram | type: | Enterprise router |
| memory size: | 1GB | Packaging Preview: | |
| Supply capacity: | 100 pieces per week | Maximum power consumption: | 20 watts |
| use: | enterprise | 10/100/1000 Ethernet ports: | 7 |
| Warranty: | 1 year | port: | size |
| architecture: | ARM64 bit | network: | wireless network |
| brand: | Mikrotik | Storage size: | 1 GB |
| Number of 2.5G network ports: | 1 | product name: | RB5009UG+S+IN |
| Packaging Details: | The new one is in the box. | PoE input voltage: | 24-57 volts |
| model: | RB5009UG+S+IN | place of origin; place of origin: | Guangdong, China |
| PoE input: | 802.3af/at |
Mikrotik RB5009UG+S+IN nine-port 10G smart home/enterprise ROS router with one 10G optical port and one 2.5G port
describe

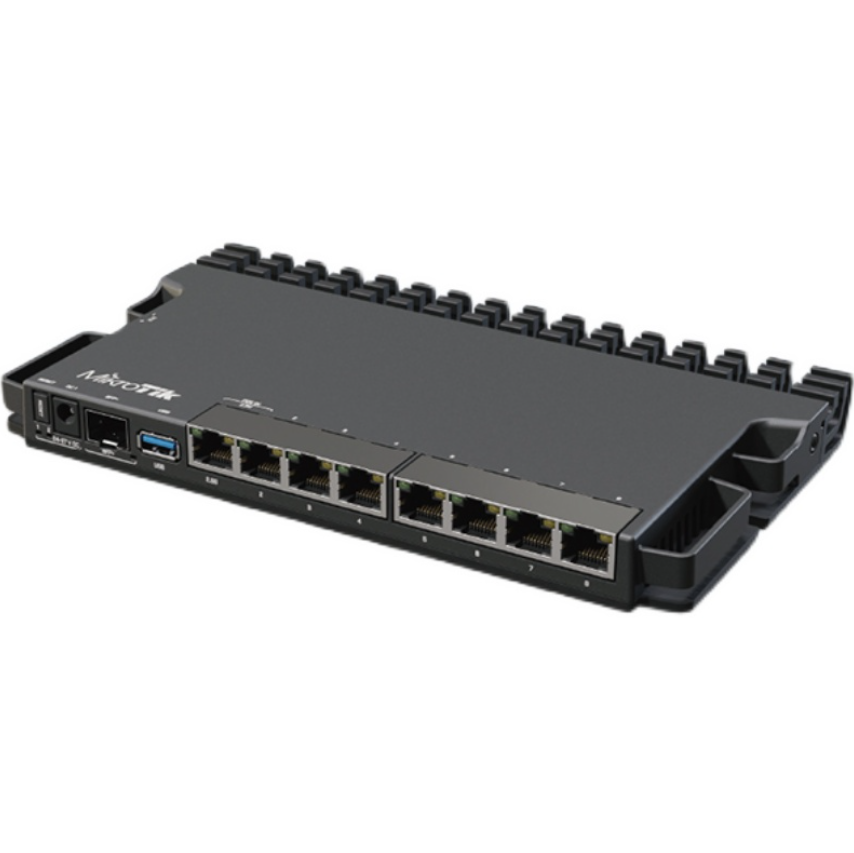

RB5009UG+S+IN Ultimate Heavy Duty Home Lab Router with USB 3.0, 1G and 2.5G Ethernet and 10G SFP+ Cage. You can fit four of these new routers in a single 1U rack mount space! Unprecedented processing power in such a small form factor.
Twice the performance: We gathered your feedback from our MikroTik user meetings to create the perfect home lab router: compact, powerful, with multiple power options and efficient cooling. The RB5009 has it all and more!
The board features nine wired ports and a full-size USB 3.0. Seven of the ports are Gigabit Ethernet, another is 2.5 Gigabit Ethernet, and the last is a 10G SFP+ cage. All ports are connected to a powerful Marvell Amethyst series switch chip with a 10 Gbps full-duplex line to a Marvell Armada quad-core ARMv8 1.4 GHz CPU.Both the CPU and switch chips are on the bottom of the board - so the case acts as a giant heat sink!

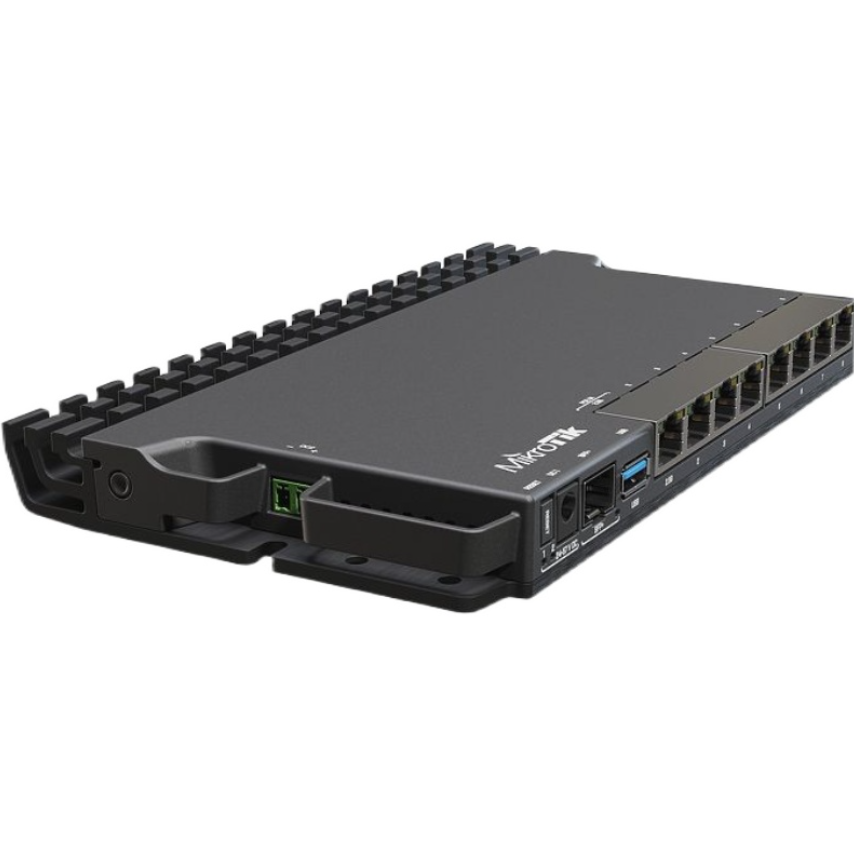

RB5009UG+S+IN can be powered in 3 different ways:
a) PoE input for Ethernet port #1
b) DC jack
c) 2-pin terminal on the side
The motherboard comes with 1GB DDR4 RAM and 1GB NAND storage. This combination of ports and components provides almost twice the performance in CPU-heavy configurations compared to our other products in a similar form factor.

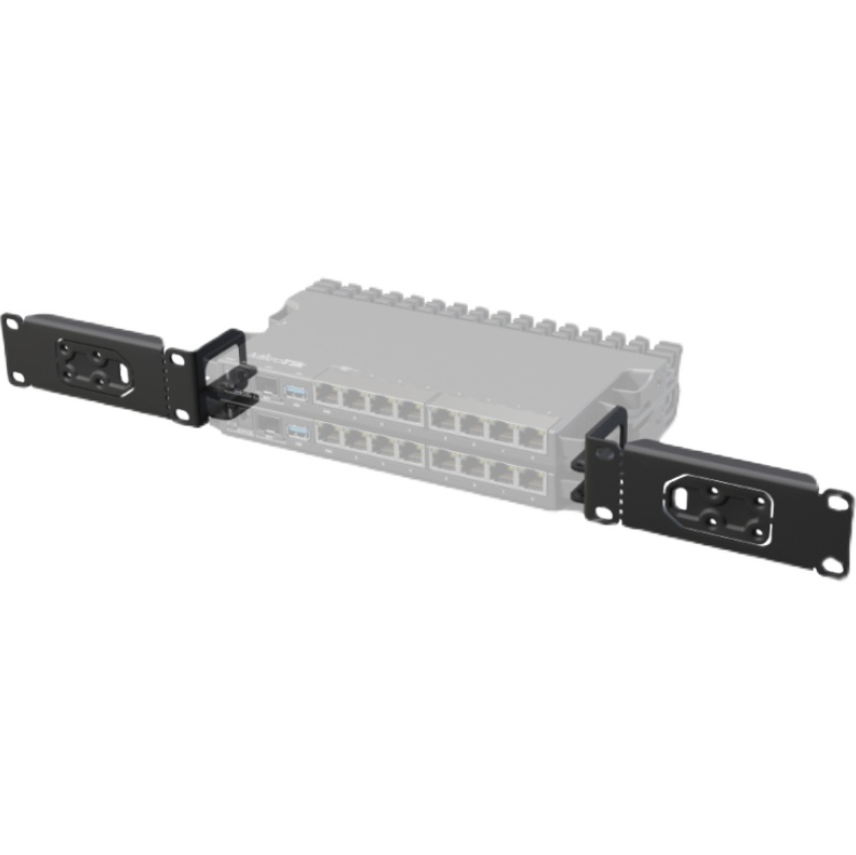

With a simple set of mounting accessories, you can install four of these routers in a single 1U rack mount space! No more server room Tetris, just pure productivity.
Specification
| detail | |
|---|---|
| Product Code | RB5009UG+S+IN |
| architecture | ARM64 bit |
| CPU | 88F7040 |
| Number of CPU cores | 4 |
| CPU nominal frequency | 350-1400 (automatic) MHz |
| Router OS License | 5 |
| operating system | RouterOS (v7 only) |
| memory size | 1GB |
| storage size | 1 GB |
| storage type | NAND gate |
| MTBF | Approx. 200,000 hours at 25C |
| Test ambient temperature | -40°C to 60°C |
powered by
| detail | |
|---|---|
| Number of DC inputs | 3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input voltage | 24-57 volts |
| 2-pin terminal input voltage | 24-57 volts |
| Maximum power consumption | 20 watts |
| Maximum power consumption without accessories | 14 watts |
| Number of fans | Passive |
| Power input | 802.3af/at |
| PoE input voltage | 24-57 volts |
ethernet
| detail | |
|---|---|
| 10/100/1000 Ethernet port | 7 |
| Number of 2.5G Ethernet ports | 1 |
fiber
| detail | |
|---|---|
| SFP+ ports | 1 |
peripherals
| detail | |
|---|---|
| Number of USB ports | 1 |
| USB power reset | Yes |
| USB slot type | USB 3.0 Type A |
| Maximum USB current (A) | 1 |
other
| detail | |
|---|---|
| CPU temperature monitor | Yes |
Certification and Approval
| detail | |
|---|---|
| certified | CE, FCC, CCC |
