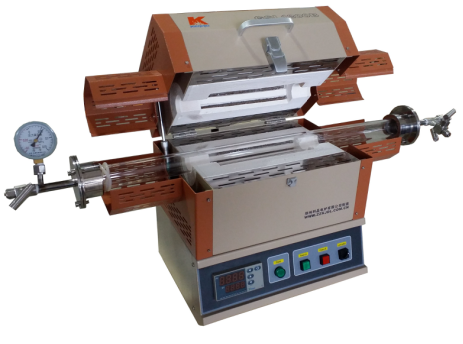

Most quartz quartz quartz vacuum oven that seals flange for rotary tube oven
- 1 piece
- Henan Synthe Corporation
- Henan, China
- Ms Jane Chen
PRODUCT DETAIL
Product Description

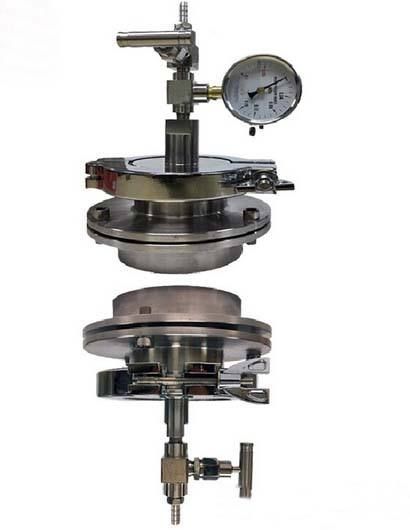

Vacuum stainless steel flange | ||
feature | 1. Stainless steel flange with double high temperature silicone O-ring. 2. The sealing tube is by tightening the screws on the flange without welding and glue. 3. The fixture provides quick access to the contents inside the furnace. 4. Cover the flange with high temperature silicone O-ring and center ring. 5. 1/4" diameter vacuum seal assembly is connected to the rubber hose. 6. Suitable for any type of pipe: ceramic, glass, quartz and steel pipes. 7. 10-4 Thor through molecular pump and 10-2 Torr through mechanical pump | |
size | ¢40mm, ¢50mm, 60mm, 80mm, ¢100 (can be customized) | |
warn | A refractory tube block is required in front of the flange to avoid melting the silicone O-ring. Please consider buying our ceramic tube blocks The product is heavy and requires flange support to avoid damage to the furnace tube. | |

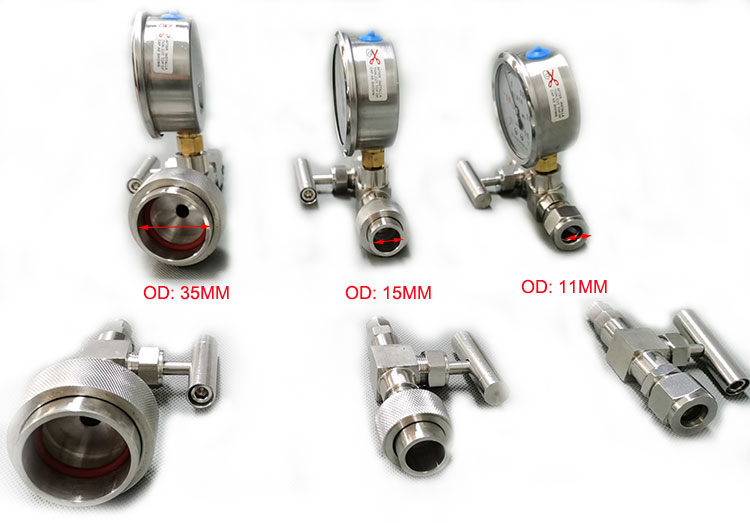

Part size of vacuum flange
The vacuum flange is as follows, we send it to the customer with good feedback, we can provide flange with an outer diameter of 10mm~100mm~100mm, custom sizes are also OK.
The vacuum flange is as follows, we send it to the customer with good feedback, we can provide flange with an outer diameter of 10mm~100mm~100mm, custom sizes are also OK.

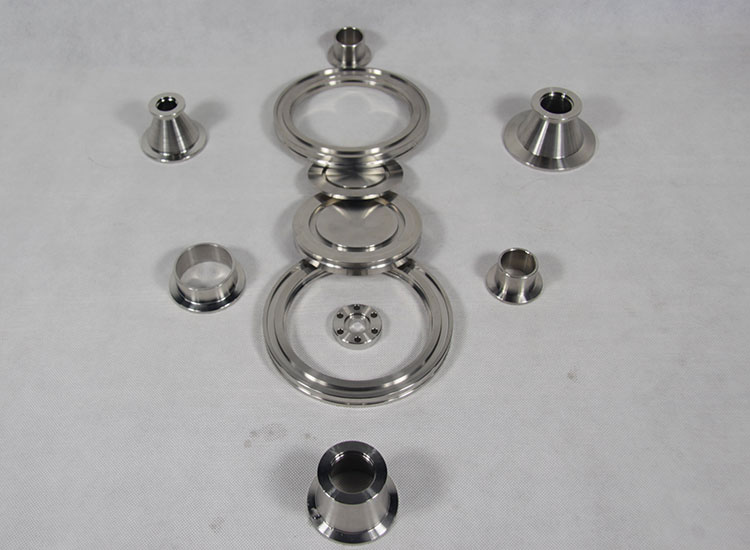

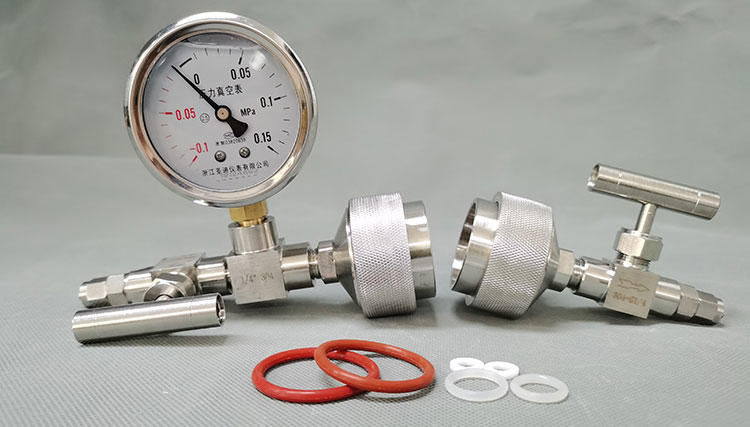

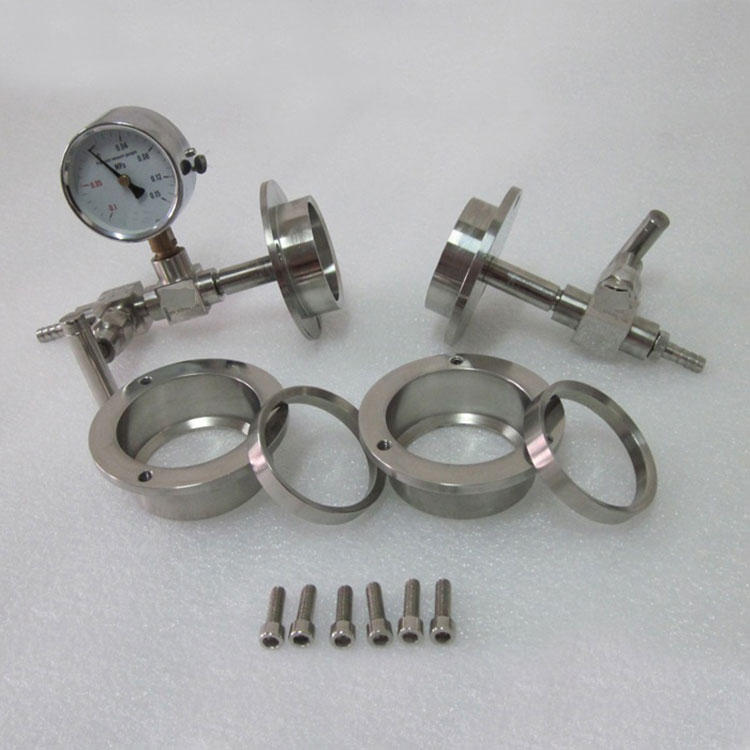

Part number | Part Name | quantity |
1 | Inner and outer flanges | 1 pair |
2 | Pressure ring | 1 |
3 | Center ring | 1 |

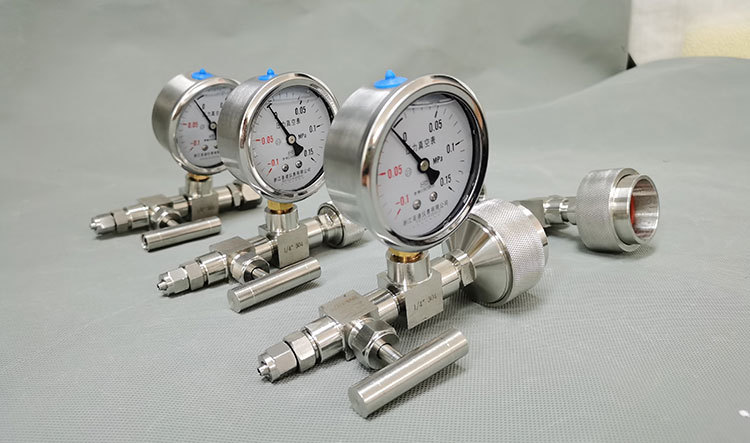

4 | Flange cap with valve | 1 |
5 | Hexagon screws | 3 |

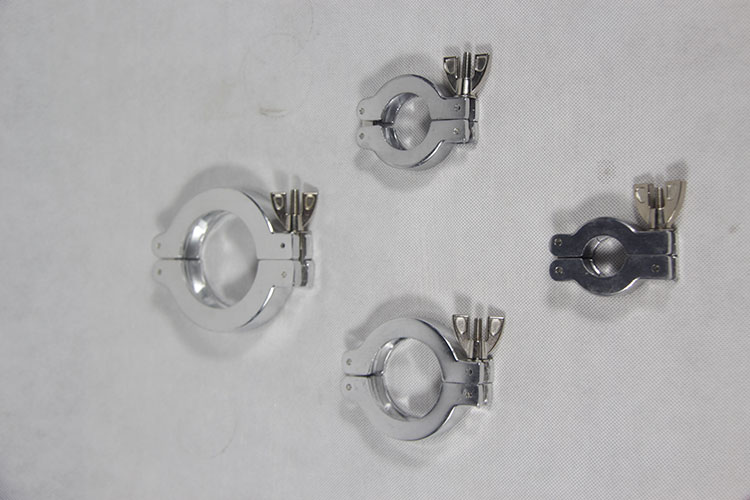

6 | clamp | 1 |
7 | High temperature silicone ketone O-ring (red) | 1 |
8 | High temperature silicone O-ring (white) | 2 |
9 | Instrument (only including left flange purchase) | 1 |
