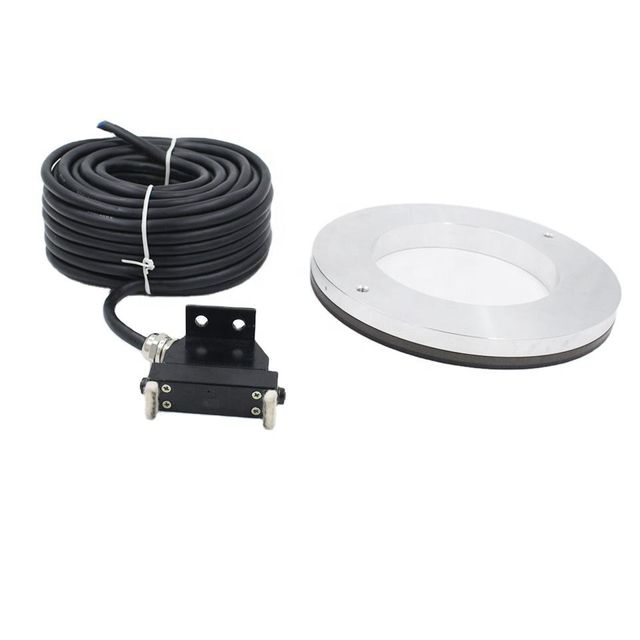

Mounting rotary encoder of the magnetic ring series PKM 40mm 82mm 100mm 163mm
- $92.00 /piece
- 1 piece
- Changchun Sanfeng Photo-Electronics Instrument Manufacturing Co., Ltd.
- Jilin, China
- Mr Kris Zhang
| Resolution: | 128P/R~8960P/R | Packaging Details: | Box |
| Current consumption: | ≤150mA | voltage: | DC voltage ±5V |
| port: | Shenzhen | theory: | magnetic |
| usage: | CNC axis | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Frequency response: | 100kHz | describe: | Magnetic encoder |
| model: | PKM | Maximum speed: | 10000 rpm |
| output: | line driver | Protect: | IP65 |
| brand: | SF Express | Supply capacity: | 500 pieces per week |
| place of origin; place of origin: | Jilin China | type: | Magnetic encoder |

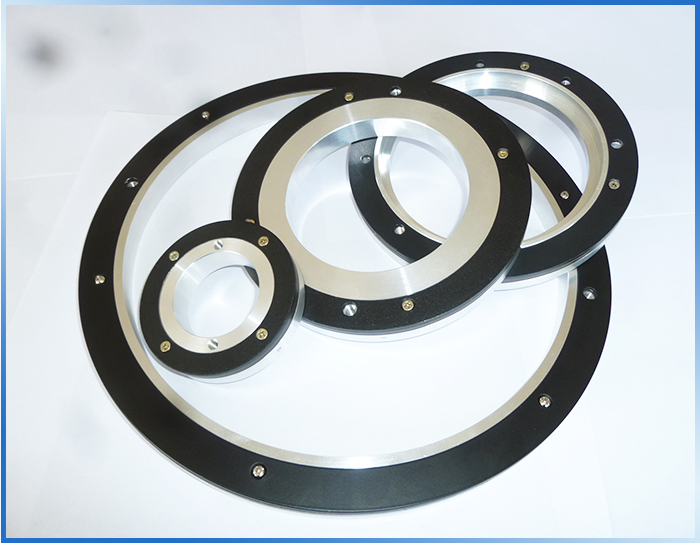

PKM Series 40mm 82mm 100mm 163mm Magnetic Ring Incremental Rotary Encoder
|
Resolution |
128P/R~8960P/R |
|
voltage |
DC voltage ±5V |
|
fiveHThe output voltage |
5V |
|
fivelargeThe output voltage |
≤0.5V |
|
current consumption |
≤150mA |
|
output phase |
ABZA(_).B(_).Z(_) |
|
Frequency response |
100kHz |
|
Rise/Fall Time |
≤1μS |
|
maximum speed |
10000 rpm |
|
Vibration resistance |
50 m/s2(10~200Hz) xyz direction for 2 hours |
|
shock resistance |
980 m/s23 times in xyz direction |
|
Protect |
IP65 |
|
Operating temperature |
-20℃~+80℃ |
|
Storage temperature |
-20℃~+90℃ |
|
Working humidity |
30~85%RH |
|
Weight (without cables) |
0.4Kg |
|
cable color |
Red |
Black |
white |
green |
yellow |
blue |
orange |
Brown |
shield |
|
|
output form |
large |
VCC |
0V |
One |
Second |
Z |
One(_) |
Second(_) |
Z(_) |
FG |
If you have any questions, please feel free to contact me.
We are happy to help.
|
Are you a trading company or a manufacturer? |
|
We are a manufacturer with 20 years of experience. |
|
Do you accept OEM brands? |
|
Accept large OEM brand customers, or a large number of customers. |
|
Do your products have factory inspections? |
|
Every product we send goes through strict factory inspection. |
|
How soon do you ship? |
|
Our delivery time varies from 3 days to 3 weeks. |
|
Can you provide free samples? |
|
Regular products provide samples at the original price. Customized products are available at cost price. |
|
What kind of packaging are you sending? |
|
We use high-quality corrugated cardboard boxes with environmentally friendly buffer materials inside. |
|
What is our port of loading? |
|
Dalian Port, or apply for other ports. |
|
How long is your quality guarantee period? |
|
The warranty period of our products is one year. |
