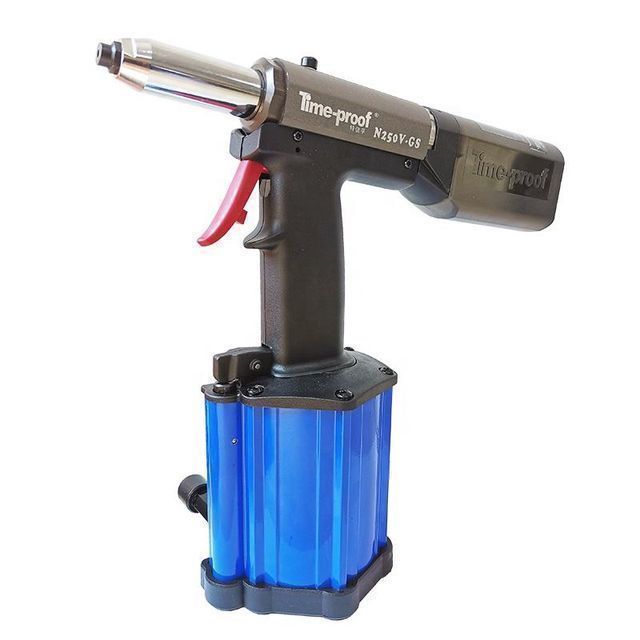

N250V-GS Pneumatic Riveting Tool Blind Riveting Gun Pneumatic Hydraulic Riveting Gun with Mandrel Suction Cup Modular Design

PRODUCT DETAIL
model:N250V-GScapacity:Blind rivets 3.2-5.0mm all materials
place of origin; place of origin:China ShanghaiSupply capacity:15000 pieces per month
port:ShanghaiTraction:10,300N - 14,420N
net weight:1.4kgGas source:5bar - 7bar
Stroke:19mmCustom Support:OEM, ODM
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram



Product Description

default allocation:

tool model N250-V (with mandrel suction cup)
capacity Structural rivets 3.2-5.0mm all materials
Gas source 5 bar - 7 bar
traction 10,300 N - 14,420 N
stroke 19 mm
net weight 1.42 kg







Product display:



Product Details:



1. High speed.


2. Bottom air outlet.


3. Strong.


4. Anti-vibration.


5. Refuel from the top.


6. Cylinder design patent.







introduce
durable®Pneumatic/Hydraulic
Riveting tool series




Innovative and Unique Features
The most striking feature of the tool is the unique design of the tool body - the air cylinder.
The vertical hexagonal cylinder design has changed the traditional production method. The cylinder is closed from the top and bottom by six screws instead of traditionally tapping the threads around the cylinder
body, requiring considerable material thickness. The unique way of closing the cylinder makes the tool relatively lighter.
The unique design also efficiently produces fairly long tubular profiles from its raw materials. With no inflexible molds, the height of the cylinder can be calculated flexibly to apply a wide range of tool strokes in the most economical way.
The strength of the cylinder is proven adequate by its aerospace-grade aluminum alloy material.
Unique cylinder design is patented.




benefit
Help manufacturers organize a wide range of tools and further develop custom tools at a lower cost; Help dealers easily organize a full range of tools; Facilitate after-sales service;





Modular design
Here's a further way to design a range of tools to reduce costs
and inventory items required for production, maintenance and repair.
The Time-proof™ Pneumatic Riveting Tool family has multiple components
Components are interchangeable between different models. it is very helpful
Distributors in Service Management.




Tool series
commercial series;
industrial series;
professional series;







Commercial series:


The commercial range of riveting tools consists of a model number prefixed with -Z: Z5000, Z5000V, Z5000A, Z5000AV for setting blind rivets up to 4,8/5,0mm Z6400, Z6400V for setting blind rivets up to 6,4mm .
Model codes with the suffix -V indicate that the tool has a vacuum suction system that holds blind rivets in the tool nose pads and automatically blows out the remaining mandrel after setting.
Model codes with the suffix -A indicate that the tool is custom with increased traction at the expense of travel, pairing the Z5000 and Z5000A, Z5000V and Z5000AV.
The appearance of the Commercial Series tool is set to black by default, but with red triggers.
The commercial range of tools is positioned to serve the DIY and semi-industrial segments of the market. Oriented to low cost, arrange production in the most economical way and conduct mass production. Except for a few unimportant part materials, critical parts and parts assemblies do not affect the quality, thereby extending tool life and simple basic maintenance by non-professional users.
A life test on the base model Z5000 showed that the tool started to loose the setting stroke after about 10 minutes of setting. 120,000 blind rivets aluminium/steel multigrip 4,8 x 15 without washer (two strokes for one rivet). During testing, a set of jaws were replaced as the rivets wore out after 54,000 pieces.







Industrial series:


Industrial series riveting tools are composed of models, prefix -N is for rivet tool setting, prefix -M is rivet nut tool setting:
N240, N240V for setting blind rivets up to 4,0mm

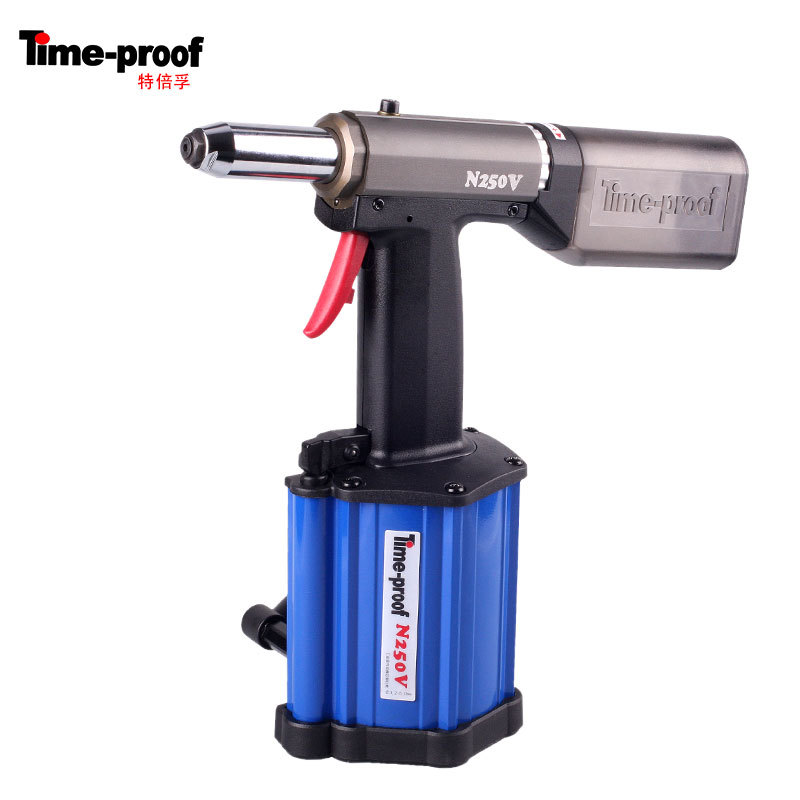

N250, N250V for setting blind rivets up to 4,8/5,0mm
N640C, N640CV, N640G, N640GV for setting blind rivets and structural blind rivets up to 6.4 mm
N1100G for setting Monobolt or equivalent, up to 10 mm
M2308 Blind rivet nut for setting up to M8
M2312 Blind rivet nut for setting up to M12
M2312L Open nut for setting max stroke 16mm
M2314 Blind rivet nut for setting up to M14
Model codes with the suffix -V indicate that the tool has a vacuum suction system that holds blind rivets in the tool nose pads and automatically blows out the remaining mandrel after setting.
Model codes with the suffix -C indicate that the tool is designed for extra long stroke applications setting Monobolt, Interlock, Magnalock or equivalent; while the suffix -G indicates that the tool is designed for extra traction, setting Hemlok or equivalent.
The Industrial range of tools is aimed at the market segments for general industrial and professional applications. The series includes blind rivet fixing tools as well as blind rivet nut/bolt fixing tools, split nut fixing tools.
It is the main line in the Time-proof™ air riveting tool line.
There are many functional extension head assemblies and custom accessories for a variety of applications in industrial production.
Timeproof has an experienced R&D team to provide customers with fastening solutions.






Professional Series
Professional range riveting tools include the following models: QH264 for setting lock bolts up to 6.4 mm
QH1100 For setting lock bolts up to 10 mm TK164 For setting speed rivets and hammer rivets up to 6.4 mm Setting tools, installation equipment.

Professional series of riveting tools are continuously developed according to customer needs and promoted through fastener installation solution services.
Industrial and Professional tools have a blue cylinder by default.
