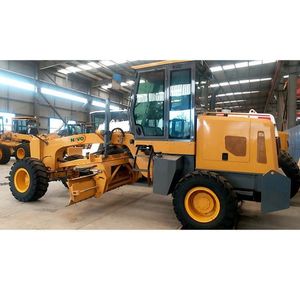

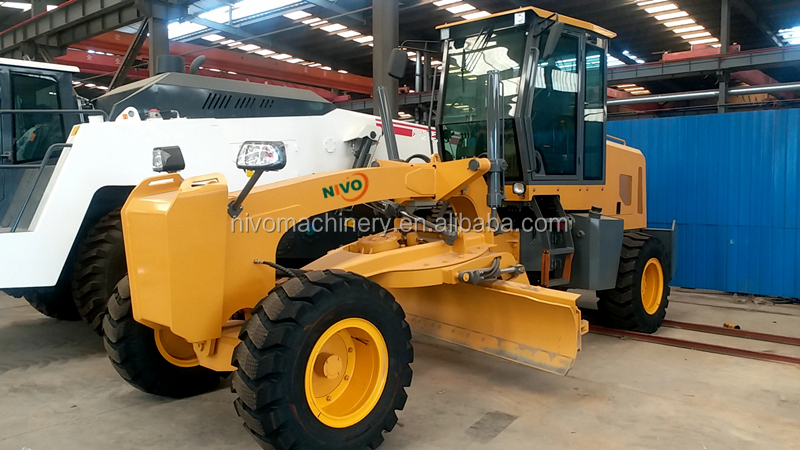

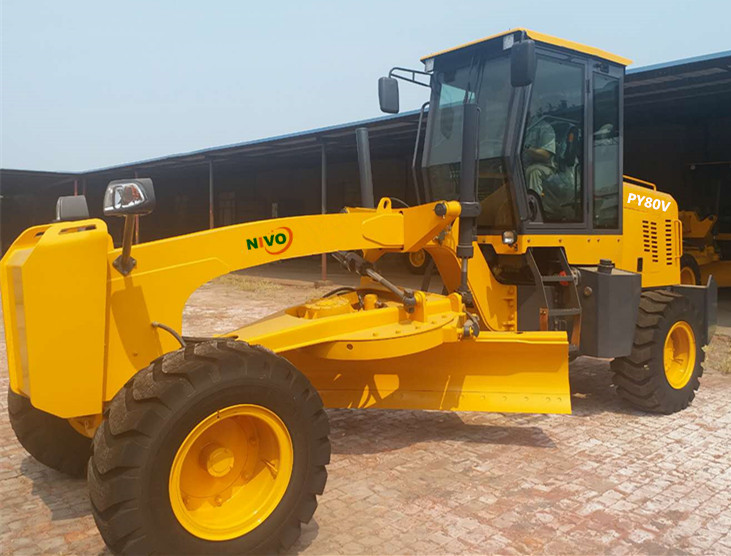

NIVO PY80V 80hp 6ton mini motor grader china for road construction Equipment or parts
- $7998.00 /unit
- 1 unit
- Nivo Machinery (jingjiang) Co., Ltd.
- Jiangsu, China
- Ms May Huang
PRODUCT DETAIL
| Warranty: | 1 year | engine model: | YN33GBZ |
| Unique selling point: | High operating efficiency | Working diameter: | 3000mm |
| Blade clearance: | 400mm | Health status: | new |
| weight: | 6000 kg | Hydraulic cylinder brand: | mentioned |
| Reverse speed(km/h): | 30 | Cutting Depth: | 260mm |
| Wheelbase (front and rear): | 4260mm | Blade diameter: | 1090mm |
| Applicable industries: | Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies | Minimum ground clearance of rear axle: | 350mm |
| Engine brand: | China | Marketing Type: | 2019 New Products |
| Core component warranty: | 1 year | port: | Shanghai |
| Supply capacity: | 20 units per day | Dimensions (L*W*H): | 6050*2050*3100mm |
| Mechanical test report: | if | Hydraulic pump brand: | mentioned |
| Origin: | China | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Minimum ground clearance of the front axle: | 380mm | payment terms: | L/C, Western Union, T/T, MoneyGram |
| Video shipment inspection: | if | Blade rotation angle: | 360° |
| strength: | 65 kW | Hydraulic valve brand: | mentioned |
| Packaging Details: | nude | brand: | Nivo |
| System pressure: | 16Mpa | Showroom location: | not any |
| Forward speed (km/h): | 40 | Package preview: |
Product Description
Specification | ||
Machine size | ||
length x width x height | 6050×2050×3100mm | |
Minimum ground clearance of front axle | 380mm | |
Minimum ground clearance of rear axle | 350mm | |
wheelbase | 1590mm | |
Wheelbase (front and rear) | 4260mm | |

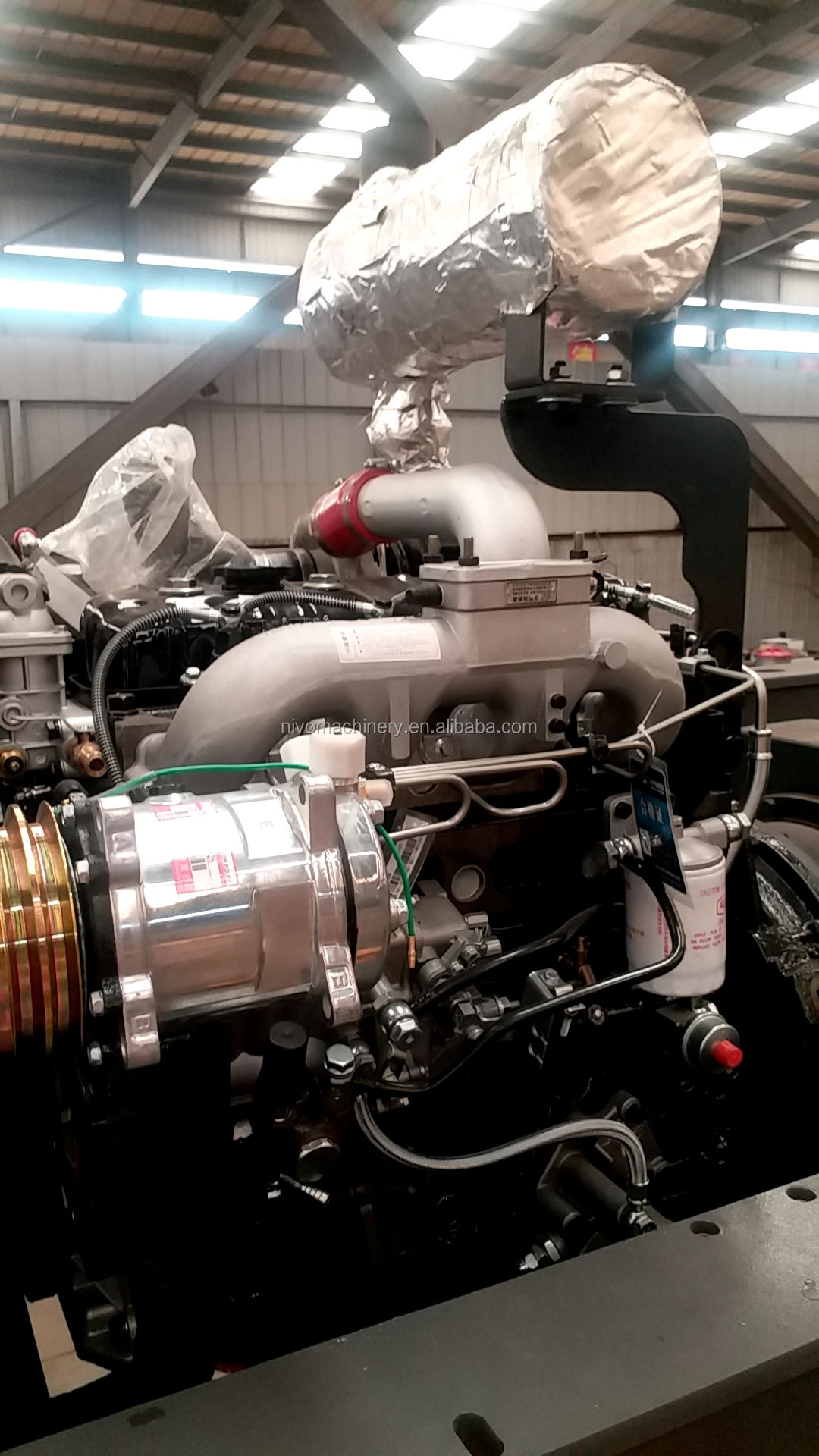

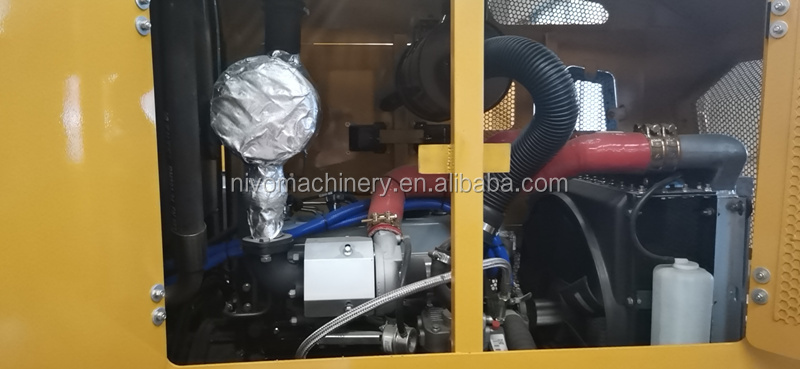

engine | ||
Model | YN33GBZ | |
4BTA3.9-C80 80HP price difference quotation available | ||
type | Straight line, water cooling, direct injection, four stroke | |
rated power | 65 kW | |
engine capacity | 3.8L | |
Cylinder diameter/stroke | 102mm/115mm | |
minimum fuel consumption rate | ≤225g/(Kw.h) | |

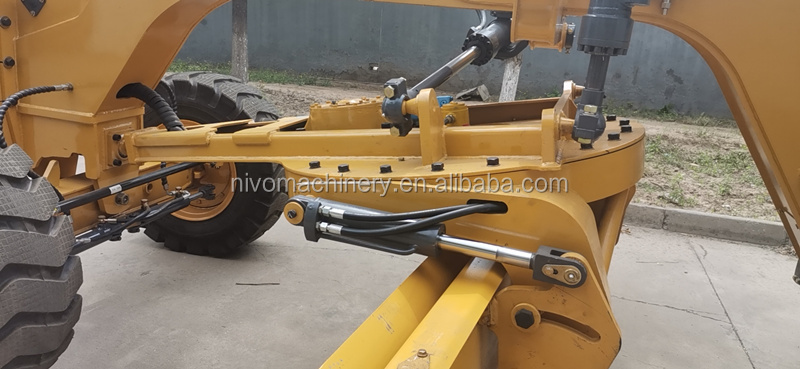

Tractor parameters | ||
Machine quality | 5840Kg | |
Front axle maximum swing angle | ±16° | |
Front wheel maximum steering angle | ±45° | |
Blade size (length*height*thickness) | 3000*480*18 | |
Blade diameter | 1090mm | |
Frame Articulation Steering Angle | ±23° | |
blade rotation angle | 360° | |
Blade clearance | 400mm | |
depth of cut | 260mm | |
Blade Angle | 47 degrees backward, 5 degrees forward | |
Blade sliding range | Left 500mm, Right 500mm | |

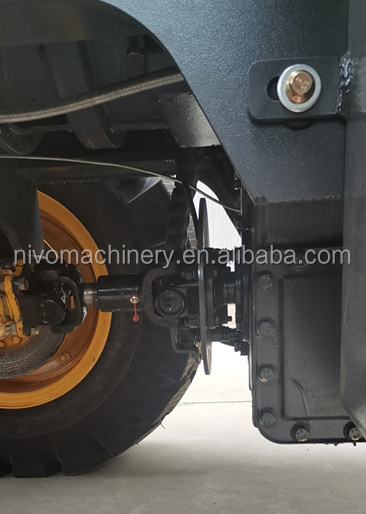

Drive System | ||
Maximum speed (forward, reverse) | 40km/h/, 30km/h | |
transmission type | Fixed shaft power shift | |
Torque Converter Type | Single stage, single phase, three elements | |
gear | First four and last four | |
fetal | 16/70-20 | |
Hydraulic system | ||
type | open | |
System pressure | 16Mpa | |
refueling capacity | ||
Hydraulic oil | 130L | |
diesel fuel | 100L | |

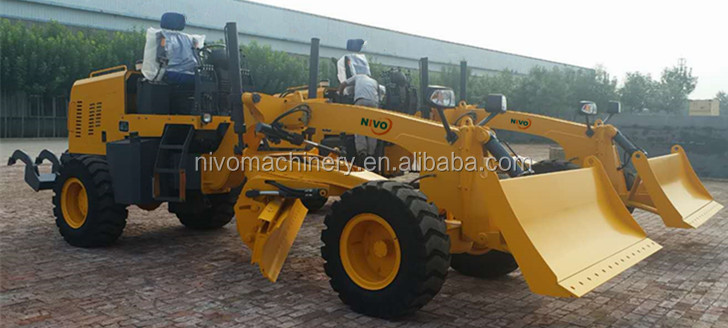

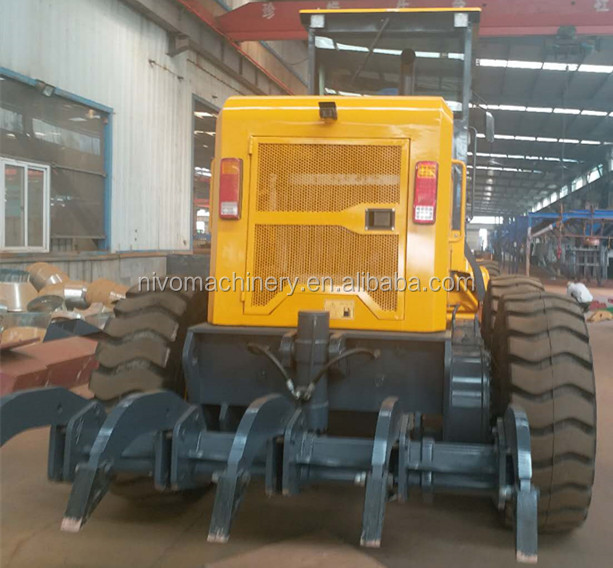

Front blade and rear ripper optional
