NSK spherical roller bearing 22217EAE4 roller bearing

Price:$62.00 / 1 - 99 pieces
$59.00 / 100 - 999 pieces
$57.00 / >=1000 pieces
Min. Order:1 piece
Supplier:Shandong Huafei Bearing Co., Ltd.
Region:Shandong, China
Contact:Ms jinrong liu

PRODUCT DETAIL

Brand Name:	NSK;	Product:	NSK spherical roller bearing 22217EAE4 roller bearing;
Number of Row:	Double,Double row;	Feature:	Long Life Durable;
Payment Terms:	L/C,D/P,D/A,T/T;	Packaging Detail:	High performance NSK Spherical roller bearing 22217EAE4 package details : 1. Industrial packaging: Plastic carton + plywood pallets; plastic bag + kraft paper + carton + plywood pallets; 2.Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets; 3.According to customer's requirements;
Precision Rating:	P0,P5,P0,P5;	Port:	Guangzhou;
Service:	After-Sales Service;	Type:	Roller;
Package:	NSK Original Package;	Structure:	Spherical;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining;	Seals Type:	Open;
Application:	Various Industries;	Size:	8515036mm;
Model Number:	22217EAE4;	Package Preview:	;
Material:	Chrome Steel GCR15;	Supply Ability:	30000 Acre/Acres per Month;
Place of Origin:	Japan;	Sample:	Available;

Products Description

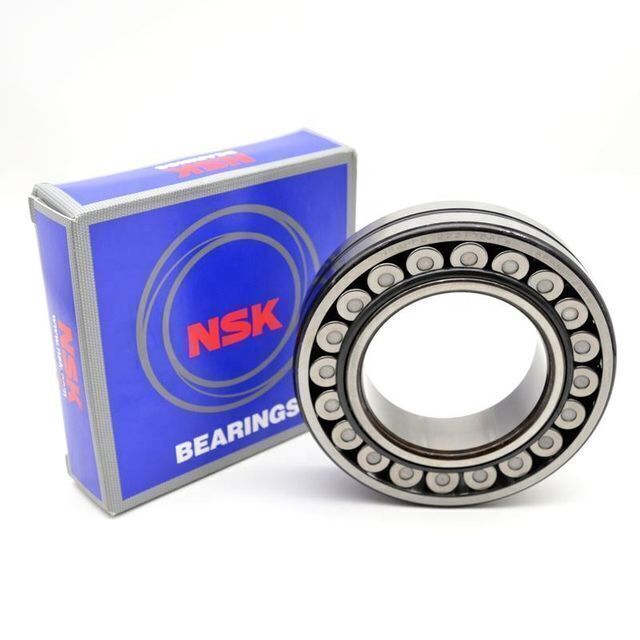

NSK spherical roller bearing 22217EAE4

Description: NSK Spherical roller bearings have two rows of rollers with a common sphere raceway in the outer ring and two inner ring raceways inclined at an angle to the bearing axis. This gives them an attractive combination of design features making them irreplaceable in many demanding applications. They are self-aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending. Materials: 1. Material of ring : GCr15, 2.Material of Cage: Steel, brass, polyamide, nylon 3.Material of Roller: chromium steel Structure: Internal Structure and Retainer Material Variation C: Symmetrical roller, Stamped Steel retainer CA: Symmetrical roller, one-pice brass cage CTN1: Symmetrical roller, nylon cage

E: Third generation design. improved stress distribution; offer much longer service life than normal designs Q: Bronze cage MB: Symmetrical roller,Two-pice brass cage EM: Symmetrical roller, Special alloy Integral cage. External form change: K: Tapered bore bearing,taper is 1:12 K30: Tapered bore bearing,taper is 1:30 N: A snap ring groove on the outer ring W33: There are three lubrication groove and three lubrication holes in the outer ring Clearance: C0:Norminal clearance,omitted in destination C2:Less than Norminal clearance C3:Larger clearance than C0 C4: Larger clearance than C3 Application: 1.Papermaking machinery, deceleration device, railway vehicle axle, rolling mill, roller gearbox 2. Crusher, vibrating screen, printing machinery, woodworking machinery 3.Various industrial reducer

Structure Map of 22217EAE4

d	D	B	rmin.	Cr	C0r	Model
80	140	33	2	264	275	22216EAE4
80	140	33	2	264	275	22216EAKE4
80	170	39	2.1	355	375	21316EAE4
80	170	39	2.1	355	375	21316EAKE4
80	170	58	2.1	540	565	22316EAE4
80	170	58	2.1	540	565	22316EAKE4
85	150	36	2	310	325	22217EAE4
85	150	36	2	310	325	22217EAKE4
85	180	41	3	360	395	21317EAE4
85	180	41	3	360	395	21317EAKE4
85	180	60	3	600	630	22317EAE4
85	180	60	3	600	630	22317EAKE4
90	160	40	2	360	395	22218EAE4
90	160	40	2	360	395	22218EAKE4
90	160	52.4	2	340	490	23218CE4
90	160	52.4	2	340	490	23218CKE4
90	190	43	3	415	450	21318EAE4
90	190	43	3	415	450	21318EAKE4
90	190	64	3	665	705	22318EAE4
90	190	64	3	665	705	22318EAKE4
95	170	43	2.1	415	450	22219EAE4
95	170	43	2.1	415	450	22219EAKE4
95	170	55.6	2.1	370	525	23219CAME4
95	170	55.6	2.1	370	525	23219CAMKE4
95	200	45	3	430	435	21319CAME4
95	200	45	3	345	435	21319CE4
95	200	45	3	430	435	21319CAMKE4
95	200	45	3	345	435	21319CKE4
95	200	67	3	735	780	22319EAE4
95	200	67	3	735	780	22319EAKE4

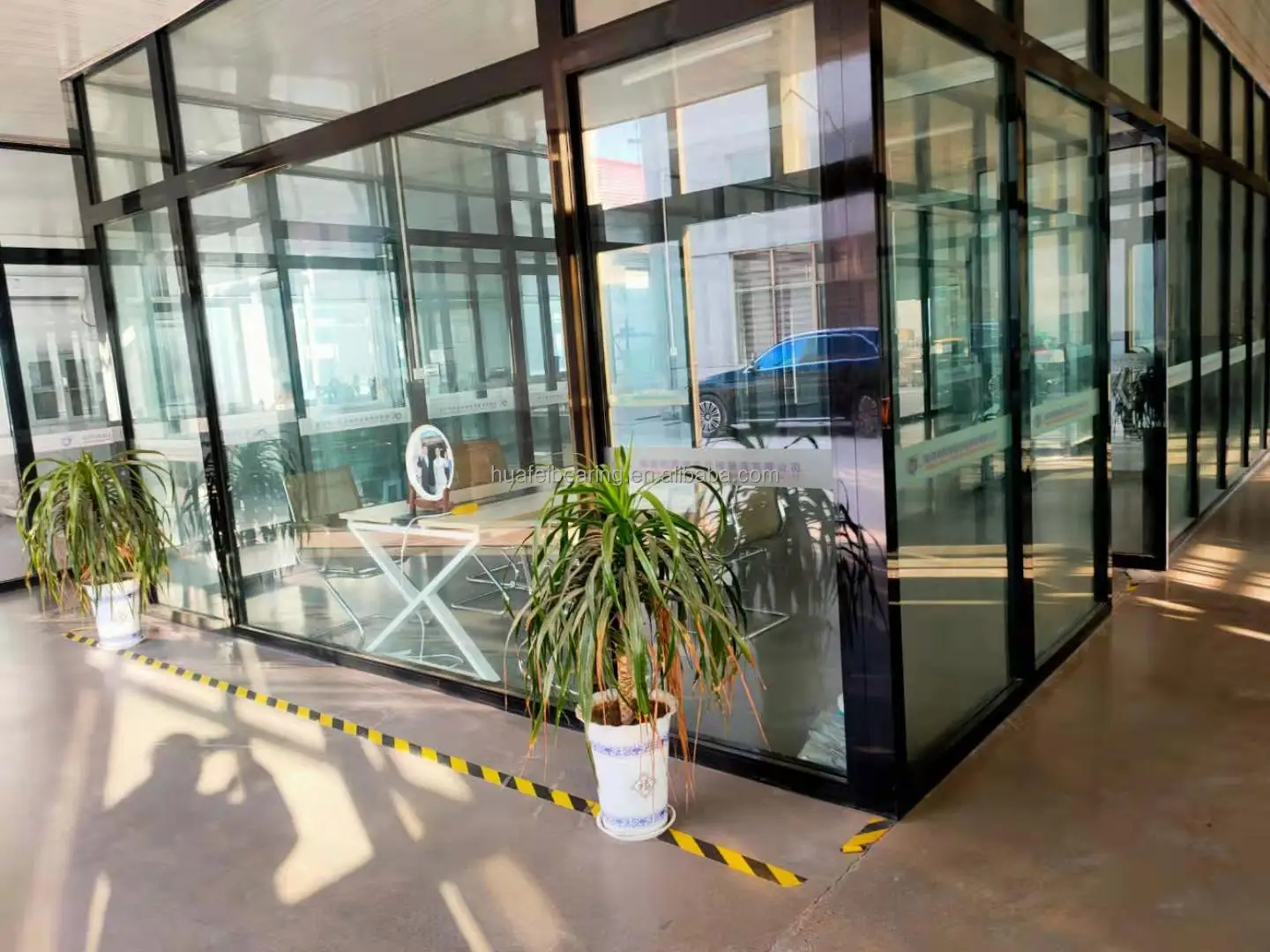

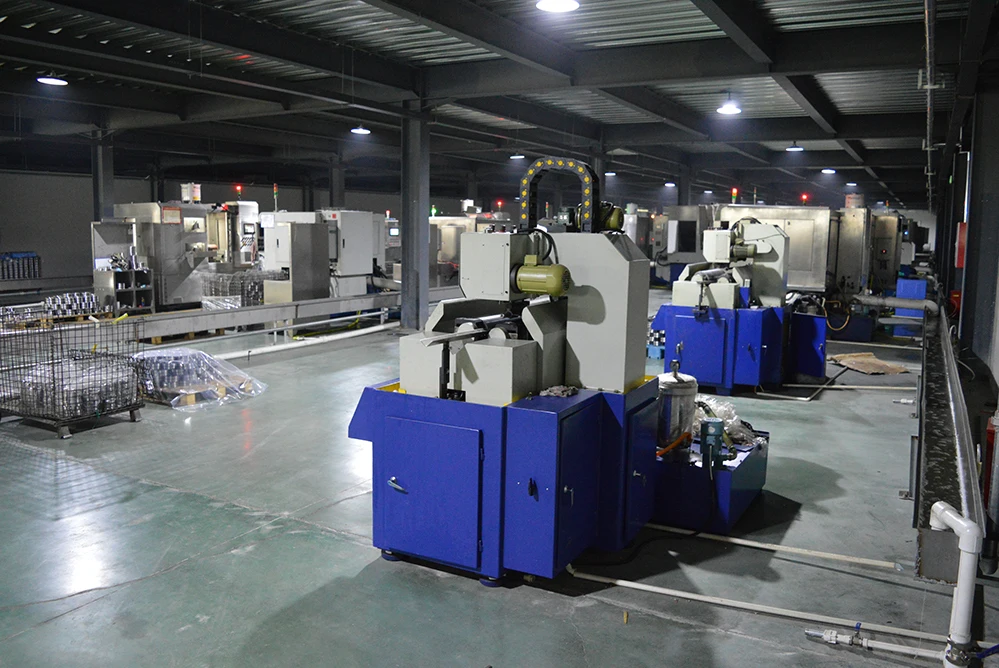

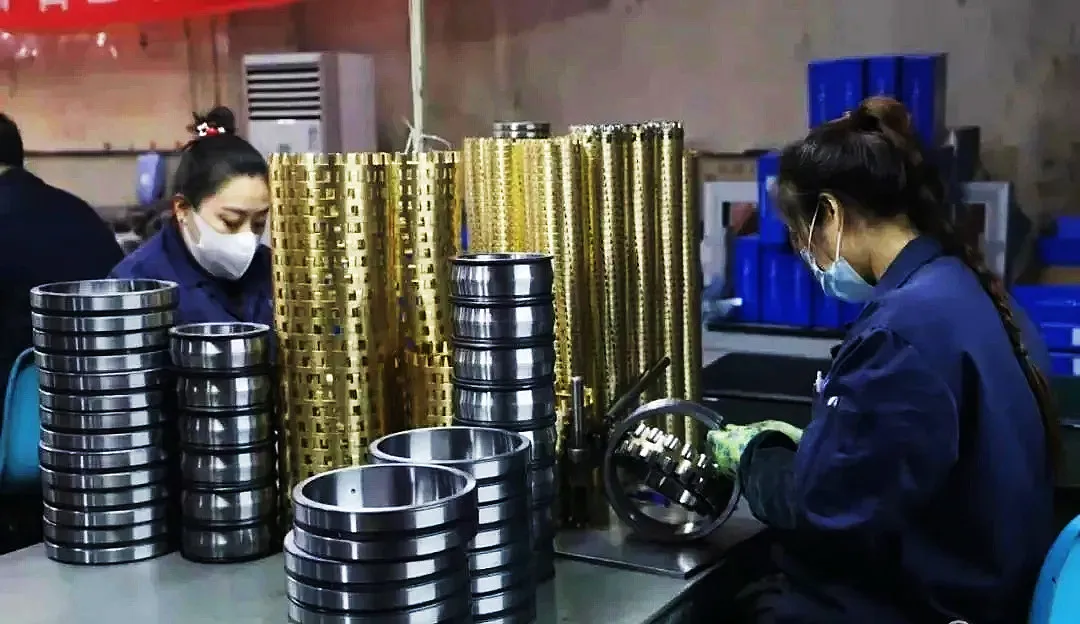

Company Profile

More about the company：

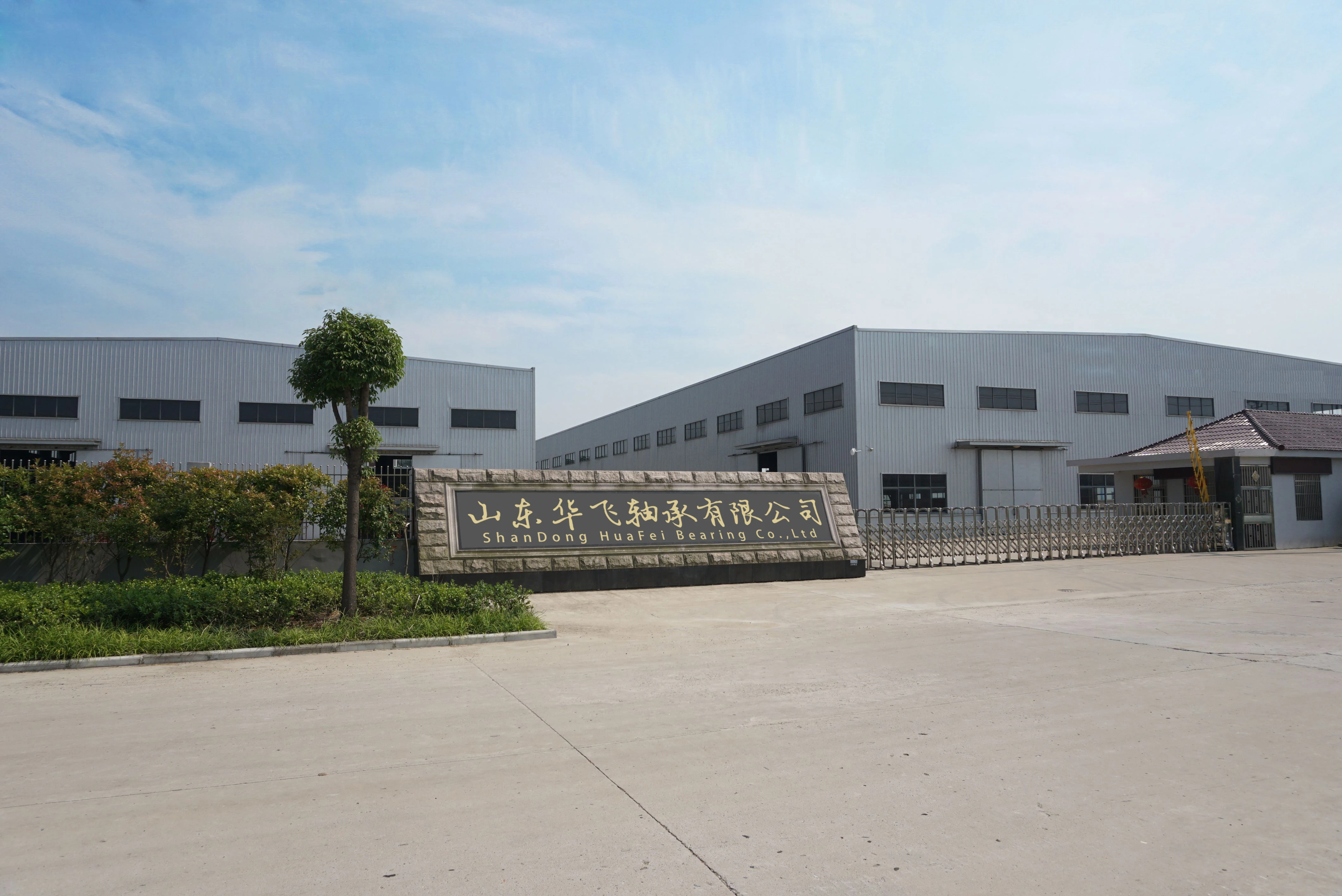

Shandong Huafei Bearing CO.,LTD is a leading manufacturer of original bearings with our own brand SHJZ, as well as an importer, exporter and agent of other brand bearings.

The company is located in the beautiful city of Jinan, Shandong province, China. We always attach great importance to the quality of our products. At the same time, we offer preferential prices for our customers to realize win-win cooperation. We provide OEM services according to customers’ requirements. Our products are sold to more than 50 countries and regions as well as the domestic market. We welcome you contact us for mutually beneficial cooperation.

Certifications

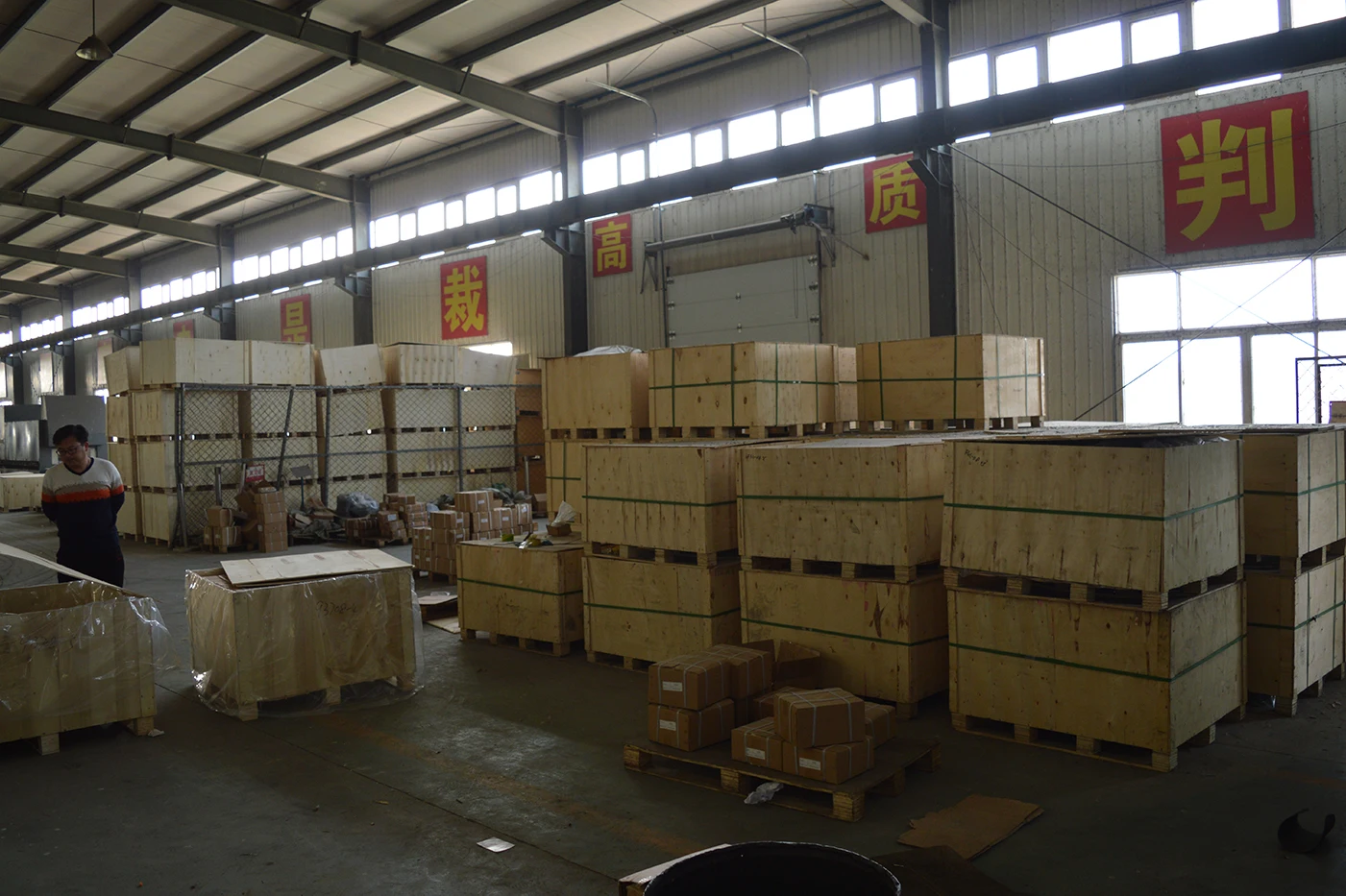

Packing & Delivery

Payment Methods
A.T/T
B.Paypal
C.Western union
D.30% Deposit and 70% Balance payment before shipment

Package
A. plastic package + outer carton + pallets
B.single box + outer carton + pallets
C.plastic package + middle box + outer carton + pallets
D.According to your request.

Transportation
A. By air
B. By sea
C. By express

More Products

Deep Groove Ball Bearings

Spherical Roller Bearings

Tapered Roller Bearings

Ball Screw Bearings

Angular Contact Bearings

one way clutch bearing

pillow block bearing

Cylindrical Roller Bearings

forklift bearing

FAQ

1. Q: What is your MOQ?
A: For common type bearings, MOQ is 1 pcs. MOQ for customized products are negotiable.

2. Q: Are you a manufacturer or a trading company ?
A : We are a manufacturer with a professional trading team.

3. Q: How soon could you arrange delivery?
A:It depends on the quantity you ordered. According to common practice, we will arrange delivery within 5 days.

4. Q: Can I get a sample first?
A: Yes, Sample is accepted for quality checking.

5. Q: How to pay for the order?
A: Paypal, Western Union, T/T is available; 30% Deposit and 70% Balance payment before shipment

6. Q: Can I do customized logo and package?
A: Sure, We can print your logo on the bearing, and pack goods based on your requests.

More information and more requests, pls send an inquiry.
