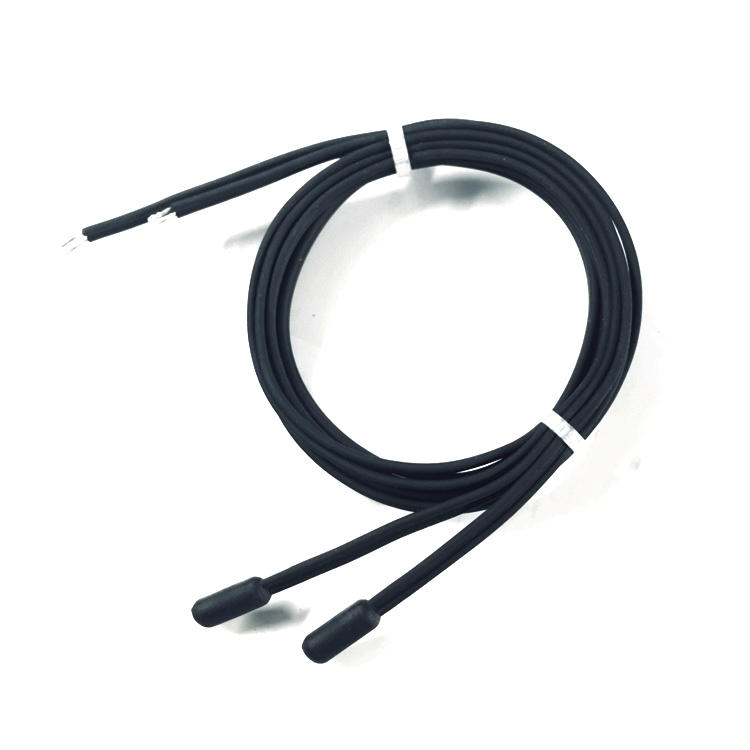

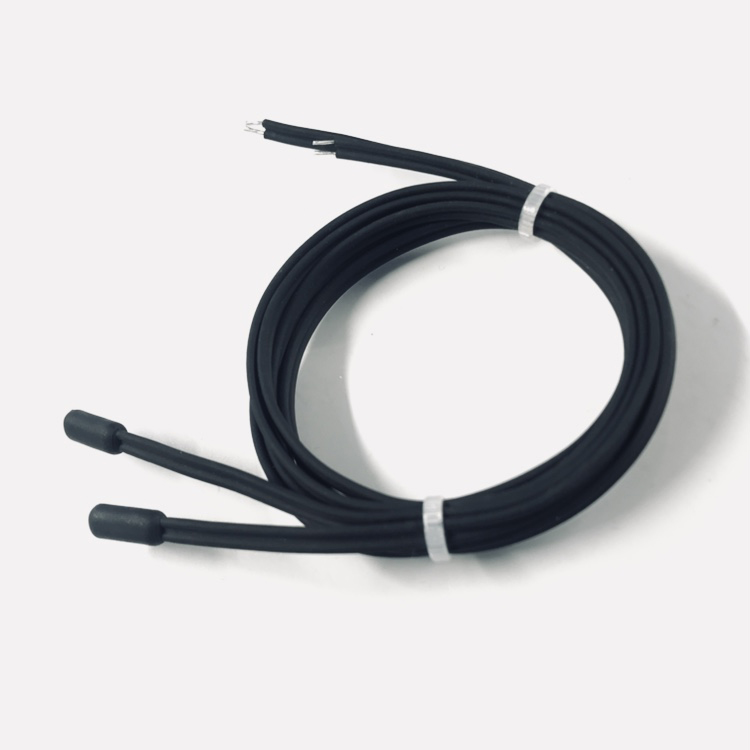

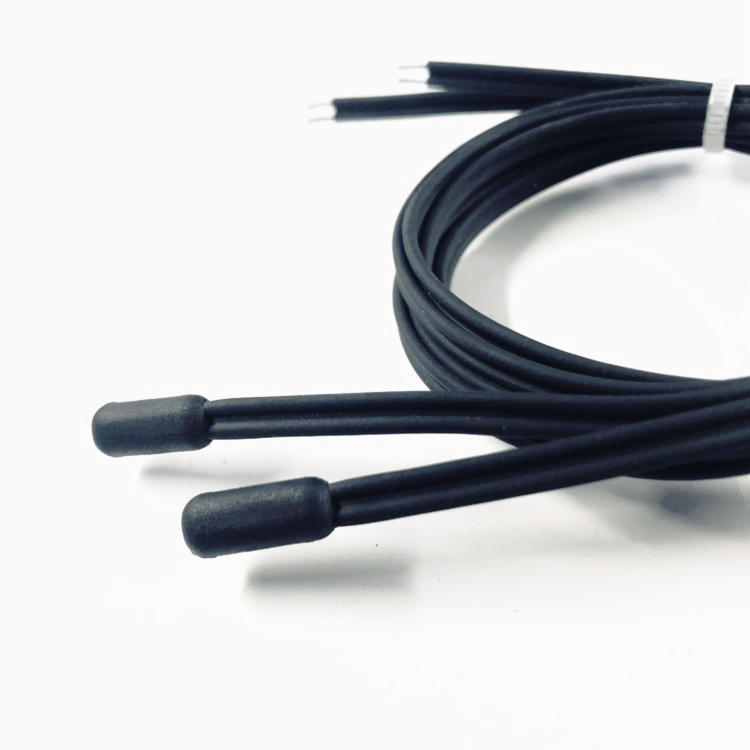

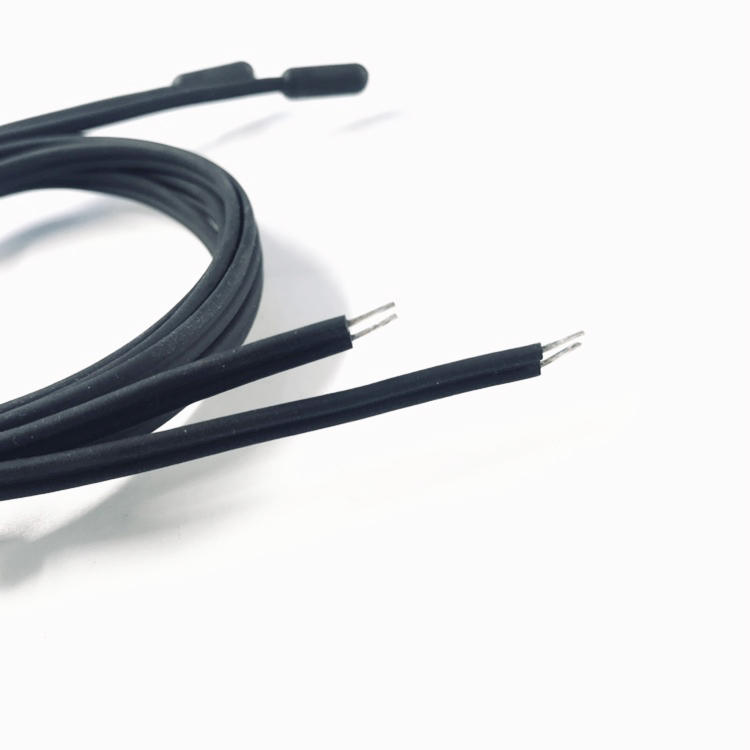

NTC Thermal ABS Head Freezer Cooler Refrigerator Temperature Sensor Defrost Thermistor 2m TPE Wire Cold Resistant 10K 3435
- $0.25 / >=10 pieces
- 10 pieces
- Huizhou Jinyuanxiang Electronics Co., Ltd.
- Guangdong, China
- Ms Catherine Chen
PRODUCT DETAIL
| theory: | analog sensor | Package preview: | |
| waterproof level: | IP68 IP67 | temperature range: | -40°C to +200°C |
| brand: | JYX or customized | Installation type: | Insertion, thread, external attachment etc. |
| describe: | NTC Thermal ABS Head Freezer Temperature Sensor, Freezer Cooler Refrigerator Temperature Sensor | type: | Temperature sensor, NTC THERMISTOR |
| output: | simulation | Probe Material: | ABS plastic |
| Origin: | Guangdong, China | Model: | refrigerator temperature sensor |
| chip: | 10K 3435 | feature: | NTC temperature sensor |
| Cable material: | PVC TPE rubber silicone | Customization support: | OEM |
| payment terms: | L/C, Western Union, T/T, Alipay | Supply capacity: | 1,000,000 pieces per month |
| Packaging Details: | OPP bag + box | usage: | temperature measuring device |
| application: | cooler refrigerator freezer | Key words: | Freezer Cooler Refrigerator Sensor |
| port: | Shenzhen Port | model: | JYX-N-007 |
type | 10K NTC (Thermistor) Temperature Sensor | ||||||
temperature range | -50℃ ~ +300℃; customized | ||||||
accuracy | 1%; 5%; 10% | ||||||
Room temperature (25°C) | 1K; 2K; 2.2k; 2.7k; 3K; 5K; 7K; 8K; 12K; 15K; 20K; 25K; 30K; 40K; 47K; 1000K; customized | ||||||
B value | 3274; 3435; 3470; 3928; 3950; 3977; 4100; 4200; 4400; customized | ||||||
Probe material | Stainless steel, copper, nickel-plated copper, aluminum, ABS PVC copper; plastic; epoxy; glass | ||||||
Install | Flange; Surface; Thread; Plastic; Straight; Membrane; Custom | ||||||
wire | Heat shrinkable tube; PVC tube; glass fiber tube; Teflon tube | ||||||
Connector | Molex; JST; DuPont; CWB; CJT; | ||||||
waterproof | IP67; IP68 | ||||||
application | Household appliances: air conditioners, refrigerators, freezers, water heaters, air heaters, dishwashers, dryers, etc. For cars: | ||||||
Automobile air conditioner, water temperature sensor, intake air temperature sensor, engine. Temperature control system: | |||||||
Greenhouses, aquariums, etc. | |||||||

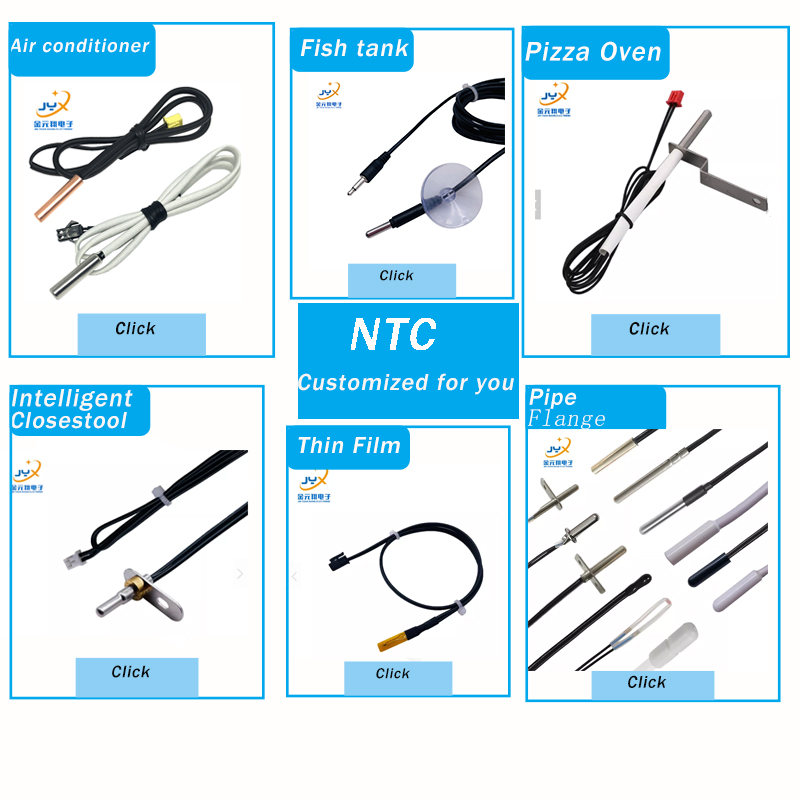

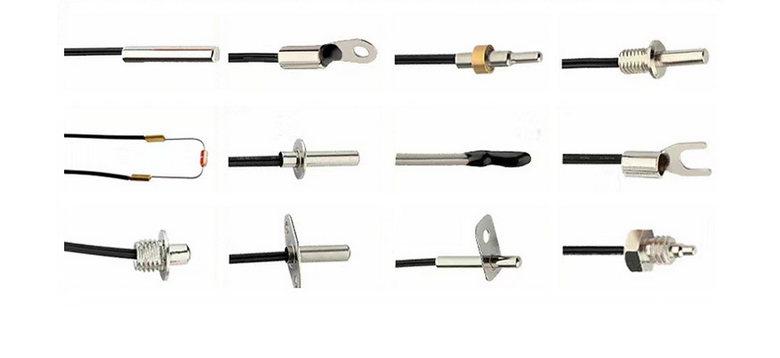

can be different metal heads,
Support customization
What is an NTC temperature sensor?
The NTC temperature sensor is a high-precision, high-reliability NTC thermistor connected to a wire, insulated and packaged,
Thermally conductive and waterproof materials are made into required shapes for easy installation and remote measurement and control
temperature.
feature:
1. Wide resistance range: 1KΩ~1400KΩ;
2. Good insulation, high reliability, fast response speed;
3. Compact structure, easy installation, good waterproof;
4. Using double sealing technology, it has good insulation and sealing performance, mechanical shock resistance, bending resistance, high
reliability;
5. The resistance and B value have high precision, good consistency and are interchangeable;
The NTC temperature sensor is a high-precision, high-reliability NTC thermistor connected to a wire, insulated and packaged,
Thermally conductive and waterproof materials are made into required shapes for easy installation and remote measurement and control
temperature.
feature:
1. Wide resistance range: 1KΩ~1400KΩ;
2. Good insulation, high reliability, fast response speed;
3. Compact structure, easy installation, good waterproof;
4. Using double sealing technology, it has good insulation and sealing performance, mechanical shock resistance, bending resistance, high
reliability;
5. The resistance and B value have high precision, good consistency and are interchangeable;
Stable and reliable quality
- High-quality materials
- durable
- Custom processing
- Suitable for many occasions
application:
Temperature measurement and control of induction cooker, soybean milk machine, electric oven, kitchen utensils, floor heating, 3D printer, etc.
application
Our advantage
Custom information:
resistance", or contact our sales directly for details.
2. Product use, working temperature range, waterproof level;
3. Wire diameter and temperature resistance 250°C, 300°C, 380°C, single core or double core of stainless steel wire mesh
Wire core, silicone wire, mica wire, etc.
4. Plug type: Provide 2.5mm, 3.5mm straight and bent plug single channel or dual channel or other customization.
5. Probe size: length, diameter and thickness, the diameter provides Ø3.8mm, Ø4.0mm, Ø4.2mm, Ø4.6mm and other options;
The tapering process (shrinking length and diameter);
6. Different handle shape and color options are available for products and sets.
Parameters required for the sample:
The temperature sensor customization is divided into four parts: temperature sensor core, probe cover, and cable
type and termination.
1. Can be customized according to customer requirements, commonly used types are as follows:
type and termination.
1. Can be customized according to customer requirements, commonly used types are as follows:
type name | A | Second | C | Man | Second |
temperature. sensor core | NTC thermistor | PT resistance | thermocouple | DS18B20 | LPTC Silicone Resistor |
probe cover | ST-304 | aluminum | copper | ceramics | ABS |
cable type | stainless steel wire mesh | silicone | Mica | Teflon | pvc |
termination | 2.5/3.5mm headphone plug | Connector | insert terminal | Micro/Type-C Connector | bare wire dipping |
2. The specific parameters are as follows:
type | Chip parameters | accuracy | Model | temperature. |
NTC thermistor (R value, B value) | 10K, 3435K; 50K, 3950K; 98.63K, 4066K; 100K, 3950K | 1%, 2%, 3%, 5% | MF52 MF58 | -30~300℃ |
PT resistance | PT100, PT1000 | Class A, Class B, Class 2B | - | -50~500℃ |
thermocouple | K type, J type, S type, etc. | Grade 1, Grade 2 | - | -50~600℃ |
LPTC Silicone Resistor | KTY83-110, KTY84-130 | 1%, 3% | - | -20~200℃ |
DS118B20 | DS18B20 | ±0.5℃ | - | -50~125℃ |
cable | - | - | AWG18/20/22/24/26/28 | 105°C, 120°C, 200°C, 300°C, 380°C, 482°C, etc. |
Product packaging
transportation
