system
|
|
main processor
|
Industrial Embedded Microprocessor
|
|
operating system
|
Embedded Linux
|
|
Operation interface
|
network; local GUI
|
|
Perimeter protection with cameras
|
|
which performed
|
Channel 16/20/20
|
|
artificial intelligence search
|
Search images by channel, time and event type
|
|
camera face recognition
|
|
which performed
|
14 channels
|
|
facial attributes
|
6 attributes: gender; age; glasses; expression; mask; beard
|
|
artificial intelligence search
|
Search pictures by channel, time, face attribute
|
|
Camera SMD Plus
|
|
which performed
|
16/32/64 channels
|
|
artificial intelligence search
|
Search by target classification (people, cars)
|
|
Camera video metadata
|
|
which performed
|
16 channels
|
|
human body
|
Top; Top Color; Bottom; Bottom Color; Hat; Bag; Gender; Age; Umbrella
|
|
vehicle
|
license plate number; type; color; vehicle type; trademark; plate color; trim; telephone; seat belt; region
|
|
non-motor vehicle
|
type; color; number of passengers; helmet
|
|
artificial intelligence search
|
Supports searching target videos by metadata
|
|
Camera License Plate Recognition
|
|
which performed
|
4 channels
|
|
Stereo Analysis via Camera
|
|
which performed
|
16 channels
|
|
artificial intelligence search
|
Search by target classification (fall detection; personnel approach detection; abnormal number detection; personnel stay detection; violence detection)
|
|
video
|
|
access channel
|
16/32/64
|
|
network bandwidth
|
320 Mbps access, 320 Mbps store and 320 Mbps forward
|
|
resolution
|
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, etc.
|
|
decoding ability
|
16 channels @1080P (30 fps)
|
|
video output
|
HDMI1: 3840×2160; 1920×1080; 1280×1024; 1280×720
VGA1: 1920×1080; 1280×1024; 1280×720
HDMI2/VGA2: 1920×1080
VGA1/HMDI1 homologous output, VGA2/HDMI2 homologous output, VGA1/HDMI1 and VGA2/HDMI2 support heterogeneous output
|
|
multi-display
|
First Screen: 16 Channels: 1/4/8/9/16
32 channels: 1/4/8/9/16/25/36
64 channels: 1/4/8/9/16/25/36/64
|
|
Second screen: 1/4/8/9/16
|
|
Third-party camera access
|
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon, etc.
|
|
compression
|
|
video
|
Smart H.265+; Smart H.264+; H.265; H.264; MJPEG format
|
|
sound
|
Phase change modem; G.711A; G.711U; G.726
|
|
network
|
|
Network protocol
|
HTTP; HTTPS; Internet Protocol/Internet Protocol; IPv4/IPv6; Universal Plug and Play; Network Management Protocol; Real Time Transport Protocol; Internet Protocol; Mail Transfer Protocol; ; Dynamic domain name resolution; FTP; Alarm server; IP search (support Dahua network camera, DVR, NVS, etc.); P2P
|
|
Mobile access
|
Android; iOS
|
|
Interoperability
|
(contour T/S/G); computer generated; development kit
|
|
browser
|
Chrome; IE9 or later; Firefox
|
|
recording playback
|
|
multiple playback
|
1/4/9/16
|
|
recording mode
|
Manual; Schedule (General; MD; Alarm; MD & Alarm; Smart; POS)
|
|
Storage method
|
local disk and network
|
|
backup
|
usb device
|
|
playback function
|
1. Play; Pause; Stop; Fast forward; Rewind; Rewind; Play by frame
2. Full screen; backup (cut/archive); partial zoom; audio on/off
|
|
storage
|
|
disk group
|
yes
|
|
alarm
|
|
general alert
|
Motion detection; privacy shielding; video loss; local alarm; passive infrared alarm; industrial computer alarm
|
|
Abnormal alarm
|
Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security exception
|
|
Intelligent alarm
|
perimeter protection; face detection; face recognition; patch; video metadata (people; motor vehicles; non-motor vehicles); license plate recognition; people counting; stereoscopic analysis; crowd distribution;
heat map
|
|
Alarm linkage
|
record; snapshot; external alarm output of industrial computer; buzzer; log; preset; email
|
|

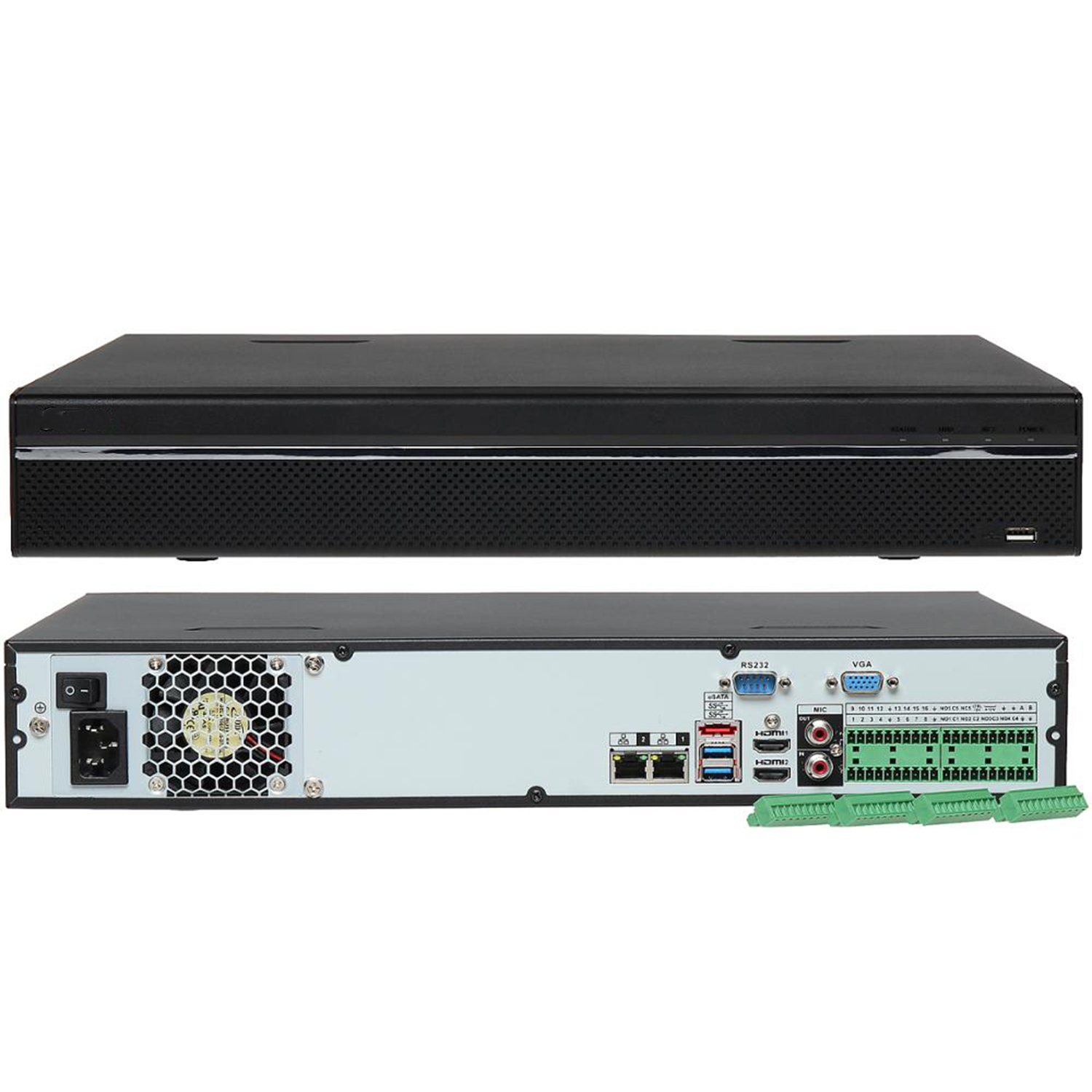

external port
|
|
audio input
|
1 channel, RCA connector
|
|
Audio output
|
2 channels, RCA interface, support voice intercom output
|
|
hard disk
|
4 SATA III ports, single HDD up to 10 TB. The maximum capacity of the hard disk varies with the ambient temperature
|
|
Alarm input
|
16 channels
|
|
Alarm Output
|
6 channels
|
|
Electronic SATA
|
1 eSATA
|
|
RS-232
|
1 channel, used for debugging and transparent transmission of serial data
|
|
RS-485
|
1 channel, used to control the PTZ, supports multiple protocols
|
|
USB
|
1 front USB 2.0 port, 2 rear USB 3.0 ports
|
|
hdmi
|
2
|
|
graphics card
|
2
|
|
network
|
2 RJ-45 10/100/1000Mbps adaptive Ethernet ports
|
