Natural gas generator set 2000kw solution
- $377000.00 /set
- 1 set
- Weifang Yidaneng Power Co., Ltd.
- Shandong, China
- Ms Sophia Zhang
PRODUCT DETAIL
| port: | Qingdao Port | Origin: | Shandong China |
| speed: | 1500 rpm | Rated current: | 1800A |
| Warranty: | 3 years | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| frequency: | 50Hz/60Hz | model: | YDNM-2000 |
| brand: | YDN | Supply capacity: | 500 sets per month |
| Rated voltage: | 230/400V | Certification: | International Organization for Standardization |
| Packaging Details: | Plywood box or container type silent canopy |
Product Description

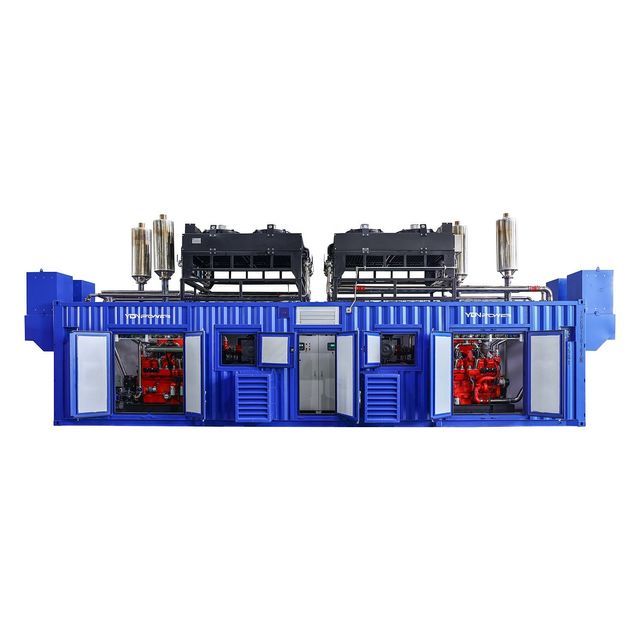

2000kw natural gas generator power station
2*1000kw generators in parallel
4*500kw generators in parallel8*250kw natural gas generator set in parallel (high cost performance option)
We can provide 1600kw, 1000kw parallel solutions - contact us for your power solutions
Specification
specification | ||||

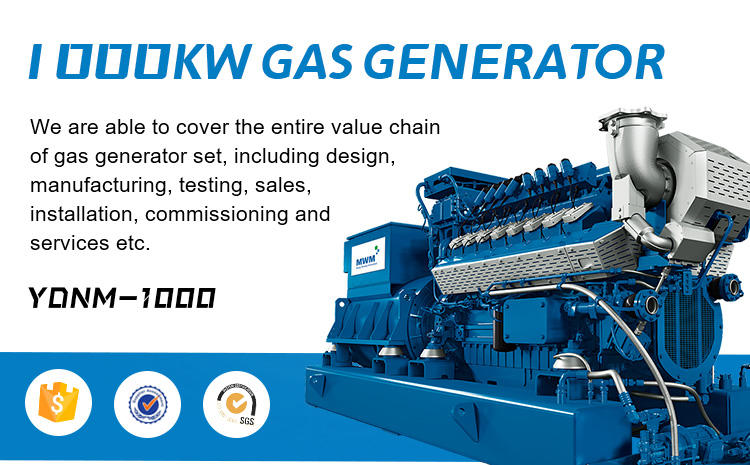

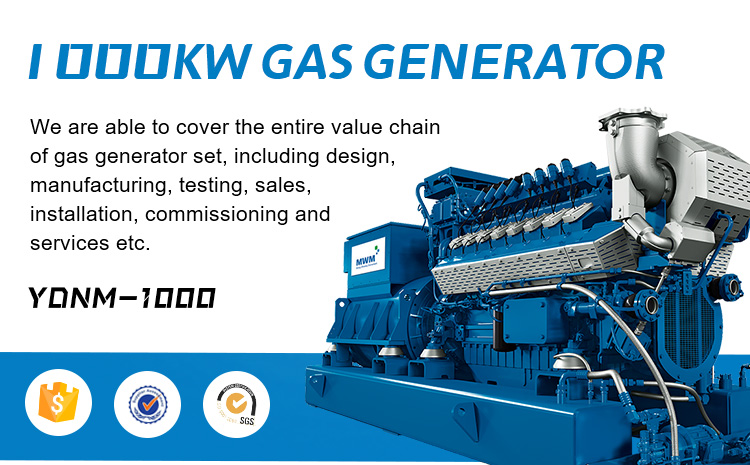

dynamo | Genset model | YDNM-1000 | ||
frequency | 50Hz/60Hz | |||
Voltage | 400/230V | |||
Original power (KW/KVA) | 1000/1250 | |||
Standby power (KW/KVA) | 1100/1375 | |||
stage | three phase | |||
Dimensions (mm) | 6038×1776×3232 | |||
Weight (kg) | 25000 | |||
engine | Model | TCG3016V16 | ||
type | Water-cooled, in-line, four-stroke, direct injection, Wet cylinder liner, 1500rpm | |||
Main power(kw) | 1028 | |||
Air intake type | Nature | |||
number of cylinders | 16 | |||
Bore x stroke (mm) | 132×160 | |||
Piston speed (m/s) | 8.0/9.6 | |||
Medium effective pressure (bar) | 18.8 | |||
Thermal output ±8% (kW) | 791 | |||
Electric efficiency (%) | 43.1 | |||
Thermal efficiency(%) | 42.6 | |||
Total efficiency (%) | 85.7 | |||
Displacement (L) | 35 | |||
Adjustable speed | Mechanical | |||
alternator | Model | flange | ||
Original power (KW/KVA) | 1000/1250 | |||
Power Efficiency | 84.30% | |||
regulator | ≤±1.5 | |||
Excitation type | brushless | |||
insulation level | h | |||
Control System | Model | Zhichuang 6110 | ||
Operating Voltage | DC8.0V to DC35.0V, continuous | |||
Dimensions | 197mm x 152mm x 47mm | |||
panel opening | 186 mm x 141 mm | |||
working conditions | Temperature: (-25~70)ºC; Humidity: (20~90)% | |||
weight | 0.56 kg | |||
