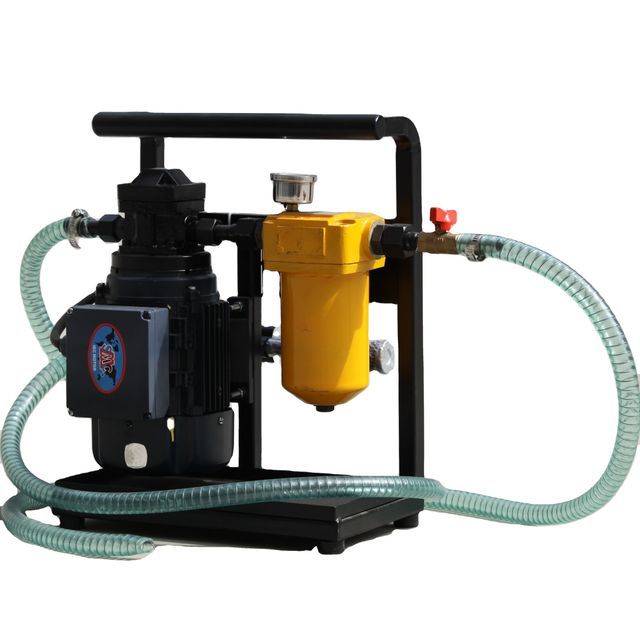

New continuous oil filter machine oil recovery machine
- $1200.00 / 1 - 49 pieces
$937.00 / 50 - 1999 pieces
$680.00 / 2000 - 99999 pieces
$150.00 / >=100000 pieces - 1 piece
- Xinxiang City Huahang Filter Co., Ltd.
- Henan, China
- Ms Admin yan
| After-sales service provided: | online support | weight: | 50 kg |
| Filtration accuracy: | 3-100 microns | brand: | China Airlines |
| port: | Qingdao or Shanghai | preset pressure: | 0.6 MPa |
| Applicable industries: | Building materials store, manufacturing plant, machinery repair shop, retail, print shop, construction, energy and mining, industrial | Voltage: | AC 380V, 50Hz |
| Fuel tank capacity: | 130 liters | Packaging Details: | Neutral packing |
| Warranty: | 1 year | Supply capacity: | 1000 pieces per month |
| Core components: | oil purifier | Certification: | ISO9001, CE |
| Showroom location: | not any | strength: | 0.75 kW |
| Local service locations: | not any | After Warranty Service: | online support |
| Origin: | Henan, China | payment terms: | L/C, Western Union, T/T, Paypal |
| Health status: | new | Mechanical test report: | if |
| Video outbound inspection: | if | Dimensions (L*W*H): | custom made |
| Nominal flow: | 32-100L/min | Marketing Type: | normal product |
| flow: | 32/50/100/63 liters/minute | Working oil temperature: | 5-80℃ |
| Core component warranty: | 1 year |
Specification
| Explosion-proof box series mobile oil filter unit (FLYC) | ||||
| Model | (F)LYC-32C | (F)LYC-50C | (F)LYC-63C | (F)LYC-100C |
| Rated flow L/min | 32 | 50 | 63 | 100 |
| Pressure Mpa | 0.6 | |||
| Pressure loss Mpa | ≤0.02 | |||
| Primary filter precision μm | 100 | |||
| Primary filtration precision μm | 10,20,40 | |||
| Secondary filtration precision μm | 3,5,10 | |||
| Motor power kw | 0.75 | 1.1 | 1.1 | 2.2 |
| Voltage V | AC 380V | |||
| weight kg | 90 | 100 | 118 | 160 |
| Dimensions mm length x width x height | 950×560×900 | 950×560×900 | 950×560×900 | 1000×600×1130 |
Introduction
A portable filter device developed and produced by our company is suitable for various petroleum-based mineral oils. Its design is simple and practical, and it is easy to move and maintain. The filter device can also conveniently filter the oil of various hydraulic and lubricating systems, and can also be connected to the system as a bypass filter..
advantage
1 The high-pressure pipeline is equipped with an overflow protection device to protect the safety of the hydraulic system
2 Adopt thermal relay protection to prevent damage caused by motor overload.
3 The coarse filter protects the oil pump and prolongs the service life of the main filter
4 Filtration level of the coarse filter can be selected by the customer.
5 The oil filter adopts a quick-opening structure, which is convenient to replace the filter element
6 There is a pressure gauge on the panel to remind you to replace the filter element on time.
7. Two-stage filtration is adopted: coarse filtration and microfiltration
application
1 Filtration of the hydraulic lubrication system when refueling
2 Bypass filtration of hydraulic lubrication system during operation
3 Loop filtration before the hydraulic lubrication system is put into operation
4 The oil pump filter pump of the low hydraulic lubrication system does not have a device
image display
If you want to know more about the oil filter machine, please leave a messageaskInform the following information:
1 traffic
2 voltage
3 filter levels
4 Is it explosion-proof
