New original Longview TG series VoIP GSM/WCDMA gateway TG100
- $92.00 /piece
- 1 piece
- Shenzhen Semi Matrix Technology Limited Company
- Guangdong, China
- Mr Murphy Tan
PRODUCT DETAIL
| brand: | Longview | port: | Shenzhen Hong Kong |
| model: | TG100 | payment terms: | Western Union, T/T |
| brand: | Longview | Origin: | Guangdong, China |
| Warranty: | 1 year | application: | architecture |
| color: | Black | Certification: | FCC, CCC, RoHS |
| Packaging Details: | Brand new original | product name: | TG100 |
| type: | gateway | Supply capacity: | 10000 pieces per week |

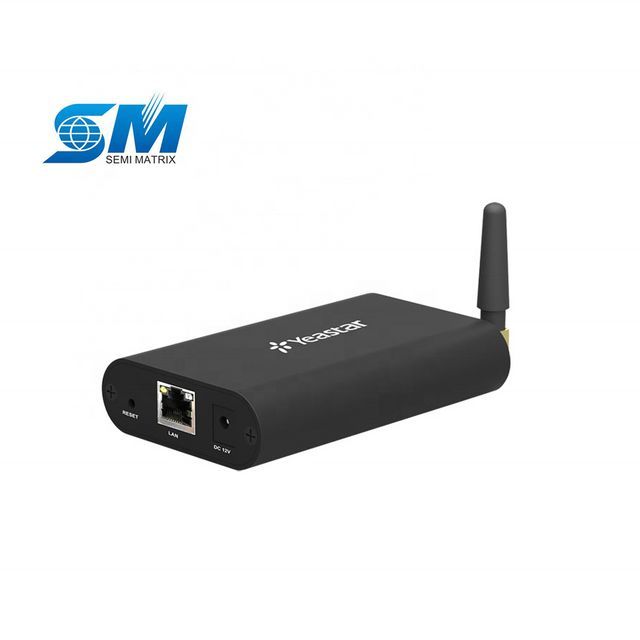

Brand new original Yeastar TG series
VoIP GSM / WCDMA / 4G LTE Gateway
TG100
Product Description
Yeastar TG series VoIP GSM gateway connects GSM or WCDMA or 4G LTE to VoIP network to provide two-way communication: GSM/3G/4G to VoIP and VoIP to GSM/3G/4G. This allows you to connect most IP-based phone systems, including Yeastar IP phone systems and softswitches to GSM or 3G WCDMA or 4G LTE; Additional dial tone to increase call traffic capacity.
GSM voice call
VoLTE for HD calling
Minimize costs
Top quality and reliability
Mobile Connections for SMB
Skype ID: live:yangguan001
Specification
| role model* | TG100 | TG200 | TG400 | TG800 | TG1600 | |
| Number of ports | 1 | 2 | 4 | 8 | 16 | |
| GSM frequency** | 850/900/1800/1900 MHz | |||||
| UMTS frequency** | 850/1900 MHz, 850/2100 MHz, 900/2100 MHz | |||||
| GSM and 3G and 4G channel frequencies** | Does not support 4G LTE | FDD-LTE: B1/B3/B5/B7/B8/B20, TDD-LTE: B38/B39/B40/B41, WCDMA: B1/B5/B8, TD-SCDMA: B34/B39, CDMA 2000: BC0, CDMA 1X: BC0, GSM: B3/B8 |
||||
| 4G LTE band** | Does not support 4G LTE | Depends on module type. Check supported frequency bands and carriers. | ||||
| protocol | SIP, IAX2 | |||||
| Antenna splitter (4 in 1) | – | support | ||||
| transportation | UDP, TCP, TLS, SRTP | |||||
| voice codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex | |||||
| Dual Tone Multi-Frequency Mode | RFC2833, SIP messages, in-band | |||||
| echo cancellation | ITU-T G.168 LEC | |||||
| call type | Terminate (VoIP to GSM/WCDMA), Originate (GSM/WCDMA to VoIP) | |||||
| console port | – | 1 | ||||
| Network protocol | FTP, TFTP, HTTP, SSH | |||||
| local area network | 1 10/100 Mbps Ethernet port | 2 10/100 Mbps Ethernet ports | ||||
| NAT traversal | Static NAT, STUN | |||||
| network | DHCP, DDNS, firewall, OpenVPN, static IP, QoS, static routing, VLAN | |||||
| operating range | 0°C to 40°C, 32°F to 104°F | |||||
| power supply | DC 12V, 1A | AC 100-240V | ||||
| storage range | -20°C to 65°C, -4°F to 149°F | |||||
| Dimensions (length × width × height) (mm) | 110×70×24 | 213×160×44 | 340 × 210 × 44 | 440 × 250 × 44 | ||
| humidity | 10-90% non-condensing | |||||
*TG100 does not support 4G LTE.
**Click here to view the frequencies/bands and cellular carriers supported by the TG GSM VoIP Gateway.
