OR Type OR Series OR-1000 Hydraulic oil cooler for heat exchange Hydraulic tools
- $50.00 /piece
- 1 piece
- Dongguan Blince Machinery & Electronics Co., Ltd.
- Guangdong, China
- Ms David gao
PRODUCT DETAIL
| Pump flow (L/min): | 400 | Oil side pressure: | 1.0 MPa |
| Packaging Details: | Standard export packaging. | type: | Oil cooler |
| Brass area (square meters): | 3.5 | payment terms: | Western Union, T/T, MoneyGram, Paypal |
| Flow (L/min): | 1000 | Applies to: | fresh water or lubricating oil |
| Supply capacity: | 1000 pieces per month to meet your needsT | structure: | Horizontal oil cooler |
| place of origin; place of origin: | Guangdong, China | port: | Hong Kong Port |
| Water side pressure: | 0.5 MPa | Brass Tube: | 58 |
| Water flow (L/min): | 200 | Packaging Preview: |
Product Description
wink
OR type OR series OR-1000 hydraulic oil cooler heat exchange hydraulic tool

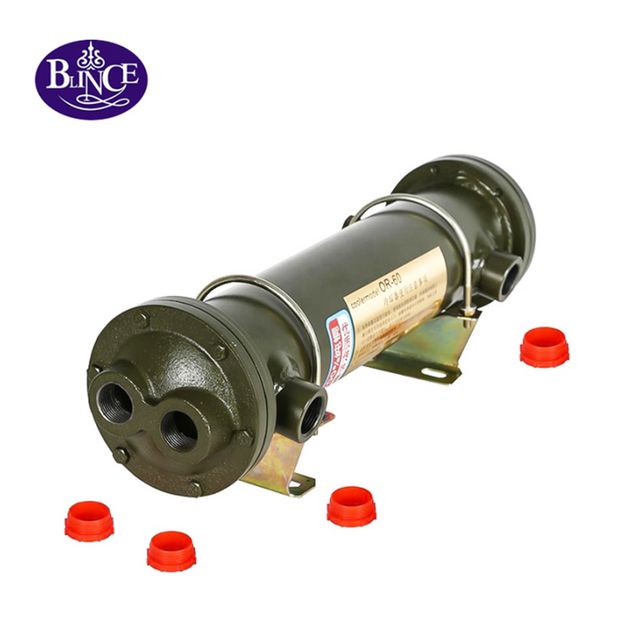

OR type oil cooler (OR-1000)
1. Heat transfer is indeed the best cooling effect. The cooler adopts multi-tube, which has a large cooling area and a good cooling effect.2. The number of cooling zones used in this cooler is all copper tubes, including fin tube type and rolling tube type.
More than three times, the cooling area is calculated according to the brass surface area, which is more helpful to the cooling area.
3. The material of the heat pipe is pure red copper pipe, the heat dissipation is the best, and the heat transfer rate is greater than 0.95.
feature:
1) Usually used for cooling.
2) The pure titanium tube has super anti-corrosion ability and high strength.
3) The seamless titanium tube has passed the 2.0MPa pressure precision halogen leak detection test to ensure that the tube is firm and does not leak.
4) The cooler shell has been tested by 0.5Mpa water pressure to ensure that the water system does not leak.
1) Usually used for cooling.
2) The pure titanium tube has super anti-corrosion ability and high strength.
3) The seamless titanium tube has passed the 2.0MPa pressure precision halogen leak detection test to ensure that the tube is firm and does not leak.
4) The cooler shell has been tested by 0.5Mpa water pressure to ensure that the water system does not leak.
application:
Shell and tube heat exchangers are widely used for cooling and heating in certain fields of special industries such as acid tank electroplating, aluminum oxidation, petrochemical industry, light industry, metallurgy, electric power, ships, ships, etc.
environment, etc.
Shell and tube heat exchangers are widely used for cooling and heating in certain fields of special industries such as acid tank electroplating, aluminum oxidation, petrochemical industry, light industry, metallurgy, electric power, ships, ships, etc.
environment, etc.
Brins' factoryIt is one of the largest manufacturers of high quality shell and tube heat exchangers in China.
1). Professional manufacturer, ISO9001-2008
2). Over 36 years of manufacturing experience since 1978.
3).Customized solutions and products
4).OEM/small order accepted
1). Professional manufacturer, ISO9001-2008
2). Over 36 years of manufacturing experience since 1978.
3).Customized solutions and products
4).OEM/small order accepted
Model | OR-60 | or -100 | or -150 | or -250 | OR-350 | OR-600 | OR-800 | or -1000 | or -1200 | |||||||||
a (mm) | 460 | 535 | 580 | 780 | 1070 | 1200 | 1730 | 2150 | 2530 | |||||||||
B (mm) | 305 | 370 | 385 | 585 | 990 | 940 | 1490 | 1890 | 2270 | |||||||||
C (mm) | 45 | 68 | 85 | 85 | 85 | 90 | 90 | 90 | 90 | |||||||||
(mm) | 89 | 114 | 140 | 140 | 140 | 165 | 165 | 165 | 165 | |||||||||
depth (mm) | 120 | 150 | 180 | 180 | 180 | 200 | 200 | 200 | 200 | |||||||||
grams (mm) | 3/4" | 3/4" | 1 1/4" | 1 1/4" | 1 1/4" | 2" | 2" | 2" | 2" | |||||||||
F (mm) | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | |||||||||
Flow (L/min) | 60 | 100 | 150 | 250 | 350 | 600 | 800 | 1000 | 1200 | |||||||||
Pipe diameter (d) | φ9 | φ9 | φ9 | φ9 | φ9 | φ9 | φ9 | φ9 | φ9 | |||||||||
tube thickness | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |||||||||
tube height | 395 | 460 | 490 | 690 | 1085 | 1085 | 1635 | 2035 | 2415 | |||||||||
Brass area (㎡) π*d*H*Q*1.2 | 3.14*0.009*0.395*16*1.2=0.214 | 3.14*0.009*0.46*20*1.2=0.312 | 3.14*0.009*0.49*32*1.2=0.53 | 3.14*0.009*0.69*32*1.2=0.75 | 3.14*0.009*1.08*32*1.2=1.17 | 3.14*0.009*1.08*48*1.2=1.758 | 3.14*0.009*1.635*48*1.2=2.66 | 3.14*0.009*2.053*48*1.2=3.31 | 3.14*0.009*2.415*48*1.2=3.93 | |||||||||
Maximum brass area | 0.35 | 0.7 | 1 | 1.5 | 2.5 | 3 | 4.3 | 5.2 | 6.5 | |||||||||
If you have any questions, please contact our customer service. During the buying process, we can meet all your needs. For hydraulic equipment, look forwink! | ||||||||||||||||||
