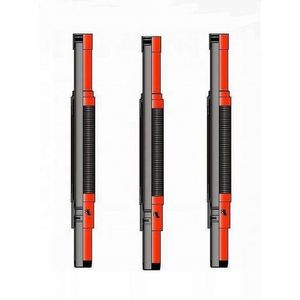

Oil well mechanical retrievable packer casing packer
- $2000.00 /set
- 1 set
- Dongying Oilman Machinery Equipment Co., Ltd.
- Shandong, China
- Mr Oilman Zhang
| Health status: | new | Core components: | Packer |
| Work pressure: | 20Mpa-75Mpa | Advantage: | high performance |
| Packaging Details: | Oil well machinery retrievable packer casing packer outlet plywood box | model: | casing packer |
| Local service location: | not any | Marketing Type: | normal product |
| Showroom location: | not any | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Applicable industries: | Energy and Mining | Core component warranty: | 1 year |
| port: | Tianjin harbor | type: | Completion tool |
| product name: | Oil well mechanical retrievable packer casing packer | After warranty service: | Video technical support, online support |
| usage: | oil, gas, water | Warranty: | 1.5 years |
| brand: | oil man | Mechanical test report: | if |
| Supply capacity: | 500 sets/month oil well mechanical recoverable packer casing packer | Video shipment inspection: | if |

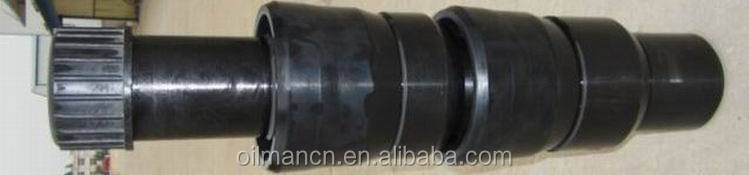

Oil well mechanical retrievable packer casing packer
Oil well mechanical retrievable packer casing packer
1. Application
Oil well drilling packers are mainly used in various constructions such as layered oil production, water injection, water exploration, plugging, squeezing, acidizing, and fracturing.
Cup packing machine
Mechanical baler
hydraulic packer
2. Principle

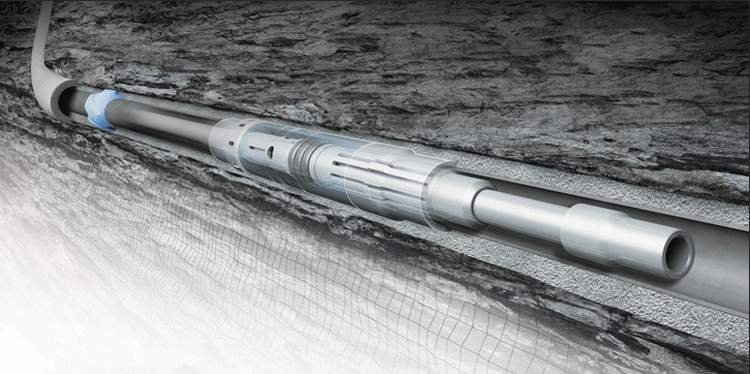

Sealing: When going downhole, the control pin is on the short track. When the packer is in the desired position, the mast is pulled to loading height, then the mast is lowered so that the control pin is tangent to the long track. The slips extend and block the inner wall of the pipe. The barrel is compressed to achieve a seal.
Unsealing: Pull up the cylinder to reset the slips to realize unsealing.
3. Technical parameters
|
type |
Applicable tube mm |
total length mm |
Maximum outer diameter mm |
Minimum ID mm |
work pressure MPa |
set load KN |
backwash cubic meter/hour |
centralizer outer diameter mm |
Operating temperature Celsius |
|
Y211-114 |
121-124 |
2080 |
114 |
48 years old |
35 |
100~140 |
/ |
114-133 |
120 |
|
Y211-136 |
143-150 |
2080 |
136 |
60 |
35 |
100~140 |
/ |
136-157 |
120 |
|
Y211-148 |
154-164 |
2080 |
148 |
60 |
35 |
100~140 |
/ |
148-168 |
120 |
4. Structure:

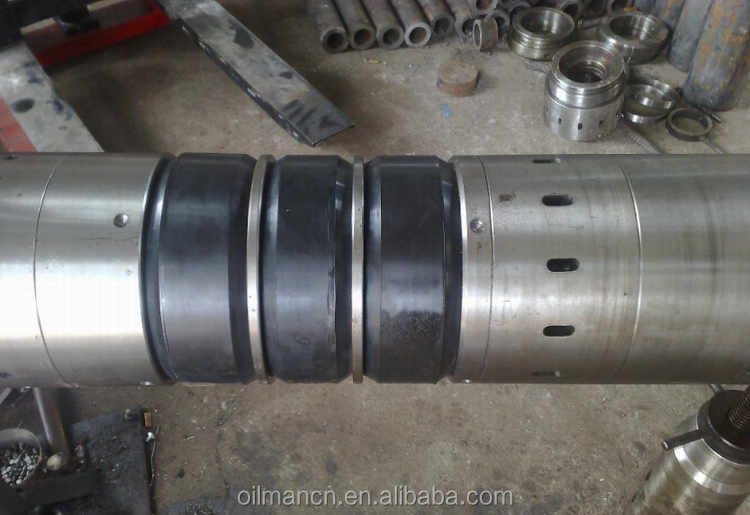

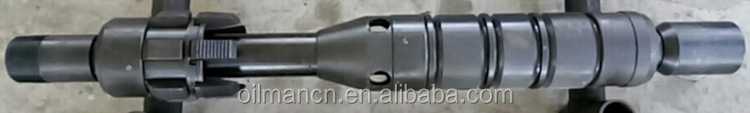

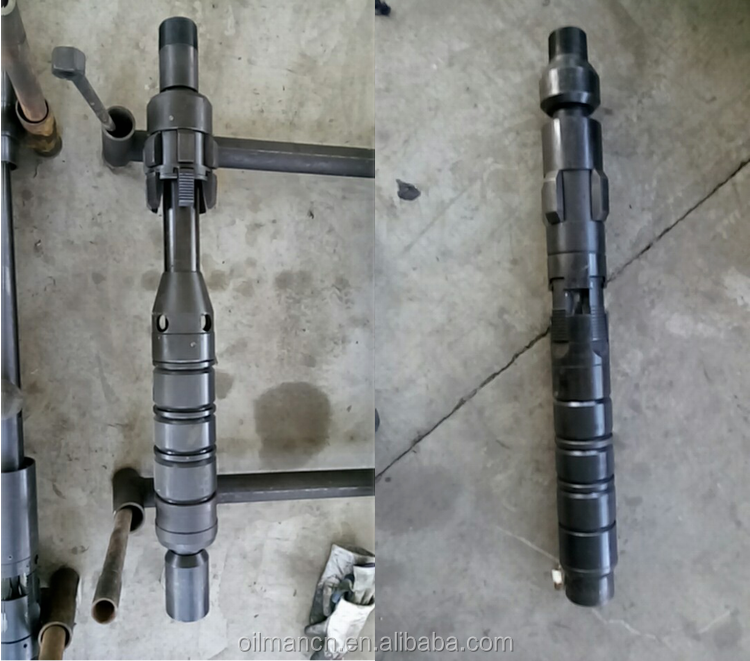

As shown in the figure above, the Y211 packer is composed of a high-temperature, high-pressure anti-corrosion cylinder, the entire center pipe, a friction commutator and a lower joint. Slips are carburized and quenched. The surface rigidity and central toughness are very high, and it is not easy to break when it conflicts with the load. The barrel is located above the slide to avoid being covered with sand. The structure is simple and the operation is convenient.
5. Features:
a) Pull down the post seal. It is released by pulling the post.
b) It is supported by one-way sliding. It is convenient and reliable to seal and unseal.

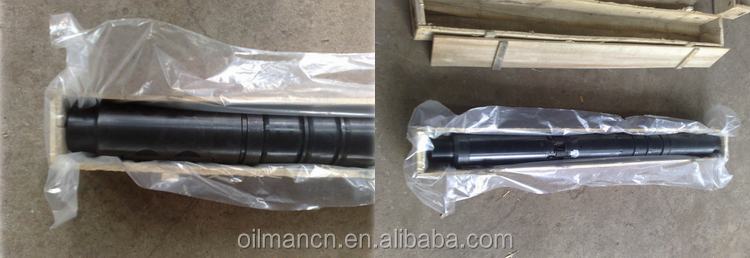

Packing: wooden case, or customized packing.
delivery time: in stock or depends on quantity
deliver goods:By express, truck, train, air, sea
