| Type: | Refractometer; | Certification: | ISO9001; |
| Refractive index range: | 1.4382-1.5318; | Output signal: | 4-20mA analog quantity, RS485 digital quantity,switching value; |
| Refractive index Precision: | 0.0001; | Sensor explosion-proof leve: | Ex d IIC T6Gb; |
| Installation method: | Chuck, thread, flange (vertical, horizontal, bevel, etc.); | Product name: | On-line concentration Testing Equipment; |
| Function: | Test refractive index and concentration; | Model Number: | MAY-3001; |
| Warranty: | 2 years; | Selling Units: | Single item; |
| Standard configurations: | Display controller, Sensor; | Single package size: | 39X19X33 cm; |
| Customized support: | OEM,ODM; | Brand Name: | mayzum; |
| Place of Origin: | Guangdong, China; | Single gross weight: | 7.000 KG; |
| Concentration Precision: | 0.1%; | Packaging Detail: | Standard export packing; |
Product Description
On-line Intelligent Honey Baume Water Content Testing Instrument
Online monitoring of the concentration and refractive index of liquid. When the concentration is abnormal, the tester will automatically alarm by sound and light. At the same time, the measurement data can also be transmitted to DCS, PC, PLC
Warranty For 1 Years
Original Manufacturer
Special reminder:
Our factory produces and sells online tuning fork densitometer, online refractometer, online density meter (differential pressure method), online density meter (buoyancy method), handheld density meter, handheld brix meter, handheld density meter, etc. Comes with 4-20MA/485 and other signal output, explosion-proof, corrosion-resistant, high-temperature, and supports remote data transmission. Professional engineers can free installation drawings based on the customer's on-site environment.
Product description
MAYZUM MAY-3001 Online Refractometer adopts the principle of critical angle detection. It can be installed on pipes of different pipe diameters or on the walls of tanks for concentration monitoring and control. It can directly display percentage concentration or user-defined units on site. Display and remotely transmit analog signal (4-20mA) to the recorder for real-time data storage, printing, traceability and other functions; remotely transmit 4-20mA signal to PLC/DCS/frequency converter for monitoring or control. MAYZUM MAY-3001 online concentration meter is not affected by the color, turbidity, bubbles, solid particles and other impurities of the material, and has a high-precision automatic temperature compensation function. The fully shielded anti-jamming design and the direct conversion and processing of photoelectric signals ensure the accuracy of online measurement and prolong the service life of the instrument. The built-in fiber optic light path conduction system has anti-vibration performance and high stability, and the built-in temperature sensor and desiccant can effectively monitor the running status of the concentration meter. No consumables, maintenance-free, and drift-free. The automatic cleaning system of the instrument automatically cleans the prism and eliminates faults in time to ensure the accuracy of the instrument and reduce the workload of maintenance personnel. The design of the fully cast FRP shell and the fully shielded steel plate inner wall ensures that the instrument can run smoothly under any harsh working conditions.
For Honey:
The range specially designed for the monitoring range of Honey concentration, with automatic temperature compensation algorithm, can make the measurement data more accurate and stable; when the concentration is abnormal, the built-in display controller can realize the sound and light alarm. In addition, for some special functions, it can also be customized according to requirements to realize automatic control.
Product Features
1. According to the principle of optical refraction, long-term online measurement of the concentration%, refractive index, temperature, etc. of various chemical liquids such as DMAC, NMP, DMF, automotive urea, cutting fluid, emulsion, ethylene glycol, ammonia, alcohol cleaning fluid, etc. Parameters, after installation, no calibration is required;
2. Using intelligent chip design, users can set control parameters according to their needs, which can realize analog output, digital communication output, network output; use a unique multi-point curve concentration measurement algorithm to test the concentration of various chemical liquids, and Compared with the common two-point linear concentration measurement algorithm on the market, the multi-point curve concentration measurement algorithm has higher accuracy;
3. The instrument comes with multi-channel switch signal output, such as: concentration upper and lower limits, liquid filling, liquid inlet pump signal contacts, users no longer need to use PLC programming for automatic control, our instrument can completely replace the work of PLC, and each Parts are modularized, follow-up maintenance is simple, damaged parts can be directly replaced without affecting the normal operation of other parts;
4. The ultra-pure sapphire made by German craftsmanship obtains the best optical performance; the overall stainless steel sealing design, which has passed the 3C test certification, reaches the IP67 protection level; integrated high-pressure compressed air, high-pressure water and other cleaning devices, no need for expensive purchases;
5. Comes with powerful online software, multi-level users, display, record, and traceability meet the requirements of the pharmaceutical industry; other functions can also be customized according to the specific needs of users.
Application industry
Installed on barrels, pipes, storage tanks, liquid tanks through threads, flanges, and clamps, online monitoring such as: DMAC, NMP, DMF, automotive urea, cutting fluid, emulsion, tobacco juice, ethylene glycol, The concentration of ammonia, alcohol cleaning liquid and other liquids;
Specification parameters
On-line Intelligent Honey Baume Water Content Testing Instrument
Specific function , configuration and price, please consult client service
Model | MAY-3001 |
| Concentration (Brix %): 0-80% |
| Refractive index：1.4382~1.5318 |
| Temperature: 0.0 ~ 100.0ºC |
| Temperature:0.0 ~ 100.0℃ |
| Concentration (Brix %): 0.1% |
| Refractive index：0.0001 |
| Temperature: 0.1 ºC |
| Temperature:0.1℃ |
Liquid temperature | 0.0 ~ 100.0ºC |
Measurement method | Partially immerse the sensor probe in liquid for measurement |
Measurement time | The data is measured every 5 seconds by default |

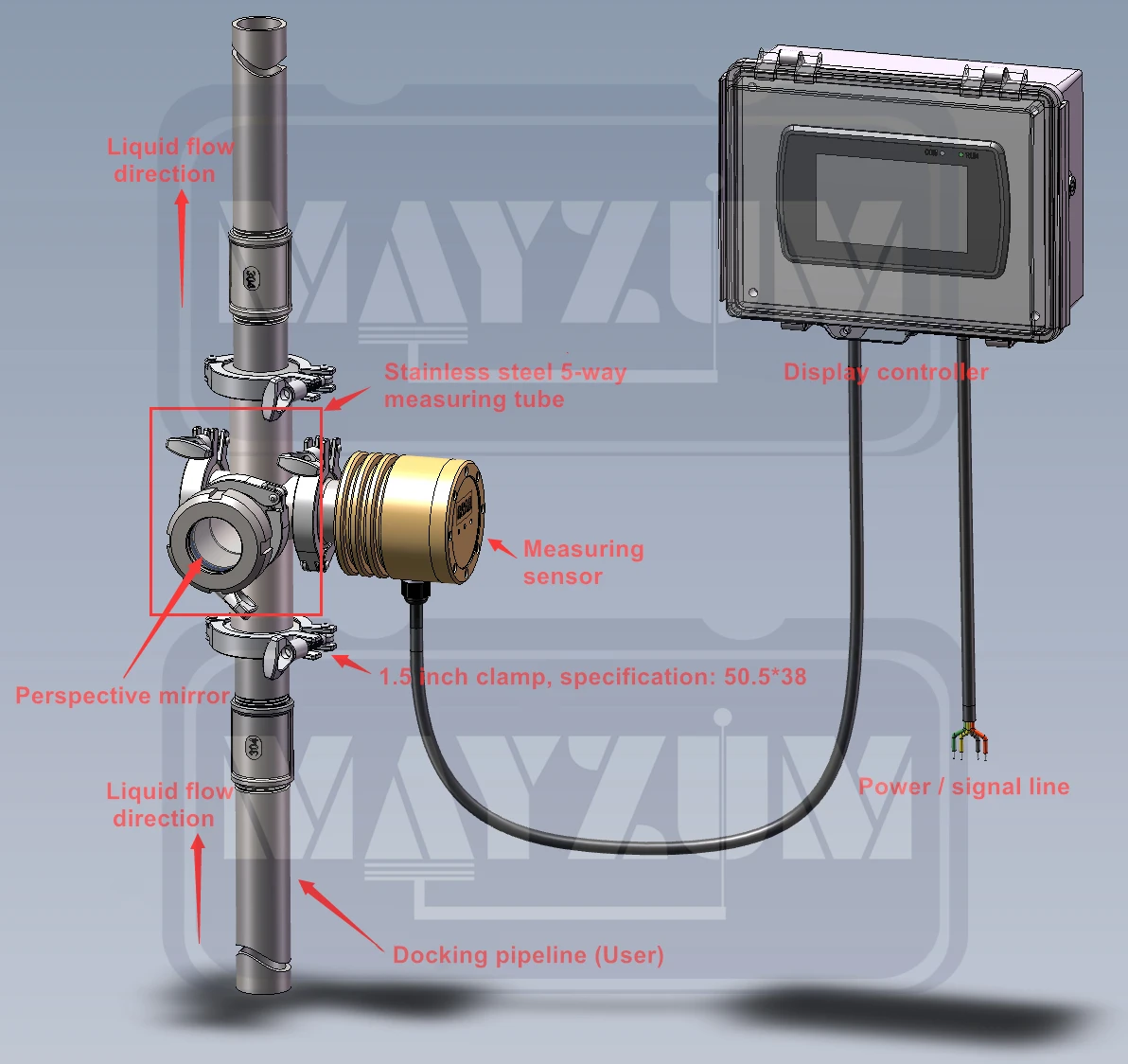

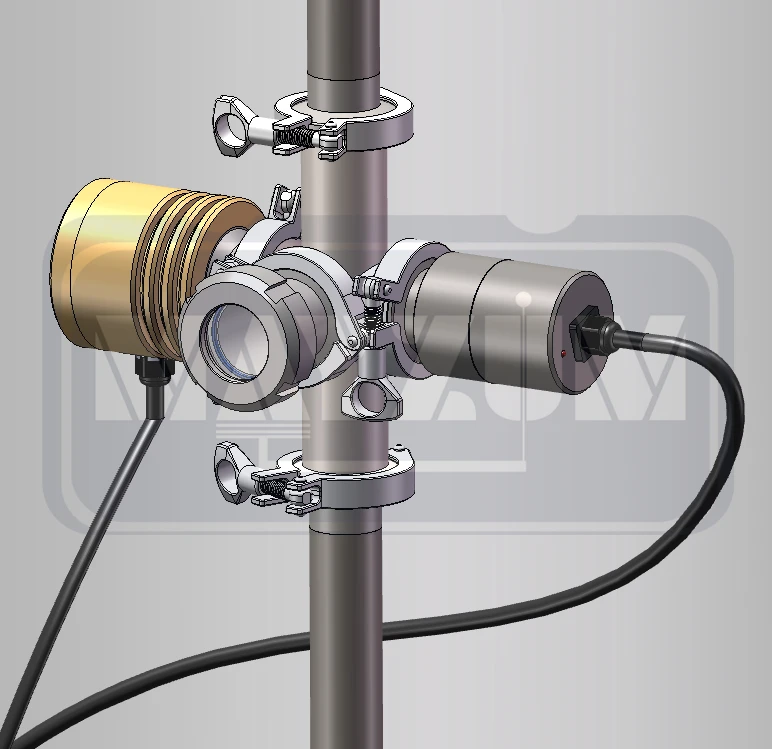

Installation method | Chuck, thread, flange (vertical, horizontal, bevel, etc.) |
Protection level | Sensor liquid measurement part IP67 |
Pressure range | 0 - 1Mpa |

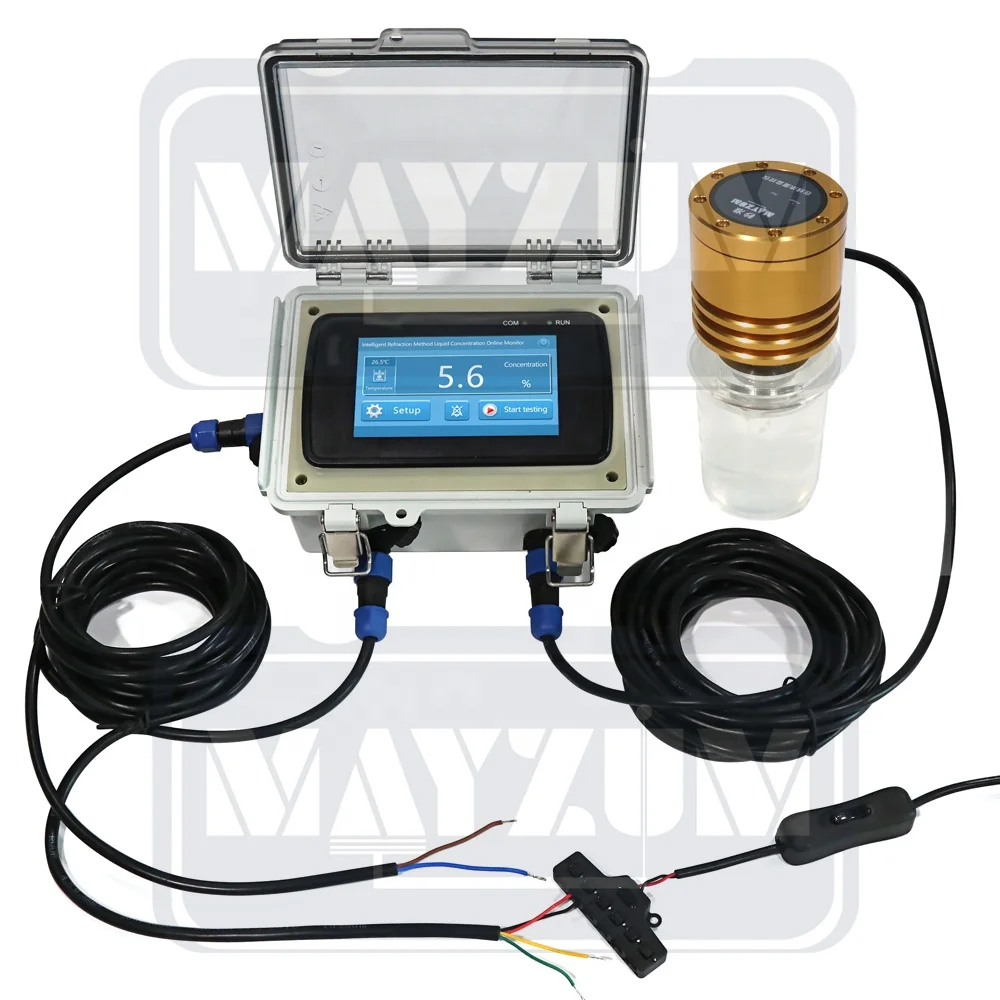

Standard accessories | Display controller, refractive sensor |
Power supply | DC 24V，2A |
Output signal | 4~20mA analog quantity, RS485 digital quantity, switch quantity optional |

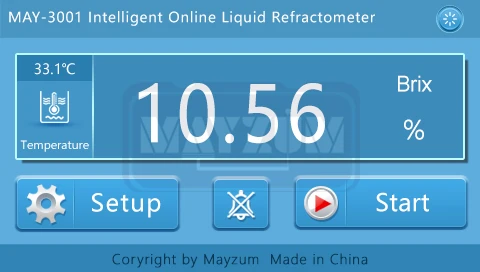

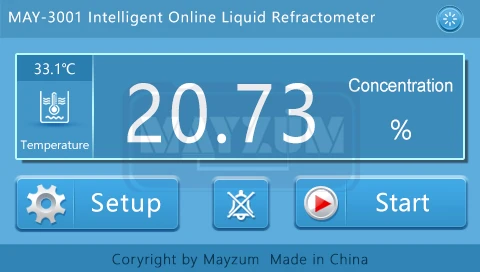

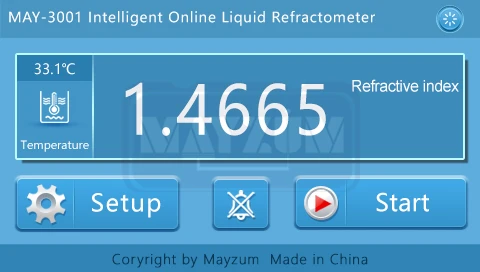

Detailed Images
On-line Intelligent Honey Baume Water Content Testing Instrument
Recommend Products

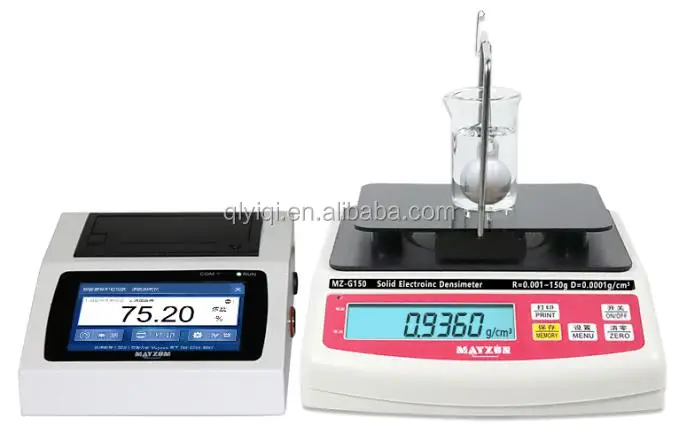

MAY-G150 （Sampling measurement）
