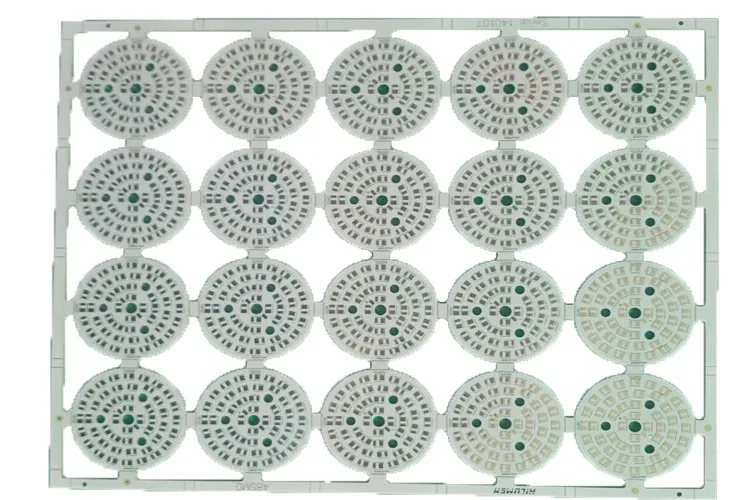

PCB circuit board with a single sided 6 volt LED bulb
- $0.01 /piece
- 1 piece
- Gesp Technology (Dalian) Co., Ltd.
- Liaoning, China
- Ms Miki Liu
| Plate thickness: | 0.005"-0.250" | place of origin; place of origin: | Liaoning, China |
| Surface treatment: | HASL\OSP\DOLD FINGER\ENIG | minute. Line spacing: | 0.1mm |
| Copper Thickness: | 0.25 oz - 12 oz | model: | custom made |
| Surface treatment: | HASL lead-free/OSP/soft gold/hard gold | minute. Line width: | 0.1 mm |
| Plate thickness: | 0.2-3.0mm | Supply capacity: | 8000 square meters per month |
| Substrate: | FR-4,CEM-3, Roger,taconic,arlon , metal/ceramic/aluminum base | type: | Single-sided PCB |
| maximum. Panel size: | 22" x 28" | payment terms: | L/C,Western Union,D/P,D/A,T/T,Paypal |
| Copper Thickness: | 0.5-6 oz | Certificate: | ISO/RoHS/TS16949 |
| minute. Aperture: | 0.20mm | Substrate: | FR4 |
| Blind Pass: | According to Gerber | Packaging Details: | Single sided 6 volt led bulb pcb circuit board Packaging details: Inner packaging: vacuum bag Outer packaging: carton |
| PCB project: | 6 Volt LED Bulb Circuit Board | Impedance Control: | Yes |
| brand: | Gasp | standard: | IPC Class 2, Class 3 |
| port: | Dalian, Shenzhen, Hong Kong |
single sided 6 volt led bulb pcb circuit board
EuroperThe main business is PCB manufacturing, PCB Copy and PCB design, such asWashing machine pcb board, air conditioner inverter pcb board, pcb circuit board, mobile phone pcb board, mobile power pcb, etc.other products:
Click to visit our homepage
16 years experience in PCB manufacturing and PCB assembly

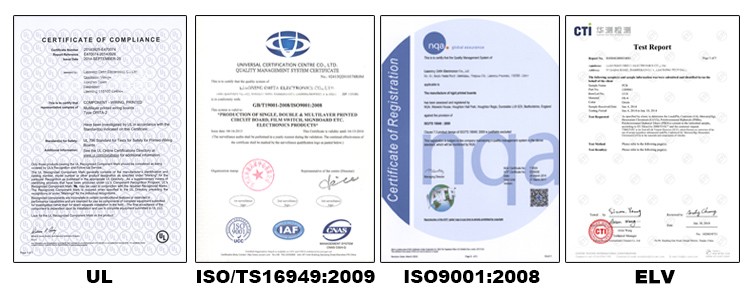

Compliant with ISO9001, TS16949, RoHS standards
One-stop solution for PCB design, rapid prototyping, component sourcing, SMT and through-hole assembly,
Functional testing, housing assembly.
Full range of testing services: vision and AOI inspection, circuit testing, X-ray and functional testing of BGAs.

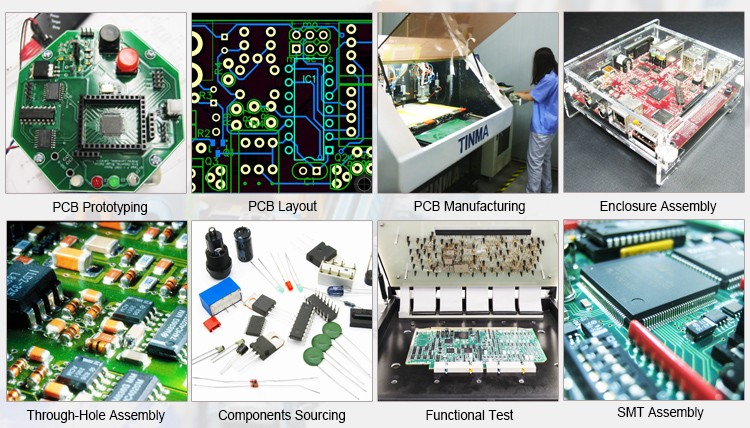

PCB Manufacturing; PCB Layout; PCB Prototyping; SMT Assembly; Through-Hole Assembly; PCB Design, Copy Services; Domestic and Original Parts Sourcing; Fixture Testing, AOI Testing, Functional Testing, X-ray Scanning Testing for BGA; Housing Components.
|
ability |
standard |
advanced |
|
Minimum number of layers |
1 |
1 |
|
maximum number of layers |
12 |
40 |
|
Material |
FR-4 (Tg-135C, 145C, 170C), halogen free Rogers Ultralam 2000, Rogers RO4350, Rogers RO4003 Polyimide Black FR-4 Aaron AR-350 CEM-3 Getek Copper Clad Thermal Substrates Hybrid (Rogers and FR4) BT Epoxies Nelco 4013 Teflon Metal core material Aluminum core |
|
|
plate thickness |
0.020"-0.125" |
0.005"-0.250" |
|
Maximum board size |
16" x 22" 12" x 21" 22" x 28" |
10" x 16" 16" x 22" 12" x 21" 22" x 28" |
|
copper thickness |
0.5 oz - 3 oz |
0.25 oz - 12 oz |
|
Minimum trace width/spacing |
0.004"/0.004" |
0.003"/0.003" |
|
Solder mask color |
Green, blue, black, red, yellow, white, clear and customized |
|
|
Silkscreen Color |
white, black, yellow, green, red, blue and customized |
|
|
Minimum aperture |
0.008" |
0.004" |
|
Finished Aperture Tolerance |
+/-0.003" |
+/-0.002" |
|
PCB surface treatment |
HASL (vertical and horizontal), lead-free HASL, OSP/Entek, ENIG, ENEPIG, Spray tin + gold finger, immersion tin (ISn), immersion silver (IAg), carbon Ink, hard gold (flash gold), soft gold |
|
|
IPC class |
level 2 |
Level 3 |
|
Controlled Impedance Tolerance |
+/-10% |
+/-5% |
|
Blind hole |
Yes |
Yes |
|
Buried via |
Yes |
Yes |
|
aspect ratio |
8/1 |
15/1 |
|
Minimum core thickness |
0.004" |
0.002" |
|
carbon ink |
Yes |
Yes |
|
peelable mask |
Yes |
Yes |
|
Solder sample |
Yes |
Yes |
|
first time |
Yes |
Yes |
|
ISO 9001:2008 |
Yes |
Yes |
|
ISO/TS16949:2009 |
Yes |
Yes |
|
94v0 |
Yes |
Yes |

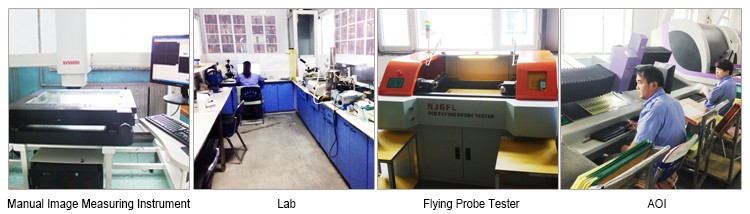

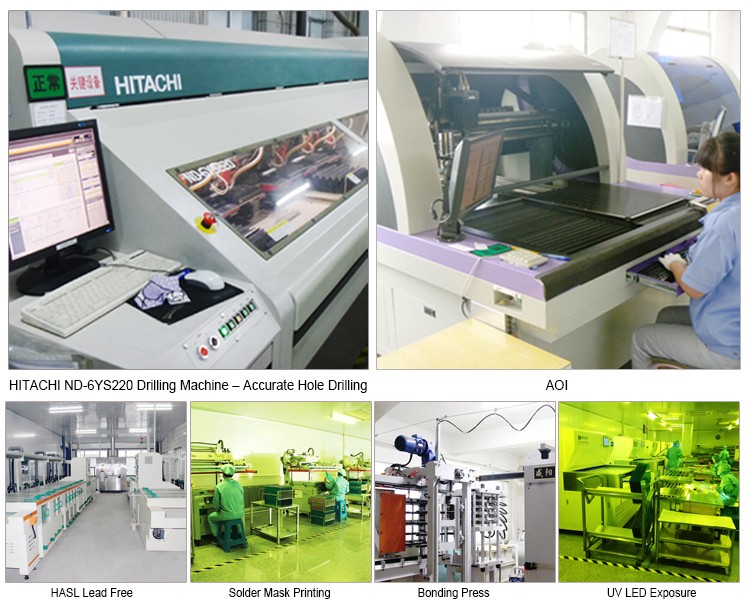

PCB test equipment.
- PCB Orders: Please provide Gerber files and manufacturing specifications.
- PCBA Orders: Please provide Gerber files, Manufacturing Specifications, BOM Bill and Pick & Place/XY files.
- Reverse engineering and PCB duplication services are available for your PCB samples.
- PCB design requires detailed information on functionality or drawings.
- Any further questions, welcome to contact us by sending an inquiry.
|
layer |
sample |
first order |
repeat command |
|
one-sided |
3 days |
7 days |
6 days |
|
duality |
4 days |
8 days |
7 days |
|
4th floor |
7 days |
9 days |
8 days |
|
layer 6 |
8 days |
10 days |
9 days |
|
8 floors |
10 days |
12 days |
10 days |
|
10 floors |
12 days |
14 days |
12 days |
|
aluminum base |
3 days |
8 days |
7 days |
|
FPC single side |
5 days |
8 days |
8 days |
