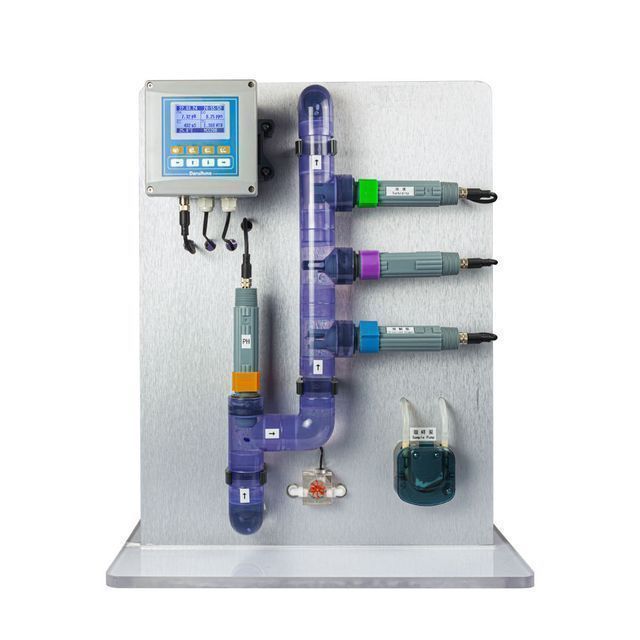

PH EC TU DO Water Treatment Residual Chlorine Online Multi-parameter Water Quality Meter

PRODUCT DETAIL
place of origin; place of origin:Jiangsu, ChinaProtection class:IP66
brand:Dalaifu wildpower supply:AC: 100~240V
Package preview:Turbidity range:0~20NTU/0~1000NTU
Measurement object:pH, conductivity, turbidity, dissolved oxygen, residual chlorineCommunication Interface:RS485
product name:Multiparameter Water Analyzermodel:MCC200
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramtype:Multiparameter Analyzer
Dissolved oxygen range:0~20 mg/LEC scope:0~10mS/cm
Supply capacity:30 pieces per monthpH range:0~14pH
Warranty:1 yearCustomization support:OEM production
aspect:144*144*120mmPackaging Details:cardboard box

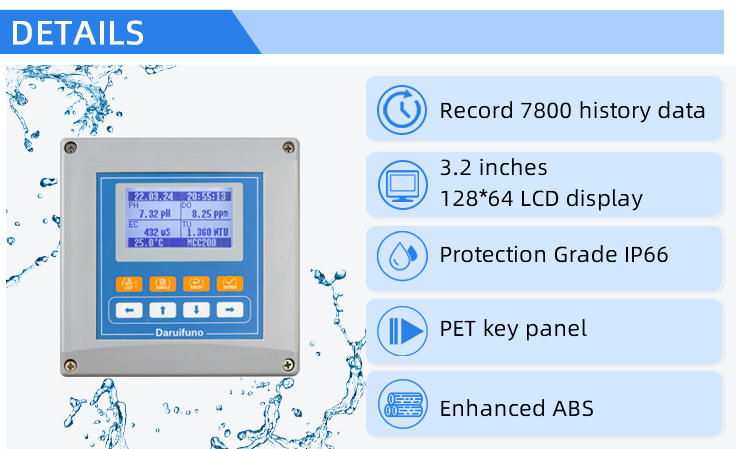

Multiparameter Analyzer Features
Customized Multiparameter Analyzers

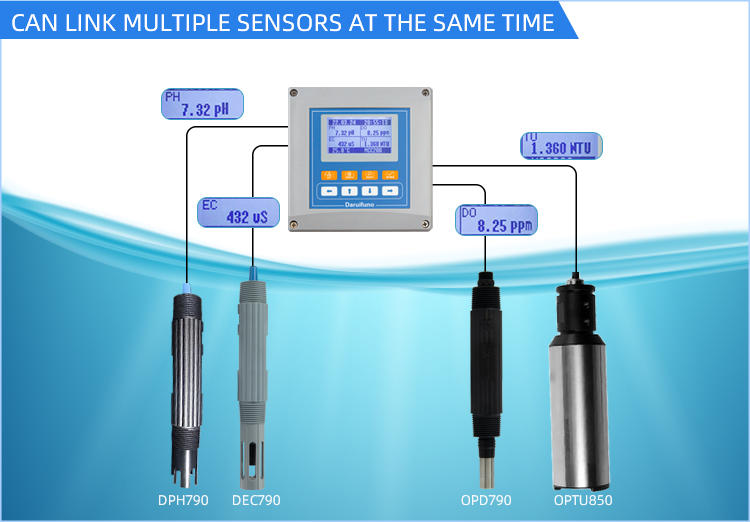

The Daruifuno MCC200 analyzer has 4 digital channels and can connect up to 4 digital sensors. Measurement parameters can be pH, ORP, dissolved oxygen, conductivity, TDS, salinity, turbidity or chlorine.

different measuring ranges
The MCC200 controller can be connected to different electrodes for measurement. The measuring range is determined by different sensors.

The data is accurate and stable

MCC200 requires these authorized sensors to upload detection data in a special encrypted communication method to ensure that the controller collects high-precision data more stably.

Communication and Control
MCC200 multi-parameter water quality analyzer has RS485 interface, and the communication protocol is Modbus RTU. The water quality tester has a cleaning relay, which is used to control cleaning the sensor with a brush.

Various installation methods

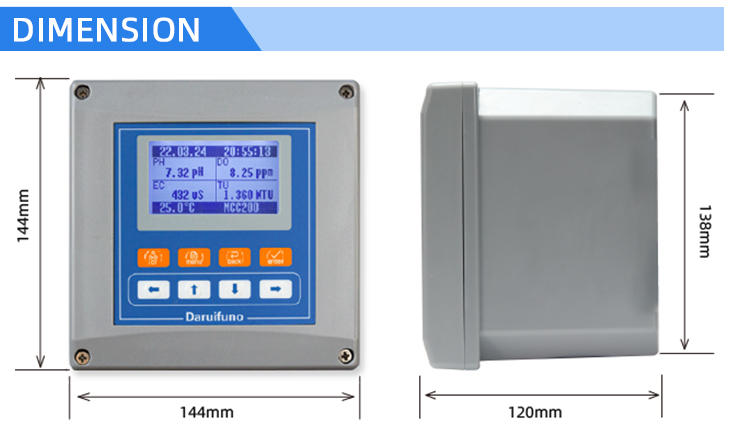

The size of the controller is 144*144*120mm, and it supports wall mounting, pipe clamp, and panel mounting.
Multiparameter Analyzer Specifications
product name
Multi-parameter water quality meter
Product number
MCC200
brand
Dalaifu wild
Detection object
pH, ORP, temperature, conductivity, dissolved oxygen, turbidity, residual chlorine
pH sensor
Principle: glass electrode method
Range: 0~14pH, 0~50℃
Accuracy: 0.01pH
Conductivity sensor
Principle: 2 electrodes or 4 electrodes
Range: 0~10mS/cm automatic switching, 0~50℃
Accuracy: 1% of range
Dissolved Oxygen Sensor
Principle: fluorescence method
Range: 0~20mg/L, 0~50℃
Accuracy: ±0.1mg/L
Turbidity sensor
Principle: Infrared 850nm 90° scattered light method
Range: 0~1000NTU, 0~4000NTU
Accuracy: <±1% of range
configuration information
Power-down protection, parameters are kept indefinitely
Temperature sensor input
PT1000 or NTC10K
Temperature compensation
automatic or manual
Operating temperature
0~60℃RH<95%
Storage temperature
-20~70℃ RH<55%
Relay output
Clean the relay, max. Load 3A/250VAC
communication method
RS485 interface
Protocol
Modbus RTU, supports JSON text
time/data logging
Accurate to the second, record 7800 pieces of historical data, support data download
Logging interval can be set between 1 and 999 minutes
maintenance records
last 100 times
exhibit
3.2 inch 128*64 LCD screen
language
English
Degree of protection
IP66
Material
Enhanced ABS
aspect
144*144*120mm
Install
Wall mount, pipe clamp, panel mount (opening size 138*138mm)
power supply
AC: 100~240V, 50/60Hz; DC: 18~36V
energy consumption
<24W
weight
1600 grams
