Pipe End Forming Machine Hydraulic Pipe End Forming Machine SG-60 80 100 120
- $2000.00 / 1 - 2 sets
$1950.00 / >=3 sets - 1 set
- Nantong Jobest Machinery Technology Co., Ltd.
- Jiangsu, China
- Mr Jack Wang
| Tube: | Steel Copper Aluminum | Core Components Warranty: | 2 years |
| Maximum shrinkage capacity (thickness) (mm): | 6 mm | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| port: | Shanghai | Packaging Details: | wooden packaging |
| Raw materials: | pipeline | Material/Metal Finishing: | stainless steel, carbon steel |
| capacity: | 120mm tube | Oil pump: | 32L |
| Weight (kg): | 3000 | Warranty: | 2 years |
| Type of machine: | Tube end forming machine | After-sales service provided: | Free spare parts, online support, on-site installation and commissioning training, on-site maintenance and repair services, video technical support |
| Marketing Type: | New Products 2020 | Electrical System: | 3Phae (customized) |
| product name: | Tube End Forming Machine Hydraulic Tube End Forming Machine | Extra Services: | end forming |
| Key words: | Stainless Steel Rolling Machine | Health status: | new |
| Motor Power: | 7.5/11/15 | Core components: | motor |
| Certification: | ce | Main selling point: | automatic |
| payment terms: | wire transfer | Video external inspection: | if |
| Maximum shrinkage capacity (diameter) (mm): | 120 mm | application: | Pipe processing |
| Local service location: | not any | Function: | expansion tube |
| Applicable industries: | Manufacturing plants, machinery repair shops | aspect: | 1990*1200*1250mm |
| Showroom location: | not any | brand: | Jobs |
| Supply capacity: | 30 sets per month | automation: | semi-automatic |
| Power (kW): | 5.5 | place of origin; place of origin: | Jiangsu, China |
| Mechanical test report: | if |

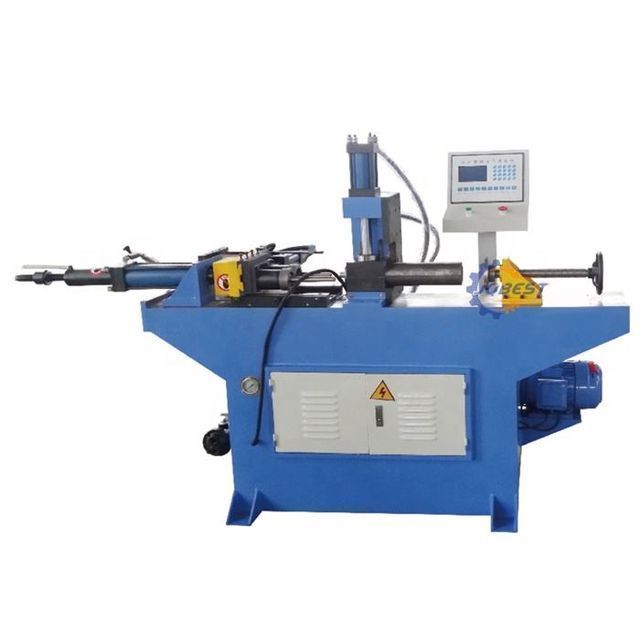

Tube End Forming Machine Hydraulic Tube End Forming Machine SG-60 80 100 120
The tube end forming machine uses linear guide rails as the carrier, runs without wear and has good product repeatability, and is suitable for tube end processing of iron sheets, furniture, and automotive air-conditioning fuels.
Recommended application industry:
Auto parts (brake hoses, mufflers, seats), motorcycles, health equipment, air conditioners,
Bicycles, steel furniture, sanitary ware, etc.;
Compatible material:
Steel pipe, stainless steel, copper pipe, aluminum pipe;
Main Specifications
1) NC control unit: easy to operate and maintain
2) It is suitable for heat shrinking of metal pipes of various materials and shapes.
3) Equipped with emergency stop device. Both manual and automatic operation are possible
4) The retraction stroke is 100mm. maximum. Workpiece length is 450mm, no minimum workpiece length
5) The molding shape can be convex, concave, cross-section, long 7 flat, square, V-shaped, open elbow and flat elbow. Tooling design varies by workpiece and customer requirements
|
type |
SG-40 |
SG-60 |
SG-80 |
SG-100 |
|
Max tube(mm) |
φ40*2.0 |
φ60*2.0 |
φ80*3.0 |
φ100*3.5 |
|
Maximum processing length (mm) |
110 |
130 |
150 |
180 |
|
Oil pressure (Mpa) |
14 |
14 |
14 |
14 |
|
Speed of work |
100mm in3-4/s |
100mm in3-4/s |
100mm in3-4/s |
100mm in3-4/s |
|
Dimensions (cm) |
180*45*120 |
200*50*130 |
290*70*140 |
300*75*150 |
|
Weight (kg) |
600 |
950 |
1600 |
1800 |
|
Comment |
1. The maximum processing length can be according to customer requirements. |
|||
