Popular amphibious multipurpose dredger with dredging pump/sand bucket/weeding rake
- $100000.00 /set
- 1 set
- Qingzhou Julong Environment Technology Co., Ltd.
- Shandong, China
- Mr Peng Wang
| usage area: | Waters, land, wetlands, etc. | Certification: | ISO9001:2008 |
| Showroom location: | not any | Discharge distance: | 1000 meters |
| Core components: | engine, pump | place of origin; place of origin: | Shandong China |
| type: | cutter suction dredger | After-sales service provided: | Video technical support, free spare parts, online support, on-site installation and commissioning training, on-site maintenance and repair services |
| Dredging depth: | 6 meters | Video external inspection: | if |
| brand: | dragon | port: | Tianjin or Qingdao Port, China |
| Core Components Warranty: | 1 year | Dimensions (L*W*H): | 11*3.3*3m |
| Packaging Details: | Container ship or bulk carrier transportation | Applicable industries: | Construction Engineering, Energy and Mining |
| payment terms: | letter of credit, wire transfer | Supply capacity: | 50 sets per year |
| Warranty: | 1 year | Mechanical test report: | if |
| painting: | famous marine paint | Health status: | new |
| Dredging capacity: | 500 cubic meters/hour | application: | Dredging, excavating, cleaning |
| Dredger Type: | Amphibious multipurpose dredger | color: | According to customer's request |
| Dredging depth: | 6m | Propulsion system: | propeller |
| draft: | 1000 cm | Engine Options: | Cummins, CAT, Weichai, Jichai, etc. |
| weight: | 30000kg | Marketing Type: | normal product |
| Power Type: | diesel engine | Local service location: | Indonesia, India, Bangladesh, Nigeria |

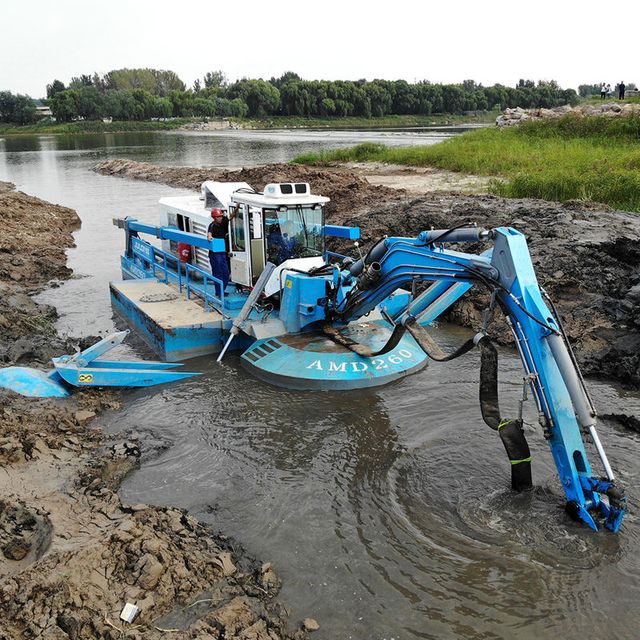

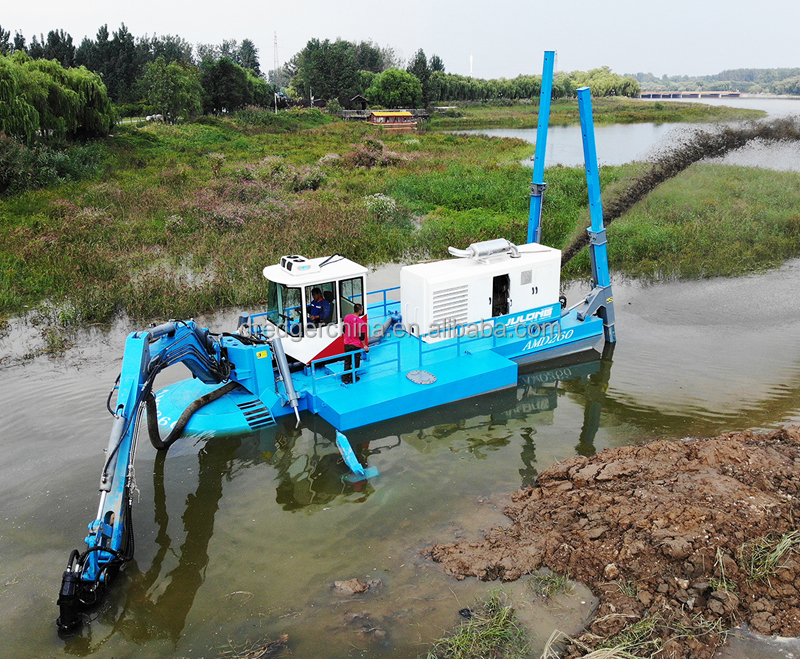

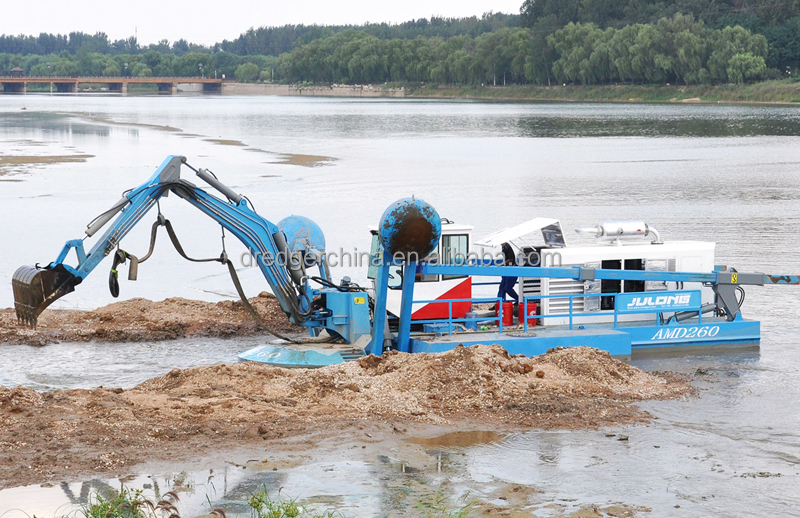

China-made giant dragon amphibious multi-purpose dredger
The dragon water and land multi-purpose dredger is designed with buoys and crawler tracks and can be used on land and water. It can be equipped with slurry pump, bucket, lawn mower, set harrow and fork. The purpose is dredging, weeding, pumping mud, collecting weeds, etc.
Technical Specifications for Julong Amphibious Multifunctional Dredger for Reference
(Custom designs available.)
| length | 11m |
| width | 3.3m |
| high: | 3.0m |
| draft: | ~1.0m |
| Working depth: | 6m |
| Cutting Pump Capacity: | 500 cubic meters/hour |
| Type of driving: | hydraulic motor |
| Engine power: | 269KW |

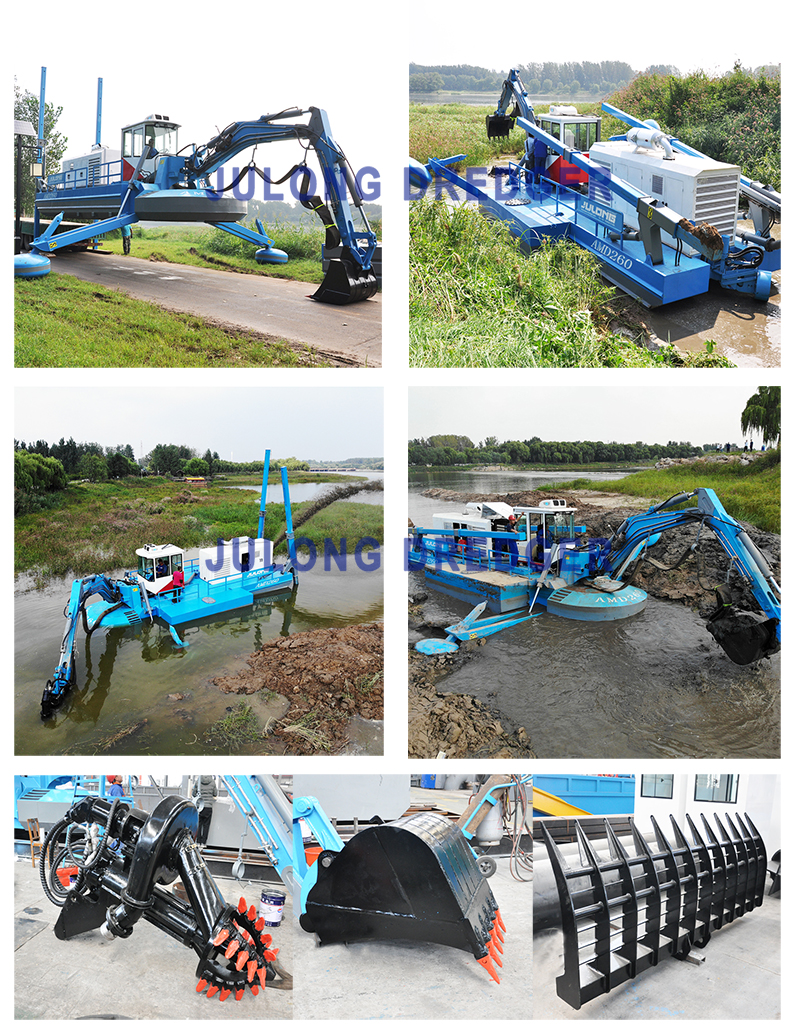

Optional and replaceable tools:
1) Bucket (sand digging)
2) Mowing bucket (cut and collect water plant/floating garbage)
3) Submersible pump (dredging)
4) Collection rakes (collecting waterworks/floating garbage)
5) T-Cutter (cutting water plant)
1). Adaptable. Dredging ships can be widely used for sand and mud dredging, channel cleaning and reclamation operations in rivers, lakes and reservoirs.
2). high efficiency. The dredger can dred sand and discharge mud at the same time, without the need for other ships to transport. Therefore, the cost will be greatly reduced, and the large production capacity of several thousand cubic meters per hour and the discharge distance of several kilometers can be achieved.
3). easy to use. Using hydraulic system and PLC control system, all operations of the dredger can be completed in the operation cabin.
4). Quick disassembly.
5). Custom designs will be made according to the client's project requirements. Our engineers have many years of experience in ship design.
6). All Dragon dredgers are built by skilled workers and rigorously inspected to ensure high quality and durability. Each finished dredger is thoroughly tested before delivery to ensure smooth operation when delivered to the customer.
7). The best parts will be for the dredger.
8). The hydraulic system is one of the most important components of a dredger. Well-known brands are used for other hydraulic components such as hydraulic pipes, hydraulic pumps, hydraulic valves.
9). The dredger is detachable. Therefore they can be easily disassembled and assembled. Therefore, road, rail or water transportation is very convenient.
10). Professional engineers will be sent to the project site to insist on the customer's training of dredger installation, commissioning, testing and operators.

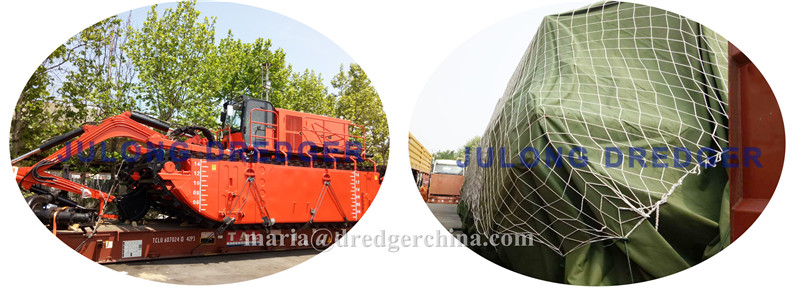

Dredgers can be transported in FR containers or bulk carriers.
