Port loading and unloading gantry crane Stationary four-bar gantry crane
- $6000.00 /set
- 1 set
- Henan Crane Co., Ltd.
- Henan, China
- Mr Basheer Zhang
PRODUCT DETAIL
| Core Components Warranty: | 1 year | Health status: | new |
| Original Equipment Manufacturer: | usable | Applicable industries: | Mechanical Repair Shops, Manufacturing Plants, Retail, Construction Engineering, Energy and Mining, Others, Seaports, Shipyards, Ports, etc. |
| Video external inspection: | if | Rated lifting moment: | Crane standard capacity |
| Marketing Type: | New Products 2021 | Mechanical test report: | if |
| Weight (kg): | 465310 kg | Warranty: | 1 year |
| Slewing speed of four-link gantry jib crane: | 0.26m/min~26m/min | brand: | Yufei |
| Gantry crane lifting speed: | 1.8m/min ~56m/min | span: | according to your request |
| maximum. Lifting height: | 40m above the rail + 36m below the rail | Supply capacity: | 5000 sets per year |
| Core components: | PLC, engine, bearing, gearbox, motor, pump | place of origin; place of origin: | Henan, China |
| Blood vessel: | Various seaport ships | feature: | Gantry crane |
| Span and base of four-link gantry crane: | 16m*10.5m | product name: | Workshop Gantry Crane Stationary Four-bar Gantry Crane |
| payment terms: | L/C,Western Union,T/T,MoneyGram | Maximum wheel load: | 180~300KN |

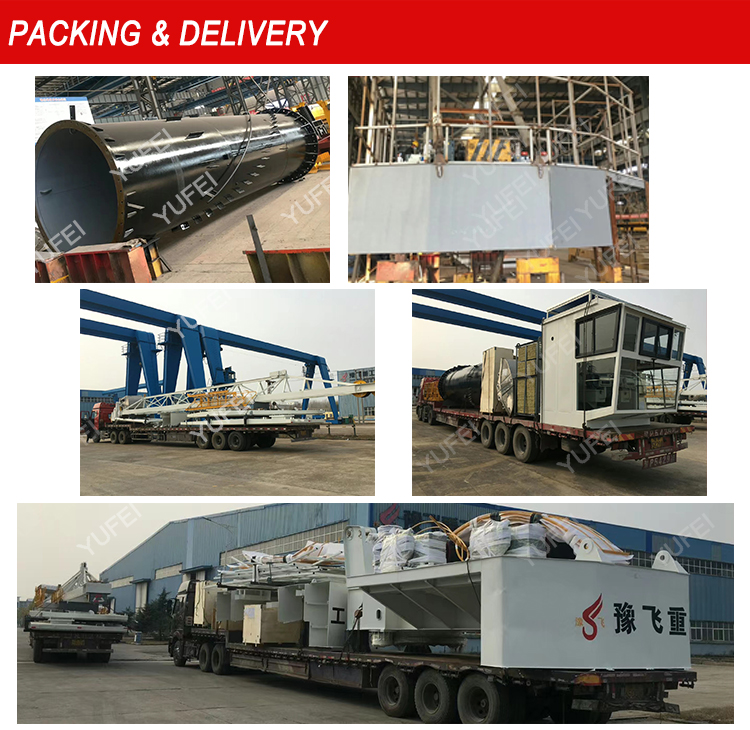

| Packaging Details: | Packing standard of workshop gantry crane fixed four-bar gantry crane: 1. Electrical components are packed in high-quality plywood boxes to reduce transportation deformation. 2. The main beam, end beam, trolley/winch are all packed with plastic woven cloth. It reduces wear and tear during transportation. 3. Usually by container if the size is suitable for container ship. 4. Large in size, generally in bulk ships or cut-off containers. 5. The shipping method is based on reducing costs and maintaining safety. | Rated load capacity: | 5 tons, 10 tons, 16 tons, 25 tons, 32 tons, 45 tons, 50 tons |
| application: | Seaports, shipyards, ports, etc. | port: | Tianjin, Qingdao Port |
| Showroom location: | Egypt, Canada, Turkey, Vietnam, Philippines, Brazil, Indonesia, Pakistan, Mexico, Russia, Chile, Sri Lanka, Romania, Bangladesh, South Africa, Kyrgyzstan, Malaysia, Australia | Arm length: | 8m~70m |
| Main electrical components: | Siemens, Schneider and Chint | Luffing speed of single arm gantry crane: | 15m/min ~60m/min |
Gantry crane
Yufei gantry crane design and manufacturing standards: port and wharf gantry crane specifications (GB/T17495-1998), lifting equipment safety regulations (GB/T14406-1993); ISO standard, FEM standard and JIS standard;

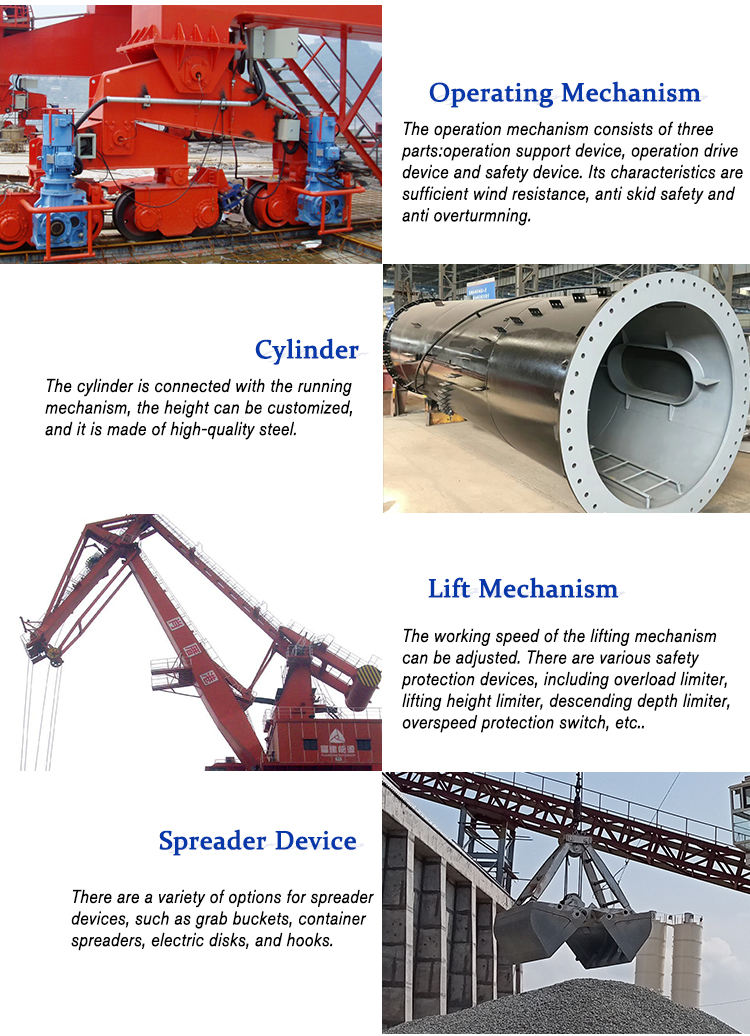

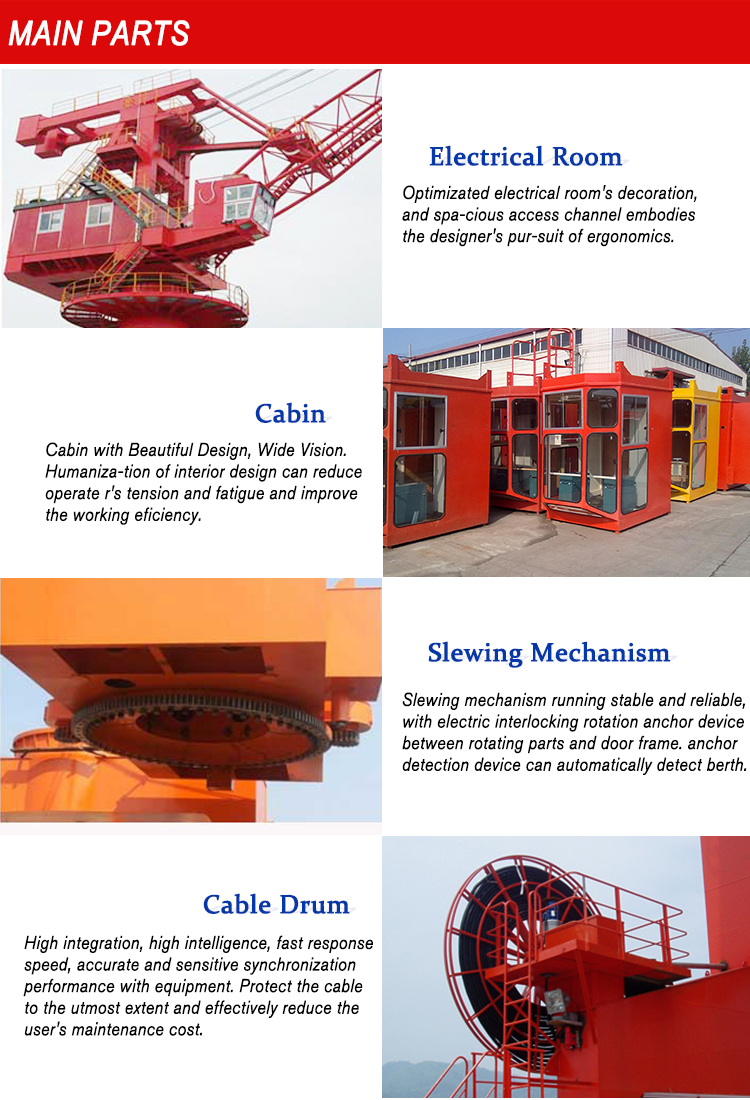

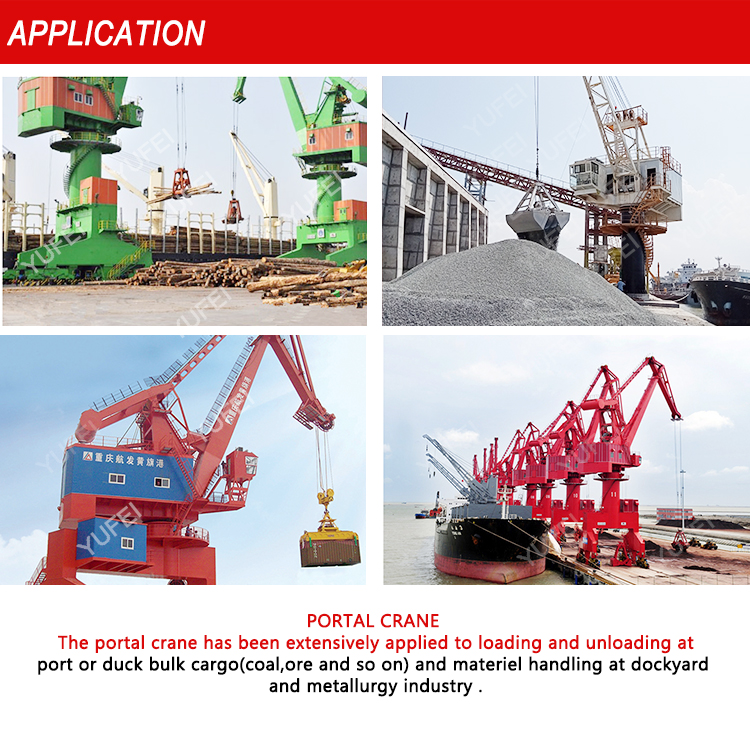

CE certified gantry cranes have a variety of applications, such as port loading and unloading, dock material handling, shipbuilding and shipbuilding, and metallurgical industries. Four-link shipyard gantry crane is composed of frame, hoisting mechanism, luffing mechanism, slewing mechanism, traveling mechanism, spreader (grab, container spreader, hook), electrical equipment and other safety auxiliary devices.

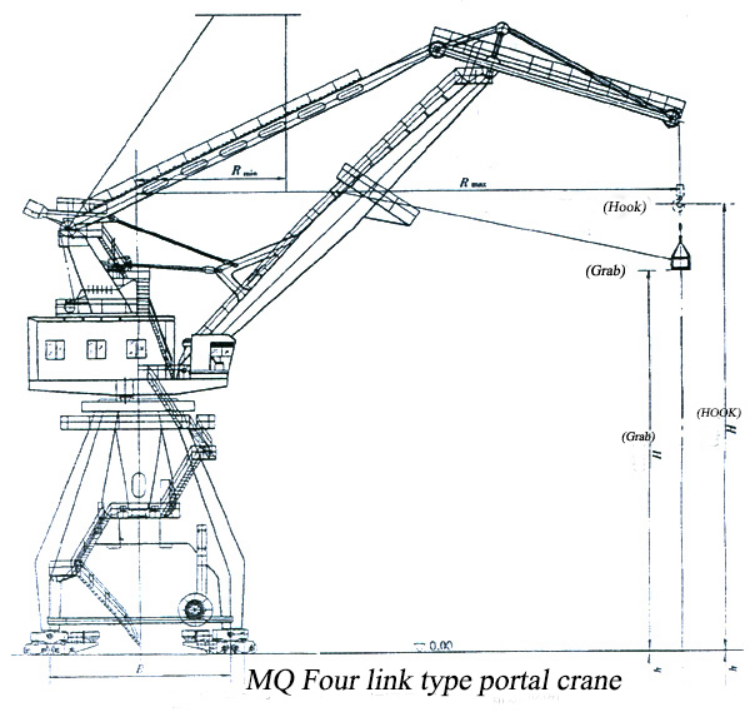

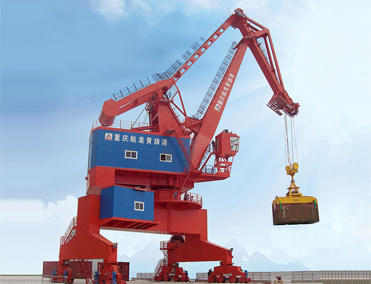

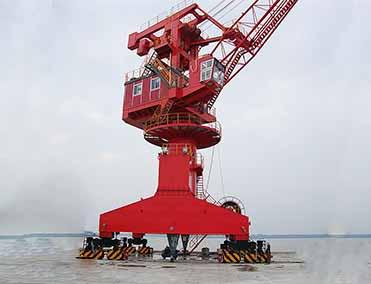

Four-link gantry crane

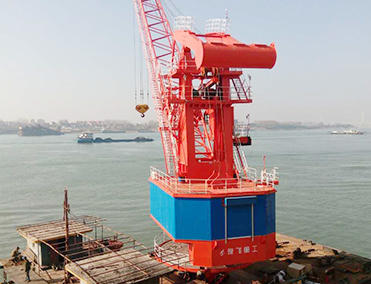

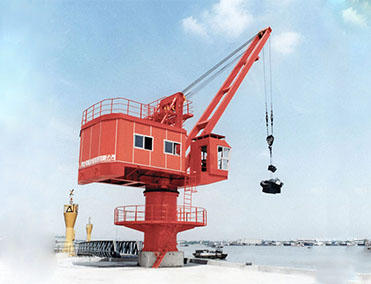

Single Boom Gantry Crane
Running a gantry crane
floating gantry crane
To learn more, contact me!
feature:
1. Speed up the turnover and loading and unloading operations.
2. High work efficiency, compact frame,
3. Smooth action, comfortable operation, safe and reliable.
4, easy maintenance, beautiful appearance, etc.
5. Crane drive: IP54 or IP44, Class F insulation
6. Especially suitable for port lifting.
8. Design according to your requirements.
2. High work efficiency, compact frame,
3. Smooth action, comfortable operation, safe and reliable.
4, easy maintenance, beautiful appearance, etc.
5. Crane drive: IP54 or IP44, Class F insulation
6. Especially suitable for port lifting.
8. Design according to your requirements.
To learn more, contact me!

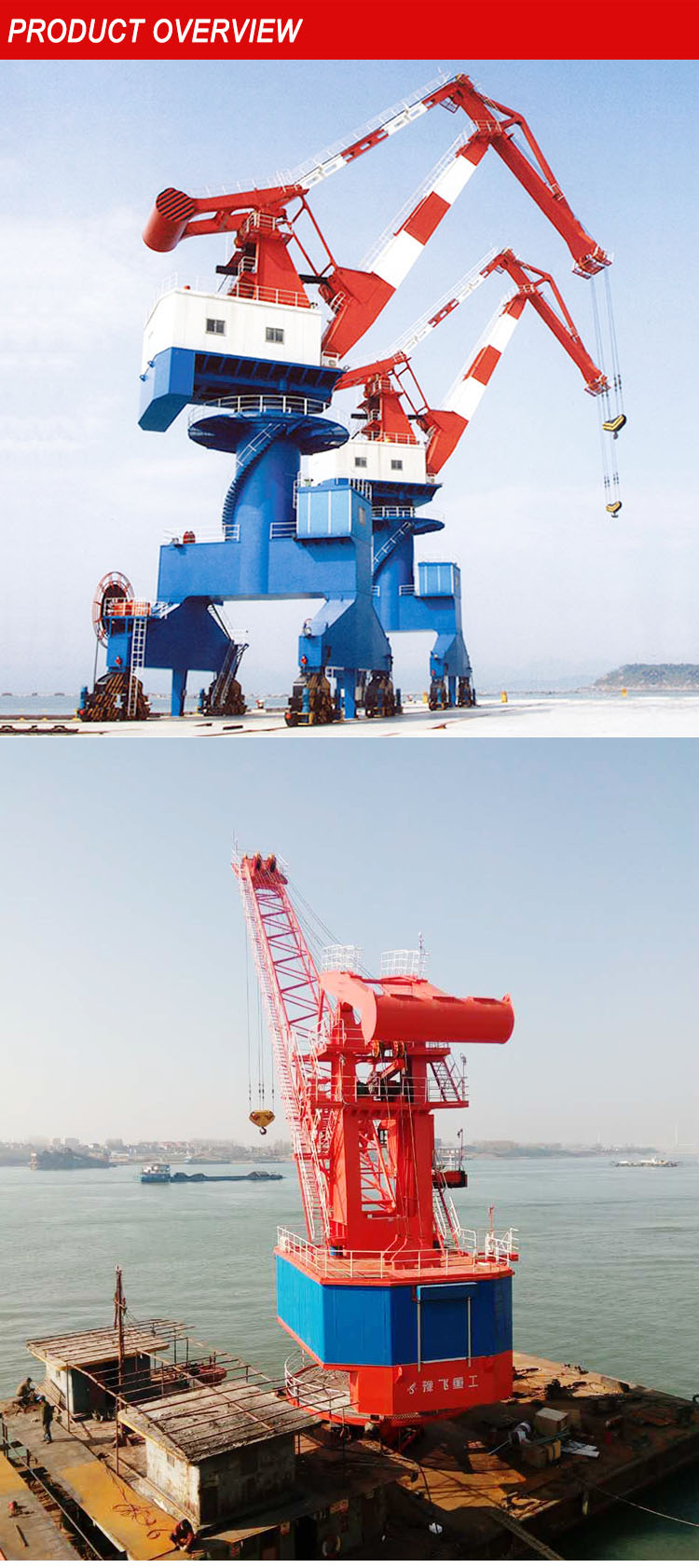

Single Boom Portal Crane

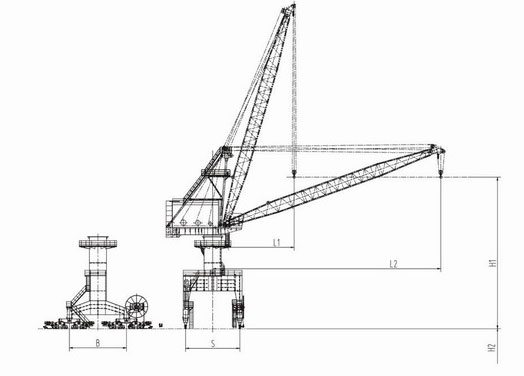

Four-link gantry crane
type | Cover (t) | Max (m) | minutes (meters) | up (m) | down (m) | span*base | maximum wheel load |
MQ0525 | 5 | 25 | 8 | 12 | 9 | 10.5*10.5 | 180 |
MQ1033 | 10 | 33 | 9.5 | 20 | 12 | 10.5*10.5 | 185 |
MQ1633 | 16 | 33 | 9.5 | 28 | 15 | 10.5*10.5 | 250 |
MQ2533 | 25 | 33 | 9.5 | 28 | 15 | 10.5*10.5 | 260 |
MQ3240 | 32 | 40 | 12 | 35 | 13 | 12*10.5 | 320 |
MQ4570 | 45 | 70 | 25 | 45 | 13 | 12*12 | 320 |
MQ5035 | 50 | 35 | 11.5 | 40 | 0 | 12*10.5 | 280 |
Single Boom Portal Crane
type | Cover (t) | Max (m) | minutes (meters) | up (m) | down (m) | span*base | maximum wheel load |
MQC0209 | 2 | 9 | 4 | 6 | 6 | 4.5*4.5 | 40 |
MQC0315 | 3.2 | 15 | 5.6 | 12 | 8 | 6*6 | 80 |
MQC0322 | 3.2 | twenty two | 7 | 14 | 8 | 6*6 | 90 |
MQC0515 | 5 | 15 | 6 | 12 | 9 | 6*6 | 120 |
MQC0518 | 5 | 18 | 6 | 15 | 9 | 6*6 | 200 |
MQC0520 | 5 | 20 | 7.5 | 16 | 18 | 6*6 | 200 |
MQC3056 | 30 | 56 | 18 | 45 | 5 | 10*10.5 | 300 |
MQC4580 | 45 | 80 | twenty four | 50 | 14 | 12*14 | 340 |
MQC5070 | 50 | twenty two | 70 | 50 | 13 | 10.5*14 | 300 |
MQC6345 | 63 | 45 | 17 | 40 | 10 | 10*10.5 | 250 |
