Pressure gauge 4" stainless steel IP 65 233.50.100

PRODUCT DETAIL
Connector:304 stainless steelbrand:Knight or customized
Product number:IP 65 pressure gauge 233.50.100model:NT-YN100BF
Certification:ISO9001place of origin; place of origin:Anhui, China
Internal material:304 stainless steelDiameter size:100 inches, 100mm
Serve:OEM service availableAdvantage:Excellent load cycle stability and shock resistance
quality:100% inspectionpayment terms:L/C, T/T, Western Union, Paypal
Case material:304 stainless steelPackaging Details:100mm IP 65 Pressure Gauge 233.50.100 Packing 1pc/polybag/white box, 30pcs in a carton
port:ShanghaiSupply capacity:3000 pieces per day -

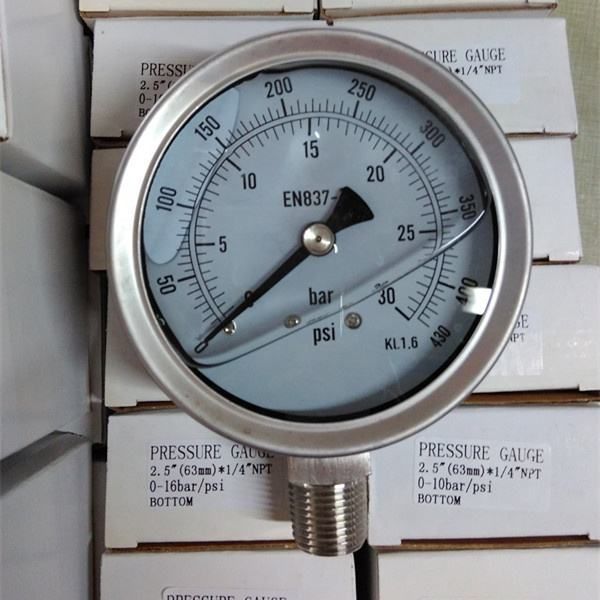

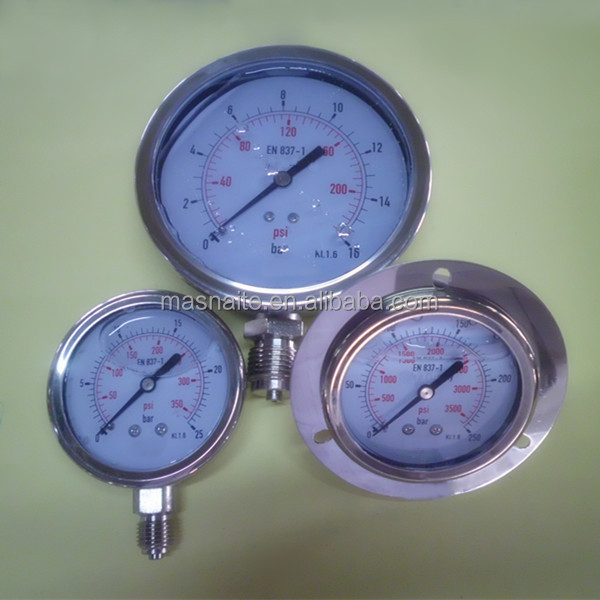

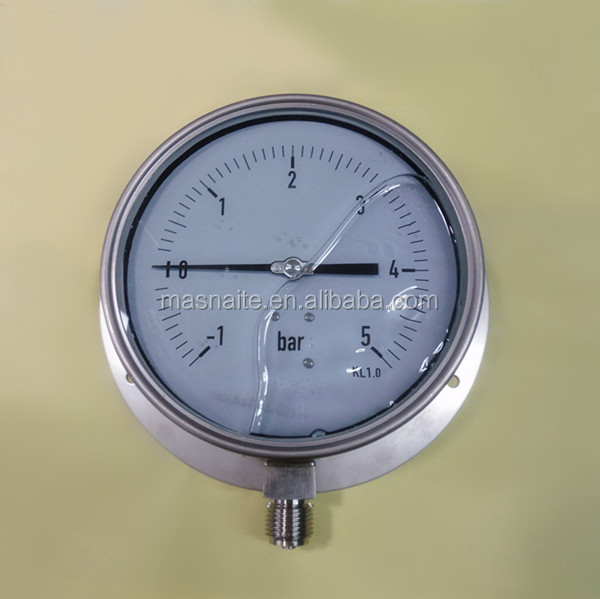

4" stainless steel IP 65 pressure gauge 233.50.100



application

.  With liquid-filled housing for applications with high dynamic pressure pulsations or vibrations

  .For aggressive environments and gaseous or liquid media that do not block pressure systems

 .Process industries: chemical/petrochemical, power generation, stations, mining, onshore and offshore, environmental technology, mechanical engineering and plant construction




special function

.All stainless steel construction

.Stainless steel case with detachable bezel

.Excellent load cycle stability and shock resistance

.Offers bottom, mid-back, or under-mid-back access

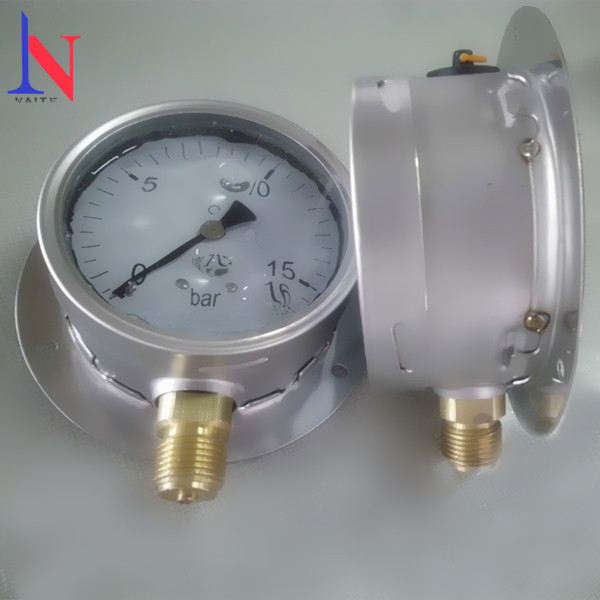

.Panel mount available



describe



Diameter size1, 1.5, 2, 2.5, 3, 3.5, 4, 6, 8 and 10 inches
pressure range- 0.1 - 0 -100Mpa
caseStainless steel, plastic, forged brass and steel
ringstainless steel, steel or none
movestainless steel, brass
socketstainless steel, brass
Connection size1/8, 1/4, 3/8 and 1/2 inches
connection threadNPT, BSP (G, PF), BSPT (ZG, PT)
connection installationBottom, Top, Left, Right and Center Back
bourdon tubestainless steel, phosphor bronze
dial and handsaluminum
dialSingle and dual scale (psi, kpa, mpa, bar, kg/cm2 available)
windowPolycarbonate, glass, tempered glass, safety glass
Accuracy range1%, 1.6%, 2.5% of full scale
Operating temperature-20°C- 70°C
filling mediumGlycerin, Silicone
Filling capNeoprene or Silicone









Optional extras

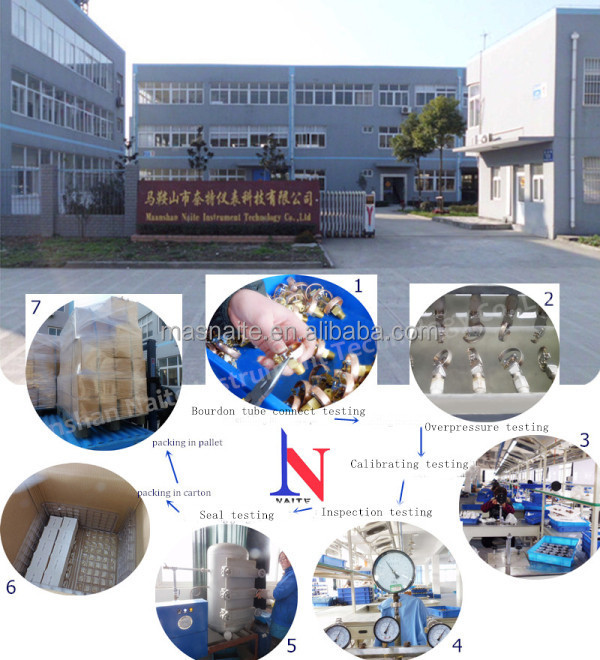

Our factory

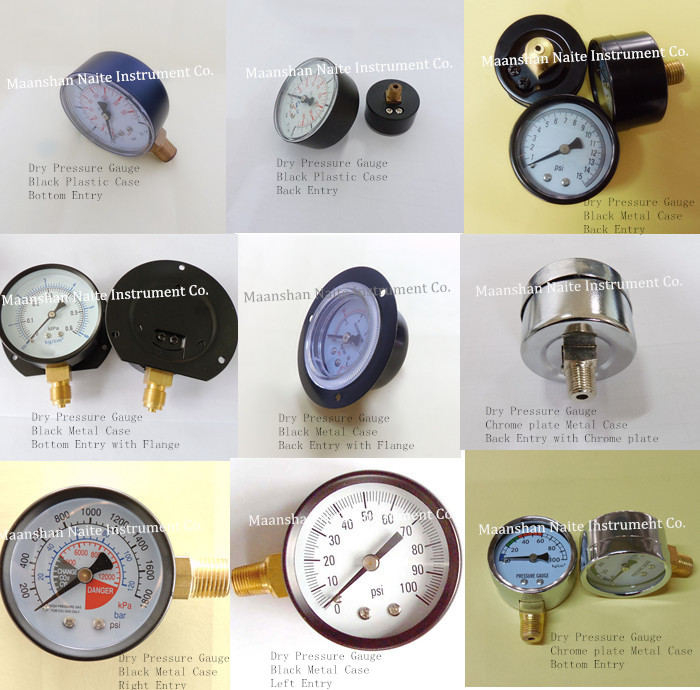

more products

Durable Pressure Gauge/Dry Gauge





Stainless Steel Pressure Gauge/Oil Pressure Gauge



Vacuum Gauge/Composite Vacuum Gauge/Pressure Gauge

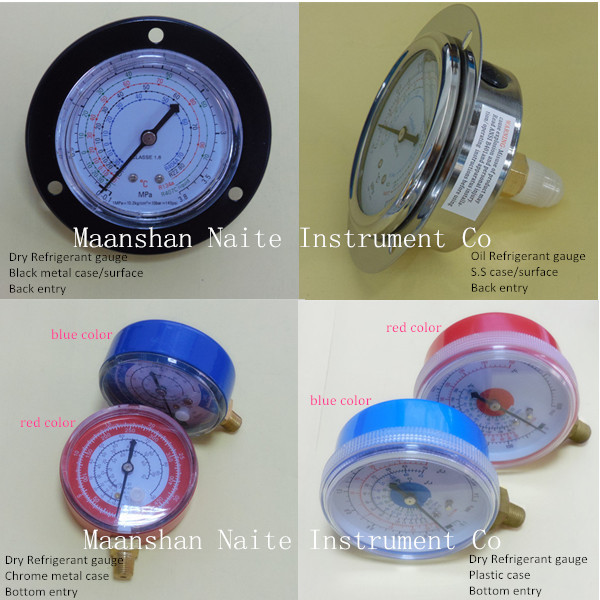

refrigerator pressure gauge





Certificate





FAQ

Q1: Are you a factory?

A1: Yes, we are a pressure gauge factory with 10 years experience.



Q2: What is your MOQ?

A2: No MOQ limit, 1 piece test is acceptable first.



Q3: Can you provide samples?

A3: Yes, we can provide 1 piece free sample for evaluation in customer's express account.



Q4: Can we print our logo on the meter?

A4: Yes, we can print logo according to customer requirements.



Q5: How about your quality?

A5: We guarantee that our pressure gauges are 100% checked before shipping to our customers.



Q6: What is your production capacity?

A6: Our production capacity is about 100,000 pieces per month.



Q7: What is the delivery method?

A7: We recommend sending large orders by sea, but for orders less than 1 pallet, express is the best option.



Q8: What is your payment terms?

A8: Our acceptable payment methods are TT, Western Union, Paypal, LC (large order)

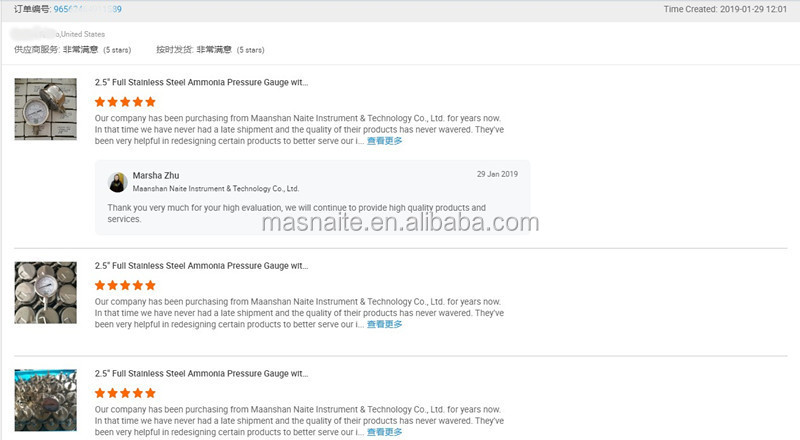

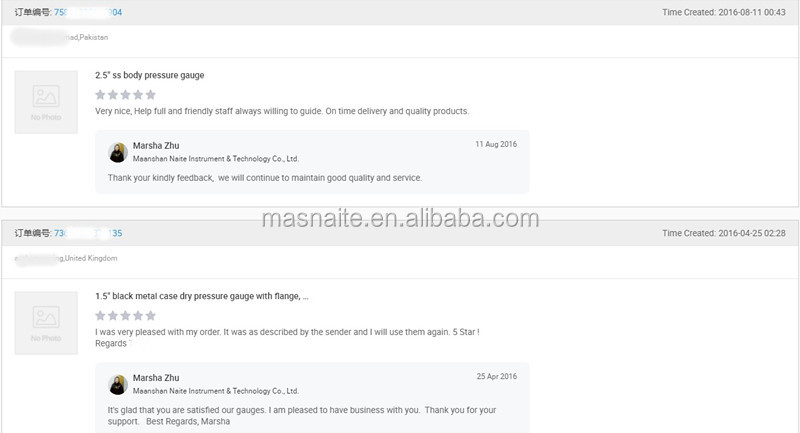

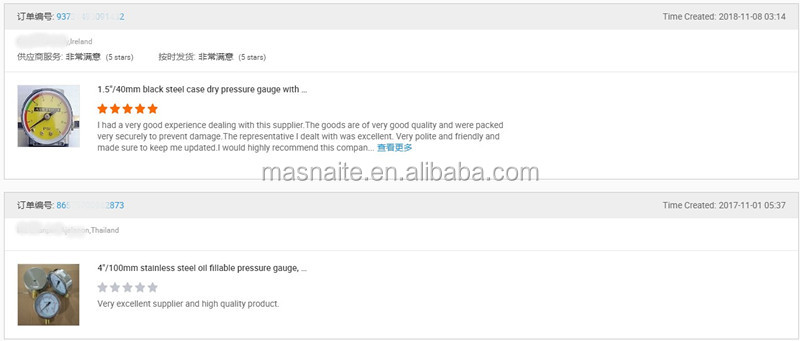

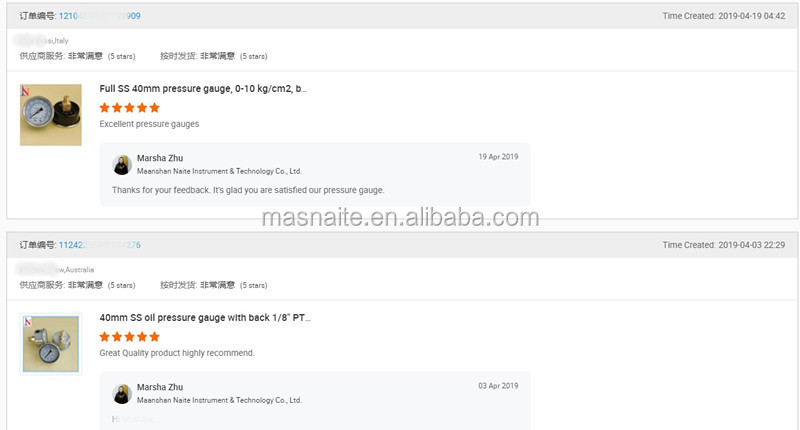

client feedback
