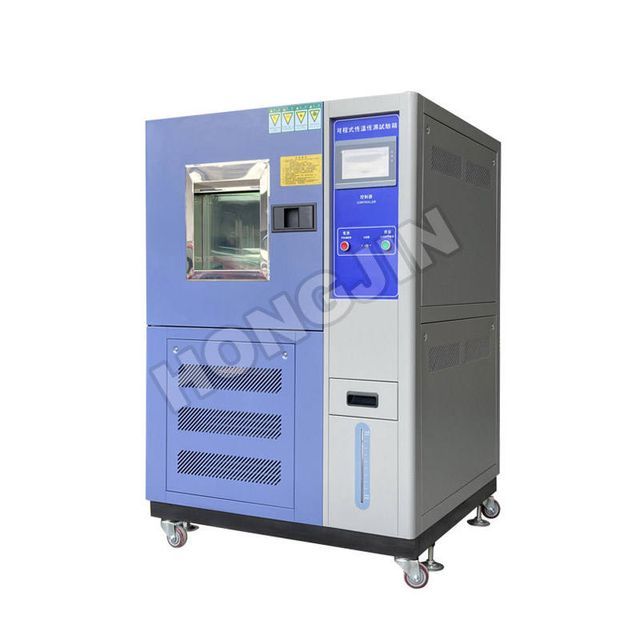

Programmable Environmental Climate Chamber Humidity Temperature Test Chamber Climate Temperature Test Chamber Humidity Test Equipment Price
- $199.00 /set
- 1 set
- Dongguan Hongjin Test Instrument Co., Ltd.
- Guangdong, China
- Mr Test Hongjin
PRODUCT DETAIL
| Warranty: | 1 year | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Cooling rate/min: | 1 degree | Packaging Details: | Fumigation-free export wooden box |
| product name: | Constant temperature and humidity test chamber | color: | customer request |
| Internal Dimensions W x H x D (cm): | 40x50x40 (customized) | strength: | Electronics |
| model: | Hua Jie | Heating rate/min: | 4 degrees |
| Package preview: | brand: | Hong Jin | |
| Origin: | Guangdong, China | temperature range: | -20°C, -40°C, -60°C, -70°C optional |
| Temperature distribution accuracy: | ±2.0℃ | power supply: | AC 220V 50/60Hz |
| Humidity range: | 20%~98% relative humidity | Temperature fluctuations: | ±0.5℃ |
| Customization support: | OEM, ODM, OBM |
Product Description
Product Description
Programmable environmental climate chamber temperature and humidity test chamber climate temperature and humidity test equipment price The equipment is used to test the performance of materials in various environments, and to test the heat resistance, cold resistance, dryness resistance and humidity resistance of various materials. It is suitable for quality inspection of products such as electronics, electrical appliances, mobile phones, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical care, and aerospace.

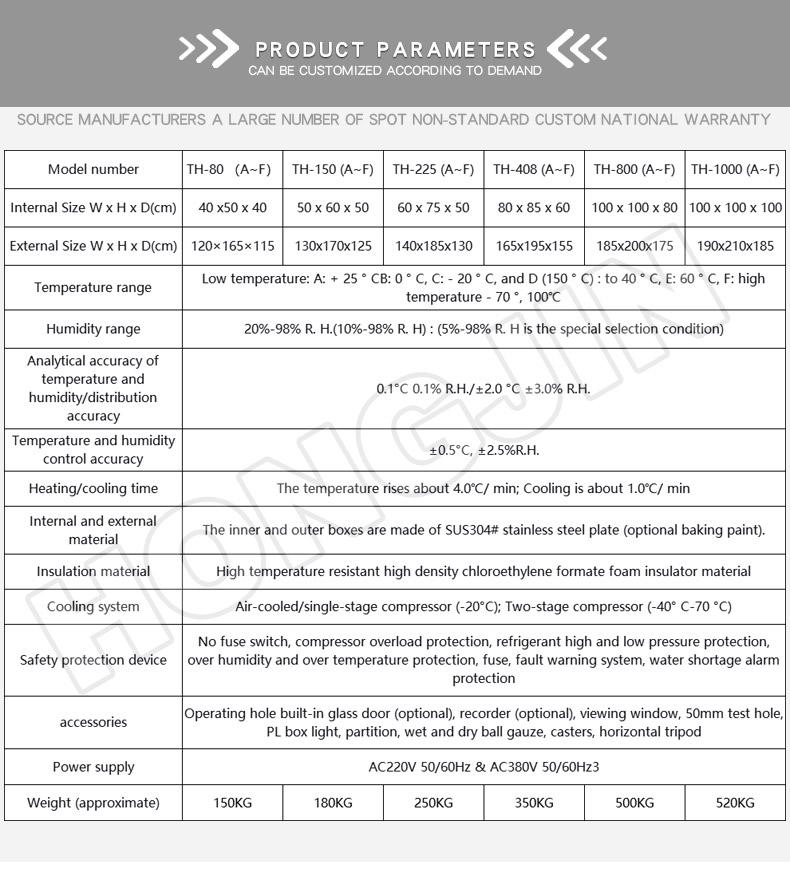

Specification
model | TH-80 (A~F) | TH-150 (A~F) | TH-225 (A~F) | TH-408 (A~F) | TH-800 (A~F) | TH-1000 (A~F) | |||||
Internal Dimensions W x H x D (cm) | 40×50×40 | 50×60×50 | 60×75×50 | 80×85×60 | 100×100×80 | 100×100×100 | |||||
External Dimensions W x H x D (cm) | 120×165×115 | 130x170x125 | 140x185x130 | 165x195x155 | 185x200x175 | 190x210x185 | |||||
temperature range | Low temperature: A: +25°C, CB: 0°C, C: -20°C, D (150°C): up to 40°C, E: 60°C, F: high temperature -70°C, 100°C | ||||||||||
humidity range | 20%-98% RH(10%-98% RH) : (5%-98% RH is a special selection condition) | ||||||||||
Temperature and humidity analysis accuracy/distribution accuracy | 0.1℃ 0.1% relative humidity/±2.0℃ ±3.0% relative humidity | ||||||||||
Temperature and humidity control accuracy | ±0.5℃, ±2.5%RH | ||||||||||
heating/cooling time | Heating up about 4.0°C/min; cooling down about 1.0°C/min | ||||||||||
interior and exterior materials | The inner and outer cabinets are made of SUS304# stainless steel plate (baking paint is optional). | ||||||||||
Insulation Materials | High temperature resistant high density vinyl chloride formate foam insulator material | ||||||||||
cooling system | Air-cooled/single-stage compressor (-20°C); two-stage compressor (-40°C-70°C) | ||||||||||
safety device | No fuse switch, compressor overload protection, refrigerant high and low pressure protection, over-humidity and over-temperature protection, fuse, fault warning system, water shortage alarm protection | ||||||||||
Accessories | Operating hole built-in glass door (optional), recorder (optional), observation window, 50mm test hole, PL box light, partition, dry and wet ball gauze, casters, horizontal tripod | ||||||||||
power supply | AC220V 50/60Hz & AC380V 50/60Hz3 | ||||||||||
weight (approximately) | 150 kg | 180 kg | 250 kg | 350 kg | 500 kg | 520 kg | |||||

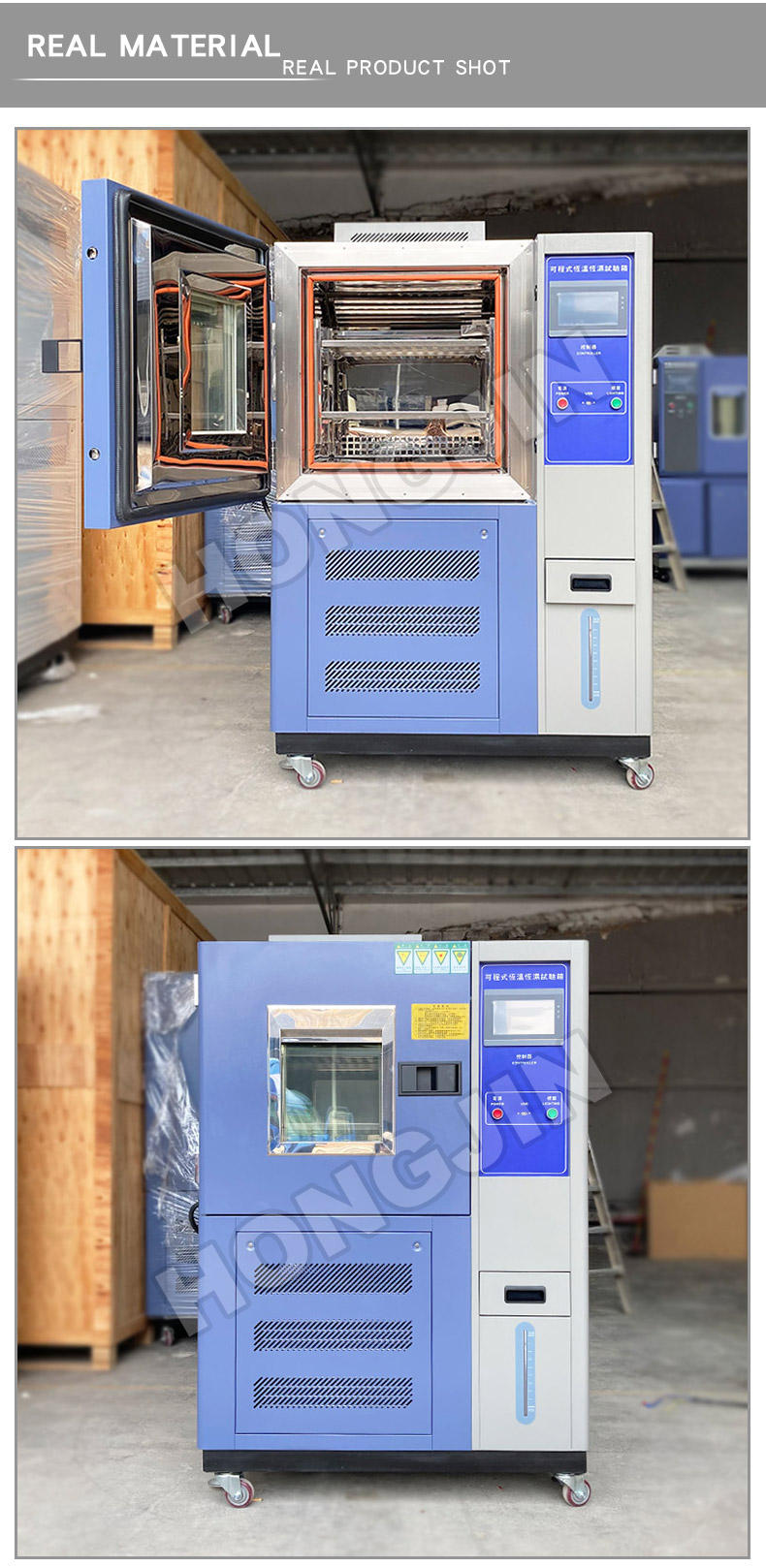

product display
