Quick 6.6KW OBC 90-265V AC CAN BUS Enable 72V 99V 132V 198V 440v Charger Electric Vehicle

  • $728.00 /piece
  • 1 piece
  • Benbv Trade Co., Ltd.
  • Hunan, China
  • Ms Dodolook W
PRODUCT DETAIL
Intellectual Property Standards:IP66 waterproofbrand:BENBV
Packaging Preview:Core Technology:Pulse Tech / Band Balance
model:Q2 6.6KWcool down:Air-cooled (fan)
Input voltage range:90-265VACSupply capacity:100 pieces per week
product name:90-265V AC CAN BUS Enable 72V 99V 132V 198V 440v Charger Electric VehicleOutput Power:1.8KW
port:ShenzhenCharger Type:Onboard/Portable
communicate:With Can Bus /Enableplace of origin; place of origin:Sichuan, China
payment terms:Western Union, D/P, D/A, T/T, Paypaltype of battery:LTO Lipo LiFepo4 Lithium Ion Lead Acid agm LTO
efficiency:93%Packaging Details:Standard export wooden box or carton. or according to customer requirements

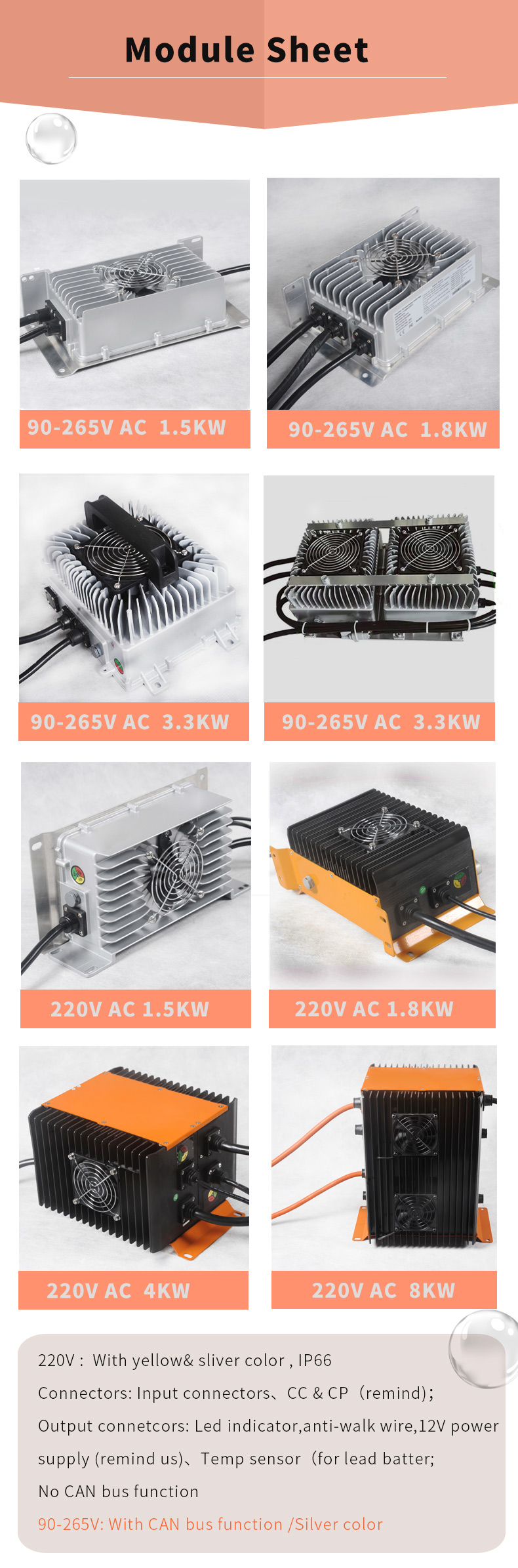

Model Name
Output voltage (V)
Output current (A)
Output current (A)
Dimensions (mm)
Weight (kg)


Q2-1.5kw
twenty four
29.2
30


280*145*80


4.3
36
43.8
25
48
54.75
25
60/72
84
15

Q2-1.8kw
48
66
5-25

282*168*90

5
60
82.5
5-30
72
99
5-25




Q2-3.3kw
48
66
5-45




294*210*111




7
72
99
5-40
84
116
5-40
96
132
5-32
144
198
5-32
312
440
5-10




Q2-6.6kw
48
66
5-90



294*210*222
420*294*111


9
13
72
99
5-80
84
116
5-80
96
132
5-64
144
198
5-46
312
440
5-20
Why choose us
* Factory direct pricing.
* Professional R&D team.
*Providing professional battery solutions since 1999.
* Provide 24 hours service.
* Regular products are delivered within 4-7 business days.
*UL CE CRI standard.
* OEM order custom service.
feature
1. The new fast smart charger reduces the charging time by 30% compared to conventional chargers;

2. The use of composite superposition combined pulse technology can eliminate battery vulcanization, concentration polarization, chemical polarization, temperature rise and other phenomena;

3. The temperature of the charger is automatically compensated to prevent the battery from being overcharged in summer and undercharged in winter, avoiding the deformation of the battery caused by overcharging, and inhibiting the shortening of battery life due to undercharging.

4. The charger will automatically and uniformly charge each group of batteries in the battery pack to prevent the battery pack from being unbalanced and prolong the overall service life of the battery pack.

5. Overheat protection: When the internal temperature of the charger exceeds 70C, the current limit will be automatically performed. When the temperature exceeds 80°C, the charger will automatically cut off the current to avoid damage to the charger due to overheating.

6. Reverse connection protection: When the battery is reversely connected, the charger will automatically disconnect the internal circuit from the battery to avoid damage to the charger and battery.

7. Short circuit protection When a short circuit accident occurs, the charger will automatically turn off the power supply.
benefit
The fully enclosed frequency conversion pulse charger adopts frequency conversion method. During the charging process, as the battery voltage increases, the charging frequency is automatically adjusted and changed; it has a pulse function, which reduces the damage to the battery, prolongs the battery life, and improves the battery chemical reaction.
Application areas:
* Lithium battery companies, electric vehicle manufacturers
* Cleaning carts, golf carts
* Logistics trucks, forklifts
* Sightseeing cars, electric boats
* Battery energy storage equipment, UPS room equipment
* Customized special non-standard charger
