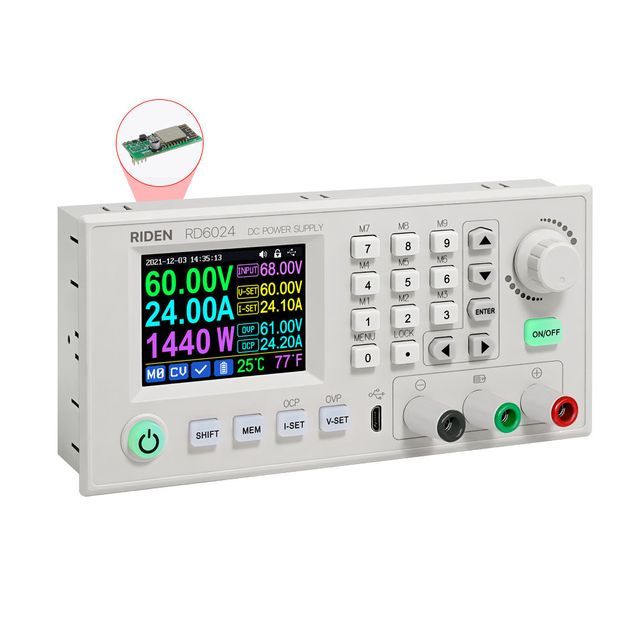

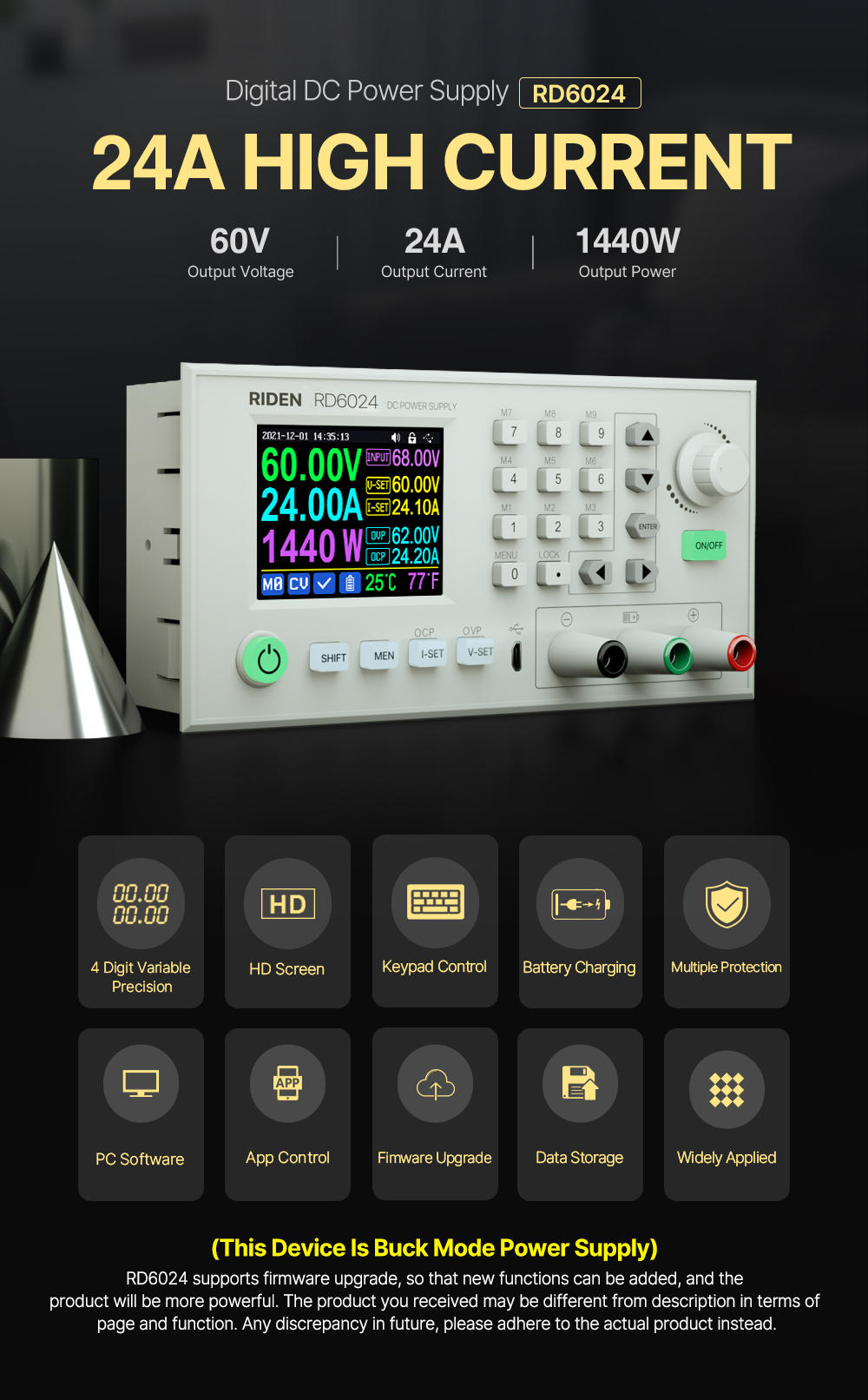

RD RD6024W 60V 24A USB WiFi DC Voltage Current LED Adjustable Power Module Step-Down DC DC Converter Unit
- $80.50 / 1 - 9 sets
$79.00 / 10 - 99 sets
$77.50 / 100 - 499 sets
$76.00 / >=500 sets - 1 set
- Hangzhou Ruideng Technology Co., Ltd.
- Zhejiang, China
- Mr
PRODUCT DETAIL

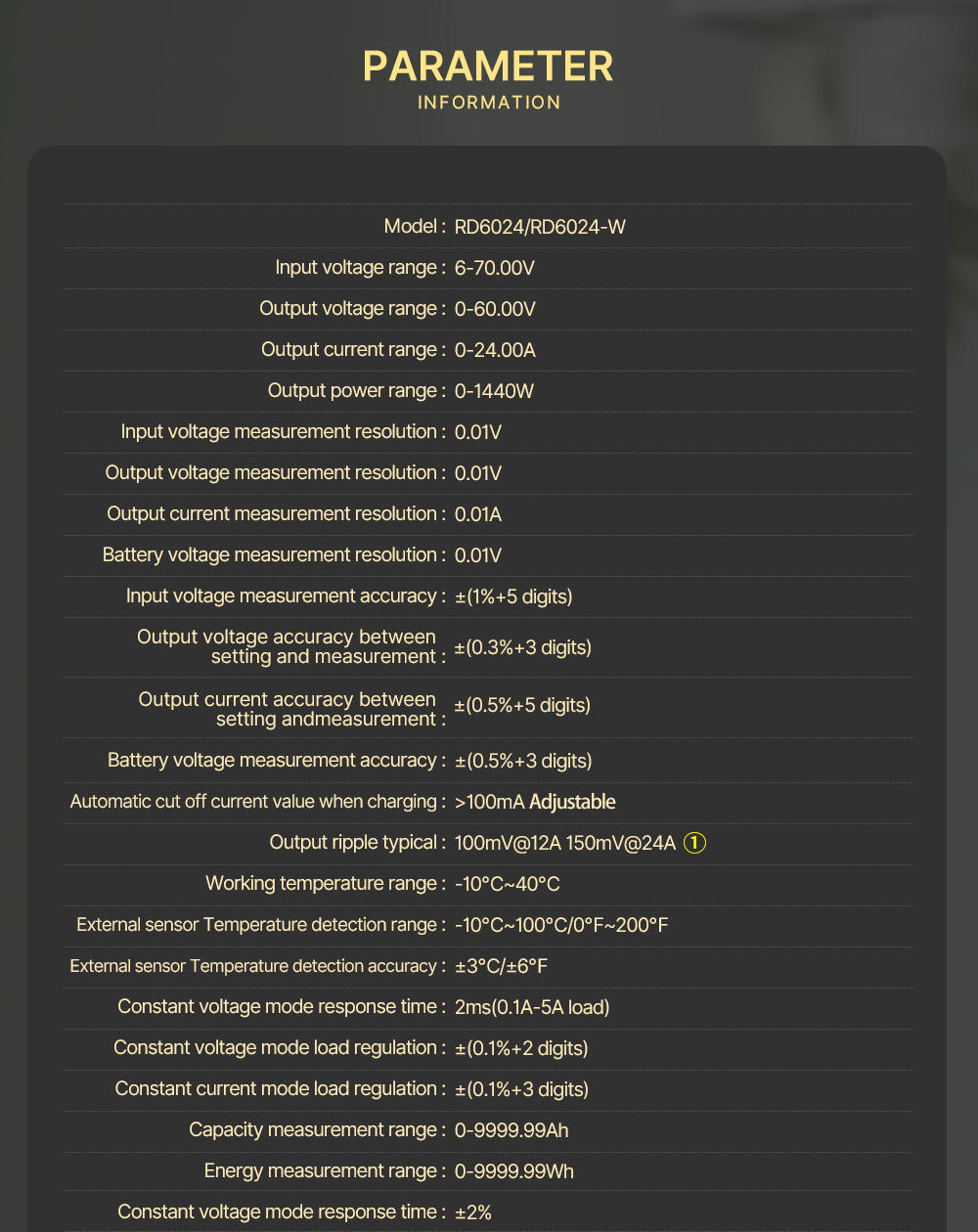

| Input voltage: | 6-70V DC | payment terms: | L/C, D/P, D/A, T/T |
| Output current resolution: | 0.01A | Output current: | 0-24A |
| model: | RD6024W-2 | Supply capacity: | 30 pieces per day |
| Output Voltage Accuracy: | ±(0.3%+3 digits) | brand: | research and development |

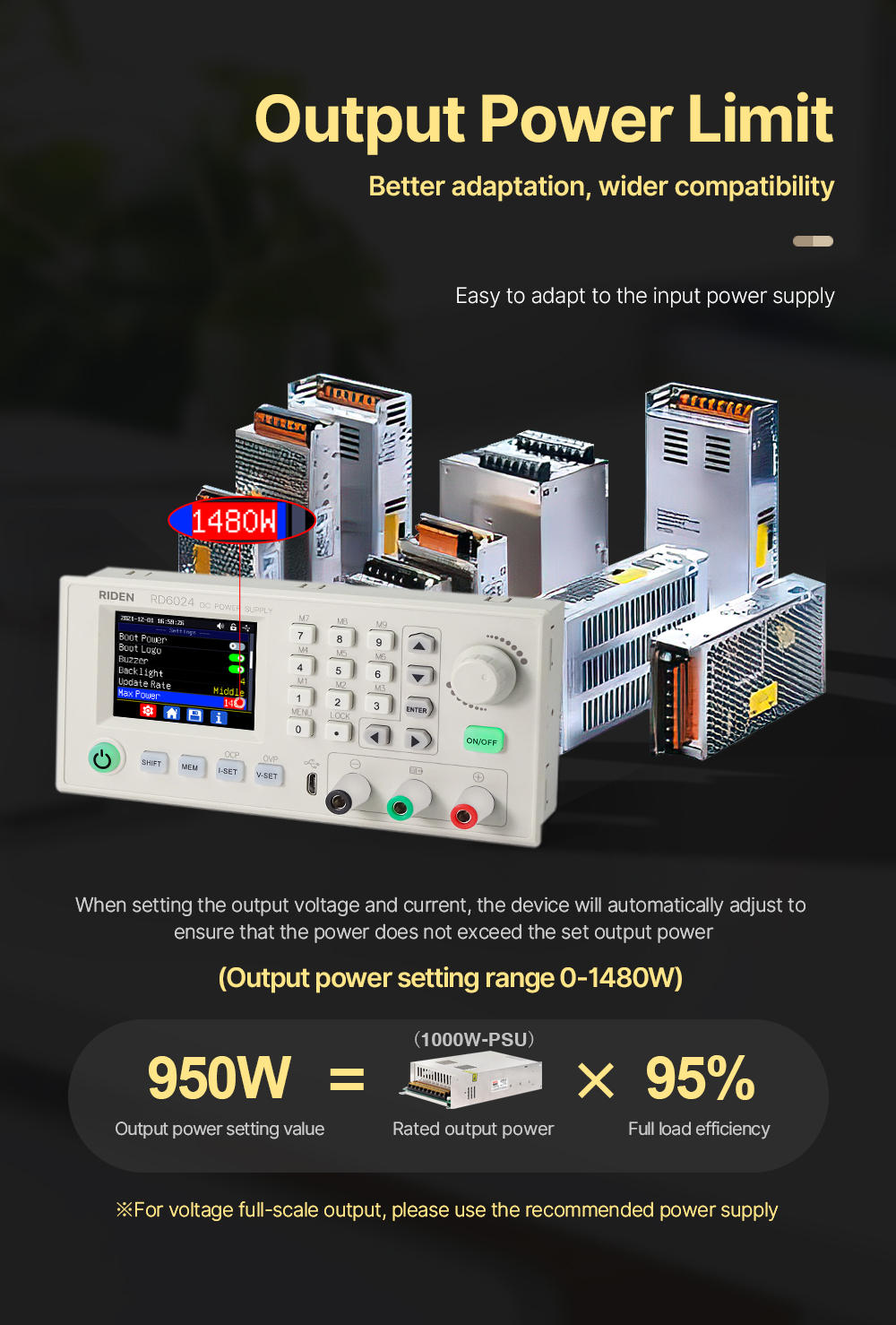

| Output voltage resolution: | 0.01V | Output Power: | 0-1440W |

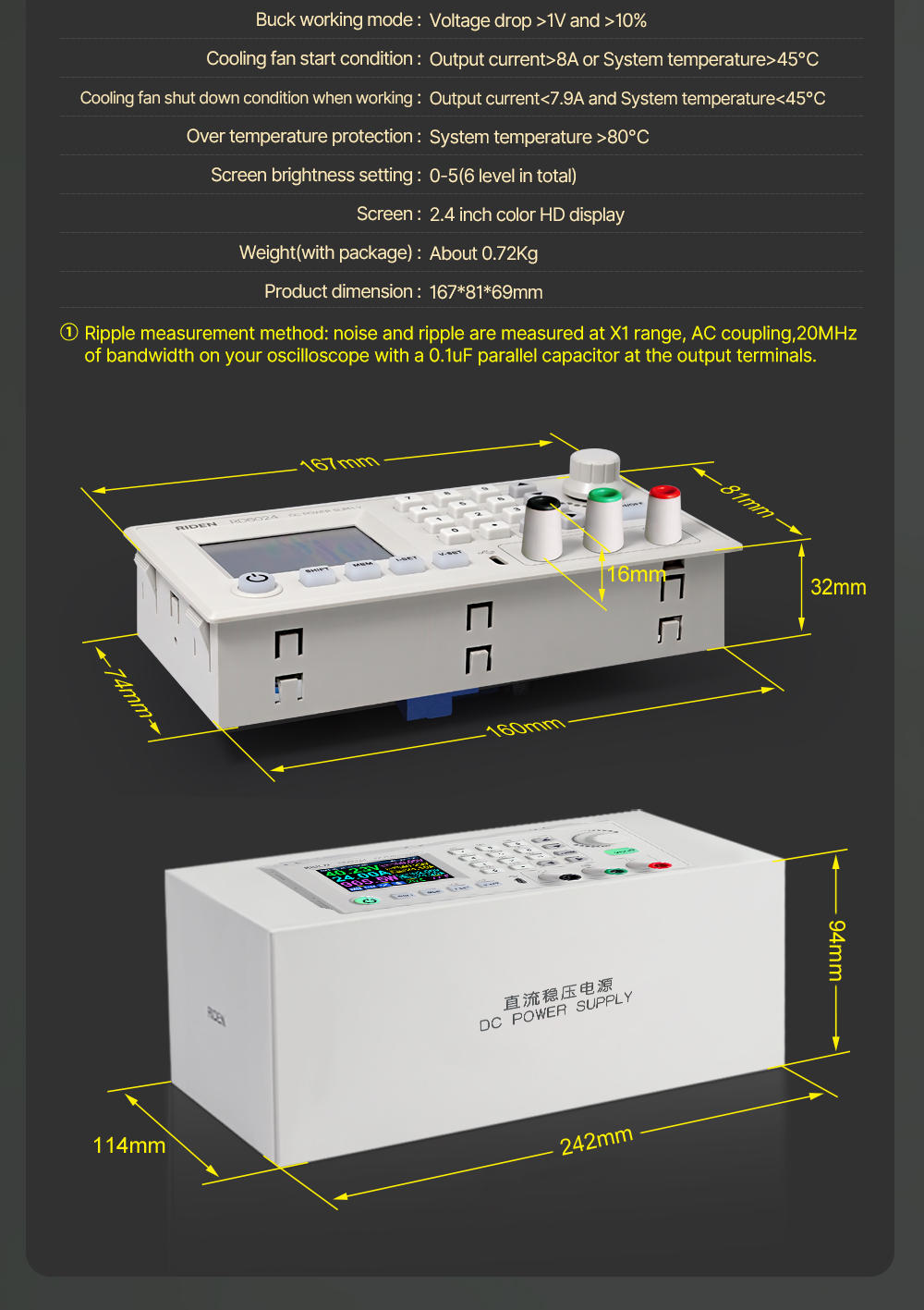

| Product Size: | 167*81*69mm | product weight: | About 0.72kg (including packaging) |
| The output voltage: | 0-60V DC | Packaging Details: | Protect product with foam and multiple layers of cardboard. |
| Output frequency: | No | Output current accuracy: | ±(0.5%+5 digits) |
| Origin: | Zhejiang, China |
Product Description
RD6024(W) operating instructions, host computer software instructions, APP instructions, APP and host computer software download links:
https://drive.google.com/drive/folders/1jwAnxKiQZKkxMWpQnv4rrPw2KQk9uY-z?usp=sharing
notes:

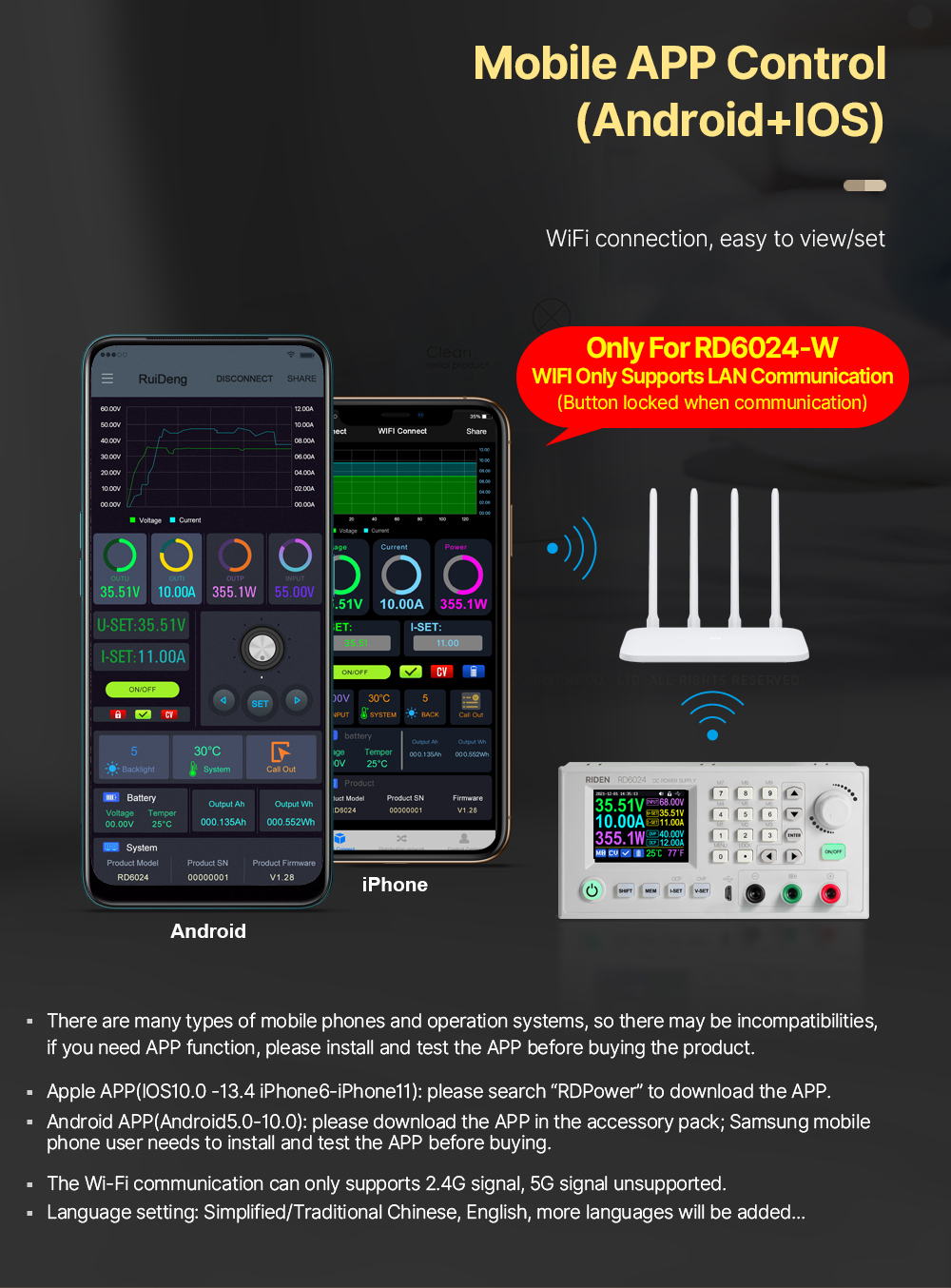

1. RD6024 series has two versions: RD6024 and RD6024-W, RD6024-W has WIFI board, RD6024 does not. RD6024-W can use WIFI board
Connect APP, also can use USB micro cable to connect PC software. RD6018 does not have a WIFI board, and only supports connecting to PC software through a USB micro cable, not APP. The software for connecting the wifi board to the PC is currently not supported.
Note: The WiFi connection is a test function. Due to the poor compatibility of some computers, if you cannot connect to the PC software through WiFi, please ignore this function. For this function, we provide no warranty and technical support, we will decide whetherKeep this functionality based on customer feedback.

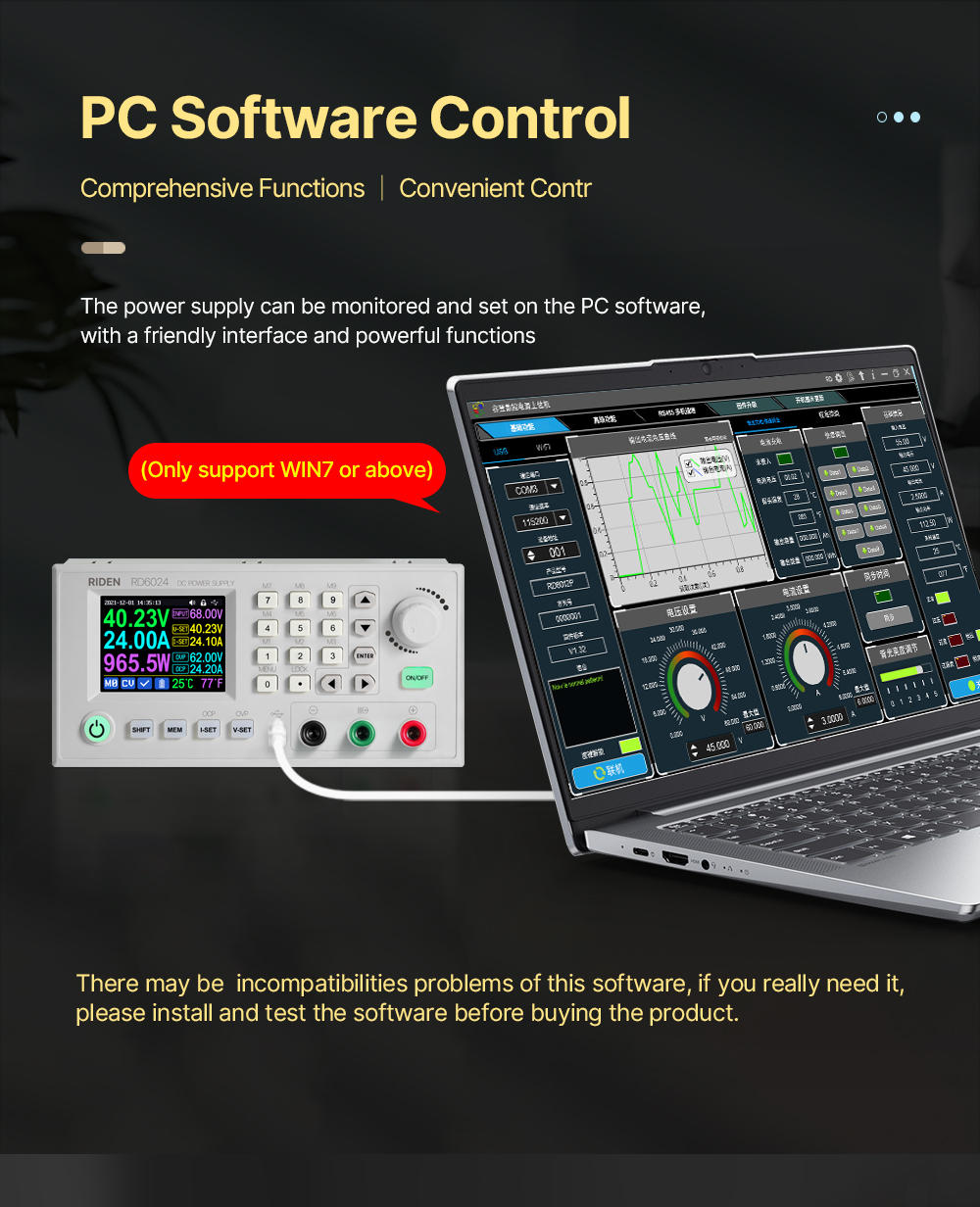

2. The PC-side software currently only supports win 7 and above. For APP, only android 5.0 and above are supported. For APP and PC
Software, because there may be incompatibility issues, please download it before purchasing, if you can download and install it, you can place an order, otherwise stop purchasing. If you do not test the PC software and APP functions before purchasing and find that the product works fine except for the PC software or APP, we refuse to refund
3.There is a spare fuse in the RD6024/RD6024W box. If you burn the fuse, you can insert the fuse into the socket next to the burnt fuse for temporary use. It only supports 10A, so it is best to remove the damaged fuse and solder the same position. Good fuse for full output.
4.If the RD6024W can connect to the hotspot shared by the mobile phone but cannot connect to the router, you need to turn off the client isolation/AP isolation and WMM functions.
4. Related products:
There are somemodel recommendation
5. Product description:

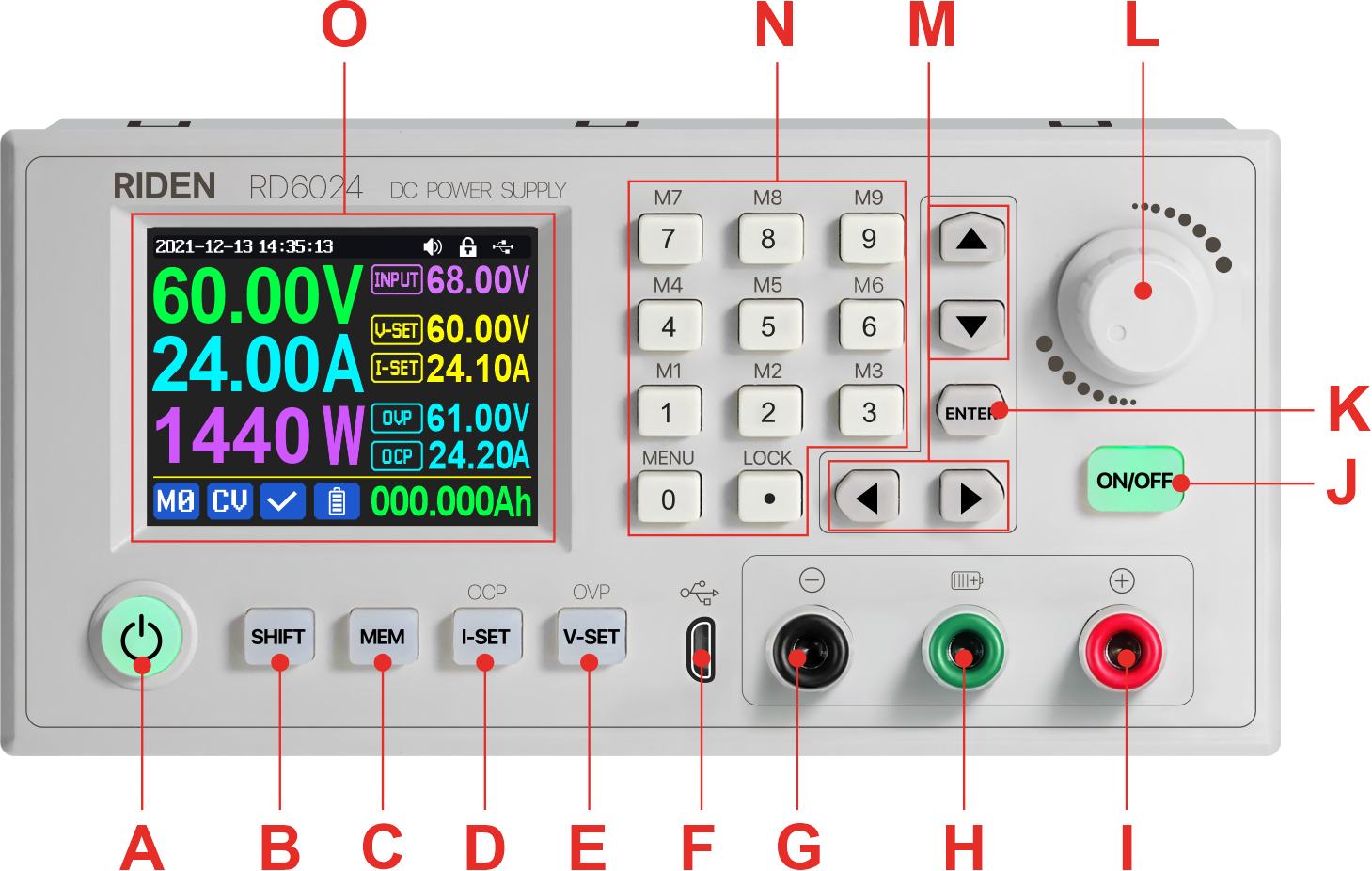

Answer: Power button | B: SHIFT second function button |
C: Quick storage button | D: current/overcurrent protection setting |
E: voltage/overvoltage protection setting | F: Micro-USB port |
G: power output negative terminal / battery charge negative terminal | H: Positive terminal for battery charging (Dedicated terminal for battery charging) |
I: Power output positive terminal | J: output switch |
K: Enter/Confirm button | L: encoder potentiometer / cancel button |
M: Arrow key | N: keyboard |
O: screen |

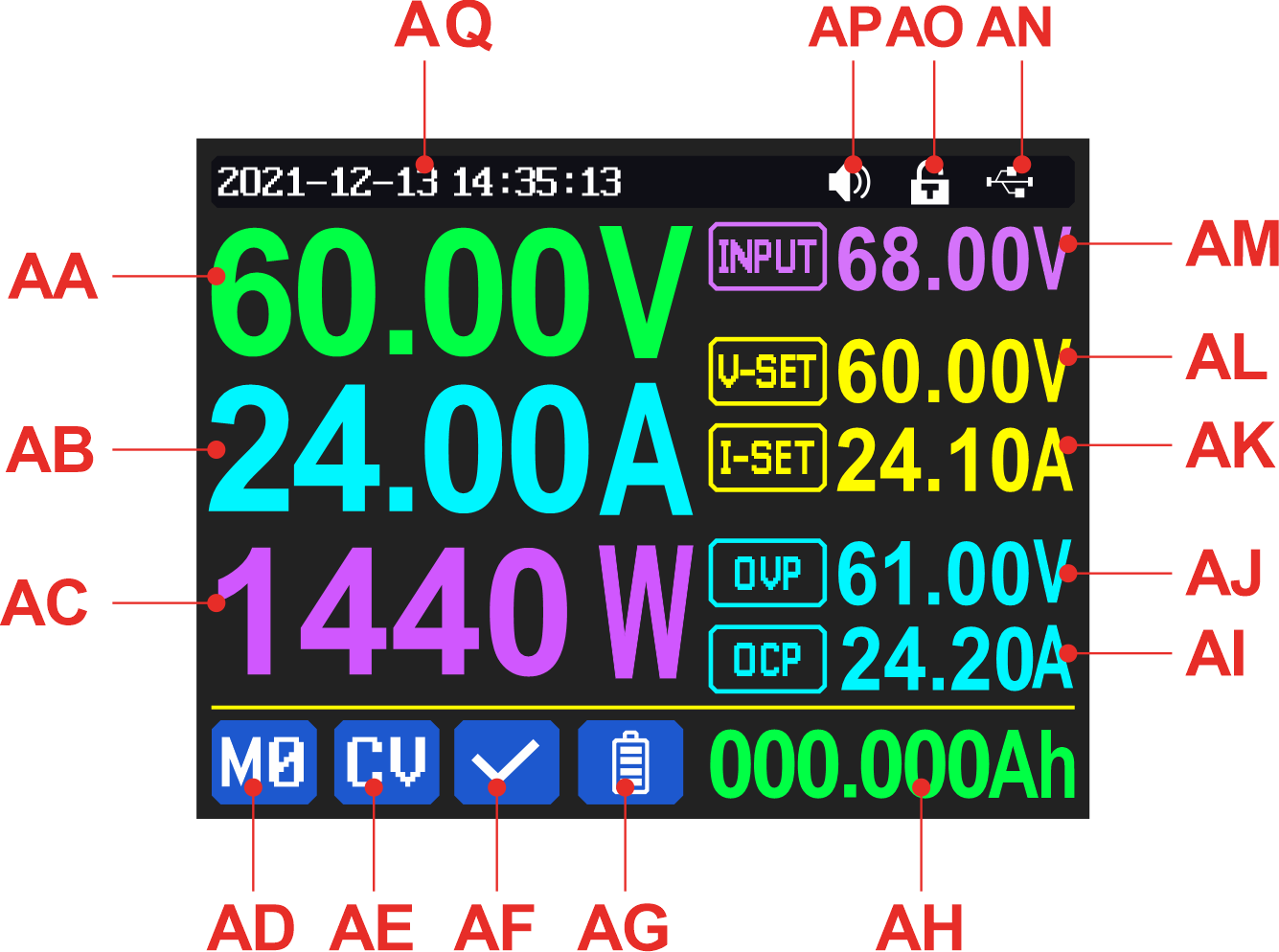

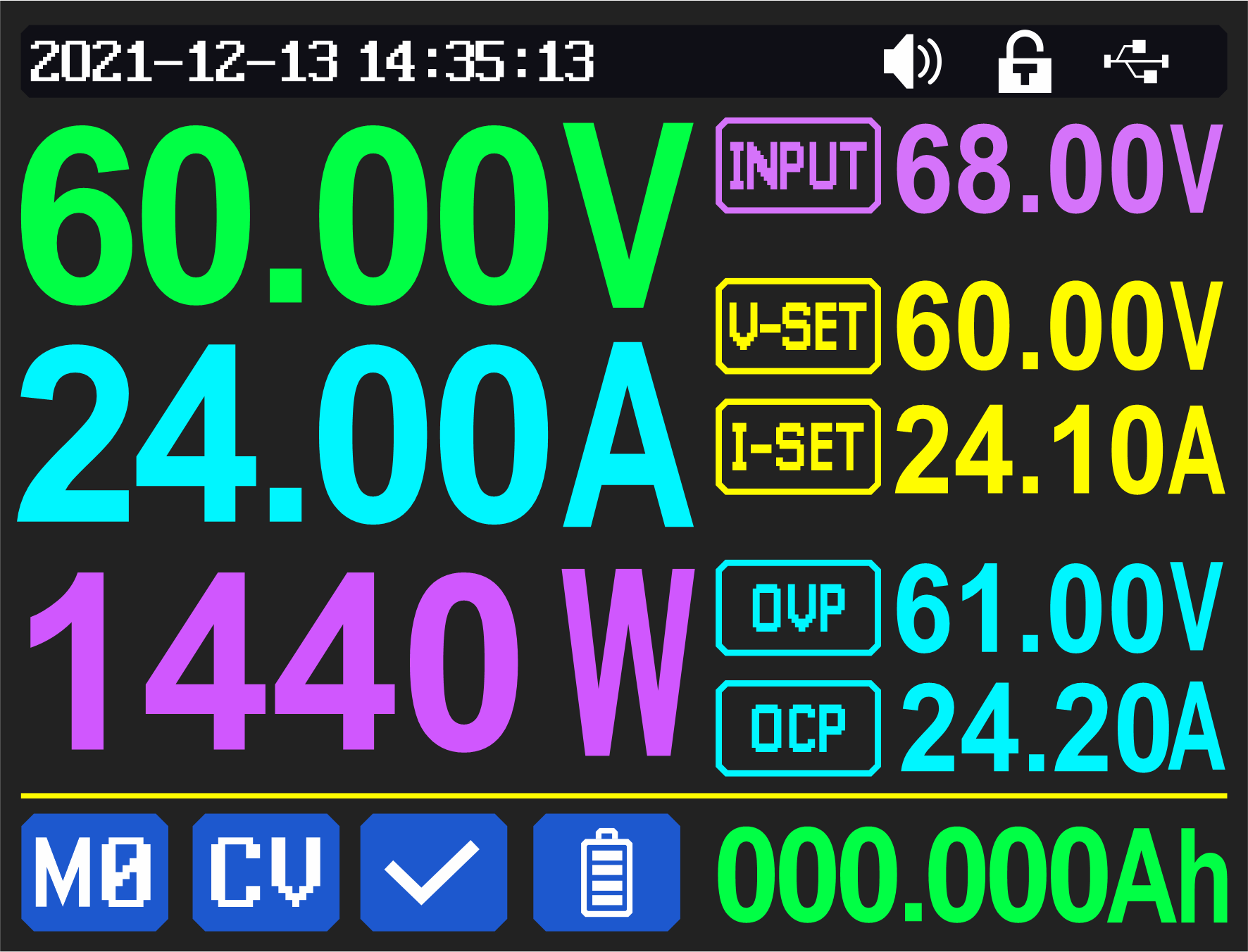

AA: Actual output voltage value | AB: Actual output current value |
AC: output power | AD: current data set |
AE: Constant voltage and constant current state | AF: protection status indication |
AG: Battery charge indicator | AH: battery related information display area |
AI: overcurrent protection value | AJ: overvoltage protection value |
AK: output current preset value | AL: output voltage preset value |
AM: input voltage | AN: communication interface |
AO: button lock state | AP: push button |
AQ: datetime |
