RFID Access Control System Kit 125KHz Fingerprint Biometric Electromagnetic Electronic Lock DC12V Power Supply

Price:$20.00 /set
Min. Order:1 set
Supplier:Shenzhen Huiyuxin Technology Co., Ltd
Region:Guangdong, China
Contact:Ms Jenny Liu

PRODUCT DETAIL

brand:	high speed rail	port:	Shenzhen or Hong Kong
Wiring connection:	Electric lock, exit button, doorbell	Card capacity:	1000
Supply capacity:	1000000000 pieces per month	type:	keyboard
usage:	Office, Home, School, Factory	Customization support:	OEM, ODM, customized logo
model:	HMT-FS66SK	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
interview method:	RFID card, password	Name:	Fingerprint Access Control System Kit
Packaging Details:	standard package	Origin:	Guangdong, China
Card type:	Electromagnetic waves	special function:	Waterproof/weatherproof
Operating Voltage:	DC 12	Fingerprint capacity:	1000
size:	1556528mm

Product Description

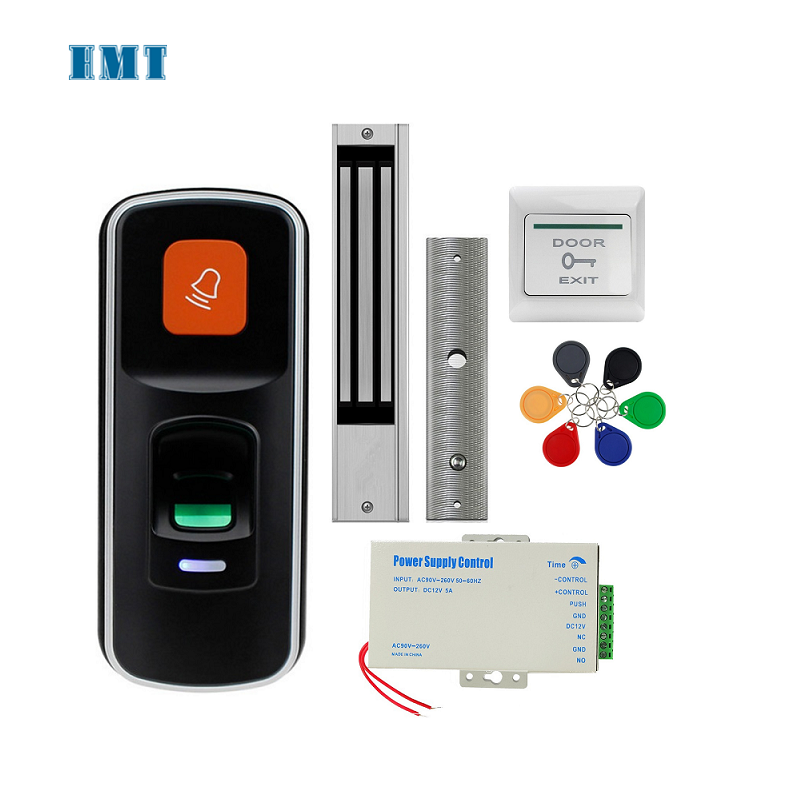

RFID Access Control System Kit 125KHz Fingerprint Biometric Electromagnetic Electronic Lock DC12V Power Supply

feature:1. Read 125KHz EM / 13.56MHz Mifare (factory default: EM 125KHz)

2. The fingerprint all-in-one machine has no keyboard 3. It includes a card reader mode. 4. Support different access control methods: fingerprint + swipe card or multi-card swipe card to enter 5. Support the owner to add and delete cards 6. User capacity: 1000 users

7. Fingerprint capacity: 1000 users

Specification

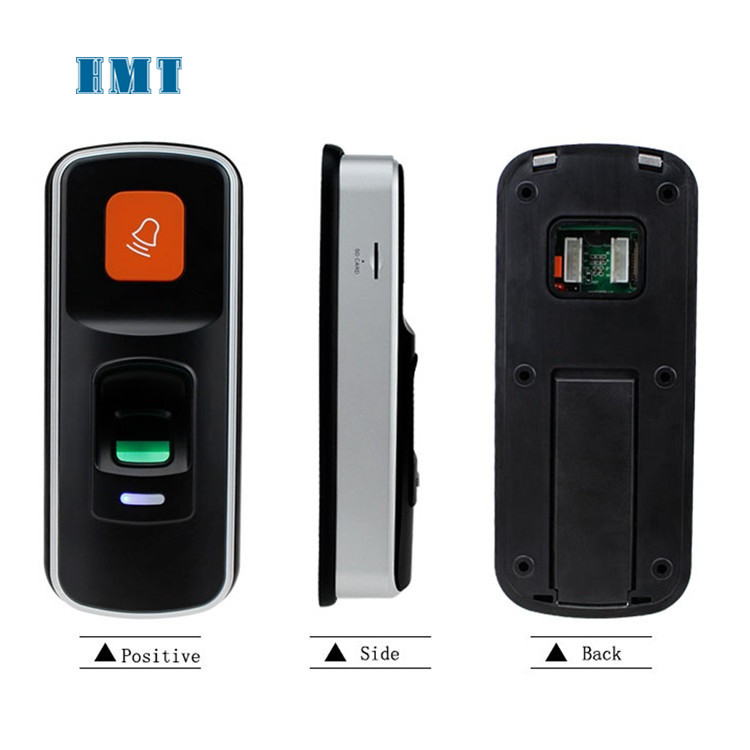

Model: HMT-FS66 Fingerprint Capacity: 1,000pcs Card Capacity: 1,000pcs Working Frequency: 125Khz Identification Method: Fingerprint or Card Doorbell: Yes Wiegand Interface: Wiegand26 Power Supply Voltage: 12VDC Size: 155*65*28mm

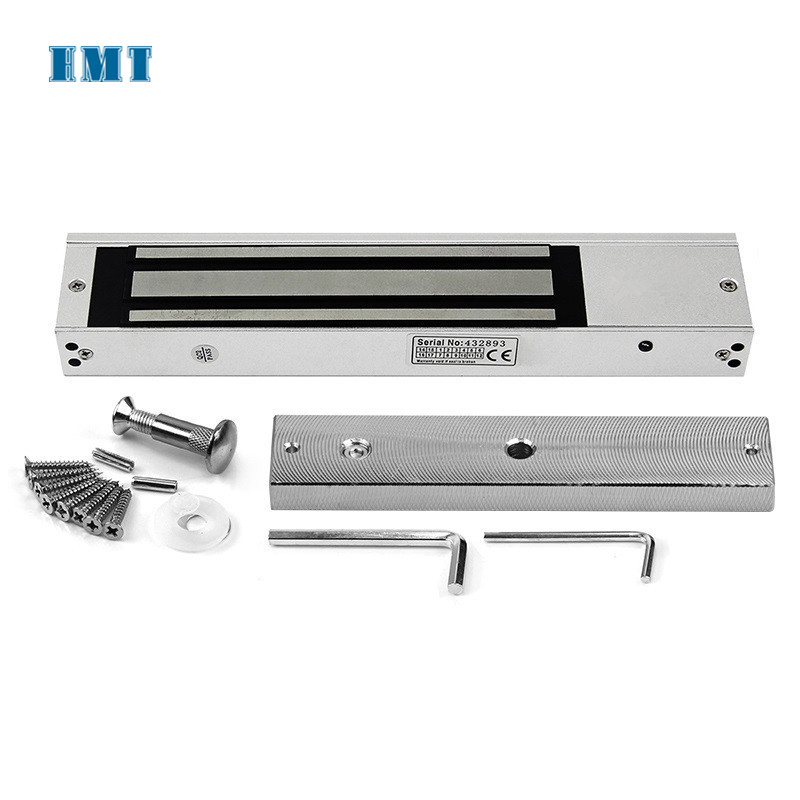

Model Number: HMT-M280 Material: Zinc Alloy Product Dimensions: 250Lx46Wx25H(mm) Power Supply Voltage: 12V, or 24V Optional Holding Force: 600lbs Features: LED Indication (Red indicates door is not unlocked, door is locked with no light) Suitable for: Wooden doors , Glass door, metal door, fire door Surface temperature: ≤+20℃ Applicable temperature: 0~+55℃ Working humidity: 0~90% (non-condensing)

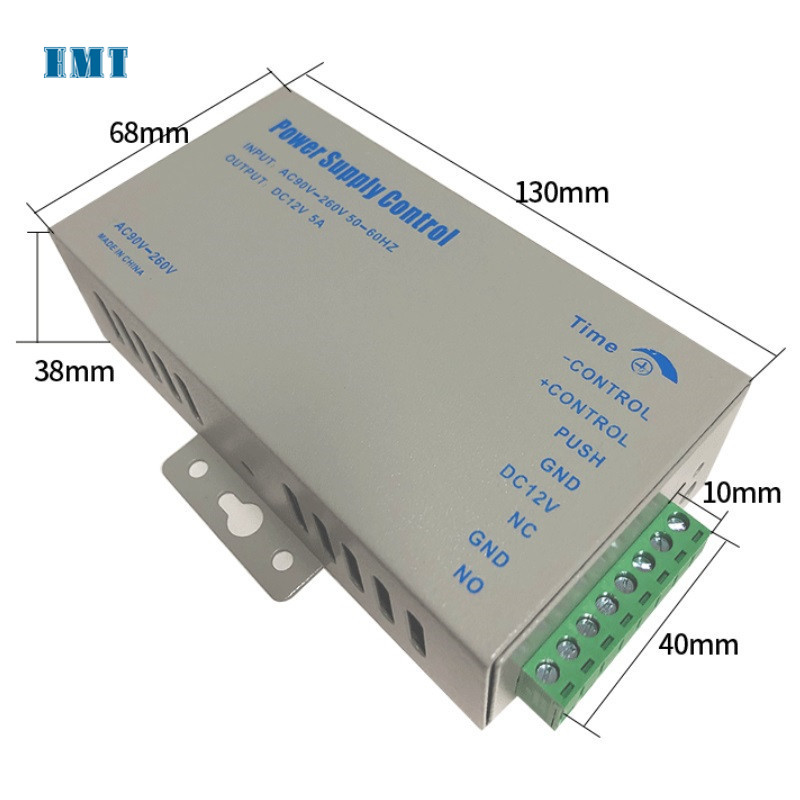

Model: HMT-PS5S Size: 130*68*38mm Ripple Voltage: Up≤50mV Input Voltage: AC 220V Input Frequency: 50Hz Output Voltage: DC12V Output Current: 5A

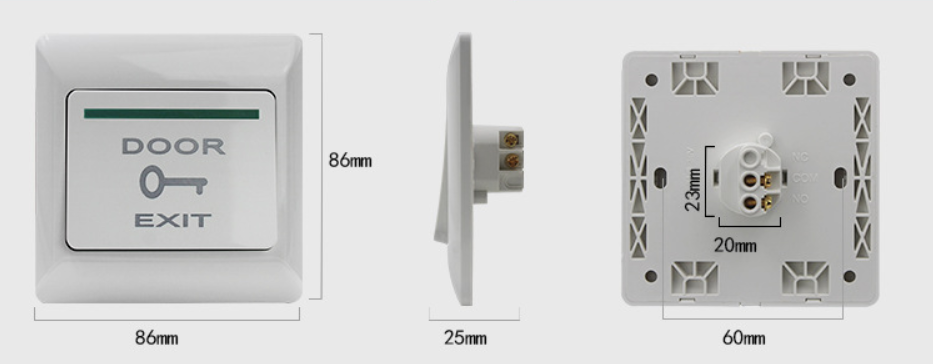

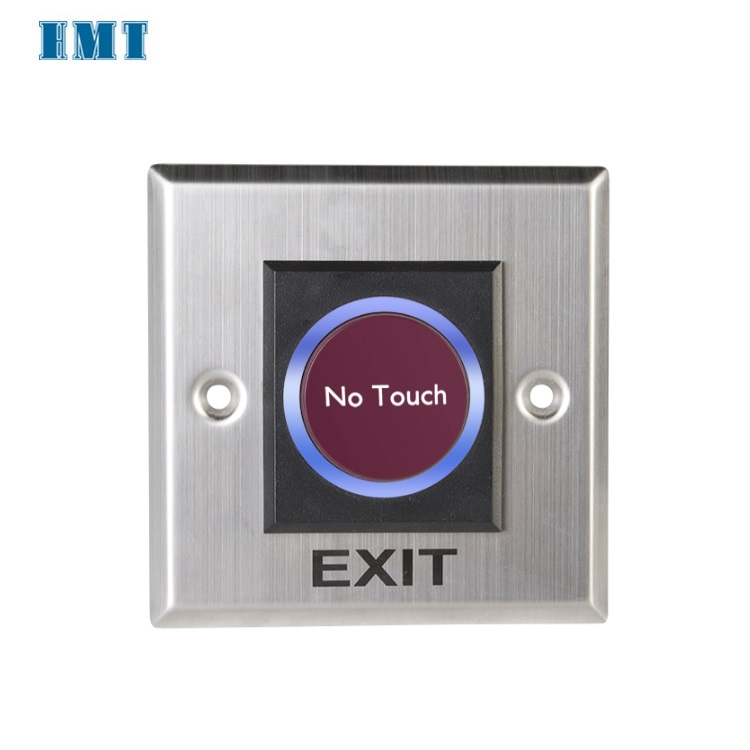

Model: HMT-KP01 Product Name: Touch Screen LED Exit Button Switch Material: Fireproof PVC Material Panel Product Size: 86Lx86Wx20H(mm) Power Supply Voltage: 12VDC Contact Output: NO/NC/COM/LED Maximum Current: 3A / 36DC Endurance Test: 1000000 times test installation: hollow door frame

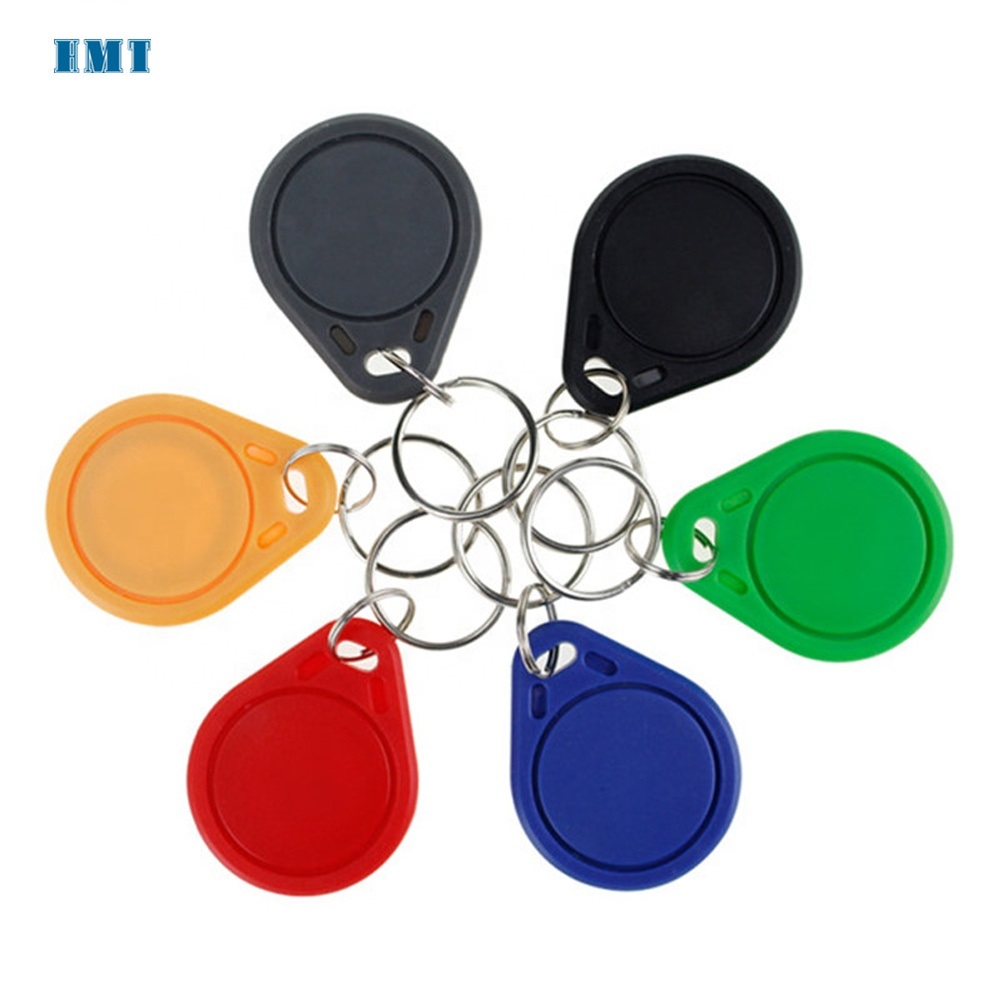

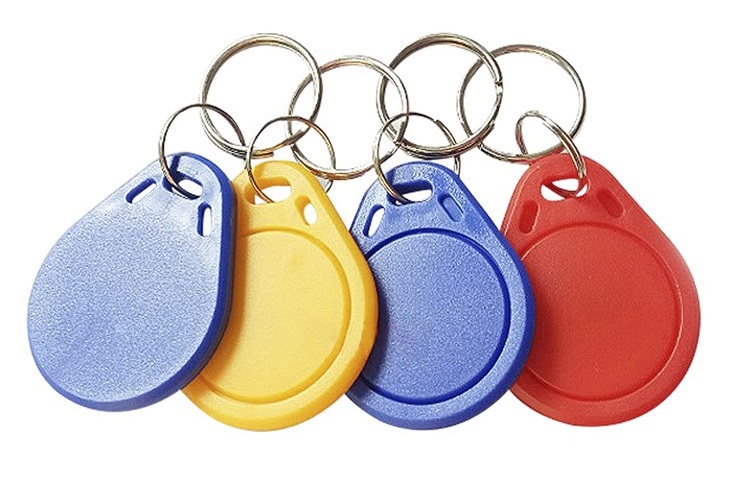

Model Number: HMT-K3E Color: Blue, Yellow, Red, Orange, Black, Gray, White or Customized Function: Built-in RFID Chip, Read/Write Memory: 64bit or depends on different chips Operating Frequency: 125khz, 13.56MHz or According to Chip Chip: TK4100 or other Resistance: IP67 Certificate: ISO, ROHS, FCC, CE Data Transmission Speed: 106 Kboud Reading Distance: 1-30mm Reading/Writing Time: 1-3(ms) Reading Times: > 100 000 Data retention: >10 years Optional technology: 1) Screen printed logo/image/graphic...2) Laser engraved serial number3) Chip coding

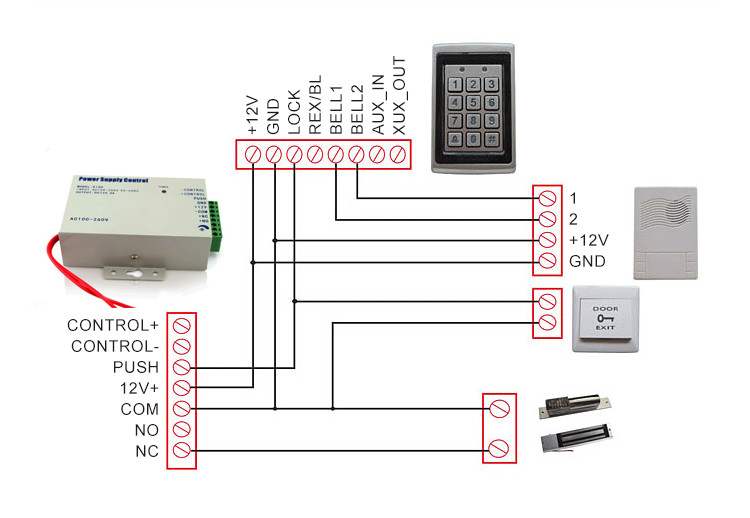

wiring diagram
