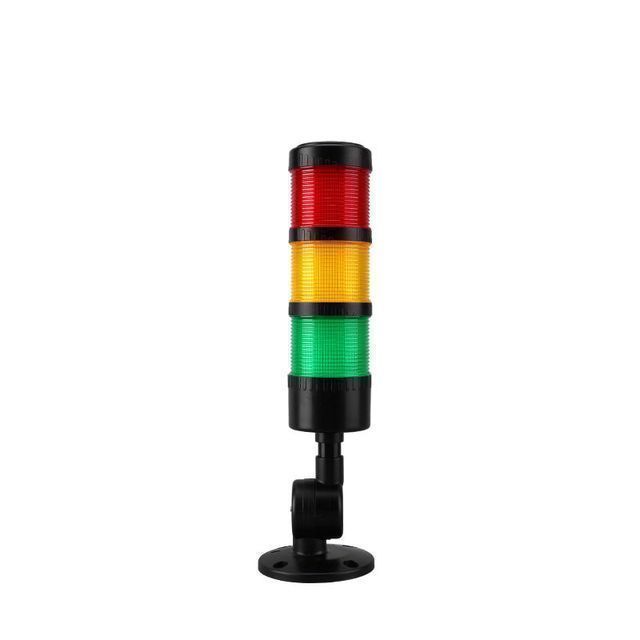

RS485/RS232 interface three-color led multifunctional signal tower light
- $50.00 / >=2 pieces
- 2 pieces
- Otennlux Lighting Technology Co., Ltd.
- Guangdong, China
- Mr Peter Tan
| Base type: | 2G11 | application: | CNC machine tool |
| Supported dimmers: | No | Luminous color: | RGB |
| Single package size: | 48X11X10 cm | type: | Device indicator light |
| Lamp luminous flux (lm): | 400 | light source: | to lead |
| Line connection method: | NPN | color: | RGB |
| Origin: | Guangdong, China | Sales unit: | single product |
| Color Rendering Index (Radium): | 85 | Lamp Luminous Efficiency (lm/w): | 100 |
| Light body material: | personal computer | Color temperature (CCT): | other |
| Protection class: | IP20 | Gross weight per piece: | 0.490 kg |
| Beam Angle(°): | 360 | Material: | Plastic lamp body + PC diffuser |
| Warranty: | 3 years | Color layer: | 3 floors |
| brand: | Otennlux | Working hours (hours): | 50000 |
| Lighting Solutions Services: | Lighting and circuit design, CNC machine tool lighting | Item Type: | RS485/RS232 connector signal tower light |
| Warranty (year): | 3 years | Function: | flashing |
| Install: | Folding | Dimensions (mm): | 64x90x329 |
| Lifespan (hours): | 50000 | Input voltage (V): | DC 24V |
| Color rendering index (Ra): | 80 |
RS485/RS232 interface three-color led multifunctional signal tower light
| Name | RS485 LED Signal Tower Light | Rated voltage | 24V DC |
| beans | 360° | LED chip | SMD 3528 |
| color | red/green/yellow | life | 50000H |
| ambient temperature | -25℃~+55℃ | fixed mode | screw fixed |
| housing | Nylon 66 | Rotation angle | 180° |
| driver | don't drive | Light-transmitting material | personal computer |
| Warranty | 3 years | connecting | NPN |
* High-efficiency LED multi-function signal lights, greatly improving the long-distance visual performance
*Double-mirror structure strengthens the transmission of LED light and produces a vivid color recognition effect.
Communication format:
Support asynchronous serial port communication mode, and accept commands sent by the host computer through the serial port.
Communication standard (baud rate): 9600 bps
Data bits: 8
stop bits: 1
Check digit: none
Flow Control: None
application:
All kinds of small automation equipment, packaging cleaning equipment, small processing machine tools. Medium-sized CNC machine tools, machining centers, precision testing equipment, small mechanical arms, conveyor belts, heavy machinery, etc. need eye-catching alarm indications
feature:
- Three years after the product is sold, the "Three Guarantees" will be implemented. During this period, any faults caused by manufacturing will be repaired, replaced or refunded;
- Technical personnel provide on-site service for the installation, commissioning and on-site technical service of major equipment to solve problems;
- Establish product quality files, conduct regular quality tracking, and solve problems in a timely manner;
- We actively cooperate with users to do a good job in the on-site operation and maintenance management of products, and can provide spare parts of our products for free at any time;
- Adhere to the principle of quality first and customer first, listen to the user's call at any time, and guarantee to reply within 24 hours after receiving the user's notice when door-to-door service is needed;
- In terms of regular inspection, our company regards the inspection system as one of the regular maintenance tasks, that is, the company organizes an inspection of the use of work lights every six months to continuously improve product quality and service.
