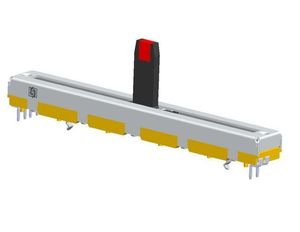

SAXX05-NJAOA-HA1 potentiometer
- $0.20 / >=1000 pieces
- 1000 pieces
- Soundwell Electronic Products Guangdong Co., Ltd.
- Guangdong, China
- Mr Angelo Wu
PRODUCT DETAIL
| Payment Terms: | T/T; | RoHS part: | 100%; |
| Place of Origin: | Guangdong, China; | Model Number: | SAXX05NJAOA-HA1; |
| Brand Name: | SOUNDWELL; | Supply Ability: | 10000 Pieces per Day; |
| Dimensions: | 20mm/30mm/45mm/60mm; | veriable dimension: | 20mm/30mm/45mm/60mm; |
| Port: | HONGKONG; | Packaging Detail: | PLASTIC BOX, CARTON; |
|
SLIDE POTENTIOMETERS SAXX05 SERIES SPECIFICATION |
|||||||||
| 1 | ELECTRICAL CHARACTERISTICS | ||||||||
| ITEMS | SPECIFICATION | ||||||||
| 1-1 | Total Resistance And Tolerance | Ω±20% | |||||||
| 1-2 | Resistance Taper | Taper | |||||||
| 1-3 | Power Rating | Taper 0.1W | |||||||
| 1-4 | Power Voltage | B Taper DC 500V | |||||||
| 1-5 | Residual Resistance | R12: 20 Ω; R23: 40 Ω | |||||||
| 1-6 | Rotational Noise | 47mV Less than | |||||||
| 1-7 | Gang Error (Dual Unit) | ≤± 3 dB,- 0 dB~ 3 dB. | |||||||
| 1-8 | Insulation Resistance | More then 100MΩ at DC 250V 1 Minute | |||||||
| 1-9 | Withstand Voltage | 1minute at AC 300V | |||||||
| 1-10 | Working Temperature | -10oC~70oC | |||||||
| 1-11 | Storage Temperature | -25oC~35oC | |||||||
| 2 | MECHANICAL CHARACTERISTICS | ||||||||
| 2-1 | Total Travel Slide (±0.5mm) | 100mm | |||||||
| 2-2 | Sliding Torque | 10110gf.cm | |||||||
| 2-3 | Slide Stopper Strength | ≥5Kgf.cm | |||||||
| 2-4 | Lever Wobble | 1.6mm Max | |||||||
| 2-5 | Resistance to soldering heat | Wave soldering:Temperature 300oC±10oC,Time 3±1 seconds. | |||||||
| 2-6 | Rotational Life | 10,000 Cycles min | |||||||
