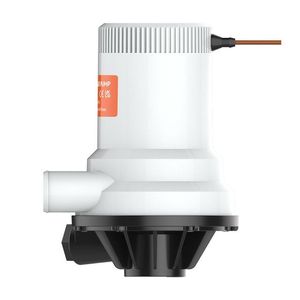

SEA FLO 01 Series 1600 GPH Dual Port Livewell Pump

PRODUCT DETAIL
usage:water, yacht, oceanflow:1501 - 2000 gal/hour
Certification:EU RoHS Directiveapplication:Marine, RV & Campervan, Industrial
Outlet diameter:1-1/8" and 1/2" NPTmodel:SFBP1-G1600-01A
engine:DC power supplyRated current:5-10A
Place of origin:Fujian Chinapayment terms:Western Union, wire transfer
flow:1600 gallons/hourPackaging details:1 piece/inner box; sturdy carton suitable for sea shipping
Supply capacity:1000 pieces per month non-automatic bilge pumpsport:Xiamen, China
brand:Khaidul



Model flow

Voltage

Biggest draw

head

Entry port egress port
SFBP1-G1600-01A 1600 gallons/hour 12V 8.4A 4.2m 1"NPT/31mm 1-1/8" and 1/2" NPT
SFBP2-G1600-01A 1600 gallons/hour 24V 4.2A 4.2m 1"NPT/31mm 1-1/8" and 1/2" NPT

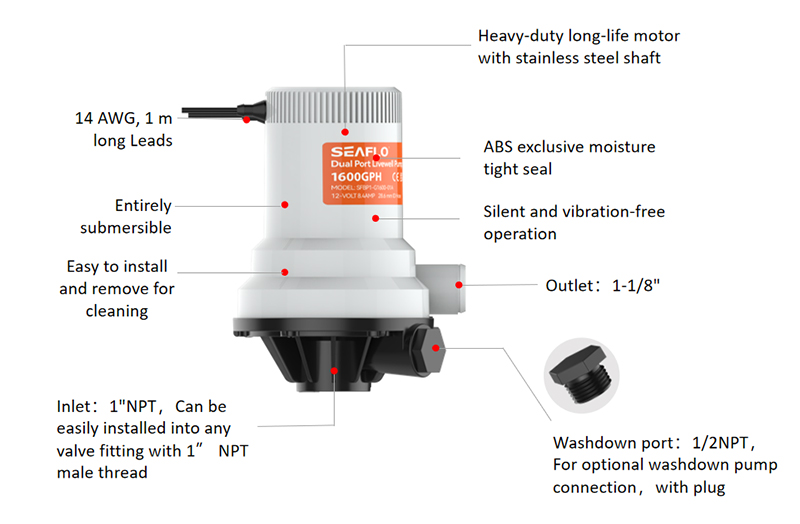

Features and advantages:

Pump and switch are separate products Compact, efficient, long life motor New mercury-free float switch

Sizes: 350, 500, 750, 1100, 1500, 2000, 3000, 3500 gph, 12V and 24V versions Easy-to-clean snap-lock filter base

Anti-air lock protection

Unique moisture seal

completely immersed in water

Marine Grade Blocking Wiring

Silent and vibration-free operation

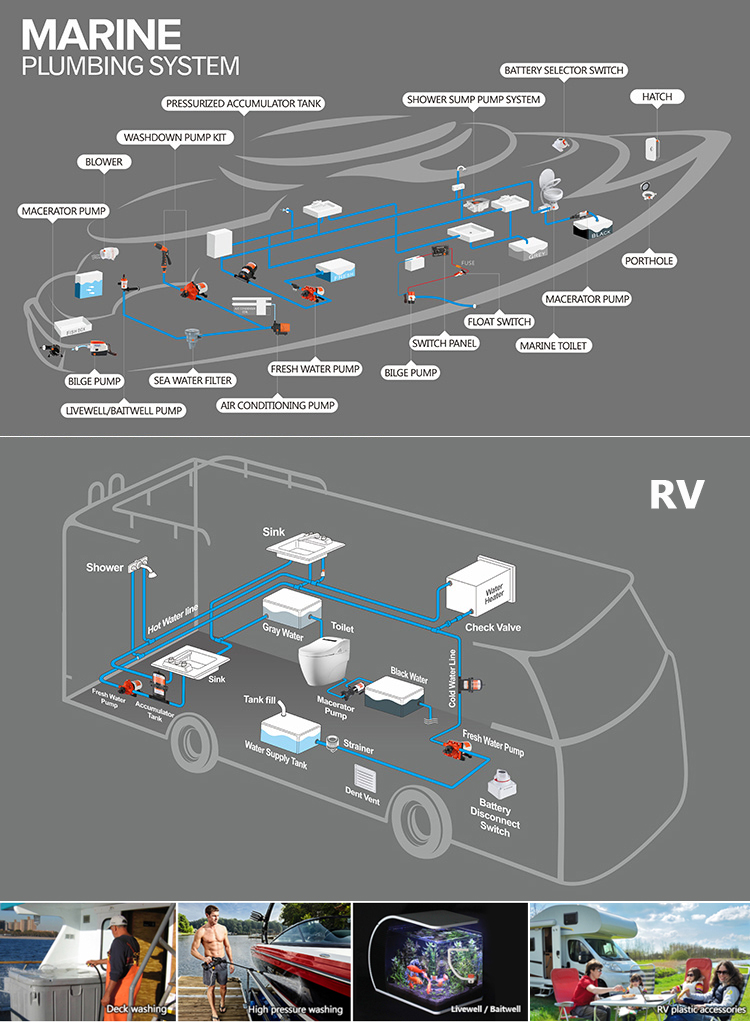

typical application

ocean

RVs and campers

industrial



Pump

liquid temperature

Maximum temperature 110°F (43°C)

Start ability

No need to flood suction

engine

type

Compact, efficient, long-life motor

Potential customers

18 AWG, 1 m lead length

temperature limit

Maximum temperature 110°F (43°C)

duty cycle

intermittent



Voltage

12V/24V

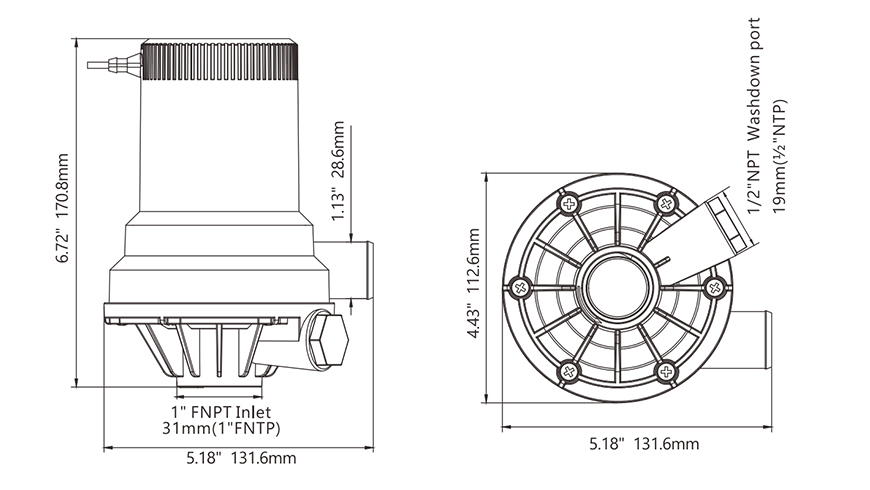

Pump structure:



1. Question: Are you manufacturer Or a trading company?

Answer: : We are a professional manufacturer of diaphragm water pumps and bilge pumps, and our products have obtained SGS-CE and RoHS certificates.



2. Q: What is the MOQ of your products?

A: Different models have different minimum order quantities, please check with the sales staff.



3. Q: How can I get some samples?

A: Usually we cannot provide free samples, please pay the sample fee and express fee,

Sample cost can be deducted from your first big order.



4. Q: What is your delivery time?

A: 1. Samples can be sent to you within 3-5 days.

2. Bulk orders can be shipped to you within 5-15 days after order confirmation



5.Q: What is your warranty and after-sales service policy?

Answer: All products have a 12-month warranty, and some products have a 24-month warranty. Usually 1% spare parts are provided to you for free



6.Q: What’s the quantity ICan I get your OEM service under my own brand?

A: Different models have different minimum order quantity requirements, please consult our sales staff.



7.Q: What payment can you accept?

A: Usually we accept T/T, Western Union, PayPal and Alipay, and also accept RMB transfer from mainland China.



1. All inquiries will be taken seriously and responded to within 24 hours;

2. We will provide you with professional suggestions for new customers based on different markets and products;

3. Our inspection department will test each batch of products to ensure high quality, including material testing and performance testing;

4. Fast and efficient delivery to ensure your inventory;

5. Good packaging protects products;

6. Any feedback from you will be greatly appreciated to ensure we can do better and better;

7. Accept OEM & ODM, our strong design team supports customized products according to customer requirements;

8. Samples or small orders are welcome;

+
