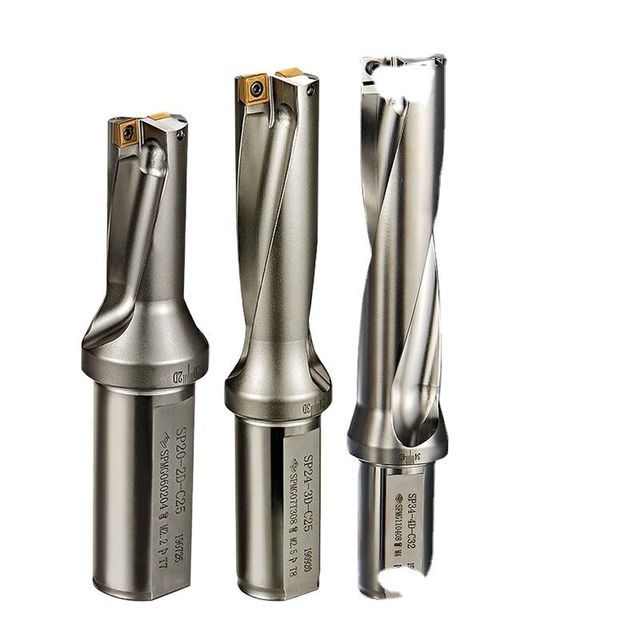

SP indexable drill 3D4D5D6D SPMG carbide insert internal cooling drill u drill
- $15.40 / >=10 pieces
- 10 pieces
- Dongguan Xingjie Tool Co., Ltd.
- Guangdong, China
- Mr Qiurong Li
PRODUCT DETAIL
| Warranty: | 3 years | pack: | plastic box |
| size: | 35 | Gross weight per piece: | 0.720 kg |
| Surface finish: | Bright (uncoated) | Packaging Details: | Carton size: 40*20*20 |
| Single pack size: | 40X20X20 cm | Sales unit: | single product |
| Specification: | 100~400 | Package preview: | |
| Material: | M42 high speed steel | standard: | DIN standard |
| Working length: | 31-51mm | MOQ: | 2 |
| application: | drilling | Drill Type: | Drilling |
| Name: | metal opening | Customization support: | OEM, ODM, 1000 |
| type: | straight groove |

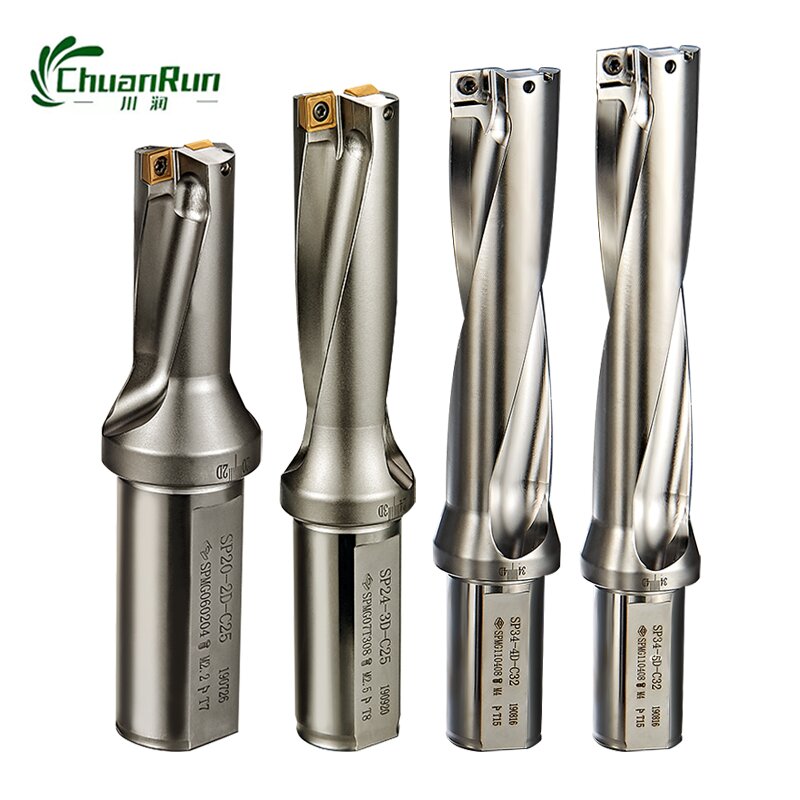

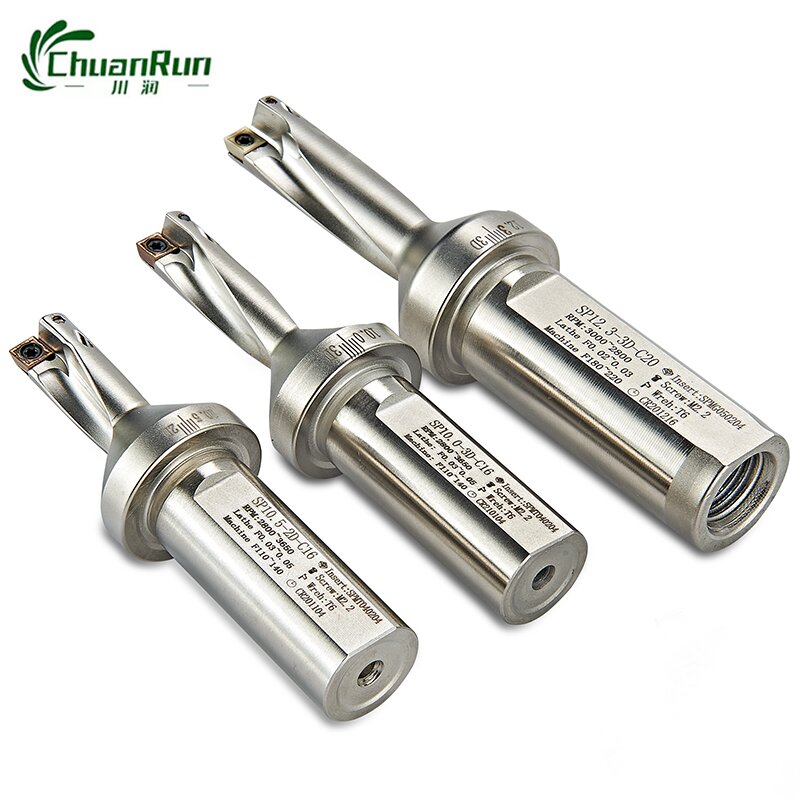

SP/WC series U drill
Currently producing SP/WC series products
Diameter range:∮8.5MM~~∮80mm(minimum insert
SPMT030104)
2D/3D/4D/5D/6D
6D (minimum ∮19MM)

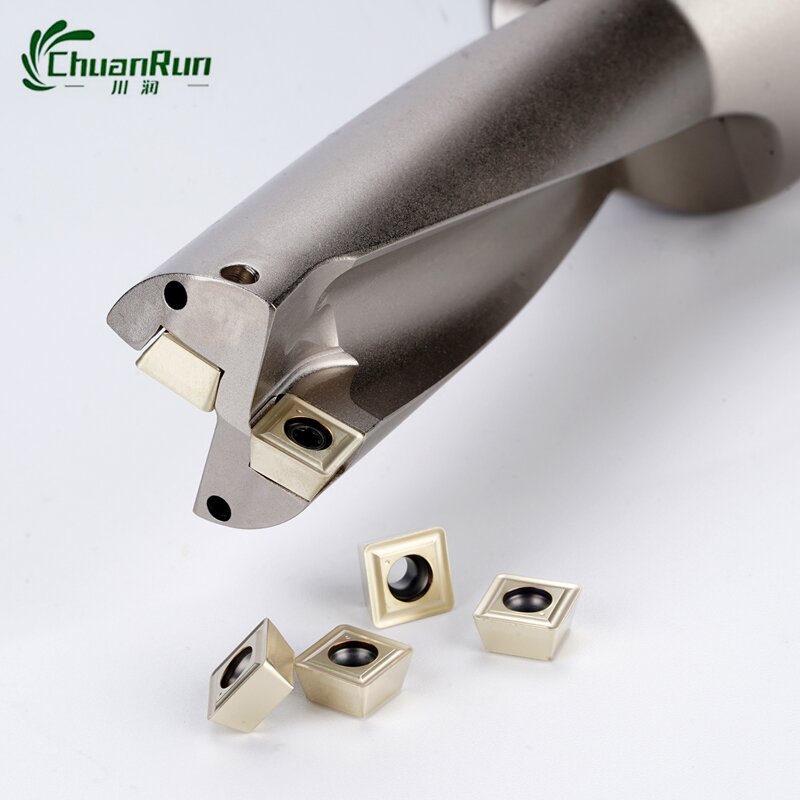

Mating Insert: SPMT
Blade: domestic, imported J (Korean KORLOY)
In addition, there are special domestic blades
Aluminum, recommended for blind vias
Diameter range:∮8.5MM~~∮80mm(minimum insert
SPMT030104)
2D/3D/4D/5D/6D
6D (minimum ∮19MM)
Mating Insert: SPMT
Blade: domestic, imported J (Korean KORLOY)
In addition, there are special domestic blades
Aluminum, recommended for blind vias
detailed picture
No | diameter | Supporting blade | tighten | wrench |
1 | ∮8.5~9.5mm | SPMG030104 | M1.8x4 | T6 |
2 | ∮10.0~12mm | SPMG040204 | M2.2x4 | T6 |
3 | ∮12.5～15.5mm | SPMG050204 | M2.2x5-D27 | T6 |
4 | ∮16～21.5mm | SPMG060204 | M2.2x5.5 | T7 |
5 | ∮22～27.5mm | SPMG07T308 | M2.5x8 | T8 |
6 | ∮28～33.0mm | SPMG090408 | M3.5x9 | T15 |
7 | ∮34～41.0mm | SPMG110408 | M4.0x10 | T15 |
8 | ∮42～50mm | SPMG140512 | M5.0x11 | T20 |
