Sacrificial prepacked high performance prepacked magnesium anodes with backfill
- $32.00 / >=50 pieces
- 50 pieces
- Xi'an Howah Industry Technology Co., Ltd.
- Shaanxi, China
- Ms Sara Zeng
PRODUCT DETAIL
| Whether alloy: | Unalloyed | usage: | Corrosion protection |
| product technologies: | cast or extruded | model: | magnesium |
| product name: | Anti-corrosion prepackaged magnesium sacrificial anode | Is there powder: | not powdery |
| Secondary or not: | non-secondary | Origin: | China |
| color: | silver gray | Supply capacity: | 10000 pieces per week |
| payment terms: | L/C, Western Union, T/T | sample: | usable |
| brand: | Howard | Certificate: | ISO9001 |
| surface: | Smooth | Key words: | Packaged Magnesium Anodes |
| Customized or not: | Custom size available | Packaging Details: | Pallet packing wooden case or according to customer's requirement |
| port: | Qingdao, Tianjin |
Product Description

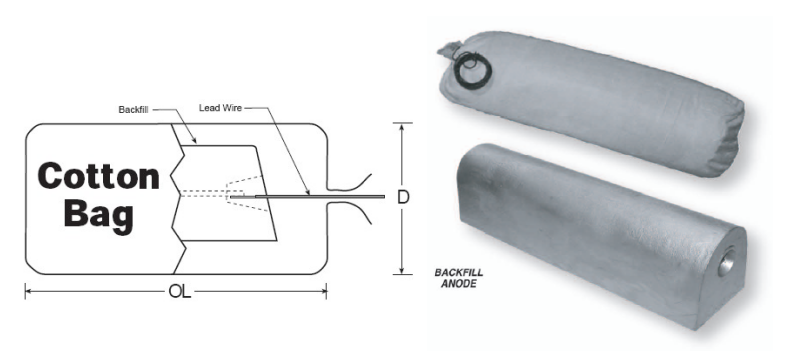

Magnesium encapsulated anode
Packaged anodes are pre-packaged in bags or cartons with a low-resistivity, fast-wetting prepacked backfill material containing 75% hydrated gypsum, 20% bentonite and 5% sodium sulfate.
Hookup Wire: Standard 10 feet of solid or stranded #12 AWG copper leads.

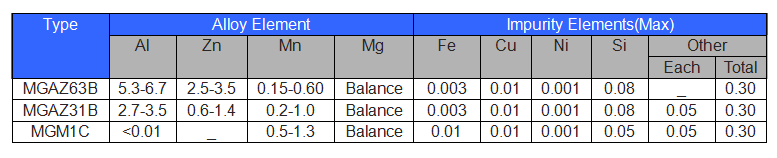

chemical composition
Electrochemical properties
type | open circuit -V (relative to Cu/CuSO4) | current efficiency %(relative to Cu/CuSO4) | generate current (Ah)/kg (relative to Cu/CuSO4) |
MGAZ63B | 1.57-1.67 | ≧55 | ≧1210 |
MGAZ31B | 1.57-1.67 | ≧55 | ≧1210 |
MGM 1C | 1.77-1.82 | ≧50 | ≧1100 |
Specification
H1 prepackaged magnesium anode
Electrochemical properties | ||
type | AZ63B | |
OCP(-V vs. Cu/CuSO4) | 1.57-1.67 | |
Current capacity (Ah/kg vs. Cu/CuSO4) | ≥1210 | |
Current Efficiency (% vs. Cu/CuSO4) | ≥55 | |
chemical composition | ||
element | Contentwt% | |
aluminum | 5.3-6.7 | |
manganese | 0.15-0.60 | |
zinc | 2.5-3.5 | |
silicon | 0.08 | |
copper | 0.01 | |
you | 0.001 | |
iron | 0.003 | |
other total | 0.30 | |
magnesium | balance | |
backfill composition | ||
element | Contentwt% | |
Water gypsum | 75.0 | |
Granular bentonite | 20.0 | |
sodium sulfate | 5.0 | |
High Potential Encapsulated Magnesium Anodes
Electrochemical properties | ||
type | MGM 1C | |
OCP(-V vs. Cu/CuSO4) | 1.77-1.82 | |
Current capacity (Ah/kg vs. Cu/CuSO4) | ≥1100 | |
Current Efficiency (% vs. Cu/CuSO4) | ≥50 | |
chemical composition | ||
element | Contentwt% | |
aluminum | <0.01 | |
manganese | 0.5-1.3 | |
zinc | - | |
silicon | 0.05 | |
copper | 0.01 | |
you | 0.001 | |
iron | 0.01 | |
other total | 0.30 | |
magnesium | balance | |
backfill composition | ||
element | Contentwt% | |
Water gypsum | 75.0 | |
Granular bentonite | 20.0 | |
sodium sulfate | 5.0 | |

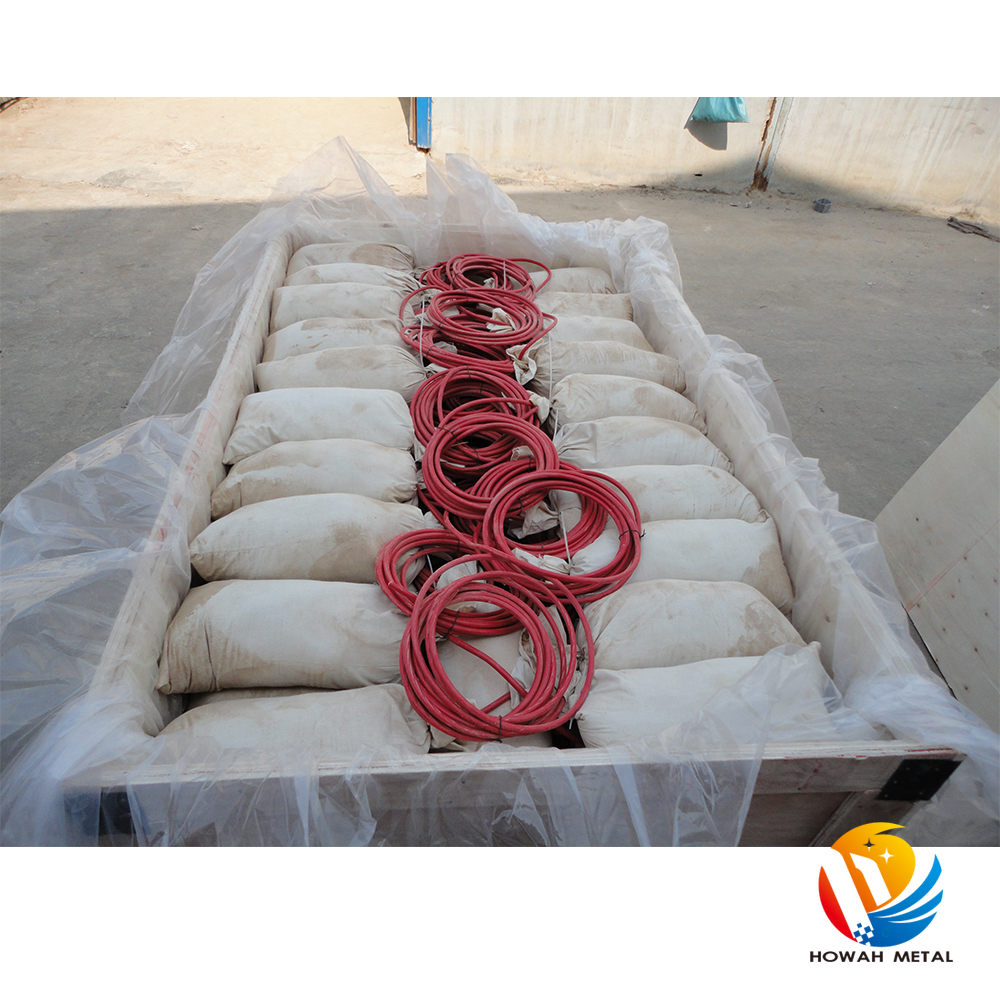

Product packaging
