Sanitary EPDM FKM Buna-N Rubber Tri Clamp Washer for Quick Clamp Fittings
- $0.09 / 100 - 499 pieces
$0.08 / 500 - 999 pieces
$0.07 / >=1000 pieces - 100 pieces
- Lishi Sealing Tech (Ningbo) Co., Ltd.
- Zhejiang, China
- Mr Frank Zhang
PRODUCT DETAIL
| application: | Food industry, chemical industry, pharmaceutical | Material: | EPDM rubber, Viton rubber, Nitrile rubber |
| payment terms: | Western Union, T/T, MoneyGram, PayPal | Supply capacity: | 1000pcs per day according to size |
| brand: | LSINC | Package preview: | |
| model: | Model-ID*OD | size: | standard, international standard |
| type: | Gasket | Packaging Details: | Plastic bag in cardboard box. |
| color: | white | temperature: | in detail |
| Certificate: | ISO 9001 | Origin: | Zhejiang, China |
Product overview
Triple Clamp Spacer
describe
Gaskets made of rubber: Buna-N, EPDM, FKM.
advantage
* Wide temperature range
* Excellent chemical resistance
* good stability
application
* Food and drink
* Chemical
* medical
* Pharmaceutical
* Food and drink
* Chemical
* medical
* Pharmaceutical

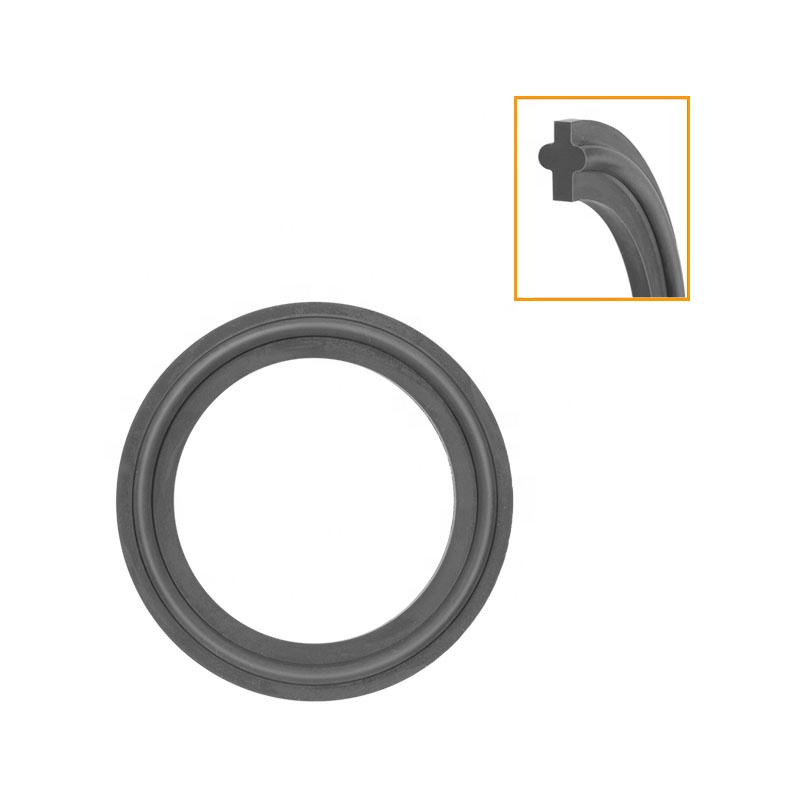

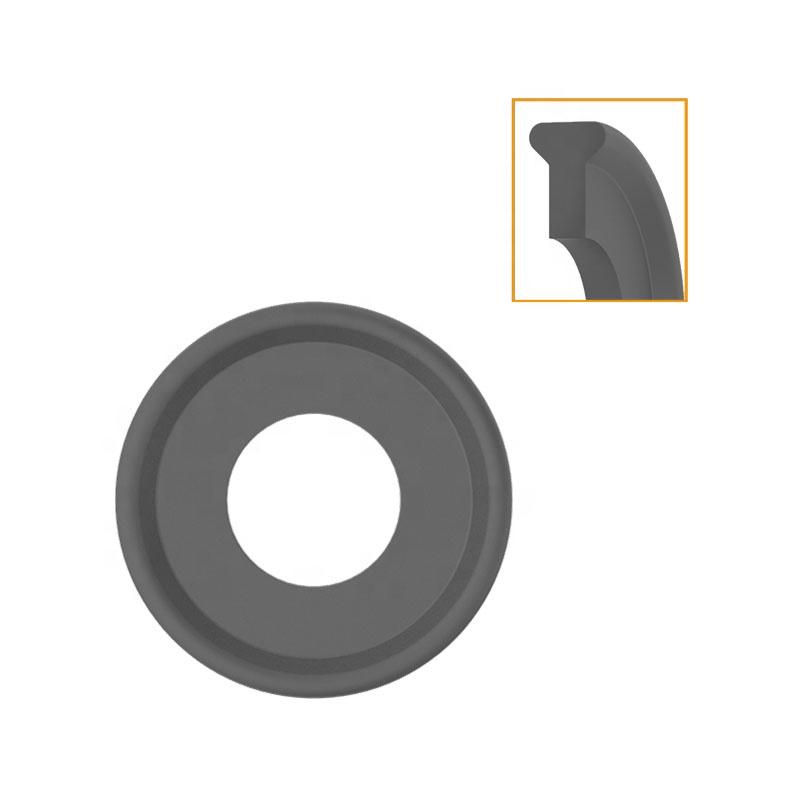

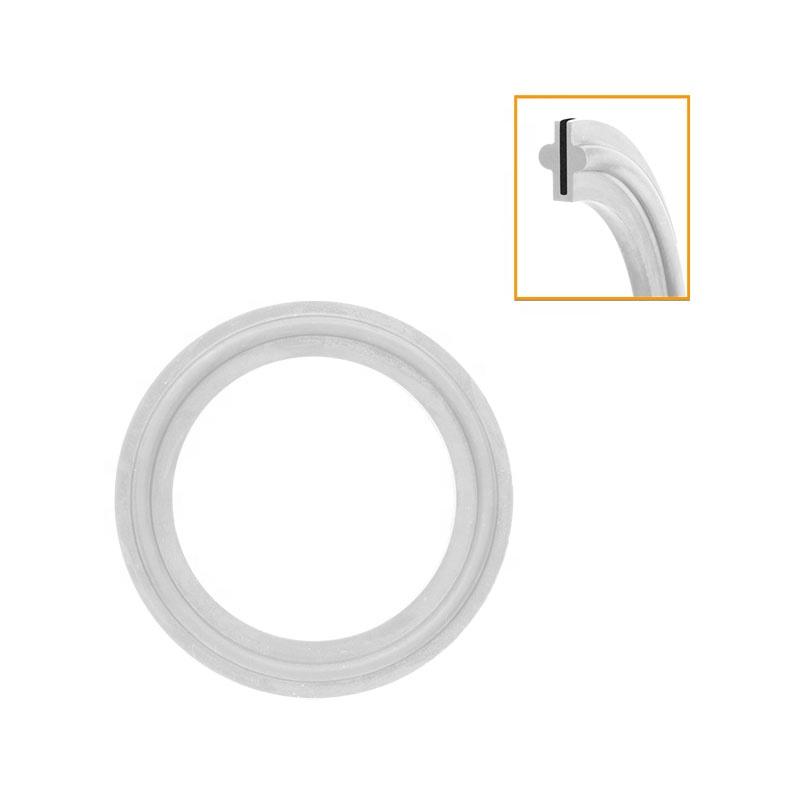

detail image
Tri-Clamp Gasket Comparison Guide
Gasket | temperature range | Recommended usage | Not recommended | industry |
Nitrile rubber (Nitrile rubber) | -35°F to 250°F (-40°C to 120°C) | water, oil, fuel | Ketones, strong acids, sunlight, ozone, weathering | food and drink |
EPDM (ethylene propylene) | -65°F to 300°F (-54°C to 150°C) | Sunlight, Weathering, Hot Water, Steam, Selected Acids/Alkalis, Alcohol | oil, fuel | Biopharmaceuticals, food and beverage, drinking water |
PTFE (Teflon®) | -100°F to 450°F (-74°C to 230°C) | Chemical, heat, pressure applications | stretch, elastic | chemical processing |
fluororubber (Viton®) | -15°F to 437°F (-25°C to 220°C) | Vacuum, most acids/chemicals, oils, fuels | Ketones, ammonia, hot water/steam | chemical processing |
Nominal size
for small size tubes
Class A: DN 6 to DN 8;
Grade B: DN/OD 10.2 to DN/OD 17.2;
Type C: DN/OD 1/4" to DN/OD 3/4".
For standard size tubes
Class A: DN 10 to DN 200;
Grade B: DN/OD 21.3 to DN/OD 219.1;
Class C: DN/OD 1" to DN/OD 6".
Type A - Metric Standard Gaskets
Dimensions are in millimeters

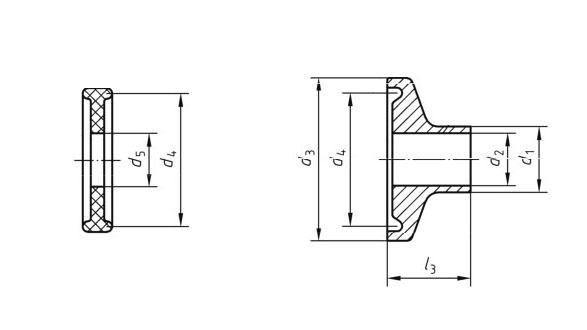

Diameter | outer diameter (d3) | groove (d4) | the inside diameter of (d5) | high (H) |
6 | 25 | 20.2 | ≥6.2 | 4.5 |
8 | 25 | 20.2 | ≥8.2 | 4.5 |
10 | 34 | 27.5 | ≥10.2 | 5.5 |
15 | 34 | 27.5 | ≥16.2 | 5.5 |
20 | 34 | 27.5 | ≥20.2 | 5.5 |
25 | 50.5 | 43.5 | ≥26.2 | 5.5 |
32 | 50.5 | 43.5 | ≥32.2 | 5.5 |
40 | 50.5 | 43.5 | ≥38.2 | 5.5 |
50 | 64 | 56.5 | ≥50.2 | 5.5 |
65 | 91 | 83.5 | ≥66.2 | 5.5 |
80 | 106 | 97 | ≥81.2 | 5.5 |
100 | 119 | 110 | ≥100.2 | 5.5 |
125 | 155 | 146 | ≥125.2 | 5.5 |
150 | 183 | 174 | ≥150.2 | 5.5 |
200 | 233.5 | 225 | ≥200.2 | 5.5 |
Type B - DN/OD Metric Gaskets
Dimensions are in millimeters
DN/OD Metric (d1) | outer diameter (d3) | groove (d4) | the inside diameter of (d5) | high (H) |
10.2 | 25 | 20.2 | ≥7.2 | 4.5 |
13.5 | 25 | 20.2 | ≥10.5 | 4.5 |
17.2 | 25 | 20.2 | ≥14.2 | 4.5 |
21.3 | 50.5 | 43.5 | ≥18.3 | 5.5 |
26.9 | 50.5 | 43.5 | ≥23.9 | 5.5 |
33.7 | 50.5 | 43.5 | ≥29.9 | 5.5 |
42.4 | 64 | 56.5 | ≥38.6 | 5.5 |
48.3 | 64 | 56.5 | ≥44.5 | 5.5 |
60.3 | 77.5 | 70.5 | ≥56.5 | 5.5 |
76.1 | 91 | 83.5 | ≥72.3 | 5.5 |
88.9 | 106 | 97 | ≥84.5 | 5.5 |
114.3 | 130 | 122 | ≥109.9 | 5.5 |
139.7 | 155 | 146 | ≥134.7 | 5.5 |
168.3 | 183 | 174 | ≥163.3 | 5.5 |
219.1 | 233.5 | 225 | ≥214.1 | 5.5 |
Type C - DN/OD imperial gaskets
Dimensions are in millimeters
DN/OD imperial (d1) | outer diameter (d3) | groove (d4) | the inside diameter of (d5) | high (H) |
1/4" | 25 | 20.2 | ≥4.8 | 4.5 |
3/8" | 25 | 20.2 | ≥8 | 4.5 |
1/2" | 25 | 20.2 | ≥9.6 | 4.5 |
3/4" | 25 | 20.2 | ≥16 | 4.5 |
1" | 50.5 | 43.5 | ≥22.3 | 5.5 |
1 1/2" | 50.5 | 43.5 | ≥35 | 5.5 |
2" | 64 | 56.5 | ≥47.7 | 5.5 |
2 1/2" | 77.5 | 70.5 | ≥60.4 | 5.5 |
3" | 91 | 83.5 | ≥73.1 | 5.5 |
4" | 119 | 110 | ≥97.6 | 5.5 |
6" | 167 | 156.5 | ≥147.1 | 5.5 |
