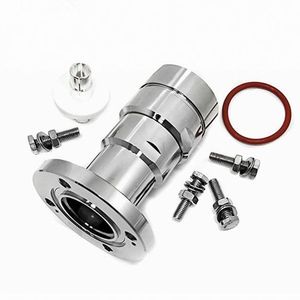

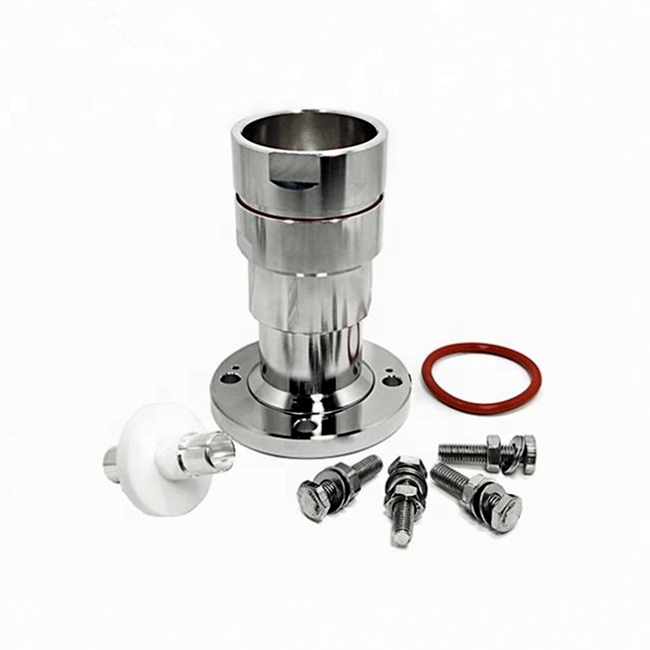

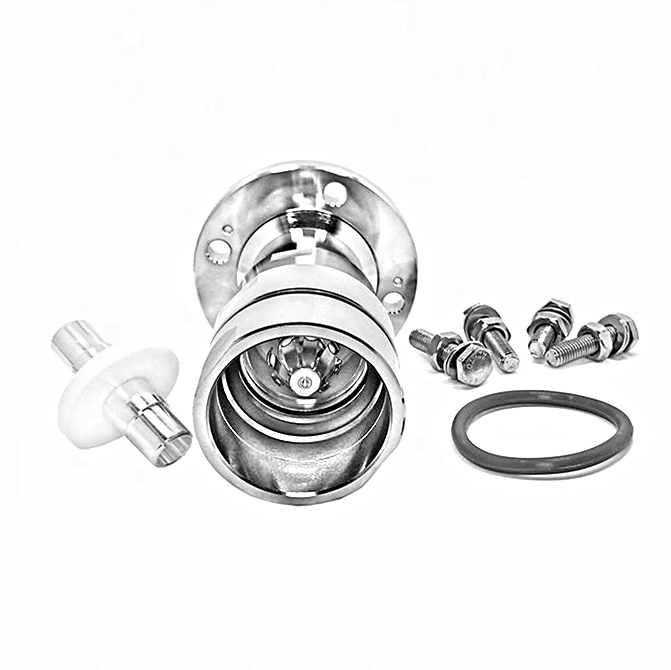

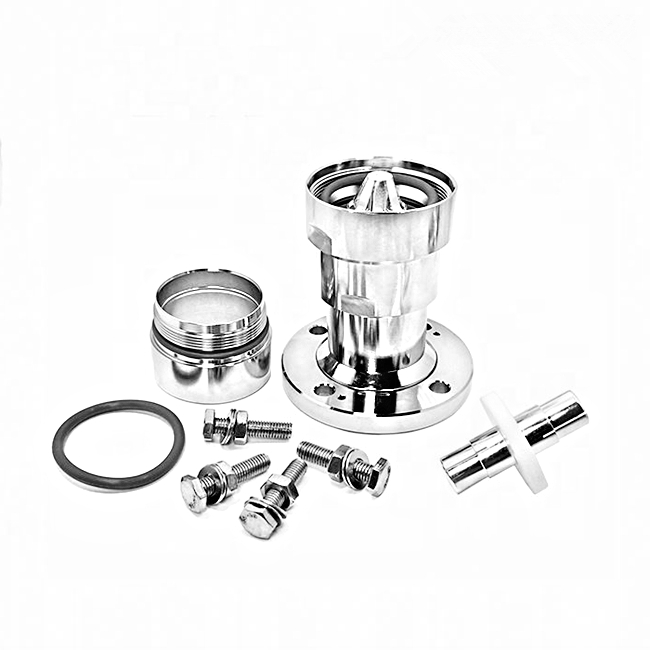

Sell hot 1-5 / 8 Eia cable flange 1-5 / 8 "13/8" connector Eia
- $85.00 / 1 - 19 pieces
$65.00 / 20 - 99 pieces
$58.50 / >=100 pieces - 1 piece
- Ningbo Keenan Technology Co., Ltd.
- Zhejiang, China
- Mr Alex lee
PRODUCT DETAIL
| Brand: | OEM; | Size / Dimension: | 13/8; |
| Sales units: | Single article; | Gender: | Corrugated power cable 1-5 / 8 "; |
| Specifications: | RF; | Application: | Microwave signal transmission; |
| Temperature scale: | -40 ~ ~ + 85 ℃; | Product name: | 1-5 / 8 "EIA cable flange connector 1-5 / 8"; |
| Cable end type: | power cable; | Region used: | -40 ~ ~ + 85 ℃; |
| Number of Ports: | 1; | Type: | RF adapter; |
| Certificate: | ISO9001 / CE / ROHS; | Model number: | 1-5 / 8 EIA flange connector; |
| Materials: | Brass, Brass; | Connector usage: | communication systems; |
| Completion of the apartment: | Ni; | Color: | argjendi; |
| Guarantee: | 365 days; | Country of origin: | Zhejiang, China; |
| Description: | 1-5 / 8VNM-1-5 / 8; | Impedance: | 50 ohms; |
| Single package size: | 20X15X10 cm; | Interface type: | VNM flange; |
| Shipping from: | DHL \ UPS \ Fedex \ EMS \ China Post; | Clothing: | Nickel or tri-metal plating; |
| Single gross weight: | 2,000 kg; | Shell material: | Brass; |
| Isolation: | PTFE; | Connector type: | Male terminals; |
| Conclusion: | Power cable 1-5 / 8; | Frequency - Maximum: | 5 GHz; |
Sell hot 1-5 / 8 Eia cable flange 1-5 / 8 "13/8" connector Eia
Packing & Delivery
Packaging Details:
1 piece in a small box (20cm * 20cm * 10cm), 1
2 pieces in a standard export box (40CM * 20cm * 21CM)
|

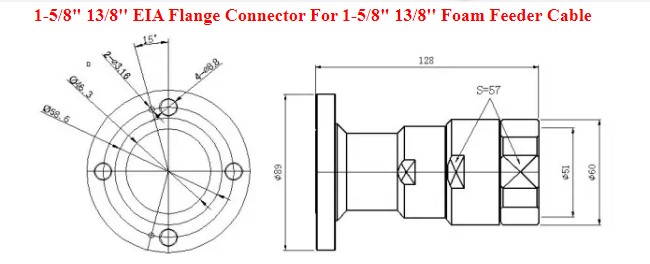

Coaxial RF 1-5 / 8 "EIA connector with flanges for foam power cable 1-5 / 8" 13/8 "
|
|
|
Characteristic impedance
|
50 ohms
|
|
Frequency range
|
DC-5 GHz
|
|
VSWR
|
≤1.07 @ DC-1000MHz
|
|
Typical input loss
|
≤0.05DBi
|
|
Dielectric resistive voltage
|
≥6000V RMS, 50Hz, at sea level
|
|
Dielectric resistance
|
≥5000 MΩ
|
|
Average power
|
2.3 KW @ 900 MHz
|
|
Maximum maximum power
|
90 KW
|
|
Contact resistance
|
Central contact ≤1,5mΩ External contact ≤1,5 mΩ
|
|
Engineering
|
|
|
Stability
|
Pairing cycles ≥500
|
|
Material and Plating
|
|
|
body
|
Brass
|
|
Insulator
|
PTFE
|
|
Internal conductor
|
Phosphor Bronze
|
|
Coupling nut
|
Brass
|
|
Gasket
|
Silicone rubber
|
|
Cable clips
|
Brass
|
|
Hardware set (Bolts / Nuts / Washers)
|
Stainless steel
|
|
environmental
|
|
|
Operating temperature
|
-45 ° C-85 ° C
|
|
Weather resistant rate
|
IP68
|
|
RoHs (2002/95 / EC)
|
In accordance
|
|
|
|
We can make different kinds of RF connectors, such as SMA, F, BNC, TNC, N, 4.3-10, DIN and so on. If we have not responded to you in time. )
