Semi-Auto Monochrome Plastic TPR PVC Sneakers Injection Molding Machine JL-258
- $30000.00 /set
- 1 set
- Dongguan Jinlei Shoe-Making Machine Co., Ltd.
- Guangdong, China
- Mr Andy Luo
| Applicable industries: | Shoe Machinery | brand: | Kingston |
| After-sales service provided: | Engineers can repair machinery overseas | Supply capacity: | 50 sets per month |
| shoe color: | 1/2 color | Mechanical test report: | if |
| Last height: | 210-260mm | Core components: | PLC, engine, bearing, gearbox, motor, gear, pump |
| Showroom location: | not any | Main selling point: | easy to operate |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | strength: | 37.5kW |
| weight: | 9000 | Clamping force: | 210-260 tons |
| Raw materials: | TPR/PVC | place of origin; place of origin: | Guangdong, China |
| Core Components Warranty: | 1 year | Opening stroke: | 170mm |
| Shoes on a trip: | 60mm | Dimensions (L*W*H): | 6150x3350x2000mm |
| Voltage: | 220v/380v/440v | Warranty: | 2 years |
| Screw diameter: | 75mm | application: | Basketball shoes, jogging shoes, casual shoes, canvas shoes, snow shoes |
| Packaging Details: | Semi-Auto Monochrome Plastic TPR PVC Sneakers Injection Molding Machine Standard Export Packaging | Health status: | new |
| Production capacity: | 260-330 pairs/hour | workstation: | 20 stations |
| Marketing Type: | normal product | port: | Shenzhen, Guangzhou, Hong Kong |
| Video external inspection: | if |

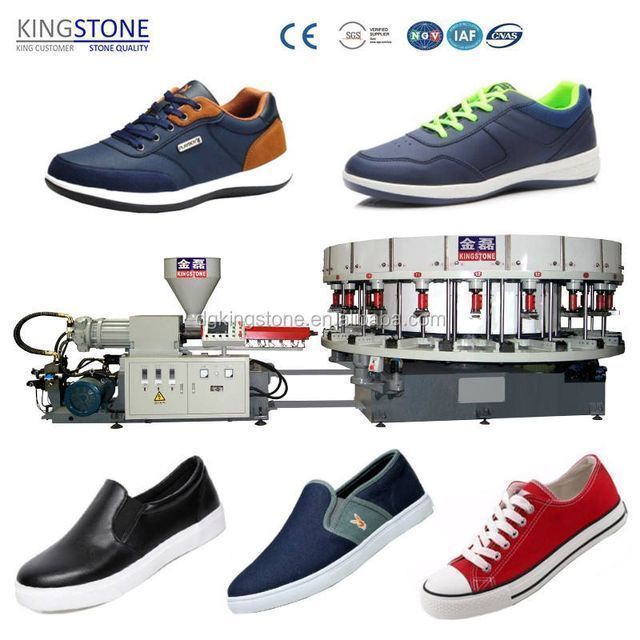

JL-258 Semi-Auto Monochrome Plastic TPR PVC Sports Shoes Injection Molding Machine
Products: Specializing in the production of basketball shoes, jogging shoes, casual shoes, canvas shoes, snow shoes and other sports shoes.
Material: Suitable for various thermoplastic raw materials, foamed or non-foamed, such as PVC and TPR.
|
Specification |
||
|
machine type |
unit |
JL-258 |
|
Clamping unit |
||
|
raw materials |
|
PVC/TPR |
|
workstation |
|
12/16/20 |
|
shoe last trip |
mm |
60 |
|
Last height |
mm |
210-260 |
|
Die size |
mm |
340×180×60 |
|
Clamping method |
|
five |
|
Injection device |
||
|
Screw diameter |
mm |
75 |
|
Screw aspect ratio |
long/deep |
20 |
|
Maximum injection volume |
cubic centimeter |
750 |
|
Turntable pressure |
MPa |
3.0 |
|
Plasticizing ability |
g/s |
40 |
|
injection pressure |
MPa |
5.0 |
|
Screw speed |
Rotating speed |
0-200 |
|
energy used |
||
|
Injector heating power |
kilowatt |
9 |
|
Hydraulic unit motor |
kilowatt |
15 |
|
total power consumption |
kilowatt |
twenty four |
|
Dimensions and Weight |
||
|
Machine size |
(L*W*H)MM |
6150×3350×2000 |
|
machine weight |
KGS |
9000 |
|
*Note: The above data is for reference only. |
||

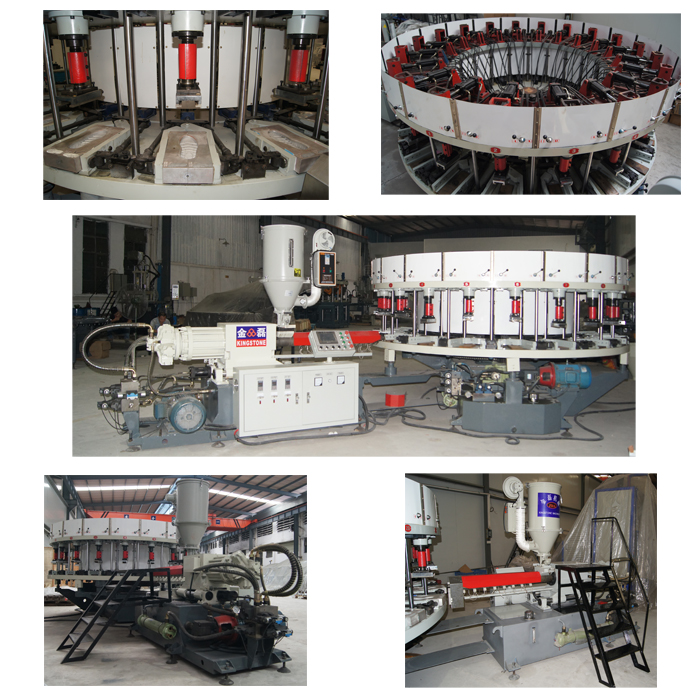

1. The machine is controlled by PLC system, pre-plasticized by hydraulic motor and driven by full hydraulic pressure.
2. Strong plasticizing ability, temperature can be controlled automatically.
3. Using 20-point measurement, the injection volume of each station can be set according to actual needs.
4. It has the function of empty mode selection and frequency conversion operation.
5. The machine is equipped with V-shaped clamping parts.
6. The turntable runs smoothly and the speed is adjustable. Movement, plasticization and injection are independent.
7. The machine has the functions of secondary injection and selection of the final pressing and clamping sequence.
8. There are many workstations, the shoemaking time is long, and the product quality is improved.
This pvc direct injection shoe machine can be applied to sports shoes, canvas shoes, sandals, etc.
1. PVC direct injection molding.
2. High production capacity, few workers and low cost.
3. Can be used for sports shoes, canvas shoes, school shoes, sandals, etc.
4. Good product on the market.
5. PLC control, more accurate production.

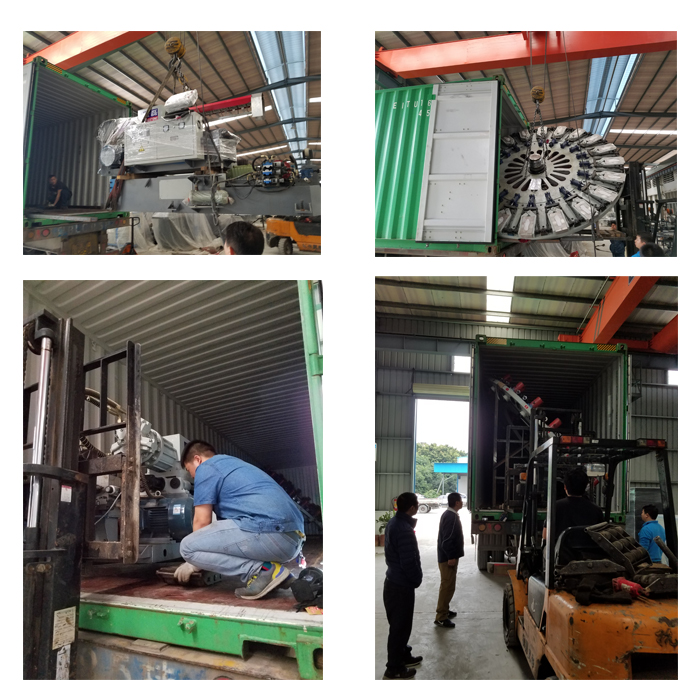

A 40HQ container is required for machine loading.
The machine weight is 9 tons.
