Shade Net Loom
- $22500.00 /set
- 1 set
- Yiwu Yingxin Exp & Imp Co., Ltd.
- Zhejiang, China
- Ms Elaine Wang
PRODUCT DETAIL
| payment terms: | L/C, D/P, T/T | Model: | YX291-D |
| brand: | Orientation | Mechanical test report: | not available |
| Finished goods: | shade net | weight: | 12000 |
| Dimensions (L*W*H): | 7200X2000X2300 | Health status: | new |
| Applicable industries: | Building material stores, manufacturing plants, farms, home use, construction projects | Video shipment inspection: | if |
| Marketing Type: | New Products 2020 | After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Automatic level: | automatic | Instrument number: | E1/E2/E3/E4/E6/E9 |
| Production capacity: | 300-450 rpm | Origin: | China |
| Core components: | PLC, bearings, gearboxes, motors, gears | After-sales service provided: | Video technical support, online support |
| strength: | 5.5KW | Local service location: | not any |
| Core component warranty: | 1 year | size: | 180 inches 268 inches 335 inches |
| Needle bar: | double needle bar | Showroom location: | egypt, india |
| Warranty: | 1 year | Voltage: | 380V |
Product overview

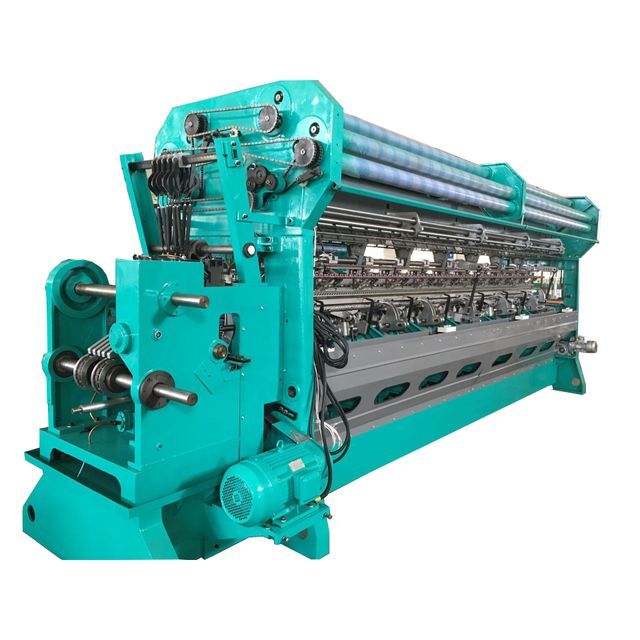

YX291-D double needle bed shade net loom
This machine is mainly used for weaving sunshade nets, dust-proof nets, plastic nets and various knotless nets
The material is HDPE, PE or PP flat wire
feature:
This machine adopts open cam swing arm linkage mechanism, yarn feeding by creel or warp beam, and warp let-off by rollers. The production is well ventilated and can weave flat yarn and round yarn.
This machine adopts open cam swing arm linkage mechanism, yarn feeding by creel or warp beam, and warp let-off by rollers. The production is well ventilated and can weave flat yarn and round yarn.
Product Description
type of machine | Shade net warp knitting machine | ||||||
needle bed | double needle bed | ||||||
needle type | individual latch needle | ||||||
Instrument number | E2, E3, E4, E6, E9 | ||||||
Number of bars | 5 pieces | ||||||
yarn feeder | use creel | ||||||
working width | 170inch 268inch 345inch or customized | ||||||
computerized | mechanical or computerized | ||||||
speed | 350-550 rpm | ||||||
Product parameters
machine type | Dimensions (mm) | installation size | Motor Power | Weight (kg) |
YX291-D-180 | 6000×2000×2300 | 7000×8000; 56M² | 5.5KW | 9000 |
YX291-S1-268 | 8700×2000×2300 | 9500×8000; 72M² | 5.5KW | 12000 |
YX291-S1-345 | 9200x2000x2300 | 10000x800; 80M² | 7.5KW | 15000 |
