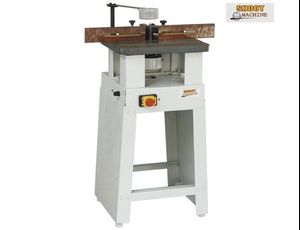

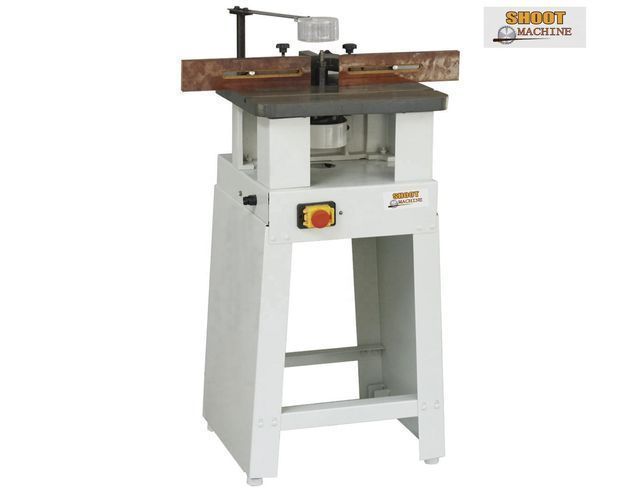

Sheep Wood Forming Machine, WS-1/2A/WS-1/2
- $370.00 /piece
- 1 piece
- Yantai Shoot CNC Machine Co.,Ltd
- Shandong, China
- Mr Qu Jun
PRODUCT DETAIL
| Number of axes: | 1 | Origin: | Shandong China |
| Showroom location: | not any | Packaging Details: | Plywood enclosure or plastic film |
| After-sales service provided: | Video Technical Support | Supply capacity: | 150 pieces per month |
| application: | carpentry | Mechanical test report: | if |
| Main selling points: | easy to operate | Dimensions (L*W*H): | 700x660x585mm |
| Maximum working thickness (mm): | 50 mm | Core component warranty: | 1 year |
| Warranty: | 1 year | brand: | shooting |
| payment terms: | L/C, Western Union, D/P, T/T | Weight (kg): | 85 kg |
| table: | Length: 610mm Width: 480mm | Marketing Type: | normal product |
| Video shipment inspection: | if | After warranty service: | Video Technical Support |
| Applicable industries: | Woodworking furniture manufacturing | Spindle diameter(mm): | 12.7 mm |
| engine: | Enter 1HP | Package Size: | 700x660x585mm |
| port: | Qingdao Port | Core components: | engine |
| Tongue and Groove Capacity: Lifting Distance: | 22.2 mm | Health status: | new |
| diameter: | 1/2" | Voltage: | 220V |
| Power (kW): | 0.73 |
Product Description
| wood forming machine | ||
| Specification: | ||
| *Larger precision ground cast iron workbench. | ||
| *Steel open bracket. | ||
| *Router bit shafts accept 1/4" and 1/2". | ||
| *Paddle switch. | ||
| *Heavy duty miter gauge. | ||
| *Powder coat paint and all ball bearing construction. | ||
| *Includes 5 spindle bushings for adjusting tool spacing | ||
| Model | WS-1/2A | WS-1/2 |
| engine | Enter 1 HP | Input 3/4 HP |
| table | Length: 610mm Width: 480mm | Length: 452mm Width: 395mm |
| Spindle | Speed: 11000rpm/50Hz | Speed: 7050rpm/50Hz |
| 13200 rpm/60 Hz | 8500 rpm/60 Hz | |
| diameter | 1/2" | 1/2" |
| Mortise Capacity: Lifting Distance | 22.2mm | 22.2 mm |
| weight | Net weight: 85kgs Gross weight: 90kgs | Net weight: 62kgs Gross weight: 73kgs |
| Package Size | 700x660x585mm | 640x520x460mm |
| Unit/20' container | 96 | 165 |
| Spindle diameter belt machine | 1/2" | 1/2" |
| Belt Machine Chuck | 1/2", 1/4" | 1/2", 1/4" |
Packaging and Shipping
Packing: plywood box or plastic film
Shipping: Qingdao Port
Delivery time: 30 days after payment received
