Shoe making machine computer automatic hydraulic sports shoe upper and heel machine is suitable for all kinds of shoes
- $3800.00 / 1 - 4 sets
$3400.00 / >=5 sets - 1 set
- Foshan Quanyi Shoe-Making Machine Co., Ltd.
- Guangdong, China
- Ms Amy Liao
| Video outbound inspection: | if | Place of origin: | China |
| color: | custom made | strength: | 2HP |
| Core component warranty: | 1 year | payment terms: | L/C, D/P, wire transfer |
| application: | all types of shoes | Packaging details: | Plastic wrap + bubble pearl film + wooden box |
| Voltage: | 380V | type: | Hydraulic |
| Health status: | new | Production capacity: | 1000 pairs/8 hours |
| brand: | Quanyi | Advantage: | high efficiency |
| Name: | Shoe making machine heel machine | Mechanical test report: | if |
| Showroom location: | Bangladesh | pressure: | 30-50kg/cm2 |
| Dimensions (length*width*height): | 1200*760*1420MM | Local service locations: | Vietnam |
| weight: | Chapter 580 | Marketing type: | normal product |
| Applicable industries: | manufacturing plant | Production: | automatic cement |
| usage: | Toe last molding | Warranty: | 1 year |
| Post-warranty service: | Online support | Automatic level: | manual |
| application: | Shoemaking | Core components: | PLC |
Product number | QY2B7 |
product name | Hydraulic heel counter machine for all footwear |
Voltage | 380V |
strength | 2HP |
Machine size | 1200*760*1420MM |
weight | 580kg |
Applications

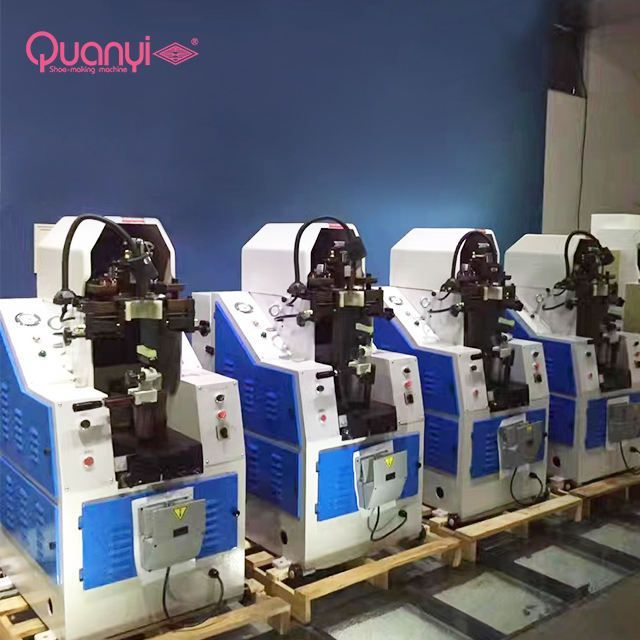

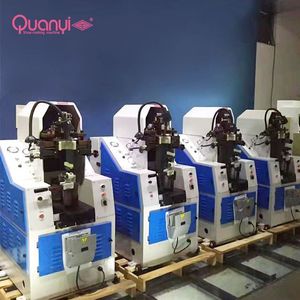

QY2B7 hydraulic heel machine
Purpose
1. This machine is equipped with a long-lasting height micro switch, which makes the machine easy to adjust and accurate in positioning.
2. We have full size wipers and molded straps, they fit any shape of shoe. The molding strip is wrapped by the spine, so it produces a good molding effect.
3. This machine uses gears, racks, and ratchets to adjust auxiliary supports, which is fast and accurate.
4. The last support is pressed twice and matched with the wiper heating device to increase the lasting effect. It smoothes the upper area and improves the quality of the shoe.
5. The special design of the shoe rack rising oil circuit completely controls the shoe last at the set position when inserting shoes.
Specification
Packing size 1200*760*1420MM
Weight: 580KG
Output: 2000 pairs/8 hours
Pressure: 50KG/CM2
Power: 2HP
Purpose
This machine is suitable for customizing general mid-sole soft shoes with heels below 180mm.
