Small Qualcomm Module for Ip Camera Pocket Router Iot 4G Wireless Wifi Hotspot Module PCBA Modem Board with Sim Card Slot
- $15.99 / 1 - 499 pieces
$14.99 / 500 - 9999 pieces
$12.49 / >=10000 pieces - 1 piece
- Habolink Technology Co.,Ltd
- Guangdong, China
- Mr Hogy Fang
PRODUCT DETAIL
| Application: | Iot/Ip camera/router/smart home etc; | Warranty: | 1 Year; |
| Package Preview: | ; | Size: | 51mm*38mm; |
| Brand Name: | Habolink; | Keywords: | 4G Communication PCBA Board; |
| SIM/USIM: | Nano card; | Selling Units: | Single item; |
| Place of Origin: | China; | Wi-Fi Supported Frequency: | 2.4G; |
| Casing: | Without; | Single gross weight: | 0.016 KG; |
| Chipset: | Qualcomm; | Interface: | 1 LAN; |
| Model Number: | AF107; | Packaging Detail: | plastic tray and carton; |
| Type: | Wireless; | Wireless Speed: | 150Mbps; |
| Network: | 4G/3G/2G; | Single package size: | 5.1X3.8X0.9 cm; |
Products Description
Small Quectel Module for Ip Camera Pocket Router Iot 4G Wireless Wifi Hotspot Module PCBA Modem Board with Sim Card Slot

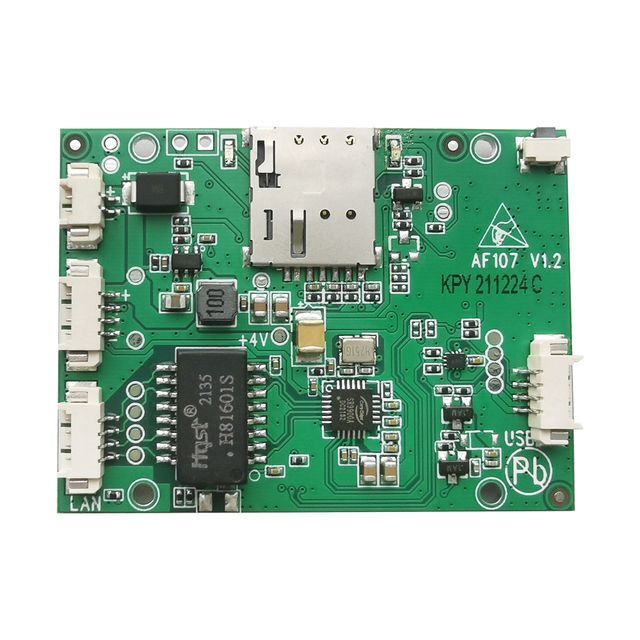

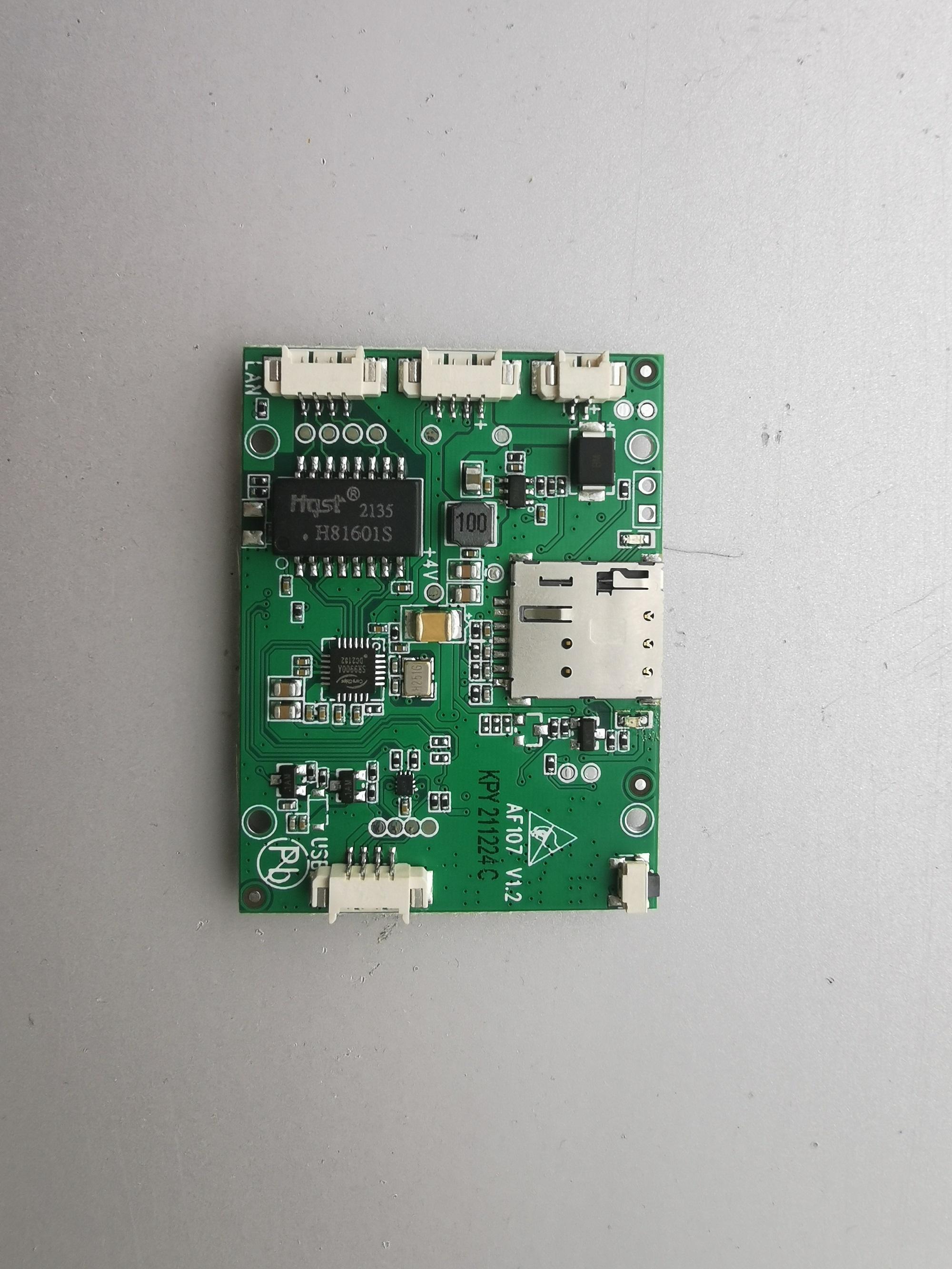

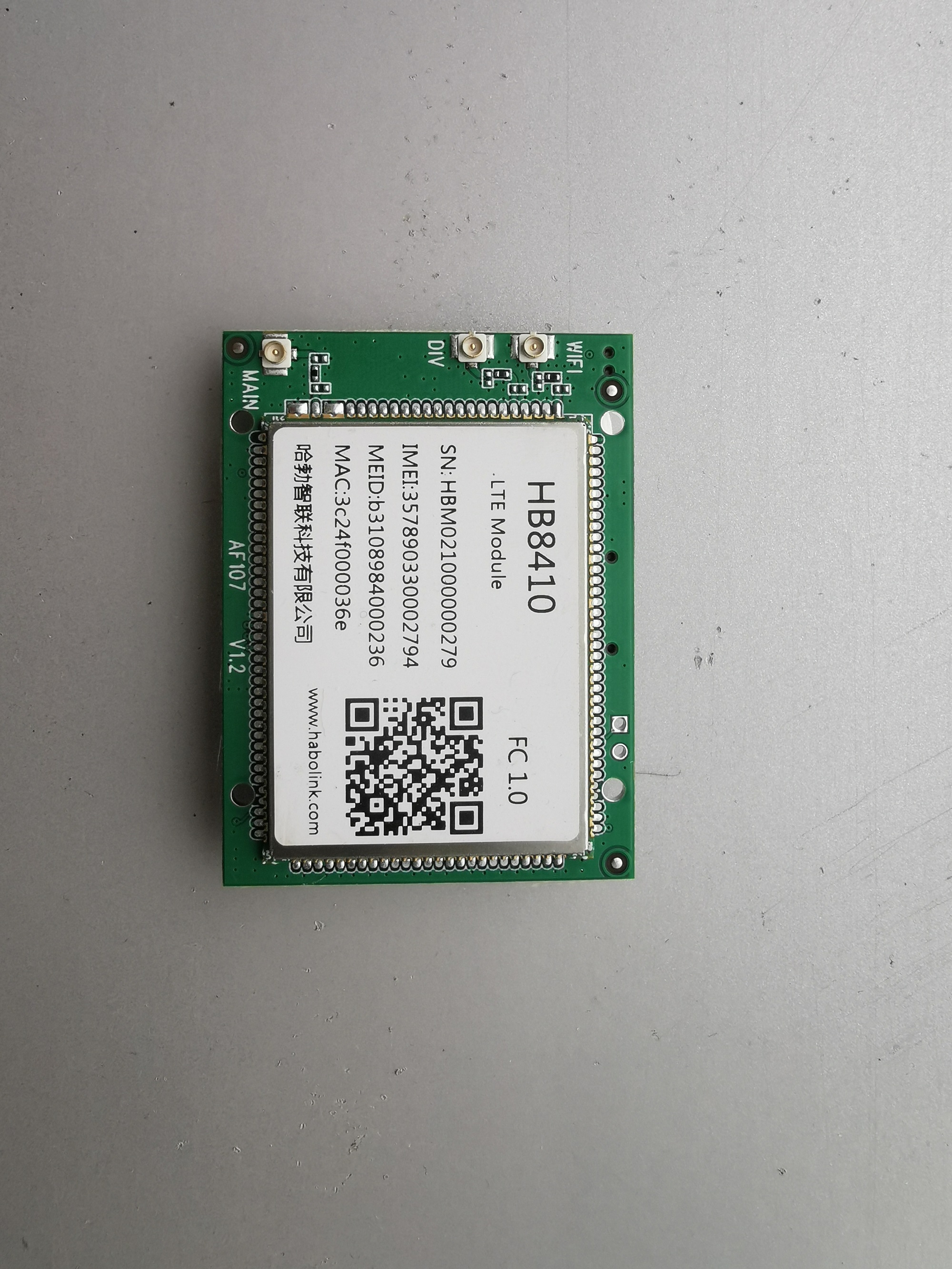

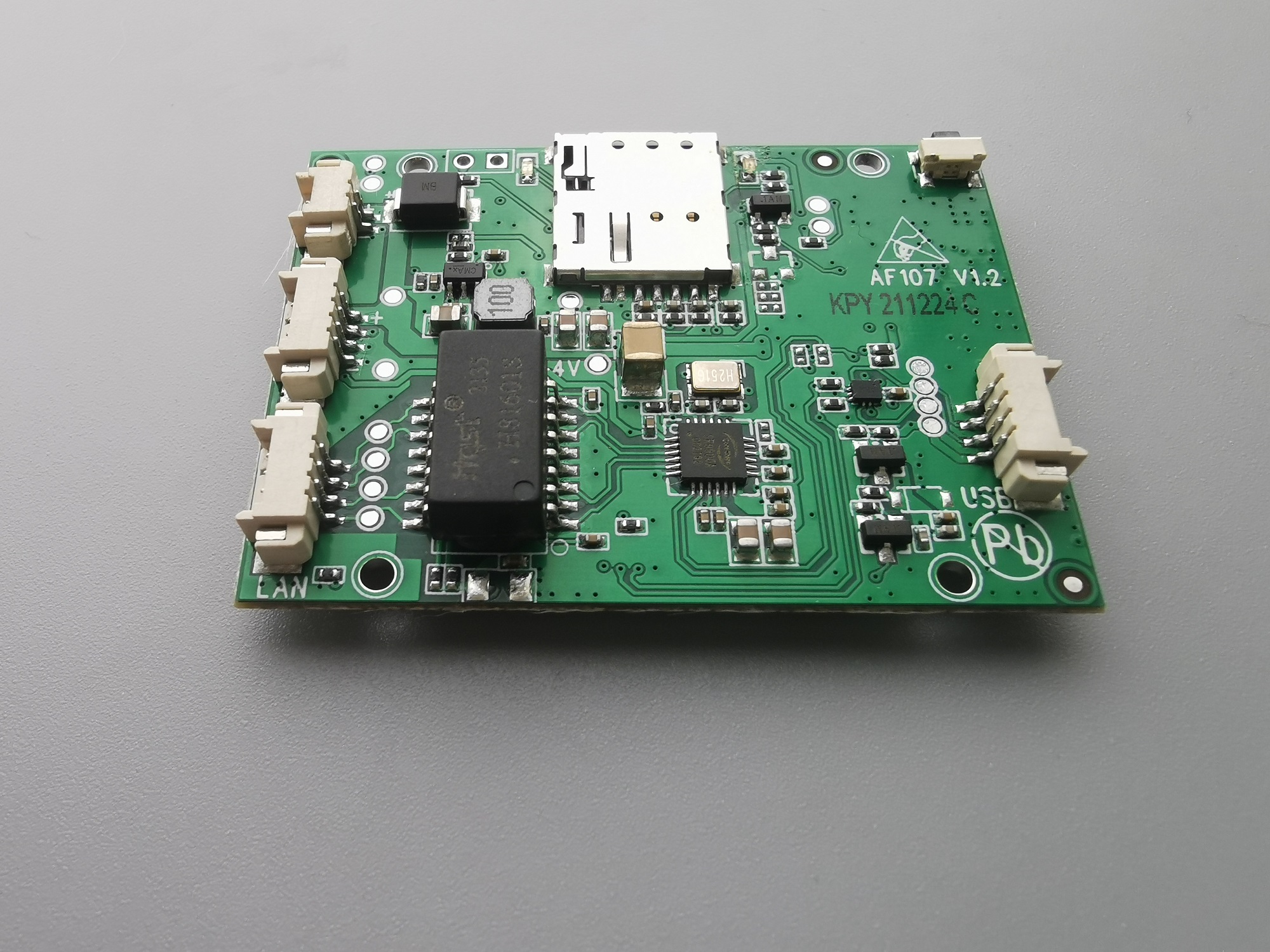

4G Communication Module of AF107
AF107 of 4G wireless communication module converts telecommunication wireless network into standard wired port signal connection. The module provides WiFi signal hotspot.(Sim card and wired network to wifi hotspot)
Product Characteristics | Descriptions |
Power Supply Voltage | Wide voltage input，DC[4.7V---18V] |
Power Waste | Normal Operation Power <1.5W; Peak Value: 400mA@12V |
Power Interface Form | 1.25mm spacing socket horizontal 4Pin |
Frequency Band | FDD LTE: B1/B3/B5/B7/B8/B20 |
TDD LTE: B38/B39/B40/B41 | |
TDSCDMA: B34/B39 | |
WCDMA: B1/B5/B8 | |
Rate | LTE-FDD： Max 150Mbps(DL) Max 50Mbps(UL) |
LTE-TDD： Max 130Mbps(DL) Max 35Mbps(UL) | |
DC-HSPA+：Max 42Mbps(DL) Max 5.76Mbps(UL) | |
UMTS： Max 384Kbps(DL) Max 384Kbps(UL) | |
TD-SCDMA: Max 4.2Mbps(DL) Max 2.2Mbps(UL) | |
CDMA: Max 3.1Mbps(DL) Max 1.8Mbps(UL) | |
WIFI Standard | 802.11b/g/n |
Network Interface | 1-way，10/100M adaptive，auto MDI/MDIX |
Network Interface Form | 1.25mm wafer socket horizontal 4P |
Wireless Network Antenna | DL MIMO supports Rx-diversity |
WIFI Antenna | 2.4G |
Antenna Interface Form | IPEX Generation 1 |
USIM/SIM | NANO card （minimum card） |
Protocols | TCP/IP/UDP/HTTP |
Working Temperature | -20°C－+50°C |
Working Humidity | 10%－95%RH |
Storage Temperature | -20°C－+50°C |
Product application

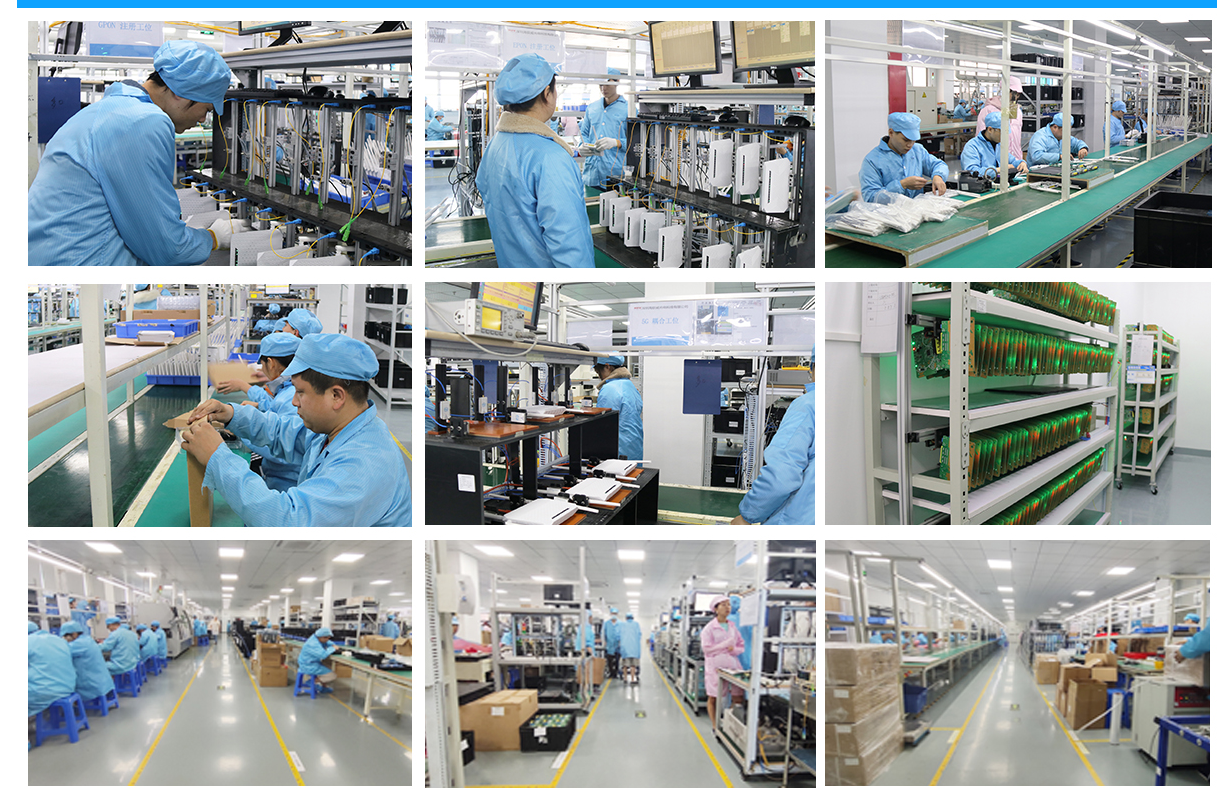

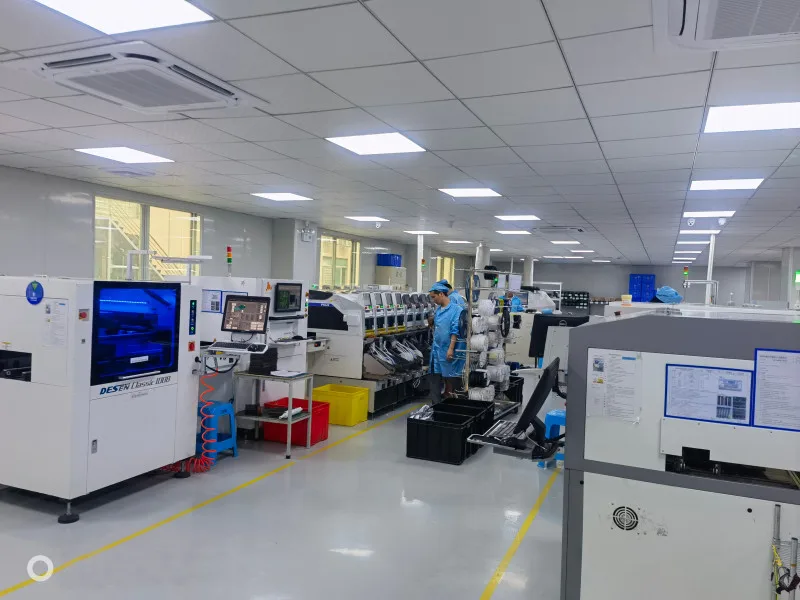

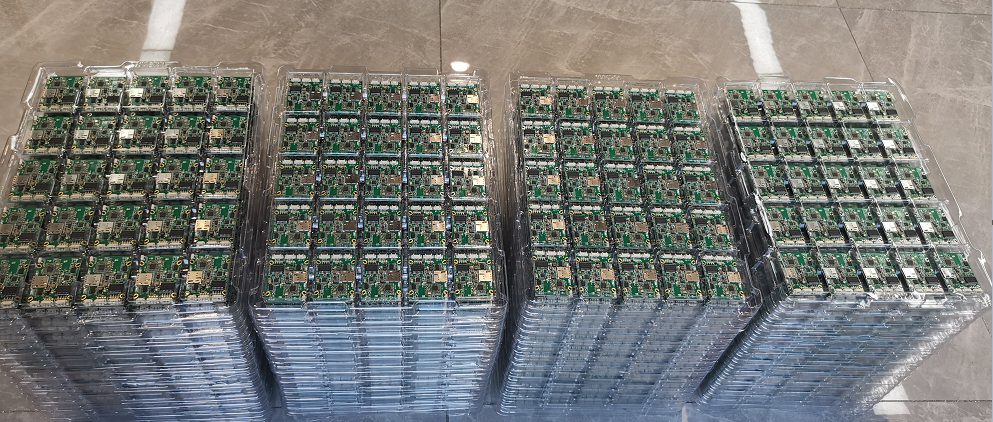

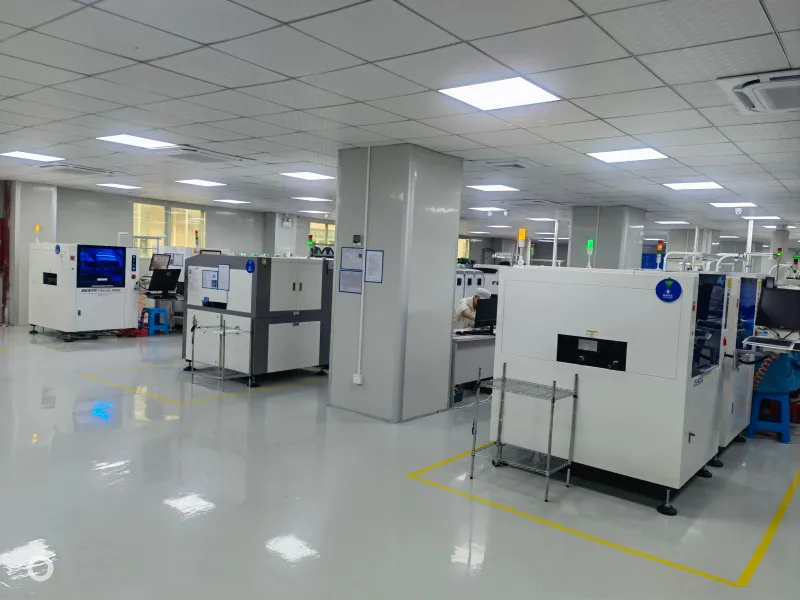

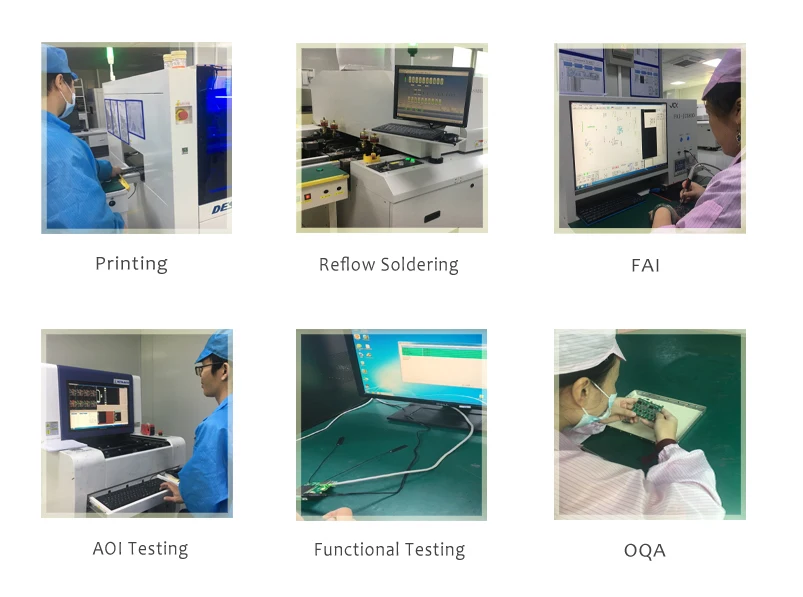

Production Process & Warehouse

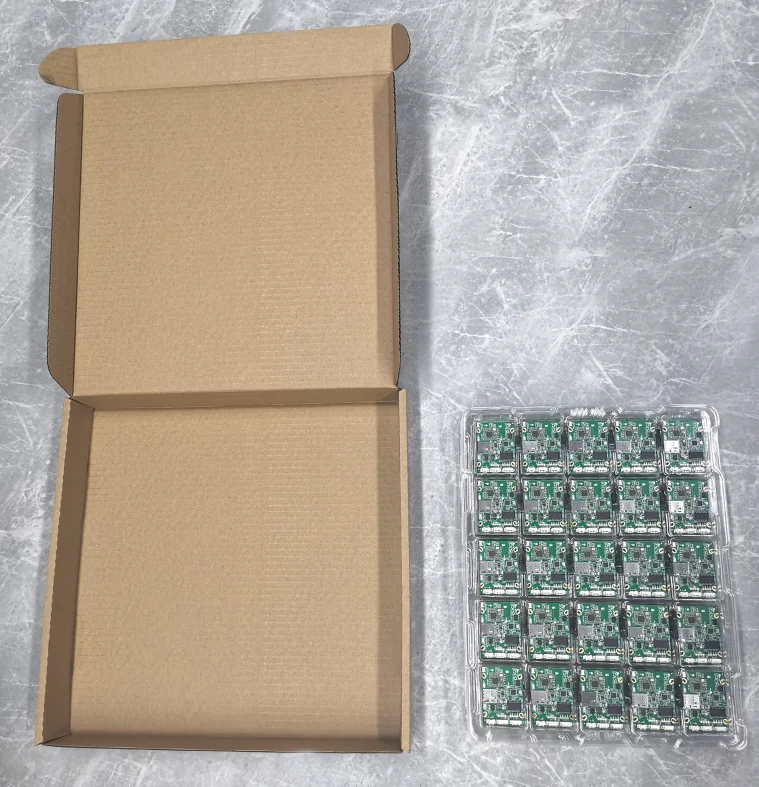

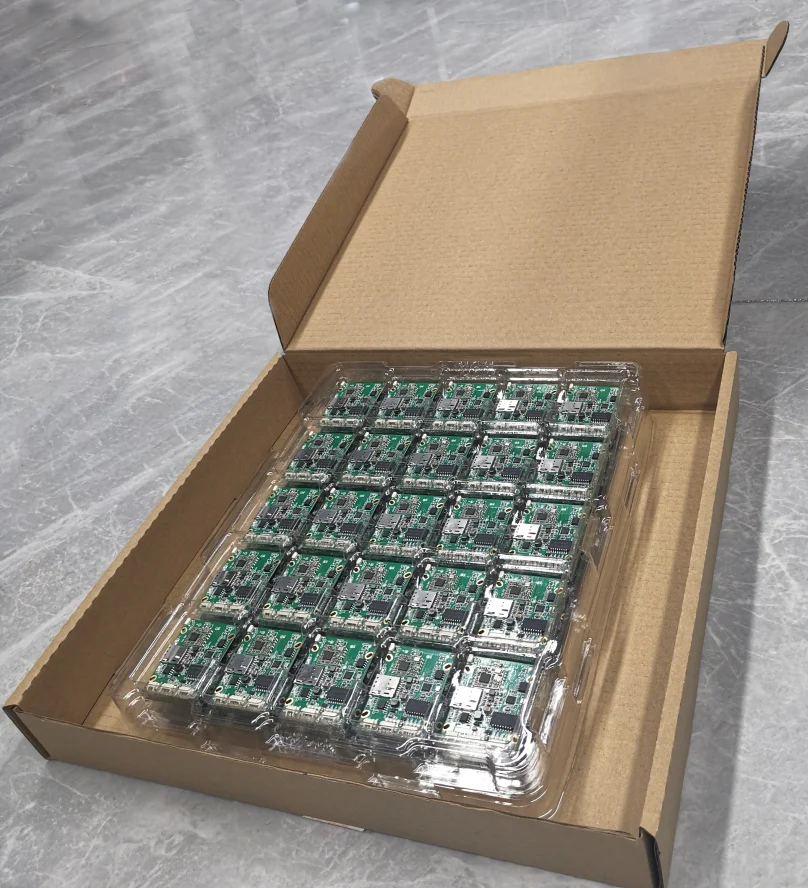

Product packaging
1pcs PCBA size | 51*38*9（mm）/ 16g |
1pcs plastic tray size | 315*250*26 mm |
1 small box size | 360*340*52 mm |

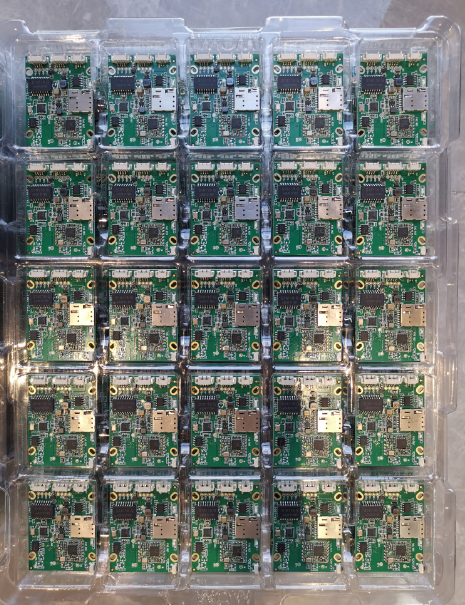

1pcs plastic tray | 25pcs PCBA |
1pcs box | 100pcs PCBA （4 plastic tray） |
1carton | 600pcs PCBA （6 box） |
Carton size | 400*380*290mm |
Gross weight | 10.7kg |
Packaging | plastic tray with carton |

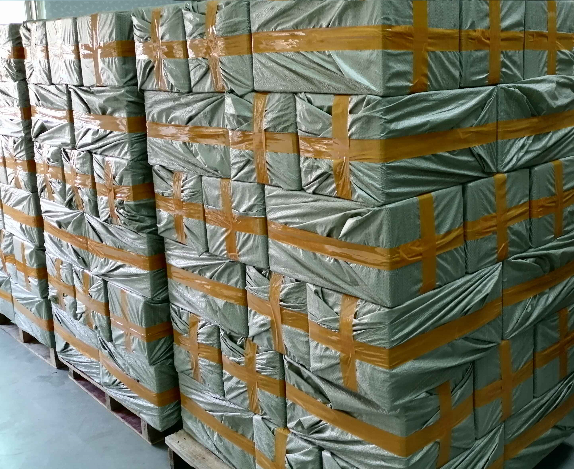

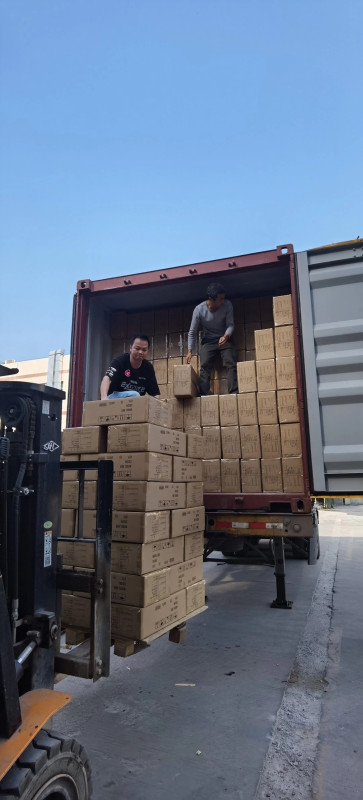

Shipping & Loading
Shipping we are so professional
Ocean Sea Shipment: Loading Container for Bulk Cargo.
Air Shipment: Try Order/ Small Order.
Lead Time:
Sample : 5 working days
Standard Bulk： 10-15 working days.
OEM/ODM order 25-30 working days.
Trade Term:
FCA/FOB SHENZHEN /GUANGZHOU
Payment Terms:
30% T/T as deposit should be paid before production ,70% T/T should be paid before delivery after inspection.
Company Profile
Habolink Technology Co.,Ltd. is a wireless communication solution provider, boasting rich experiences in functional wireless IoT modules & solutions, and providing all-around quality assurance in each and every step. Our products have been widely used in IoT/M2M fields including wireless gateways & routers, video surveilance, smart energy, agriculture and environment monitoring etc.
FAQ
Q1: Are you a factory or trading company?
A1: We are factory,has professional pre-sale and after-sale service team, supplying OEM/ODM service.
Q2: What's your minimum order quantity?
A2: Our MOQ is not the same based on different items. Small orders are also welcome, but the unit price is also difference from wholesale price.
Q3: What package do you use for the products?
A3: Usually we have professional retail package for the products. Customized package are also available based on certain MOQ.
Q4: Can you offer free sample?
A4: We can not offer sample free, but we will return back the sample cost from the next bulk order.
Q5:Is there any test before delivery?
A5:Yes, all the products will be inspected by our QC before shipment.
Q6: How can I contact you?
A6: About product details, you can contact me by following information
Chat on alibaba
WhatsAPP : +86 18871497815
Wechat : Fang-6561
WhatsAPP : +86 18871497815
Wechat : Fang-6561
