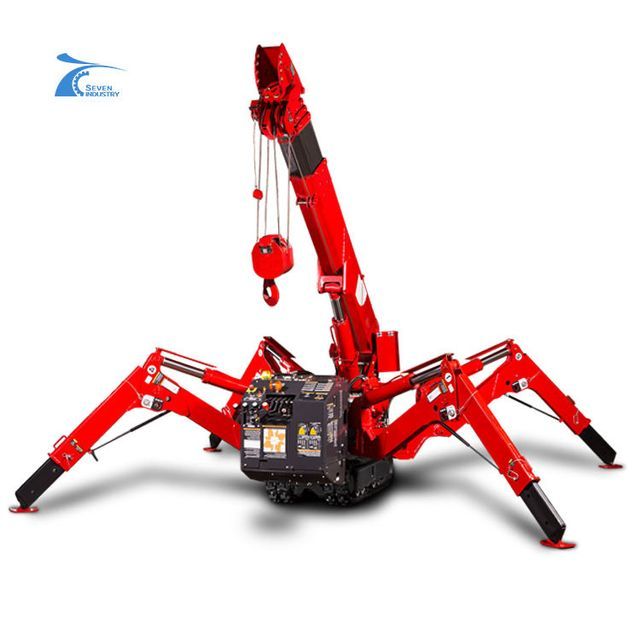

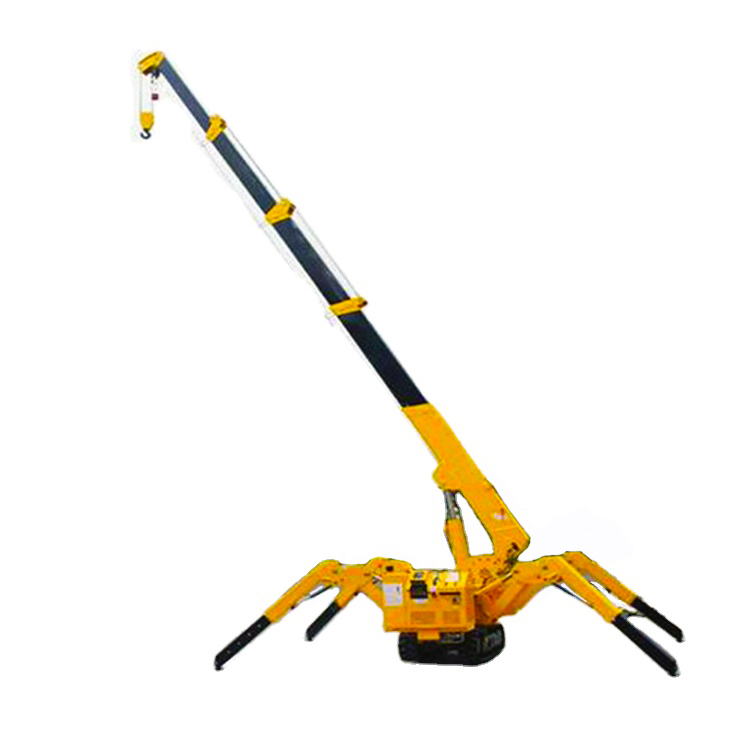

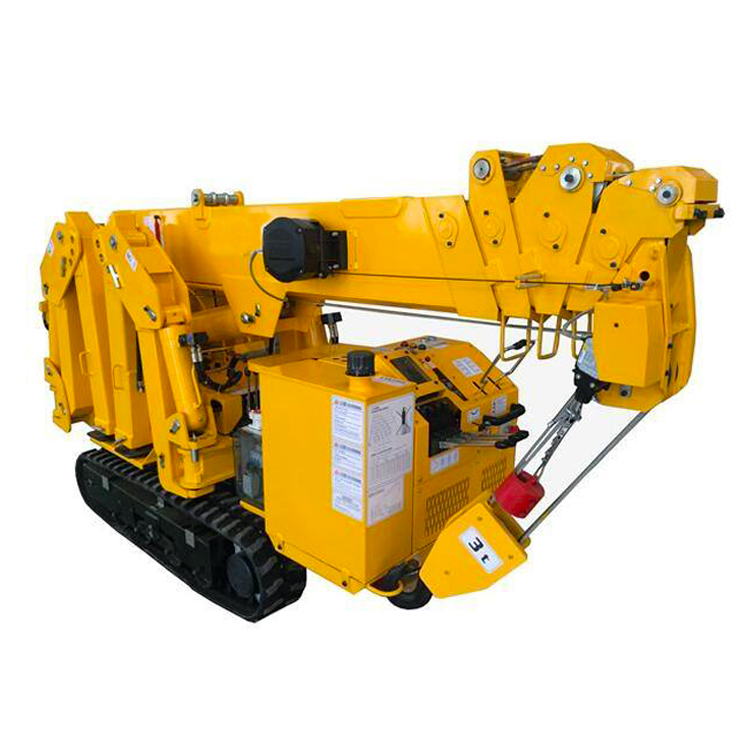

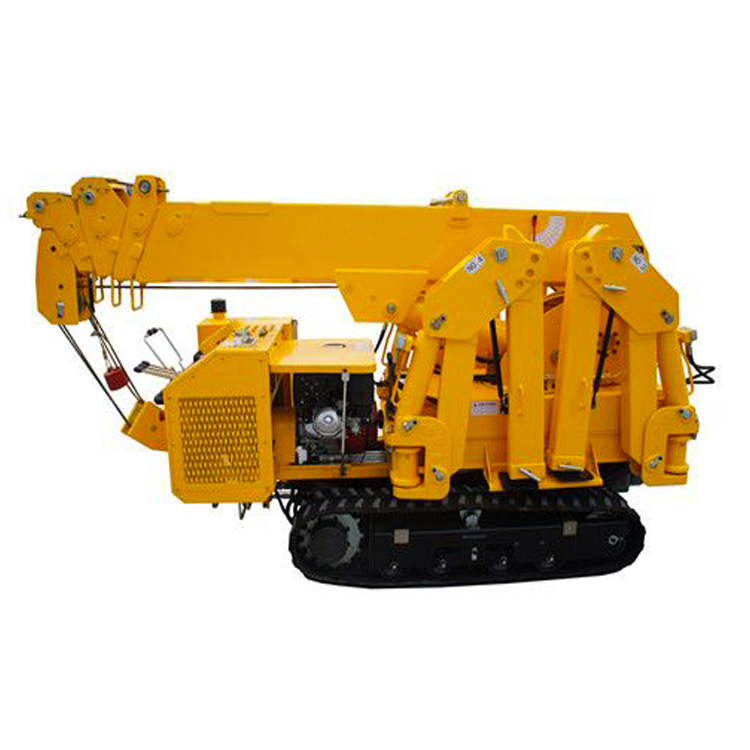

Small miniature spider crane hydraulic telescopic outrigger crawler crane in narrow space
- $4000.00 /set
- 1 set
- Henan Seven Industry Co., Ltd.
- Henan, China
- Mr Adam Wang
PRODUCT DETAIL
| brand: | Accept OEM | Applicable industries: | Hotels, building material stores, manufacturing plants, food and beverage plants, farms, domestic use, print shops, construction works, energy and mining, food and beverage stores, workshops and warehouses |
| application: | narrow space | Video outbound inspection: | if |
| Warranty: | 1 year | Package preview: | |
| Marketing type: | Hot Products of 2019 | Key words: | Mini Spider Crane Hydraulic Telescopic Outrigger Crawler Crane |
| Rated lifting moment: | 8.3M | brand: | Qihe |
| Supply capacity: | 2000 sets per month | color: | custom made |
| Key words: | cargo ship crane | Crane type: | Spider crane mobile crane hydraulic crane |
| feature: | other | Health status: | new |
| capacity: | 1-8 tons | Rated load capacity: | 3MT |
| usage: | Lifting cargo | Core components: | Engines, bearings, gearboxes, motors, pressure vessels, gears, pumps |
| Model: | SS3.0 | span: | 8.3M |
| type: | flexible | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| Mechanical test report: | if | Core component warranty: | 1 year |
| Weight (kg): | 20000 | maximum. Lifting height: | 9.2M |
| Name: | Small crawler crane | Place of origin: | Henan, China |
| Packaging details: | Steel Structure........................Plastic Panel Components........................ .................... ........Fumigation wooden box |
mini spider hangingCommonly used for cargo handling in the transportation industry, material movement in the construction industry, and heavy equipment assembly in the manufacturing industry. It can be used to install glass curtain walls, petrochemical pipelines, railway construction, workshop machine inspection and maintenance, electric power construction or municipal construction.

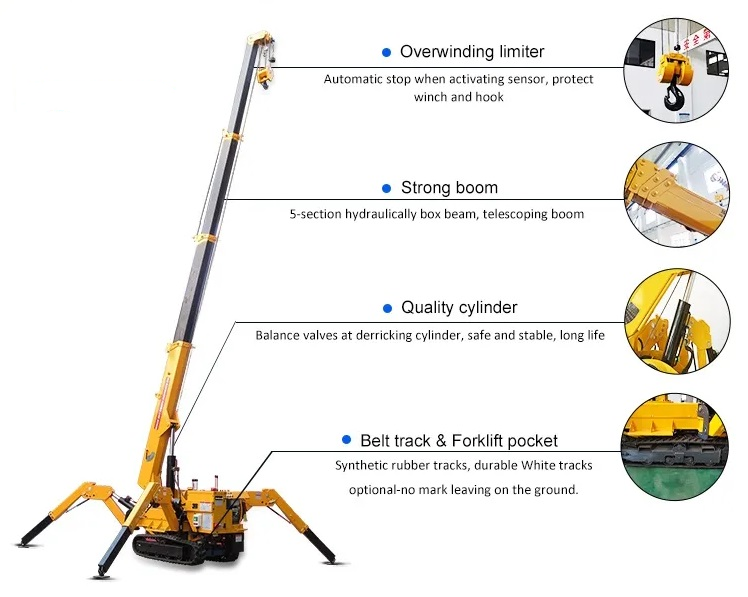

Model | spider | ||
Lifting capacity | 3.0TX 1.3m | ||
Maximum working radius | 8.45m | ||
Maximum lifting height | 9.5m | ||
winch | Hang up speed | 5.5m/min (4 drops) | |
Wire rope diameter and length | φ8mmx50m | ||
telescopic system | Boom length | 2.56-8.92m | |
Telescopic speed | 6.36m/25 seconds | ||
Boom type | Five-section hydraulic box girder, telescopic arm | ||
Derek | Launch angle/speed | 0-75°/25 seconds | |
turn around | Rotation angle | 360° (continuous) 0.6rpm | |

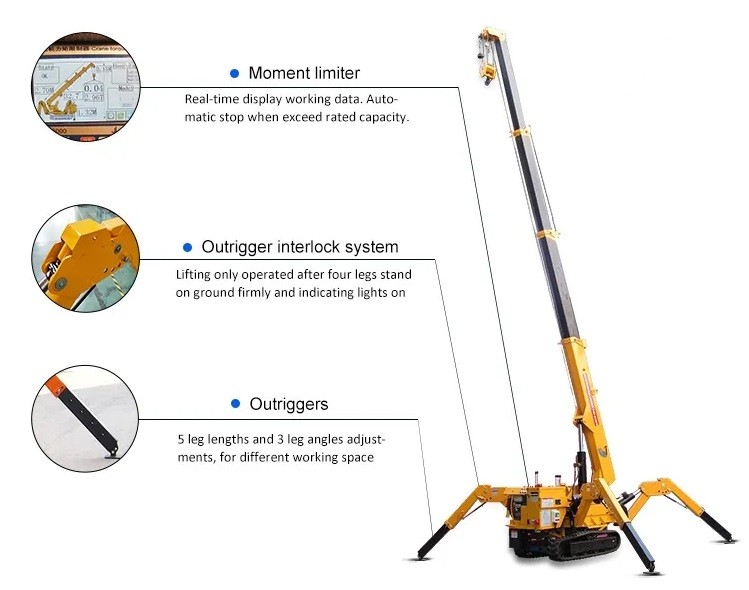

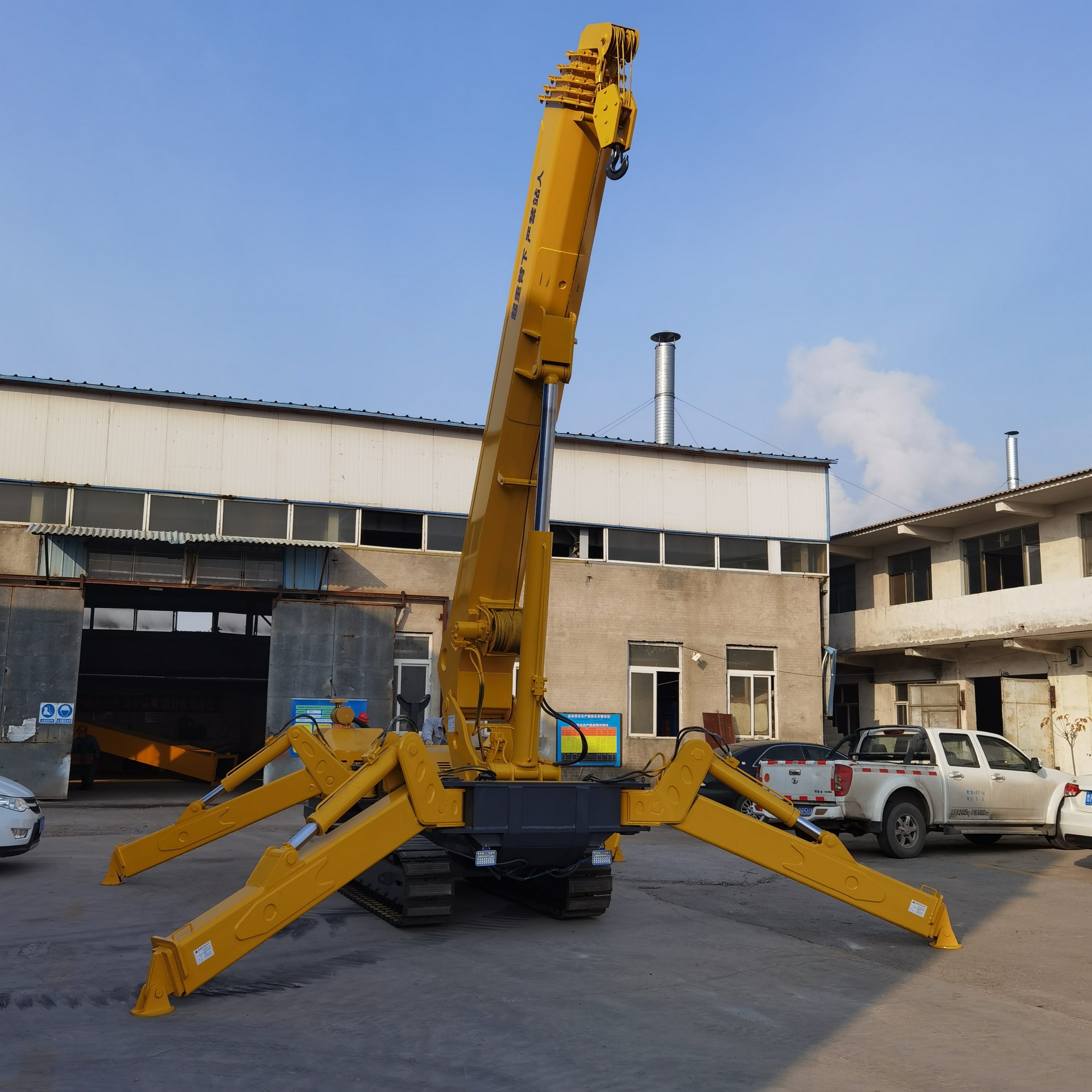

Outrigger | Outrigger form | The first stage - automatic The second stage - manual | |
Maximum extension range | The distance between the two legs is 4.04m (width) x 3.47m (length) | ||
Traction system | drive | Hydrostatic, stepless forward and reverse | |
Driving speed | 0-3km/h | ||
Gradeability | 30% | ||
track | synthetic rubber | ||
Track ground length | 1.4m | ||
Track ground pressure | 36Kpa | ||
track width | 200mm | ||
Dual power supply optional | Diesel + electric motor Gasoline + electric motor | ||
engine | strength | 3kW | |
Voltage | 380V/50Hz and other optional | ||
remote control | Operation | Boom rotation, boom luffing, boom telescopic, hook lifting, emergency stop button (Outriggers and walking optional) | |

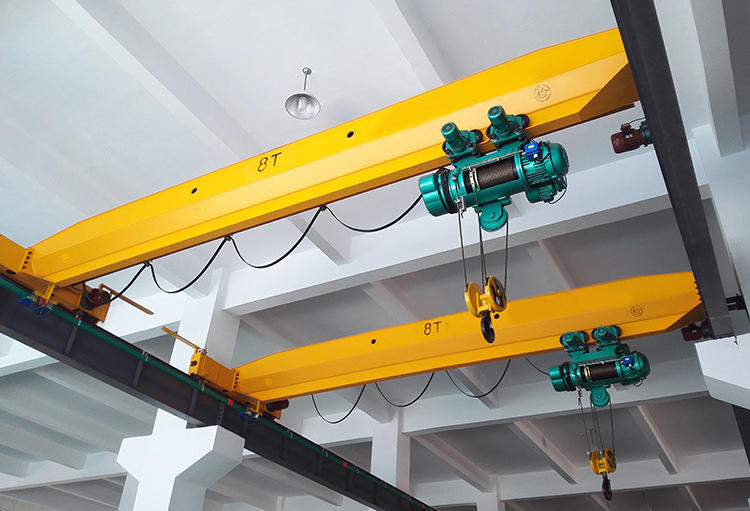

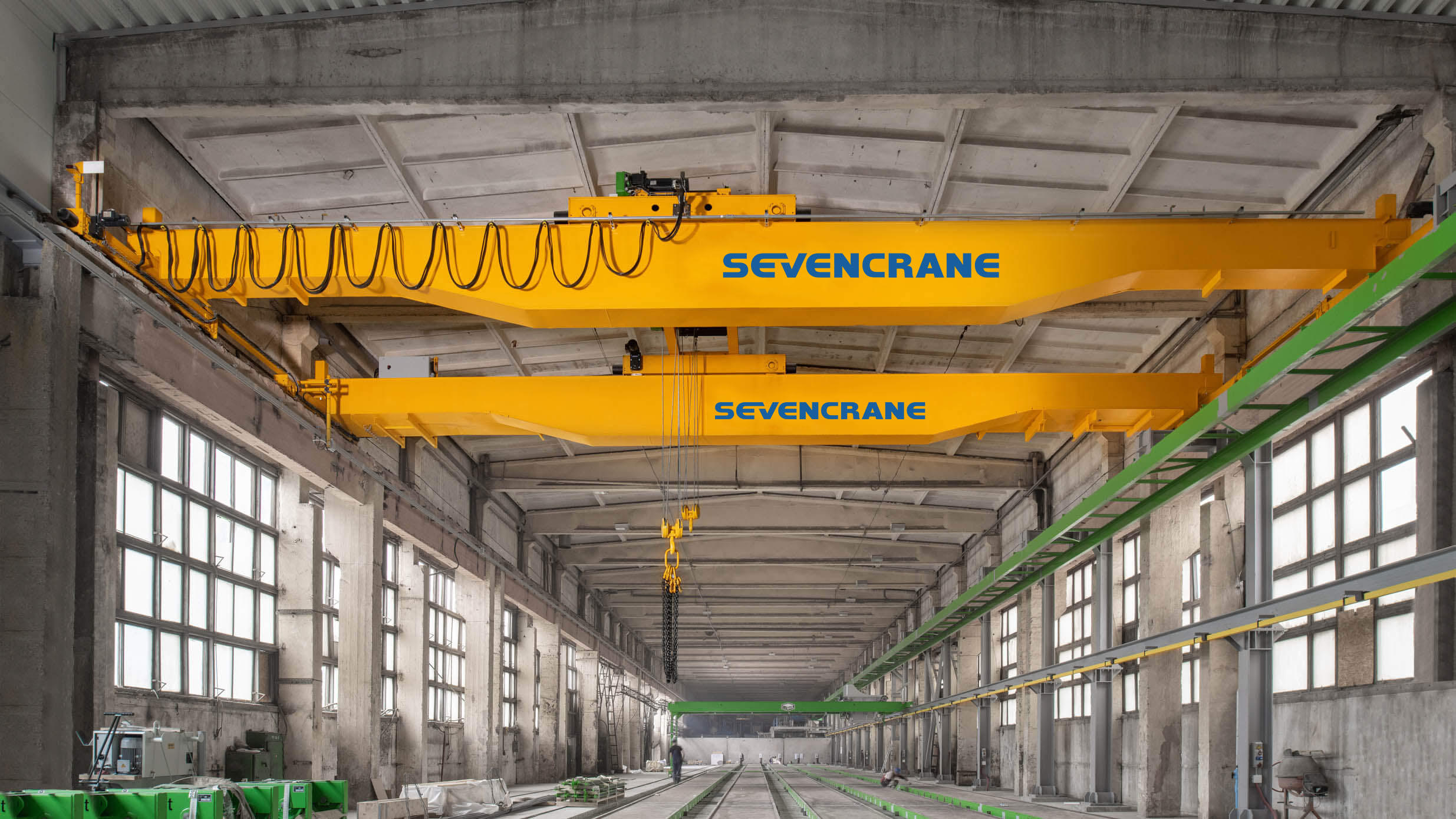

This bridge crane has the advantages of compact structure, strong rigidity, easy operation, low noise, safety and reliability, beautiful appearance and outstanding structural design.
The main beam and the end beam are connected by bolts, making disassembly and assembly easy and fast.

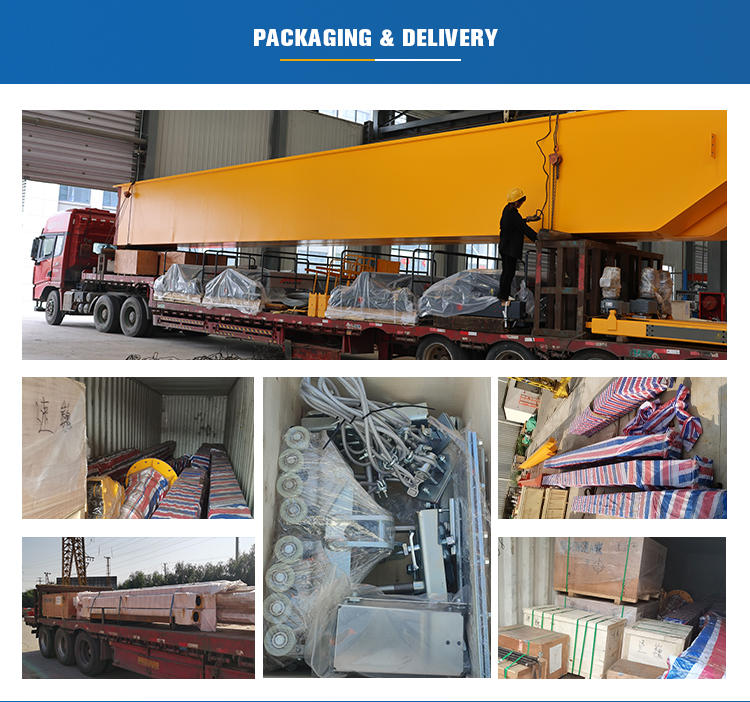

Installation and transportation.
Installation and transportation.
All parts of the bridge crane are made of high-quality and sophisticated parts, which greatly ensures the service life of the bridge crane.

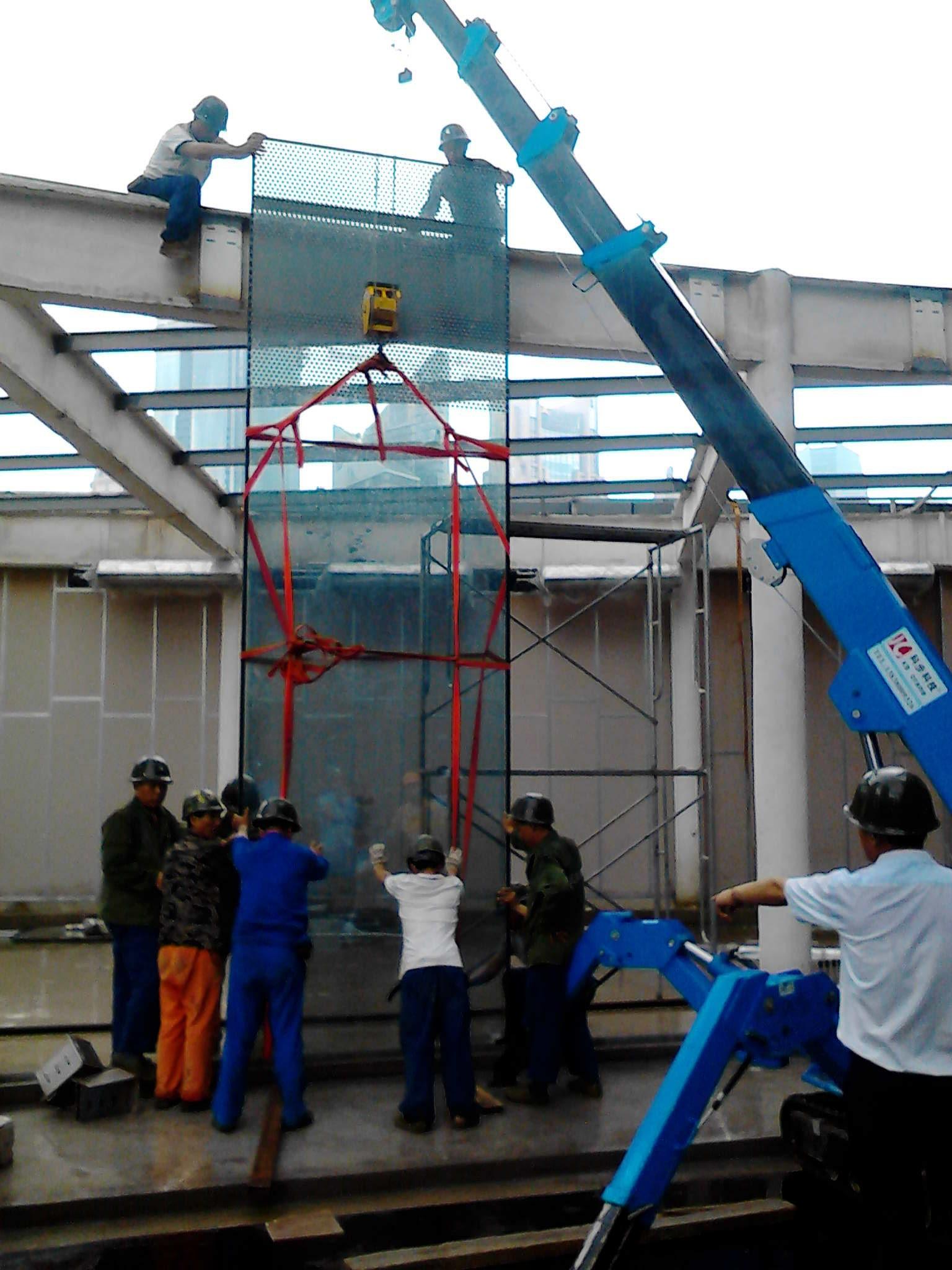

Glazing and Glass Engineering

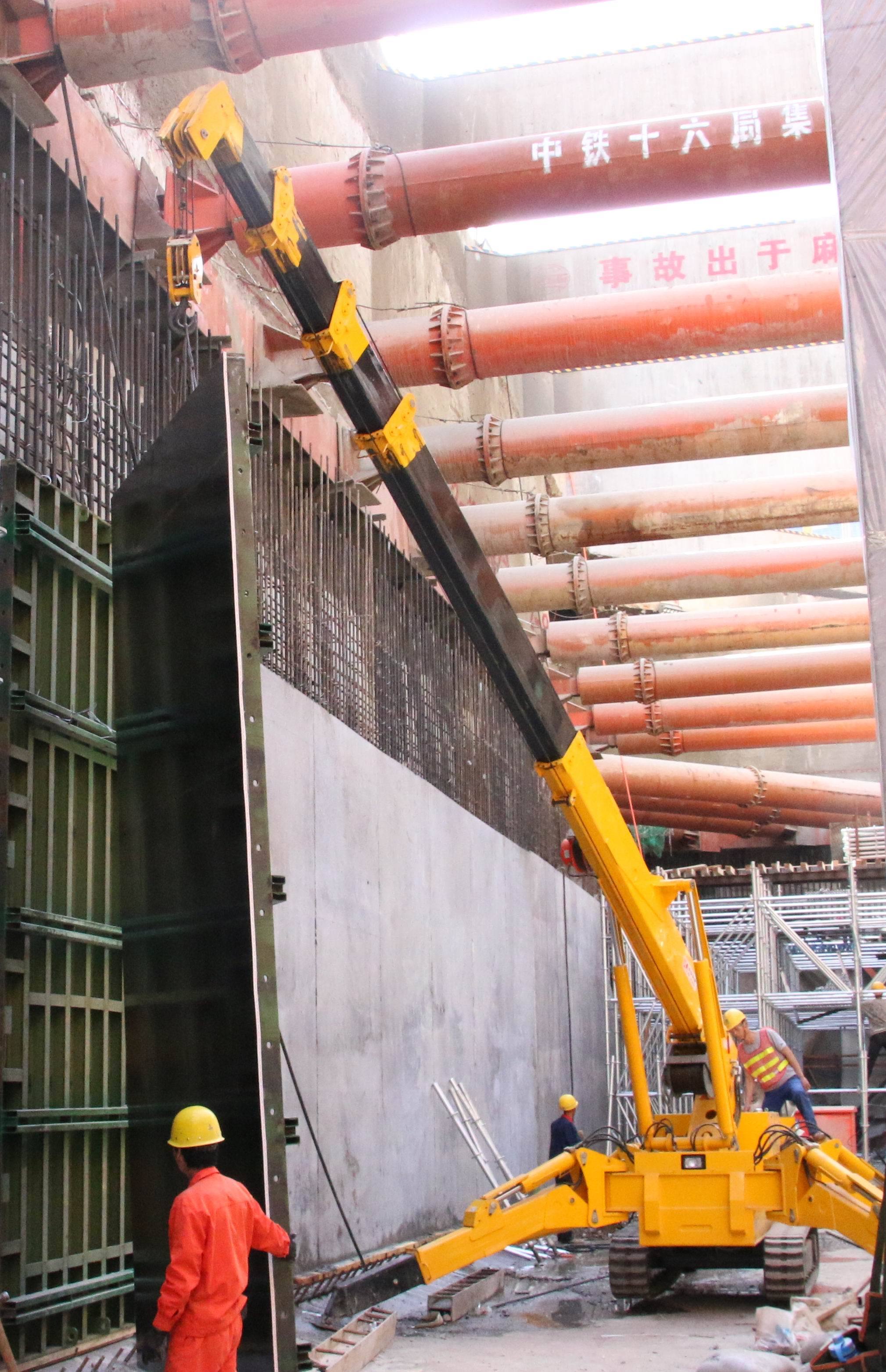

Subway installation

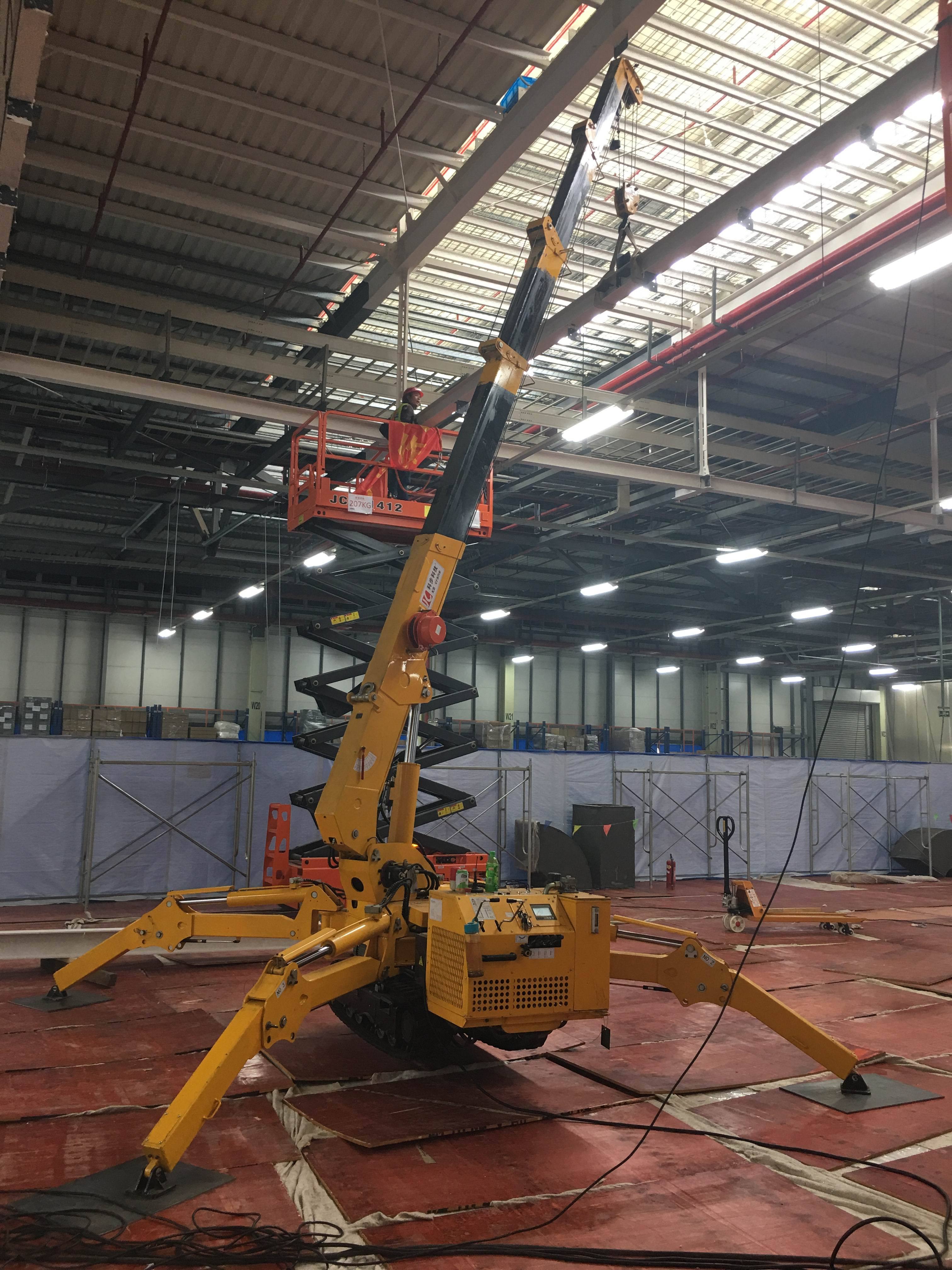

factory
spider craneSuitable for cargo handling in the transportation industry, material movement in the construction industry, and heavy equipment assembly in the manufacturing industry. Especially effective for operations in confined spaces. It can be used to install glass curtain walls, petrochemical pipelines, railway construction, workshop machine inspection and maintenance, electric power construction or municipal construction.
