Small plastic hose coiler PP PE PVC hose coiler Coiler 16-110mm
- $2000.00 /set
- 1 set
- Zhangjiagang Huede Machinery Co., Ltd.
- Jiangsu, China
- Mr Paul Yu
PRODUCT DETAIL
| application: | PERT PP PE PPR PA PVC pipe hose winding | Inner diameter range: | 16 |
| Main selling points: | easy to operate | Winder design: | Winding machine |
| Outside diameter range: | 110 | Supply capacity: | 50 sets per month |
| Material: | steel products | brand: | Air compressor |
| Packaging Details: | PE winding or fumigation-free wooden box packaging | Video shipment inspection: | if |
| Arrange width: | 40 | operate: | 1 worker |
| Core component warranty: | 2 years | weight: | 230 kg |
| Package preview: | Spool capacity: | 50 | |
| Dimensions (L*W*H): | 2500x1600x2300 | place of origin; place of origin: | Jiangsu, China |
| State of health: | new | Applicable industries: | factory, construction |
| Torque motor: | 25 nautical miles | automatic: | fully automatic |
| name: | Hose winding machine | payment terms: | L/C, T/T |
| Rope Diameter: | 3-12mm | station: | PE pipe double winding machine |
| brand: | Hyde | Warranty: | 2 years |
| strength: | 25 nautical miles | Showroom location: | Egypt, Canada, Turkey, United States, Italy, France, Philippines, Brazil, Peru, Mexico |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Mechanical test report: | if |
| Auxiliary machine: | heating knife | Marketing Type: | New Products 2020 |
| port: | Shanghai Port, China | Voltage: | 380-440 |
Product Description
Automatic plastic hose coiler PP PE PVCtube winder 16-110mm
Thisplastic hose reelIt is mainly used for rewinding and packaging of aluminum-plastic composite pipes, cross-linked composite pipes and other plastic hoses. Automatically adjust the winding speed and winding method. ThisHose winding machineThere are two disks for continuous winding. The hose reel adopts pneumatic method. The take-up wheel rib adopts pneumatic opening and closing. Thisplastic hose reelEquipped with automatic yarn arrangement on the creel. Thishose reelTo achieve an orderly liquidation. ThisHose winding machineCompact structure. It is highly automated. Beautiful appearance and easy operation. 1. Adjustable winding speed and solid machine structure 2. Beautiful machine appearance, high quality machine, competitive price 3. 1 year warranty video 4. Long service life and easy operation 5. ISO-9001

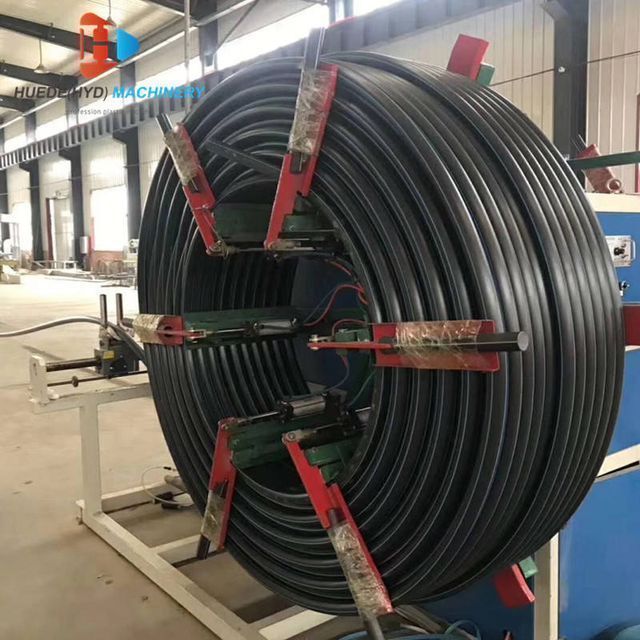

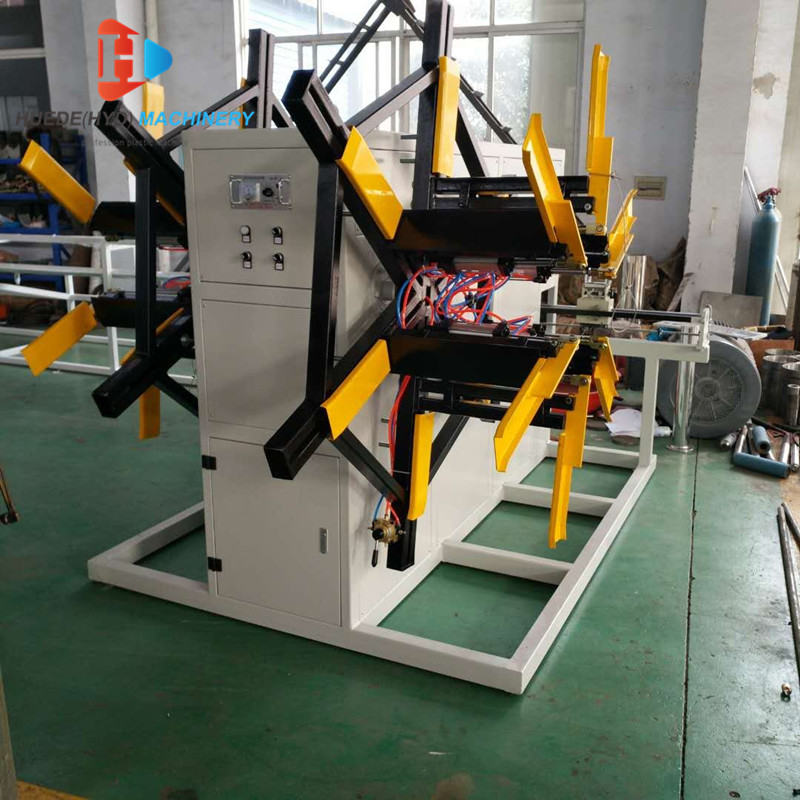

detailed drawing
Product parameters
Hose Reel | ||
Model | AW600 | |
Coil inner diameter | 550-1500mm | |
Winding speed | 0.5-40m/min | |
Rewinding width | 300-500mm | |
pipe diameter | Ø16-110mm | |
air pressure | 0.6mpa | |
torque motor | 25 nautical miles | |
Gearbox | WPA120 | |
Cylinder model | SC 50×75 | |
clutch | M3-40A | |
winding displacement | GP40 | |
Dimensions (mm) | 2300×1550×2200 | |
weight | 800KG | |
