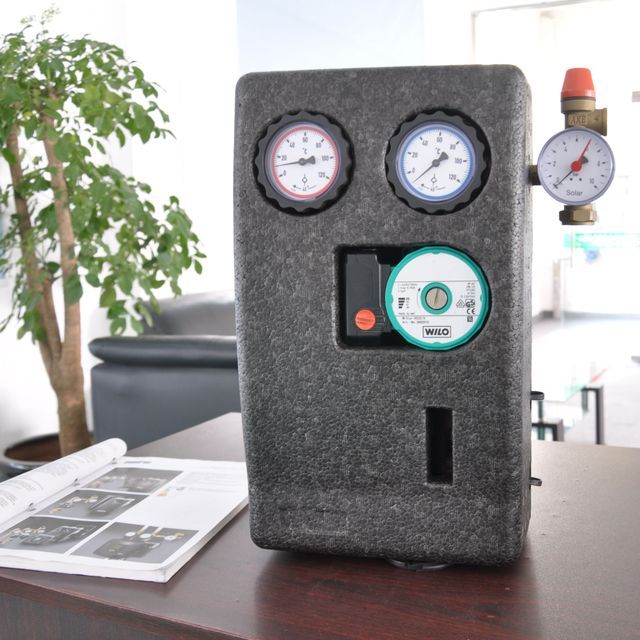

Split solar water heating system pumping station with controller
- $169.50 / 2 - 9 sets
$157.00 / 10 - 99 sets
$139.00 / >=100 sets - 2 sets
- Zhejiang Handa New Energy Co., Ltd.
- Zhejiang, China
- Ms sabrina sun
PRODUCT DETAIL
| brand: | Ville | Packaging Details: | Carton/Wooden Pallet/Wooden Box |
| type: | Circulation pump, solar water heater accessories | Connection Type: | Split type |
| waterproof level: | IP40 | Origin: | Zhejiang, China |
| Warranty: | 1 year | Supply capacity: | 1000 pieces per month |
| port: | Ningbo, Shanghai | Material: | Stainless steel |
| Tank temperature measurement: | 0°C - 99°C | Energy source: | electrical |
| payment terms: | L/C, D/P, D/P, T/T | power supply: | AC 200V~240V/100V~120V |
| Temperature Measurement Accuracy: | ±1°C | Package preview: | |
| application: | Heating system, hotel, commercial, household | model: | HCP-Ville |
| aspect: | 439*210*158mm | After-sales service provided: | Free spare parts, on-site maintenance and repair services |
| Safety valve response pressure: | 0.6 MPa |
Technical data
type | HWS-SP116 | ||||||
aspect | 380*220*140mm | ||||||
strength | 200V-240V AC or 100V-120V AC | ||||||
power loss | <3W | ||||||
Temperature measurement accuracy | Within 1°C | ||||||
Temperature range | PT1000: 0-199°C NTC10K: 0-99°C | ||||||
System working pressure | 0.8MPa | ||||||
Safety valve response pressure | 0.6 MPa | ||||||
Wilo water pump model | SR15/6 | ||||||
threaded coupling | 1/2 inch | ||||||
waterproof level | IP40 | ||||||
pipe material | brass | ||||||
Function
●Time display
●temperature cycle
●Tank overheating protection
●Emergency shutdown for system overheating●Anti-freezing of pipes and collectors
●Pipeline circulation can be adjusted in three sections
●Auxiliary heating can be adjusted in three stages
●Holiday function
●Antibacterial function
●Three speed levels on circulation pump
●show traffic
●Display system pressure
※main products
1. Compact solar water heater system controller 2. Split solar water heater system controller 3. Solar swimming pool system controller 4. Split solar water heater system workstation 5. MPPT controller 6. Solar charger controller 7. Light controller 8. Copper accessories
9. Brass valve

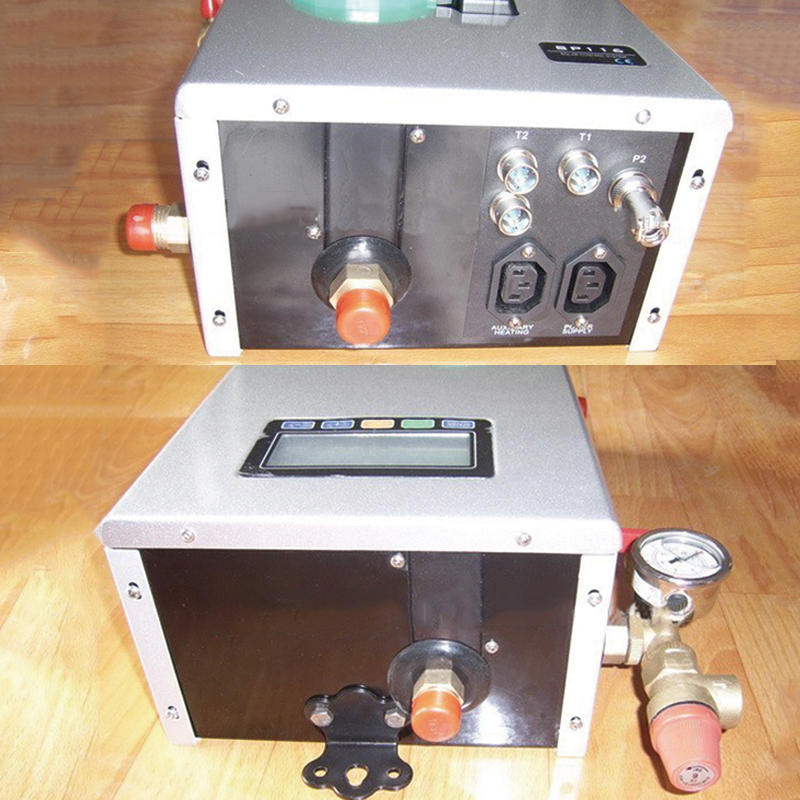

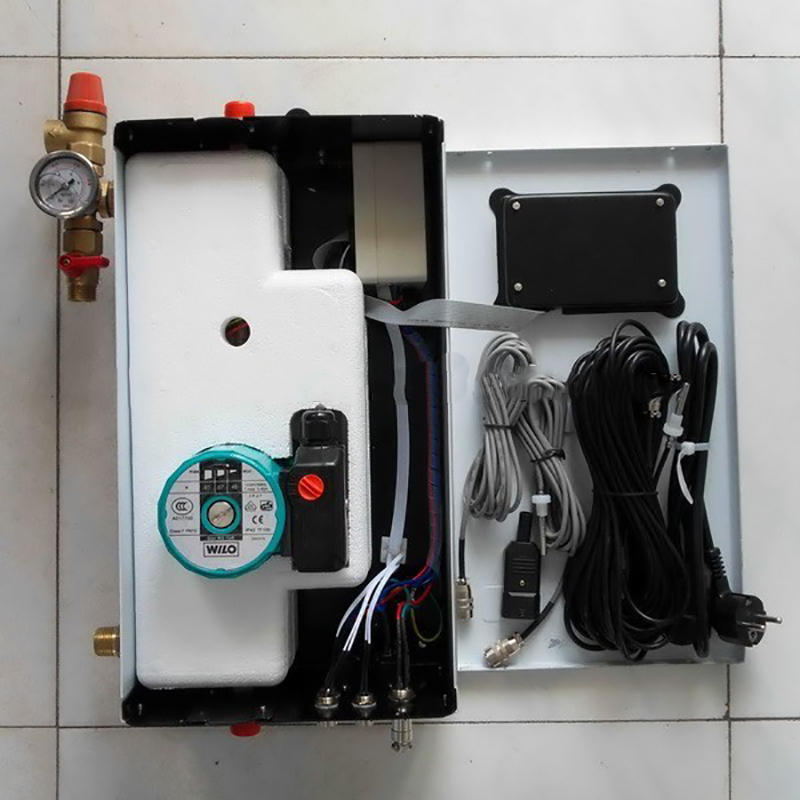

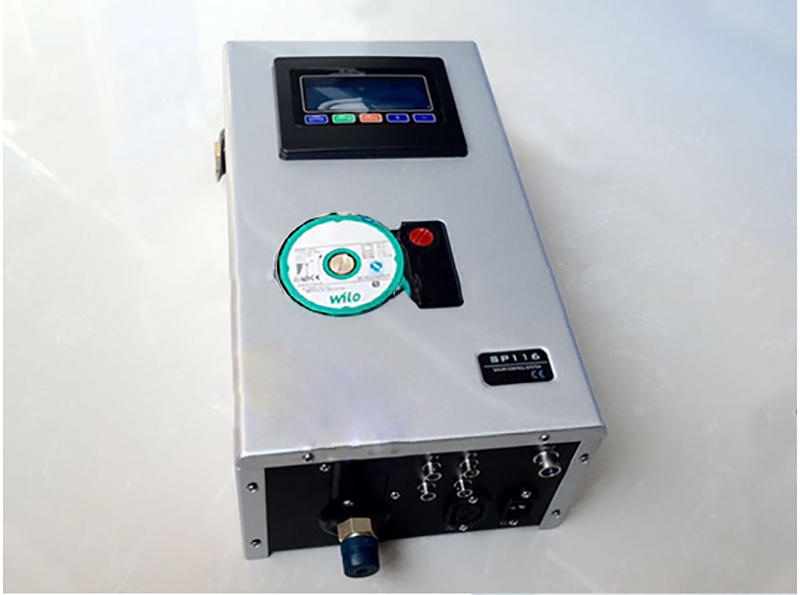

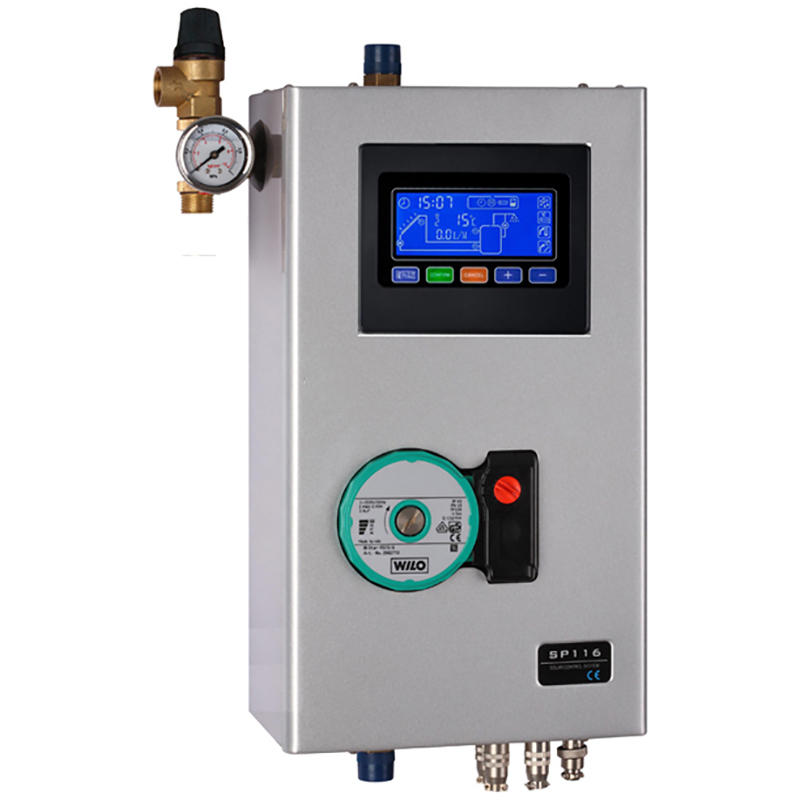

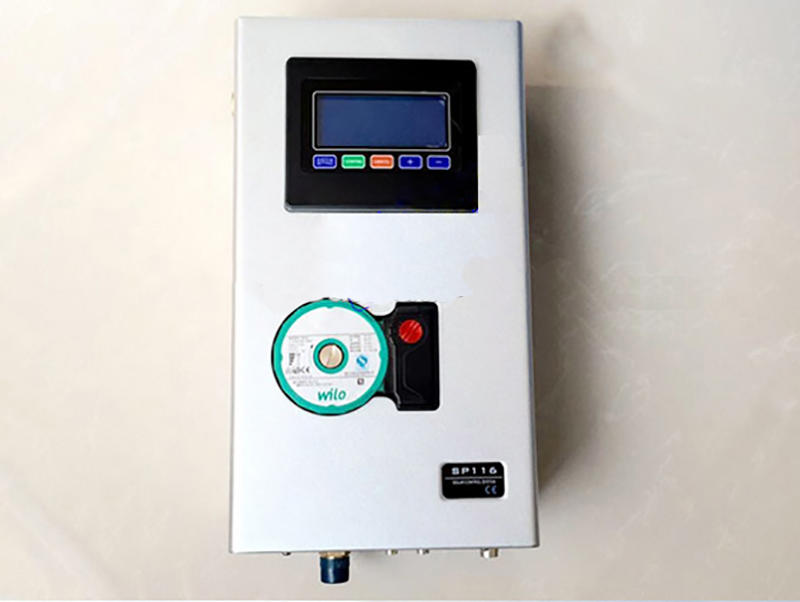

detailed drawing
