Stainless Steel Precision Lost Wax Investment Castings Valve Body Casting and Machining Pump Valves
- $5.20 / >=20 pieces
- 20 pieces
- Foshan Zeren Precision Casting Co., Ltd.
- Guangdong, China
- Ms Doris Lyu
PRODUCT DETAIL
| product name: | Valve body casting and machining | usage: | valve body |
| type: | valve body | standard: | GB ASTM AISI DIN BS JIS |
| brand: | Zeren | port: | Guangzhou, Foshan, Shenzhen |
| Material: | Stainless steel | Origin: | Guangdong, China |
| Customization support: | Processing | Surface treatment: | sandblasting |
| Packaging Details: | Bubble/plastic bag+carton | Package preview: | |
| payment terms: | L/C, Western Union, T/T, MoneyGram | Key words: | Investment Casting Parts |
| Supply capacity: | 60 tons of precision casting per month | process: | investment casting |
| Certification: | ISO9001:2015 | Warranty: | 3 years |
| application: | pump valve | Serve: | OEM ODM customization |
product display

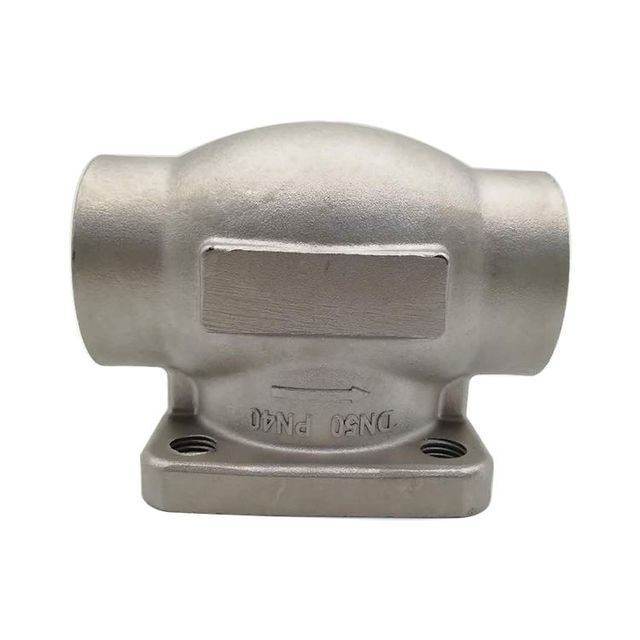

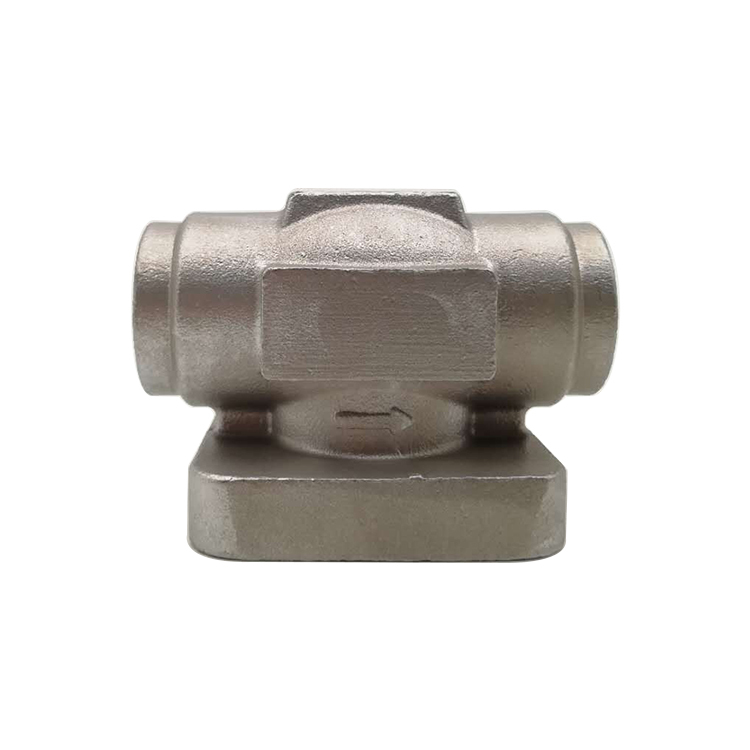

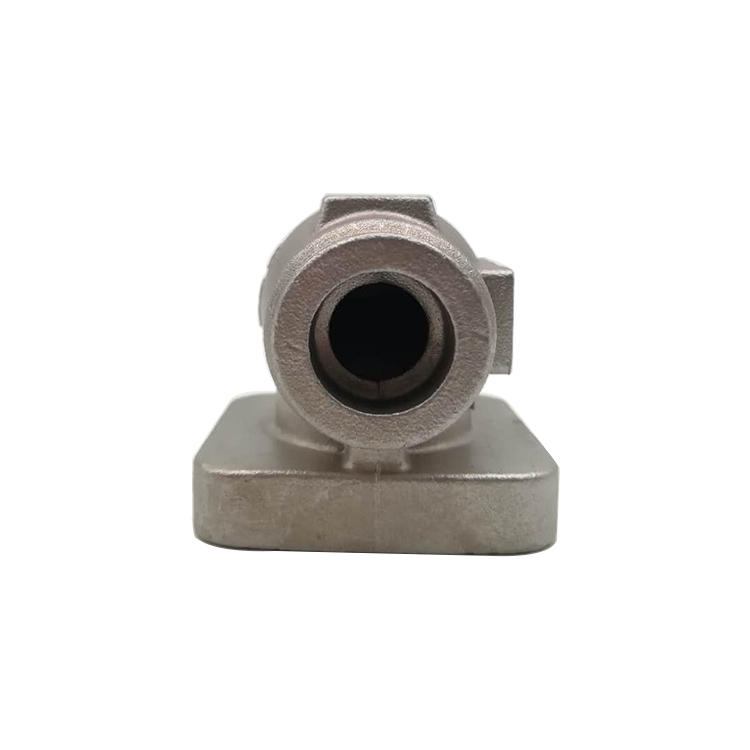

Stainless Steel Precision Lost Wax Investment Castings Valve Body Casting and Machining Pump Valves
Body cast and machined pump valves | |
Custom support |
Product Description
Product General Specifications: | ||
Material | Austenitic stainless steel: 201, 303, 304, 316, 316L, 1.4581, scs14, scs16 | |
Hardened stainless steel: 17-4PH, 410, 420, 440C | ||
Alloy cast steel: 4140, 4150, 4340, 8620, GS-25CrMo4 | ||
Cast alloy tool steel: CS-2, CS-7, CrWMn | ||
Carbon steel: 1020, 1025(WCB), 1030, 1040, 1045, 1050 | ||
weight | 1g-30kg | |
Casting Tolerance | CT4-CT7/GBT6414-1999; VDG Merck Brad P690 | |
Surface roughness | Ra1.6-Ra6.3 | |
thickness | Minimum 2mm (micro area 1mm) | |
casting radius | Circle radius ≥ 0.3mm, inner fillet radius ≥ 0.5mm | |
Blind hole depth | Maximum 30mm (diameter 10mm) | |
processing | Turning, milling, drilling, boring, threading, grinding, CNC machining and testing equipment | |
heat treatment | Annealing, quenching, normalizing, carburizing, aging | |
surface treatment | Black oxide, black coating, anti-fouling flash coating, mirror polished | |
Industry Standard | ASTM, ICI, BS, DIN, JIS, ISO | |
design software | Pro-E, UG, Solidworks, AutoCAD | |
file format | IGS, STP, XT, PDF, JPEG, JPG | |

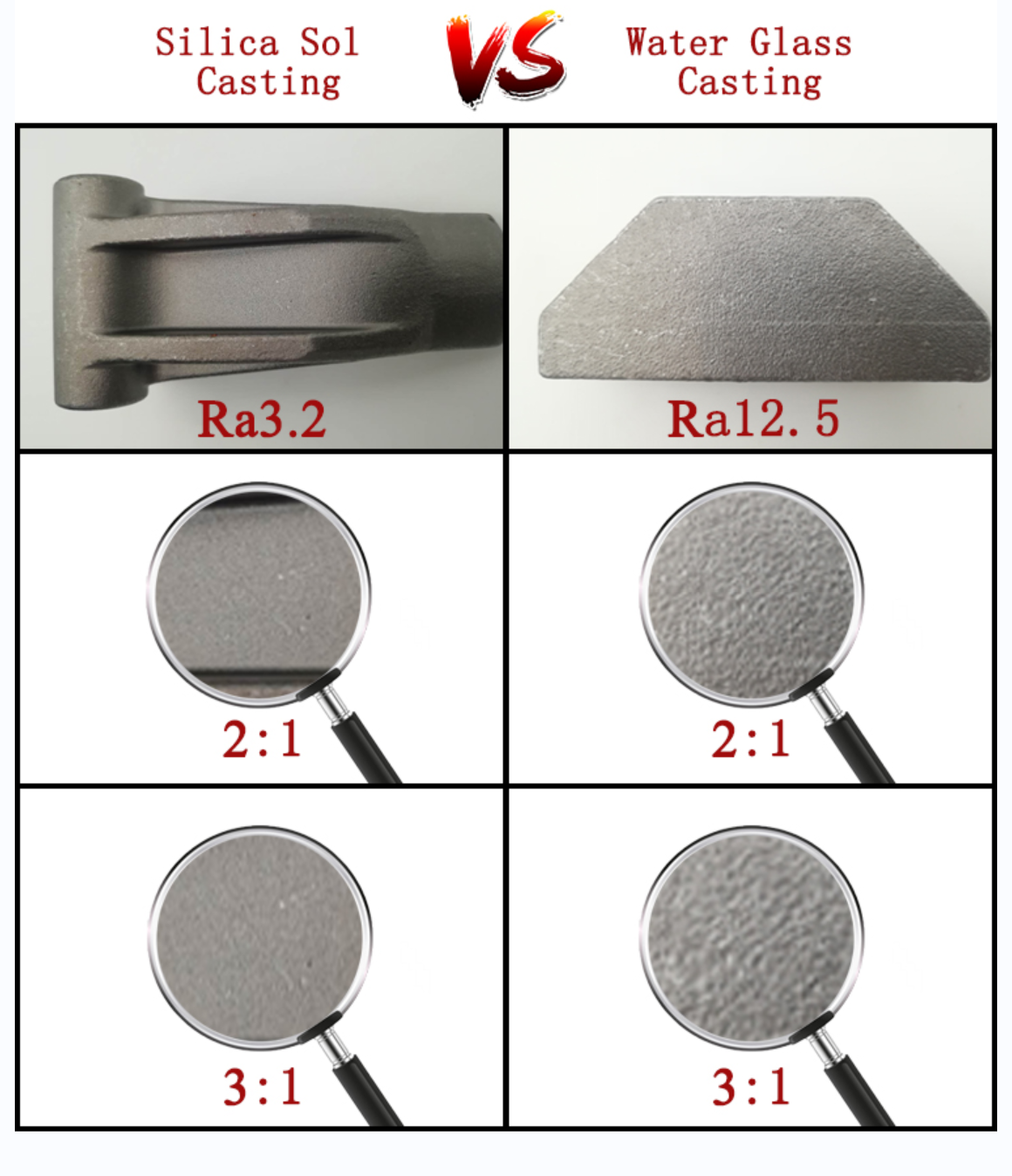

The water glass method is dewaxing in high temperature water, and the ceramic mold is made of water glass quartz sand. Silica sol flash fire dewaxing, silica sol zircon sand to make ceramic molds.
Using silica sol investment casting can obtain better surface roughness Ra3.2.
